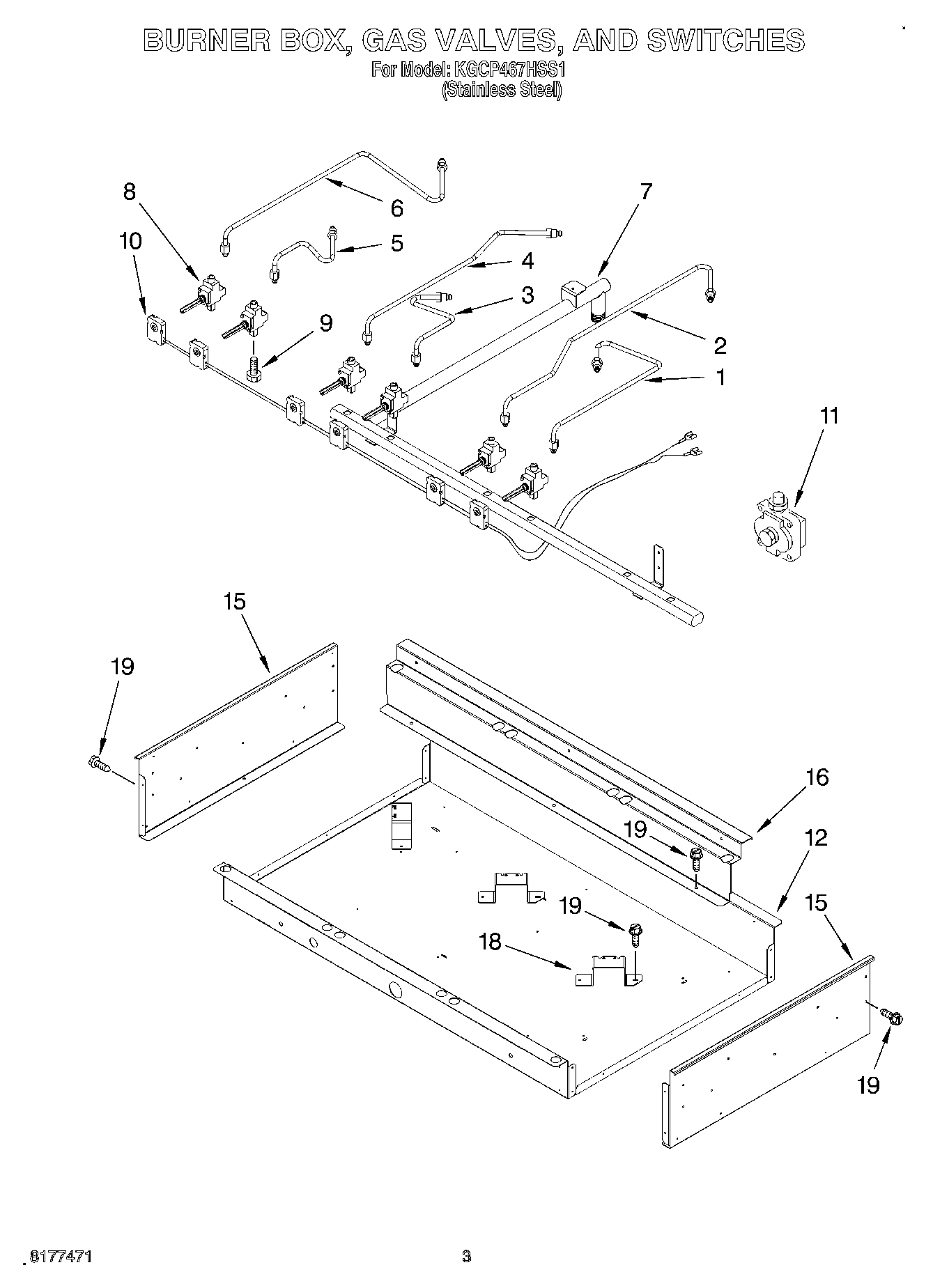

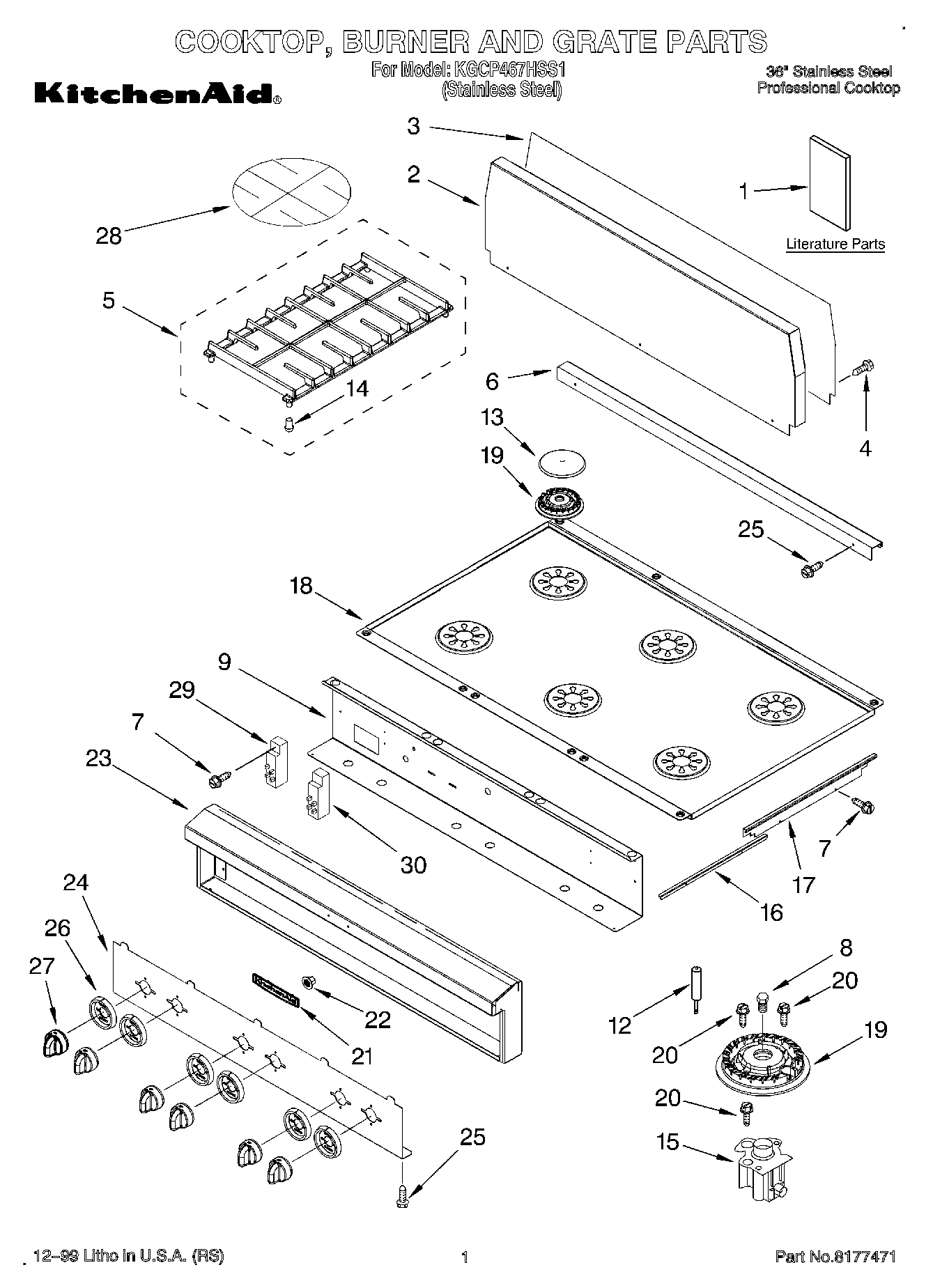

Model Whirlpool KGCP467HSS1 – Common Parts & Diagrams

1
Tubing, Gas Burner - RF
Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability
View on Model
2
Tubing, Gas Burner - RR
Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability
View on Model
3
Tubing, Gas Burner - CF
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
View on Model
4
Tubing, Gas Burner - CR
Tubing, Gas Burner - CR WPL 4455152 Contact Us For Availability
View on Model
5
Tubing, Gas Burner - LF
Tubing, Gas Burner - LF WPL 4455153 Contact Us For Availability
View on Model
6
Trim, Island
Trim, Island WPL 4454962 Contact Us For Availability
View on Model
6
Tubing, Gas Burner - LR
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
View on Model
7
Manifold
Manifold WPL 4454966 Contact Us For Availability
View on Model
8
Valve, Burner
Valve, Burner WPL 3192157 Contact Us For Availability
View on Model
9
Support, Control Panel
Support, Control Panel WPL 4454955 Contact Us For Availability
View on Model
9
Bolt, Valve
Bolt, Valve WPL 307630 Contact Us For Availability
View on Model
10
Burner Switch & Harness Assembly
Burner Switch & Harness Assembly WPL 4455155 Contact Us For Availability
View on Model
12
Burner Box
Burner Box WPL 4454952 Contact Us For Availability
View on Model
13
Cap, Burner
Cap, Burner WPL 4455243 Contact Us For Availability
View on Model
15
Holder, Orifice Includes Orifice
Holder, Orifice Includes Orifice WPL 9754188 Contact Us For Availability
View on Model
15
Side, Burner Box (Right Side)
Side, Burner Box (Right Side) WPL 4454953 Contact Us For Availability
View on Model
15
Side, Burner Box (Left Side)
Side, Burner Box (Left Side) WPL 4454954 Contact Us For Availability
View on Model
16
Support Rail (R.H.& L.H.)
Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability
View on Model
16
Support, Rear
Support, Rear WPL 4455026 Contact Us For Availability
View on Model
17
Trim, Side (Right Hand)
Trim, Side (Right Hand) WPL 4454958 Contact Us For Availability
View on Model
17
Trim, Side (Left Hand)
Trim, Side (Left Hand) WPL 4455029 Contact Us For Availability
View on Model
18
Cooktop, Black
Cooktop, Black WPL 4455033 Contact Us For Availability
View on Model
18
Bracket, Burner
Bracket, Burner WPL 3192811 Contact Us For Availability
View on Model
19
Burner Head 14K
Burner Head 14K WPL 9754181 Contact Us For Availability
View on Model
19
Bushing
Bushing WPL 1129449 Contact Us For Availability
View on Model
19
Harness, Wire Jumper
Harness, Wire Jumper WPL 3191418 Contact Us For Availability
View on Model
19
Harness, Wire Ignitor
Harness, Wire Ignitor WPL 3192230 Contact Us For Availability
View on Model
19
L.P. Orifice Spud Pack
L.P. Orifice Spud Pack WPL 4455353 Contact Us For Availability
View on Model
21
Nameplate
Nameplate WPL 2005292 Contact Us For Availability
View on Model
23
Control Frame
Control Frame WPL 4455217 Contact Us For Availability
View on Model
24
Panel, Control
Panel, Control WPL 4455214 Contact Us For Availability
View on Model
26
Bezel, Knob
Bezel, Knob WPL 4455192 Contact Us For Availability
View on Model
28
Plate, Simmer
Plate, Simmer WPL 4455109 Contact Us For Availability
View on Model
30
Module, Spark 2-Burner
Module, Spark 2-Burner WPL 8053420 Contact Us For Availability
View on Model
