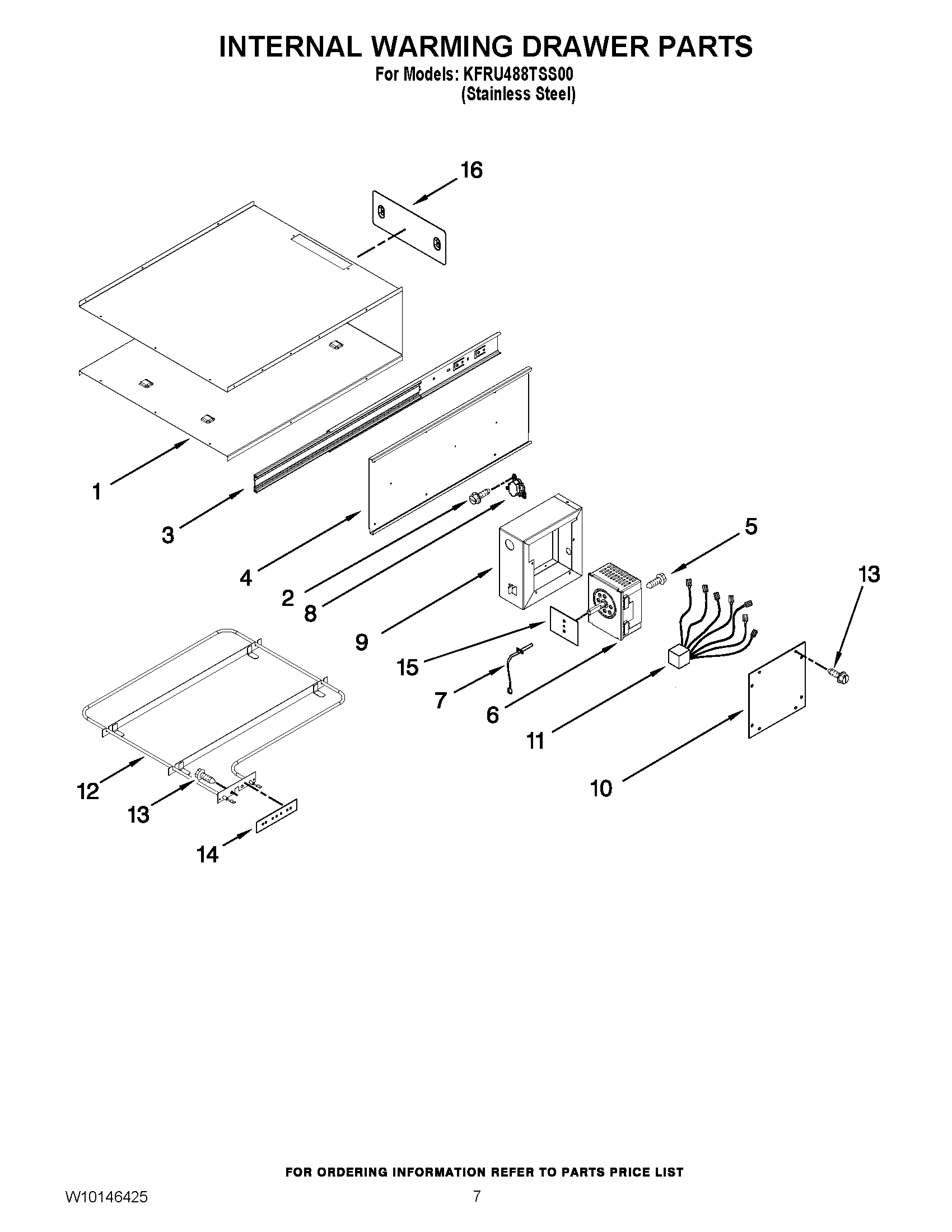

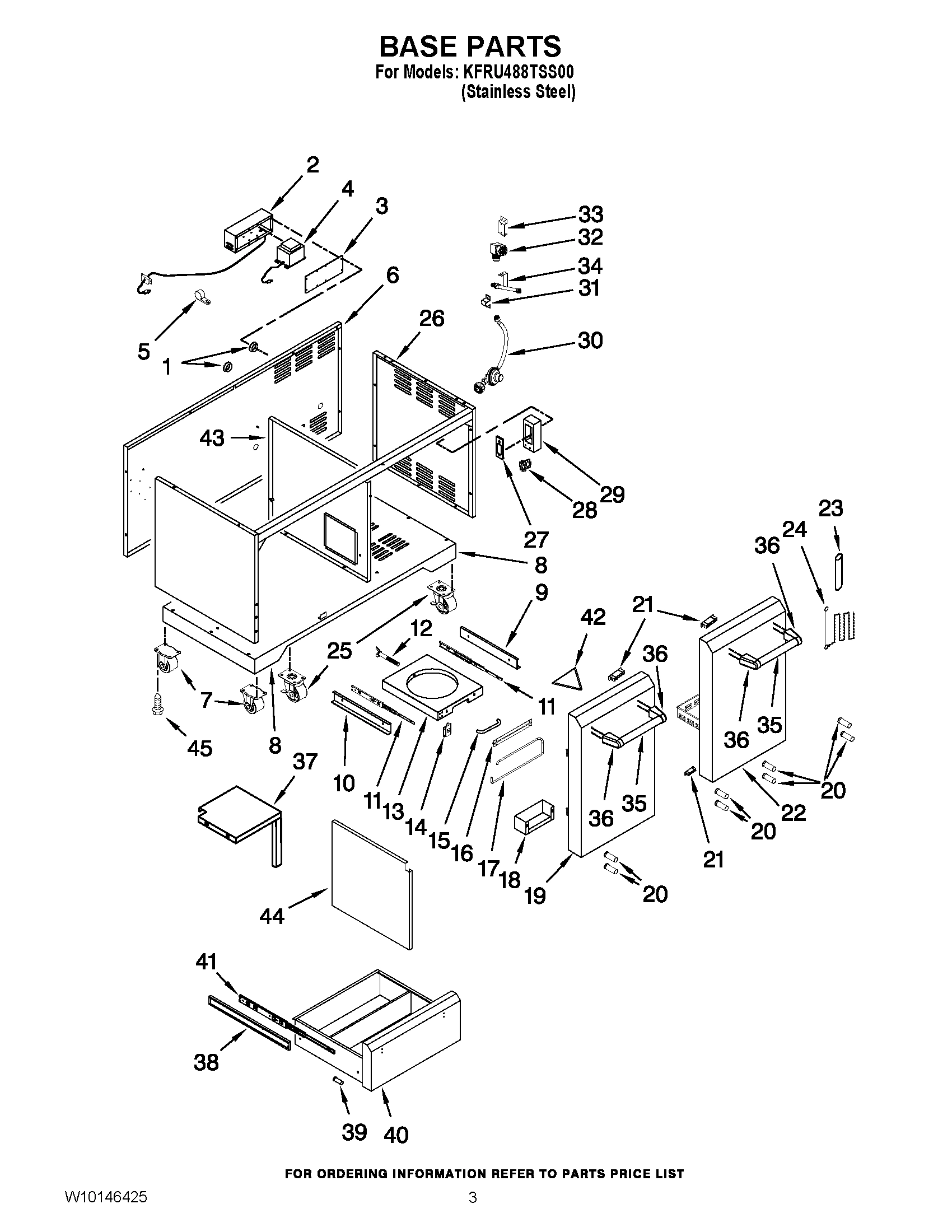

Model Whirlpool KFRU488TSS00 48`` CARTED GRILL – Common Parts &amp; Diagrams

1

Rack, Warming WPL W10140223 Contact Us For Availability

1

WRAPPER WPL W10137884 Contact Us For Availability

1

Grate, Side Burner WPL W10138024 Contact Us For Availability

1

Use & Care Guide WPL W10110725 Contact Us For Availability

1

Conversion Instr. (LP to Natural) WPL W10110730 Contact Us For Availability

2

Screw WPL 313806 Contact Us For Availability

2

Shelf, Side Burner WPL W10140271 Contact Us For Availability

2

Pan, Food (Small) WPL W10137688 Contact Us For Availability

2

Rack, Large WPL W10133860 Contact Us For Availability

2

Cover, Rear WPL W10128619 Contact Us For Availability

3

Slide Assembly WPL W10137691 Contact Us For Availability

3

Tube, Side Burner WPL W10137910 Contact Us For Availability

3

Slide, Vent WPL W10137694 Contact Us For Availability

3

Rack, Small WPL W10133862 Contact Us For Availability

3

Panel, Rear WPL W10140249 Contact Us For Availability

4

W10247025 Whirlpool Oven Surface Igniter Backorder WPL W10247025 $98.79

4

Panel (Left) WPL W10137882 Contact Us For Availability

4

Panel (Right) WPL W10137883 Contact Us For Availability

4

Igniter (Burner, Front) WPL W10136947 Contact Us For Availability

4

Door, Panel WPL W10137876 Contact Us For Availability

4

Plate, Sear WPL W10128618 Contact Us For Availability

4

Panel, Access WPL W10140252 Contact Us For Availability

5

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

5

Electrode Kit, Rotisserie WPL W10134804 Contact Us For Availability

5

Bracket, Handle WPL W10137052 Contact Us For Availability

5

Gasket, Drawer WPL W10137875 Contact Us For Availability

5

Bracket, Panel Left WPL W10128634 Contact Us For Availability

6

W11708324 Whirlpool Control Backorder WPL W11708324 $75.01

6

Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability

6

Handle, Shelf WPL W10138660 Contact Us For Availability

6

Drawer, Warming WPL W10137693 Contact Us For Availability

6

Bracket, Panel Right WPL W10128635 Contact Us For Availability

7

W10137881 Whirlpool Temperature Sensor Backorder WPL W10137881 $93.88

7

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

7

Flex Tube, Rear Burner WPL W10140211 Contact Us For Availability

7

Bracket, Warming Rack (Left/Right) WPL W10128636 Contact Us For Availability

7

Bracket, Warming Rack (Middle) WPL W10140243 Contact Us For Availability

8

W10137879 Whirlpool Thermal Fuse Backorder WPL W10137879 $26.21

8

Shelf, Side (Left) WPL W10137923 Contact Us For Availability

8

Panel, Front WPL W10137870 Contact Us For Availability

8

Burner, Rear WPL W10140227 Contact Us For Availability

8

Cover, Access Panel WPL W10128637 Contact Us For Availability

9

Enclosure, Electric WPL W10137872 Contact Us For Availability

9

Elbow, Orifice WPL W10137922 Contact Us For Availability

9

Bracket, Rear Thermocouple WPL W10134805 Contact Us For Availability

9

Clip, Wire WPL W10128638 Contact Us For Availability

Cover, Enclosure WPL W10137871 Contact Us For Availability

MANIFOLD, SIDE BRN WPL W10137076 Contact Us For Availability

Badge WPL 9763444SS Contact Us For Availability

Cover, Rear Thermocouple (Left) WPL W10134806 Contact Us For Availability

Cover, Rear Thermocouple (Right) WPL W10140250 Contact Us For Availability

Hood Assy WPL W10140260 Contact Us For Availability

Harness, Wiree WPL W10137880 Contact Us For Availability

Hose, Side Burner WPL W10137915 Contact Us For Availability

Knob, Thermostat WPL W10137878 Contact Us For Availability

Orifice, Rear Burner WPL W10128627 Contact Us For Availability

Hole Plug WPL W10128640 Contact Us For Availability

Light, Grill WPL W10140242 Contact Us For Availability

Element, Heating WPL W10137877 Contact Us For Availability

Chain, Lid WPL W10138027 Contact Us For Availability

Light, Indicator WPL W10137874 Contact Us For Availability

Panel, Side Left WPL W10137906 Contact Us For Availability

4456314 Whirlpool Lens Light Backorder WPL 4456314 $38.28

9763644 Whirlpool Appliance Light Lens Backorder WPL 9763644 $28.80

Stator, Chain WPL W10138028 Contact Us For Availability

HARNESS, WIRE LIGHTS WPL W10140244 Contact Us For Availability

Bracket, Grease Tray (Right) WPL W10128644 Contact Us For Availability

W10118049 Whirlpool Element Seal Backorder WPL W10118049 $5.71

Socket, Light WPL W10128631 Contact Us For Availability

Lid, Side Burner WPL W10138026 Contact Us For Availability

RAIL, PAN WPL W10137692 Contact Us For Availability

Roller, Drip Tray WPL W10128655 Contact Us For Availability

W10118113 Whirlpool Seal Switch Backorder WPL W10118113 $5.71

Bar, Tool WPL W10138025 Contact Us For Availability

Grip, Vent WPL W10137869 Contact Us For Availability

Rod, Lighting WPL W10128704 Contact Us For Availability

Drip Tray Assy (Includes Rollers) (Large) WPL W10133870 Contact Us For Availability

Drip Tray Assy (Includes Rollers) (Small) WPL W10140262 Contact Us For Availability

W10035910 Whirlpool Magnet Assembly Backorder WPL W10035910 $72.18

W10118073 Whirlpool Heater Shield Backorder WPL W10118073 $26.21

Hook WPL W10128774 Contact Us For Availability

Bag, Lighting Rod WPL W10128703 Contact Us For Availability

Bracket, Grease Tray (Left) WPL W10128657 Contact Us For Availability

17

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

17

Burner, Main WPL W10128775 Contact Us For Availability

17

Tube, Side Brnr WPL W10137916 Contact Us For Availability

4456862 Whirlpool Clip Backorder WPL 4456862 $4.85

Screw, 5/32 x 10 WPL W10140220 Contact Us For Availability

Bracket, Main Brnr WPL W10128776 Contact Us For Availability

Cover, Wire Terminal WPL W10132690 Contact Us For Availability

4456861 Whirlpool Washer Backorder WPL 4456861 $4.85

Grate, Smoke Box WPL W10134790 Contact Us For Availability

BUSHING (PLASTIC (No.SB22)) WPL W10132691 Contact Us For Availability

BUSHING (PLASTIC (No.SB19)) WPL W10132692 Contact Us For Availability

20

Cover, Food Pan (Large) WPL W10137689 Contact Us For Availability

20

Handle, Smoke Box WPL W10134791 Contact Us For Availability

21

Pan, Food (Lrg) WPL W10137690 Contact Us For Availability

21

Box, Smoke WPL W10140261 Contact Us For Availability

21

Harness, Wire Light WPL W10140245 Contact Us For Availability

22

Panel, Inner Cntrl WPL W10137868 Contact Us For Availability

22

Screen, Sear Brnr WPL W10134793 Contact Us For Availability

23

ROD, KIT WPL W10137683 Contact Us For Availability

24

WPW10134795 Whirlpool Burner Backorder WPL WPW10134795 $217.64

24

Nameplate WPL W10128751 Contact Us For Availability

25

W10128753 Whirlpool Knob Assembly Backorder WPL W10128753 $32.23

25

Panel, Sear Brnr WPL W10134796 Contact Us For Availability

26

WPW10128756 Whirlpool Knob Backorder WPL WPW10128756 $33.73

26

IGNITER, GAS COLL. WPL W10134826 Contact Us For Availability

27

Igniter, Sear Brnr WPL W10134797 Contact Us For Availability

27

Bezel, Knob WPL W10134820 Contact Us For Availability

28

Bracket, Sear Ign. WPL W10134798 Contact Us For Availability

28

Switch, Light WPL W10128761 Contact Us For Availability

29

Bracket, Sear Brnr WPL W10134799 Contact Us For Availability

29

Panel, Control WPL W10140266 Contact Us For Availability

30

W10140236 Whirlpool Wire Harness Backorder WPL W10140236 $87.50

30

IGNITER, GAS COLL. WPL W10134800 Contact Us For Availability

30

REGULATOR WPL W10137895 Contact Us For Availability

31

IGNITER,HOT SURFCE WPL W10140230 Contact Us For Availability

31

Valve, Main Brnr WPL W10140234 Contact Us For Availability

32

WPW10128766 Whirlpool Main Valve Backorder WPL WPW10128766 $177.50

32

Bracket, Main Brnr WPL W10134802 Contact Us For Availability

33

Light Set WPL W10140258 Contact Us For Availability

34

Commutator, Manifold WPL W10128750 Contact Us For Availability

34

Rack, Middle WPL W10140222 Contact Us For Availability

34

MANIFOLD WPL W10140213 Contact Us For Availability

35

Handle, Door WPL W10128661 Contact Us For Availability

35

Screw, 5/32 x 20 WPL W10140217 Contact Us For Availability

35

Baffle, Front WPL W10140251 Contact Us For Availability

36

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

37

Rack, Storage WPL W10136427 Contact Us For Availability

37

Side Panel, Right WPL W10132700 Contact Us For Availability

38

Bracket (Left) WPL W10137885 Contact Us For Availability

38

Bracket (Right) WPL W10137889 Contact Us For Availability

38

Panel, Outer (RT) WPL W10137909 Contact Us For Availability

39

Plug, Door WPL W10137886 Contact Us For Availability

39

Bar, Handle WPL W10128660 Contact Us For Availability

40

Thermometer WPL W10128777 Contact Us For Availability

40

Drawer, Top WPL W10140268 Contact Us For Availability

41

Bezel, Thermometer WPL W10128779 Contact Us For Availability

41

Slide, Drawer WPL W10137888 Contact Us For Availability

42

Gaurd, Tank Tray (Left) WPL W10137892 Contact Us For Availability

42

Gaurd, Tank Tray (Right) WPL W10137893 Contact Us For Availability

42

Panel, Grease Tray WPL W10140254 Contact Us For Availability

43

PARTITION, CART (NOT SERVICED) WPL NP Contact Us For Availability

44

Partition, Left WPL W10140256 Contact Us For Availability

44

Handle, Hood WPL W10140208 Contact Us For Availability

45

Screw, 1/4 x 12 WPL W10140215 Contact Us For Availability

45

Endcap, Handle (Left) WPL W10128785 Contact Us For Availability

46

Spacer, Handle WPL W10128786 Contact Us For Availability

47

ENDCAP, HANDLE (RLGHT) WPL W10128787 Contact Us For Availability

48

Hinge, Lid WPL W10128788 Contact Us For Availability

49

HOOD WPL W10140259 Contact Us For Availability

50

WPW10247115 Whirlpool Transformer Backorder WPL WPW10247115 $137.17

51

Bracket, Spit WPL W10134988 Contact Us For Availability

52

Bracket, Handle WPL W10128659 Contact Us For Availability

53

Shelf, Side (LF) WPL W10136946 Contact Us For Availability

54

Bar, Tool WPL W10136956 Contact Us For Availability

55

Brkt, Trnsfrmr (Btm) WPL W10132695 Contact Us For Availability

56

WPW10132702 Whirlpool Regulator Backorder WPL WPW10132702 $118.55

57

Fixture, Manifold WPL W10128747 Contact Us For Availability

58

Connector WPL W10128748 Contact Us For Availability

59

WPL W10128749 WPL W10128749 Contact Us For Availability

60

WPL W10140247 WPL W10140247 Contact Us For Availability

61

WPL W10134981 WPL W10134981 Contact Us For Availability

62

WPL W10140240 WPL W10140240 Contact Us For Availability

63

WPW10167017 Whirlpool Rotisserie Motor Backorder WPL WPW10167017 $179.52

64

WPL W10134986 WPL W10134986 Contact Us For Availability

66

W10137902 Whirlpool Main Valve Backorder WPL W10137902 $182.39

67

WPL W10140228 WPL W10140228 Contact Us For Availability

68

WPL W10140218 WPL W10140218 Contact Us For Availability

Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability

CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability

COVER, GRILL WPL 8212703 Contact Us For Availability

Smoker Box WPL KBDU271TSS Contact Us For Availability

ALTITUDE 2K-5K LP WPL W10118101 Contact Us For Availability

ALTITUDE 5K-8K LP WPL W10118102 Contact Us For Availability

ALTITUDE 8K-10K LP WPL W10118104 Contact Us For Availability

ALTITUDE 2K-5K NG WPL W10118105 Contact Us For Availability

ALTITUDE 5K-8K NG WPL W10118106 Contact Us For Availability

ALTITUDE 8K-10K NG WPL W10118107 Contact Us For Availability
