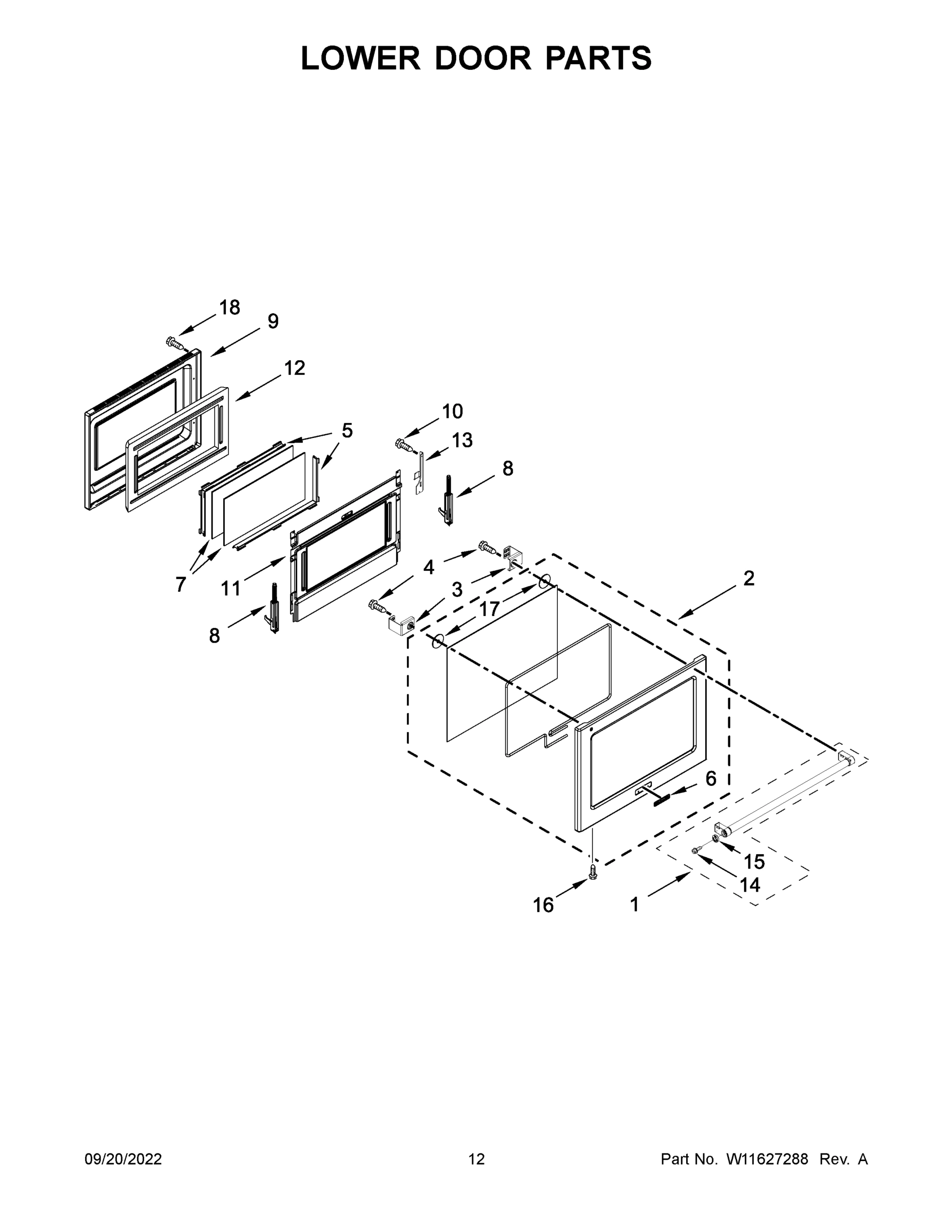

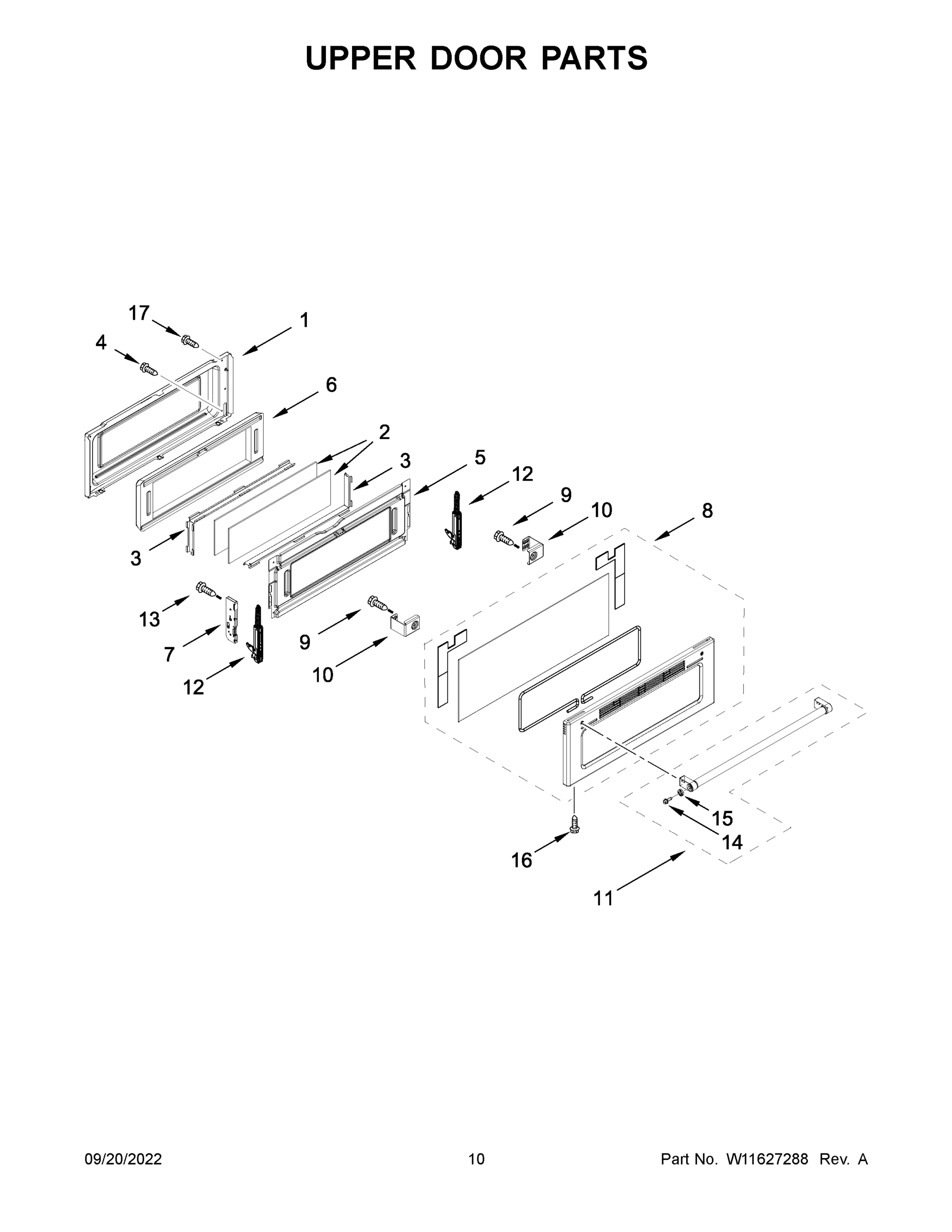

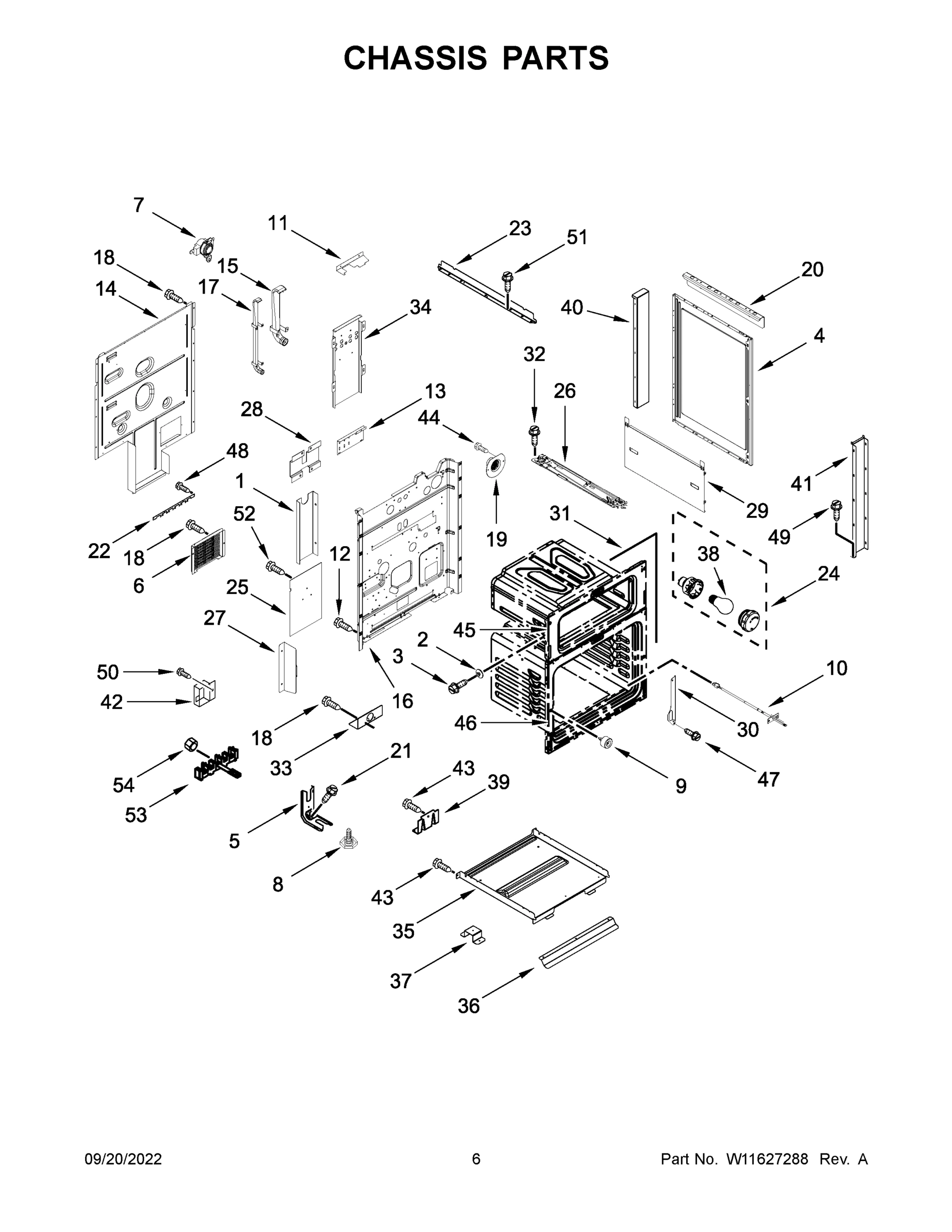

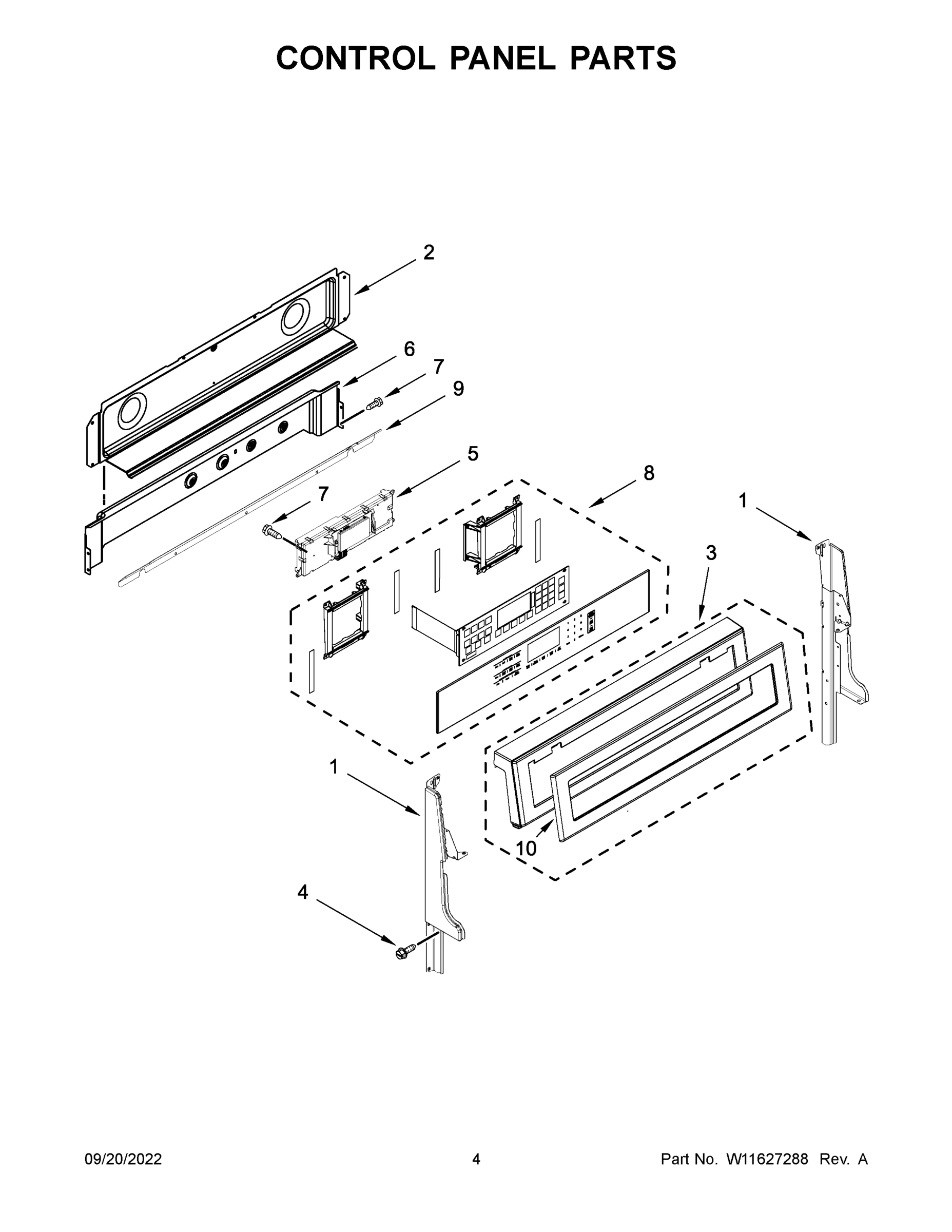

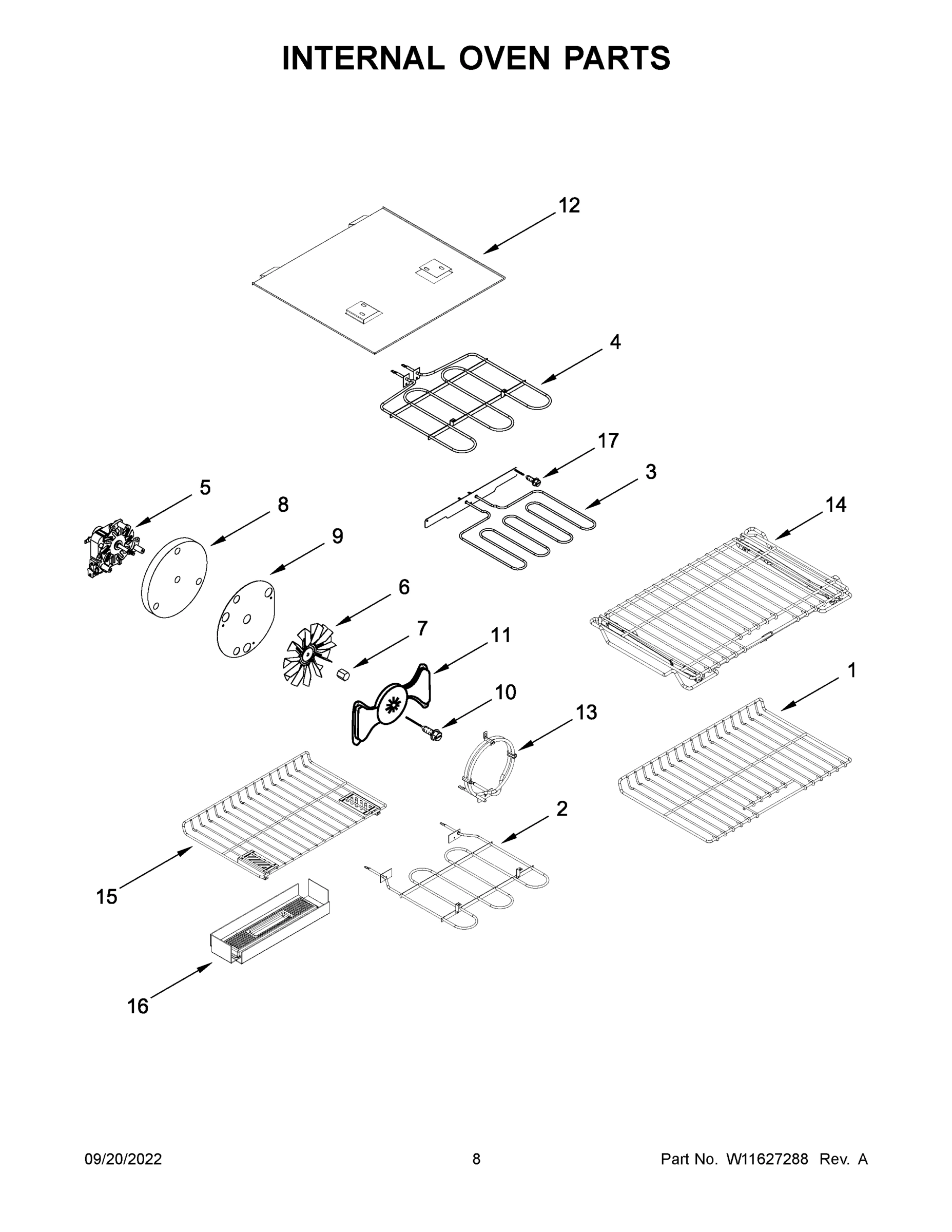

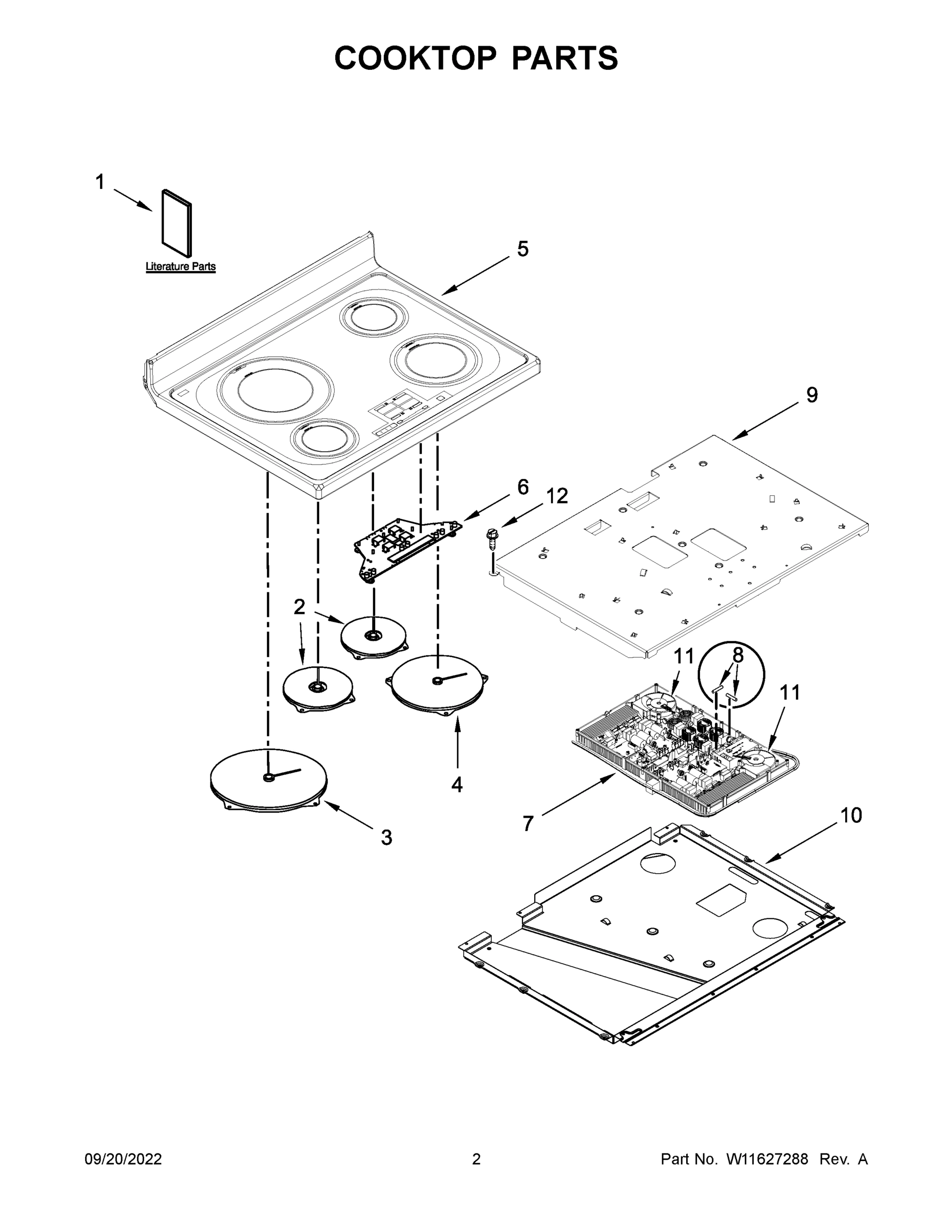

Model Whirlpool KFID500ESS05 RANGE/OVEN, ELECTRIC – Common Parts &amp; Diagrams

1

W11103615 Whirlpool Door Liner Backorder WPL W11103615 $108.51

1

W11305108 Whirlpool Door Handle Backorder WPL W11305108 $69.59

1

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $59.22

1A

SUPPORT, BACKGUARD (BLACK (RIGHT) (FOR STAINL WPL W10319111 Contact Us For Availability

2

W10776098 Whirlpool Rear Cover Backorder WPL W10776098 $53.16

2

W11101534 Whirlpool Range Broil Element Backorder WPL W11101534 $66.28

2

W11132120 Whirlpool Glass Door Backorder WPL W11132120 $62.99

2

W11600196 Whirlpool Door Glass Backorder WPL W11600196 $394.70

2

WPW10410580 Whirlpool Hot Plate In Stock WPL WPW10410580 $109.88

3

W10645182 Whirlpool Mounting Bracket Backorder WPL W10645182 $14.55

3

W11164063 Whirlpool Control Panel Backorder WPL W11164063 $202.15

3

W11662148 Whirlpool Bake Element Backorder WPL W11662148 $44.05

3

WPW10272708 Whirlpool Window Frame Backorder WPL WPW10272708 $63.26

3

WPW10460400 Whirlpool Hot Plate In Stock WPL WPW10460400 $167.12

4

W10317476 Whirlpool Broil Element Backorder WPL W10317476 $89.52

4

W10831019 Whirlpool Stove Door Screw In Stock WPL W10831019 $3.84

4

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $3.33

5

W10485723 Whirlpool Retainer In Stock WPL W10485723 $89.38

5

W11235883 Whirlpool Fan Motor Backorder WPL W11235883 $118.46

5

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $69.70

6

W10278697 Whirlpool Vent Shield Assembly Backorder WPL W10278697 $77.56

6

W10312612 Whirlpool Black Cover Backorder WPL W10312612 $44.58

6

W10819914 Whirlpool Convection Fan In Stock WPL W10819914 $35.67

6

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $23.59

6

WPW10321271 Whirlpool Insulation Assembly Backorder WPL WPW10321271 $42.31

7

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $3.33

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

7

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $77.02

8

W10274268 Whirlpool Insulation Backorder WPL W10274268 $36.55

8

W10692425 Whirlpool Membrane Switch Backorder WPL W10692425 $432.17

8

W11600202 Whirlpool Door Glass Backorder WPL W11600202 $271.76

8

WPW10328492 Whirlpool Thermal Fuse In Stock WPL WPW10328492 $75.98

8

WPW10335434 Whirlpool Door Hinge In Stock WPL WPW10335434 $40.75

8A

WPW10335433 Whirlpool Door Hinge Backorder WPL WPW10335433 $41.61

9

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

9

W10339476 Whirlpool Bracket Mounting Backorder WPL W10339476 $30.25

9

WPW10292008 Whirlpool Door Liner Backorder WPL WPW10292008 $143.02

10

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

10

SCREW WPL 4449040 Contact Us For Availability

11

8303962BU Whirlpool Convection Baffle Backorder WPL 8303962BU $124.72

11

W10328381 Whirlpool Fan Blower Assembly Backorder WPL W10328381 $153.90

11

W10340464 Whirlpool Retainer Backorder WPL W10340464 $105.61

11A

W10328378 Whirlpool Blower Fan Assembly Backorder WPL W10328378 $157.81

12

W10319762 Whirlpool Heat Shield Backorder WPL W10319762 $56.69

12

WPW10485733 Whirlpool Door Hinge Backorder WPL WPW10485733 $28.90

12

INSULATION, DOOR WPL W10321285 Contact Us For Availability

12A

WPW10485732 Whirlpool Door Hinge In Stock WPL WPW10485732 $29.72

W10271639 Whirlpool Element Backorder WPL W10271639 $136.58

W10332449 Whirlpool Heat Shield Backorder WPL W10332449 $27.52

W10777162 Whirlpool Screw In Stock WPL W10777162 $3.33

WPW10272329 Whirlpool Hinge Receptacle Backorder WPL WPW10272329 $29.10

13A

WPW10272328 Whirlpool Hinge Receptacle Backorder WPL WPW10272328 $33.54

14

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

14

WPW10570870 Whirlpool Range Rack Backorder WPL WPW10570870 $191.07

15

W10337391 Whirlpool Vent Tube Backorder WPL W10337391 $27.52

15

W10685968 Whirlpool Range Rack Backorder WPL W10685968 $86.99

15

W10846207 Whirlpool Refrigerator Handle Medal Backorder WPL W10846207 $13.65

16

W10668730 Whirlpool Rear Cover Backorder WPL W10668730 $91.89

16

W11403917 Whirlpool Reservoir Assembly Backorder WPL W11403917 $102.79

16

W11690596 Whirlpool Screw Backorder WPL W11690596 $12.68

17

SCREW WPL 7101P42660 Contact Us For Availability

17

WASHER, FIBER WPL 7109P08460 Contact Us For Availability

18

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

19

W10322408 Whirlpool Extension Tube Backorder WPL W10322408 $54.68

20

W10319087 Whirlpool Support Bracket Backorder WPL W10319087 $29.15

23

W10357697 Whirlpool Spacer Panel Backorder WPL W10357697 $9.04

26

W11166856 Whirlpool Door Latch In Stock WPL W11166856 $130.78

30

W10410463 Whirlpool Cover Assembly Backorder WPL W10410463 $34.48

30A

W10410461 Whirlpool Cover Backorder WPL W10410461 $34.13

35

W10548601 Whirlpool Heat Shield Backorder WPL W10548601 $54.08

36

W10253470 Whirlpool Retainer Assembly Backorder WPL W10253470 $30.25

37

W10260545 Whirlpool Support Bracket Backorder WPL W10260545 $6.08

47

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

52

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

53

BLOCK, TERMINAL WPL W11030754 Contact Us For Availability

54

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $4.52

W10846205 Whirlpool Refrigerator Handle Medal Backorder WPL W10846205 $13.65

W10846206 Whirlpool Refrigerator Handle Medal Backorder WPL W10846206 $13.65

W11042470 Whirlpool Cooktop Cleaner In Stock WPL W11042470 $12.70

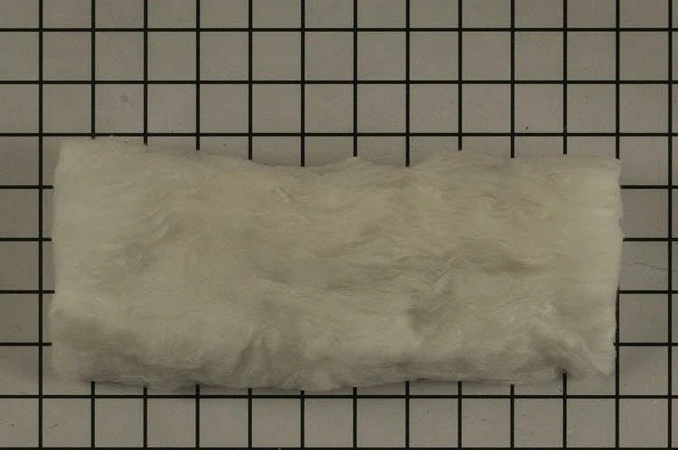

W11685361 Whirlpool Insulation Backorder WPL W11685361 $12.44

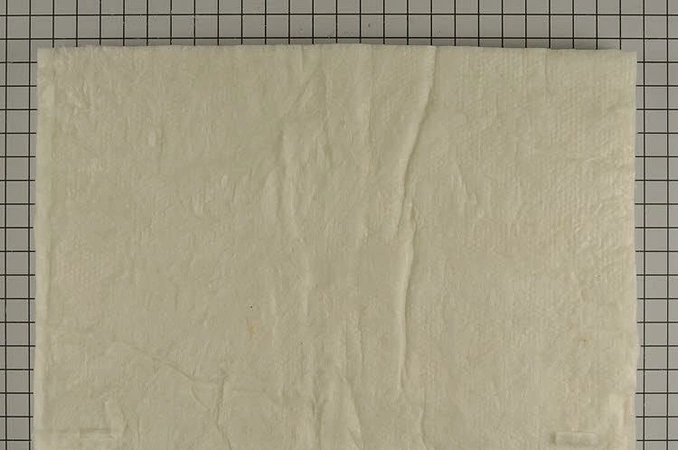

WPW10204079 Whirlpool Insulation Backorder WPL WPW10204079 $48.75

WPW10271637 Whirlpool Insulation Backorder WPL WPW10271637 $46.15

WPW10322111 Whirlpool Insulation Backorder WPL WPW10322111 $56.69

ACCESSORY PARTS, CLEANER, COOKTOP WPL W10355051 Contact Us For Availability

ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEAN WPL W11042467 Contact Us For Availability

INSULATION, WRAPPER WPL W11462751 Contact Us For Availability

INSULATION, HIDDEN B WPL W11463064 Contact Us For Availability
