Model Whirlpool KFGC558JPA07 RANGE/OVEN, GAS – Common Parts &amp; Diagrams

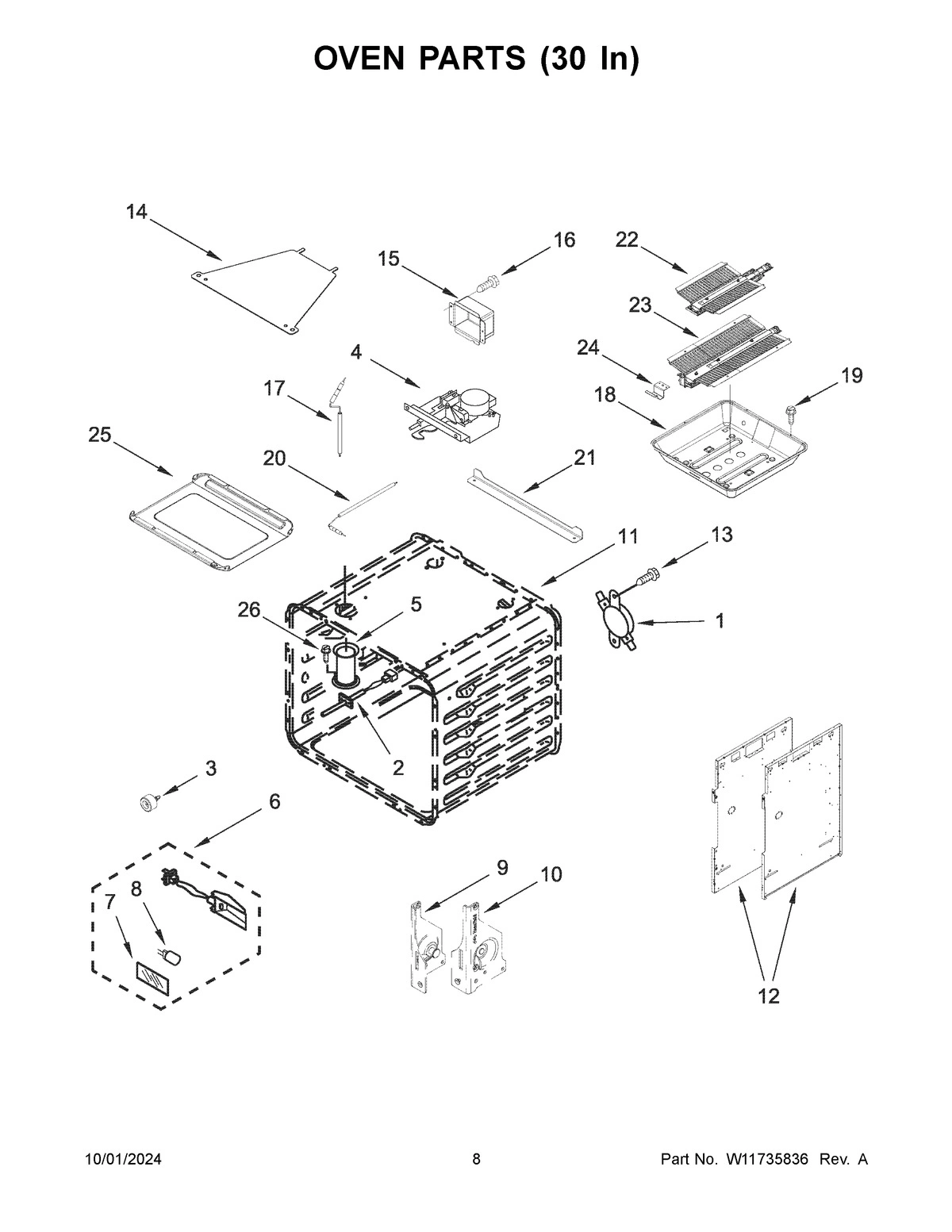

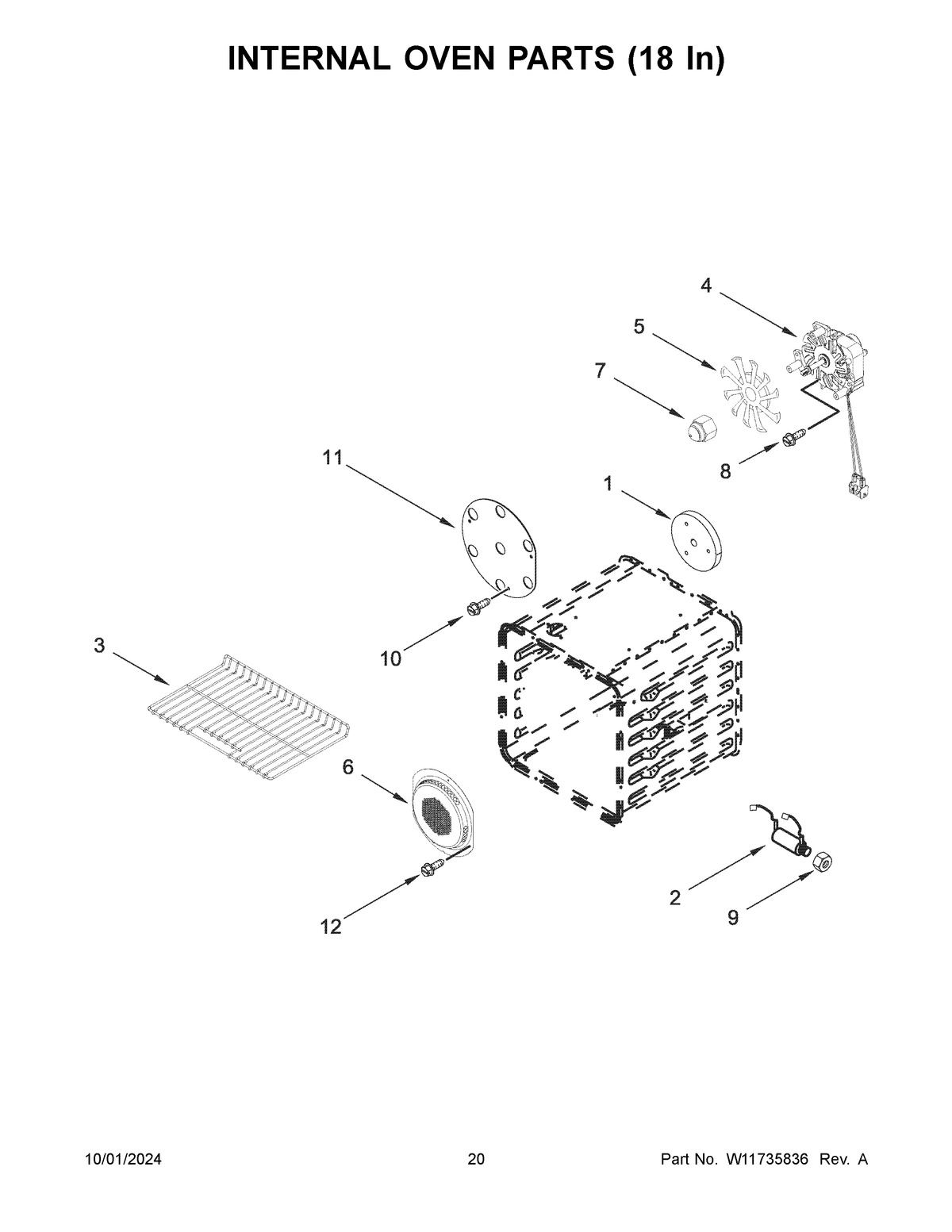

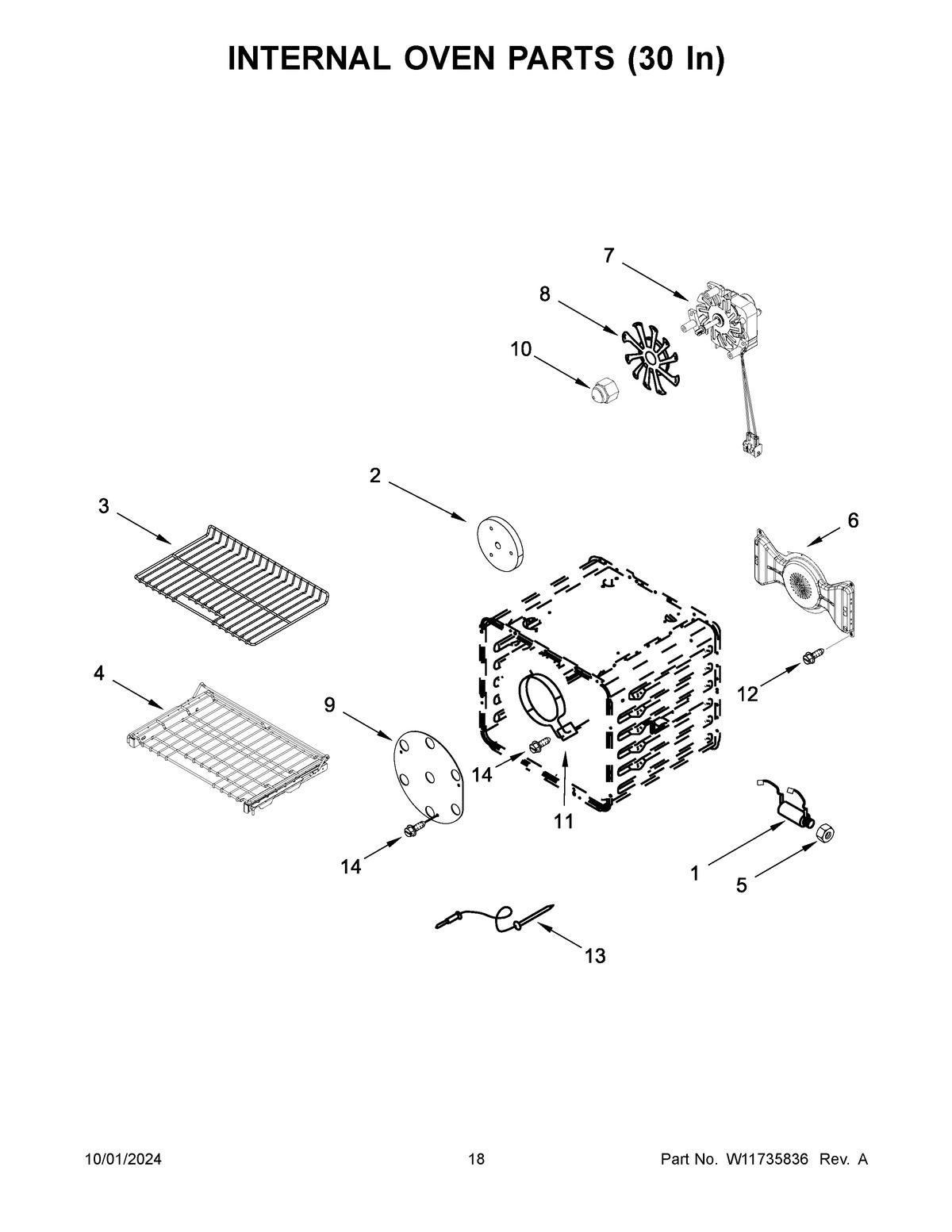

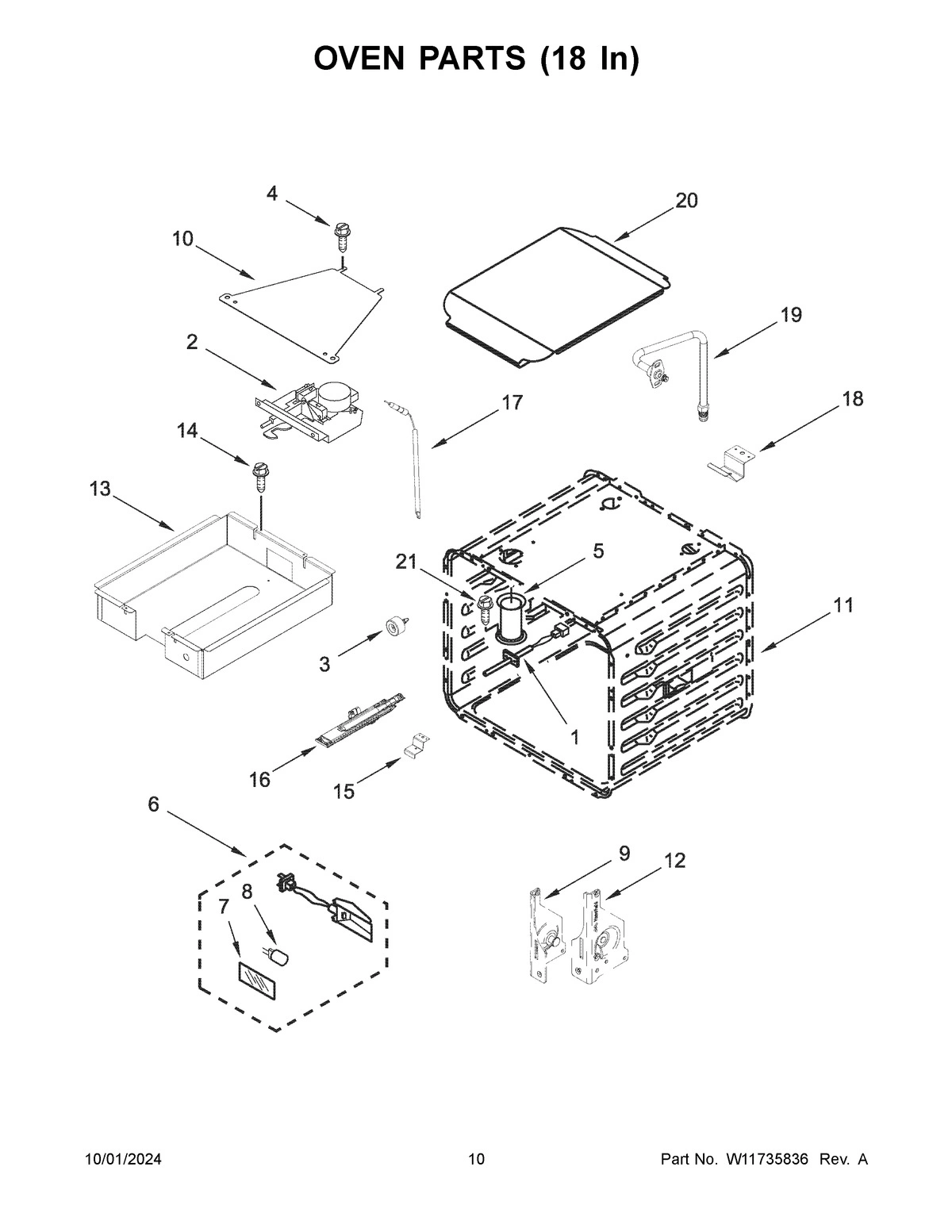

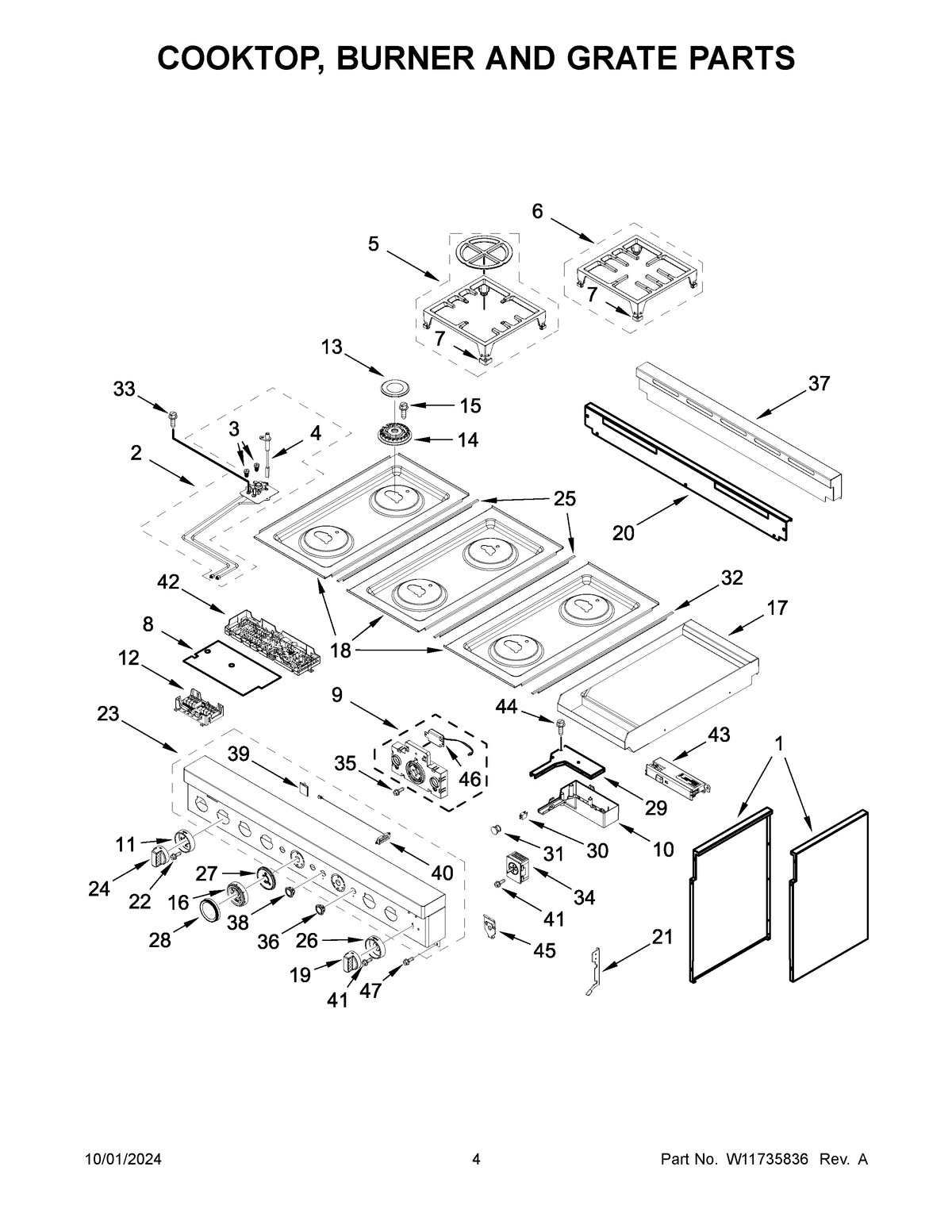

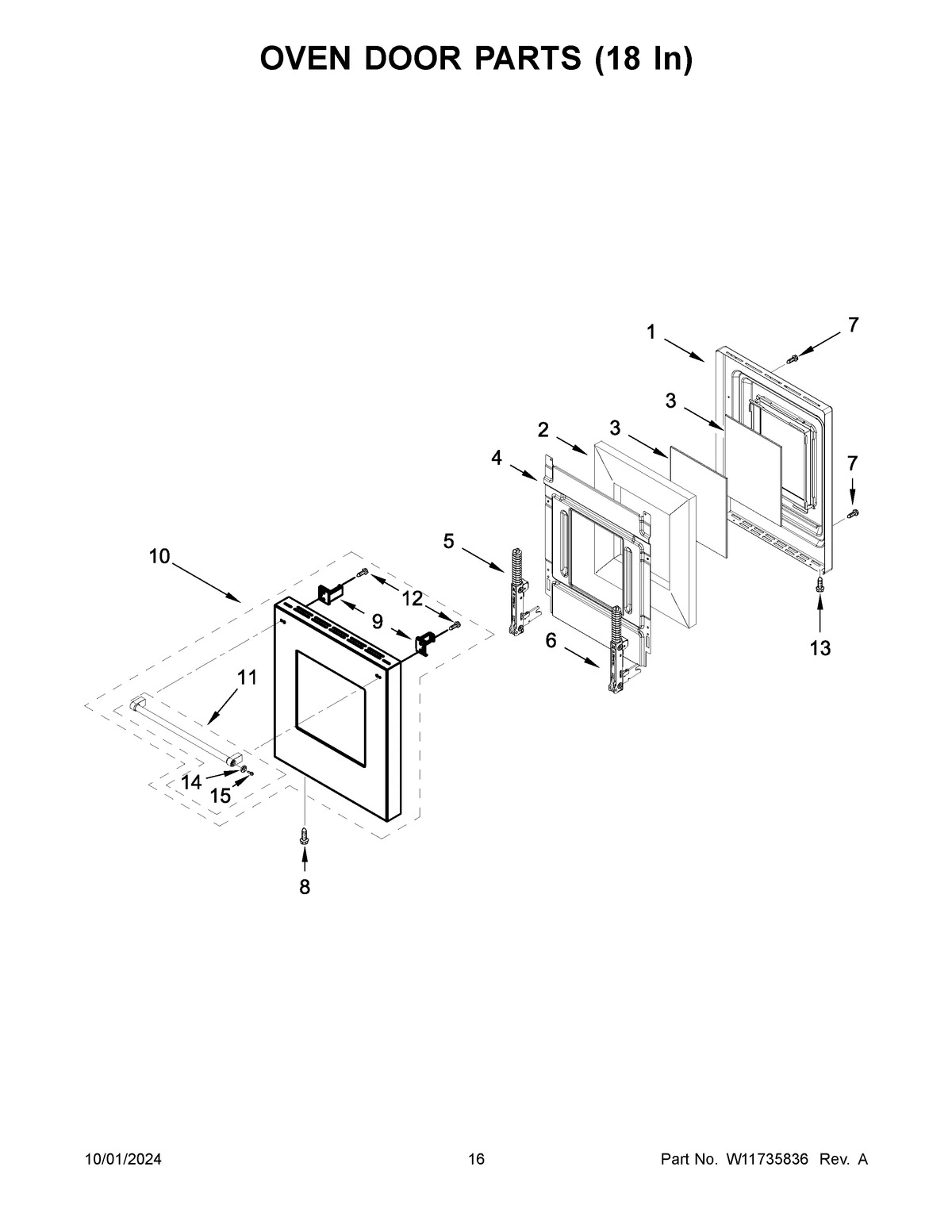

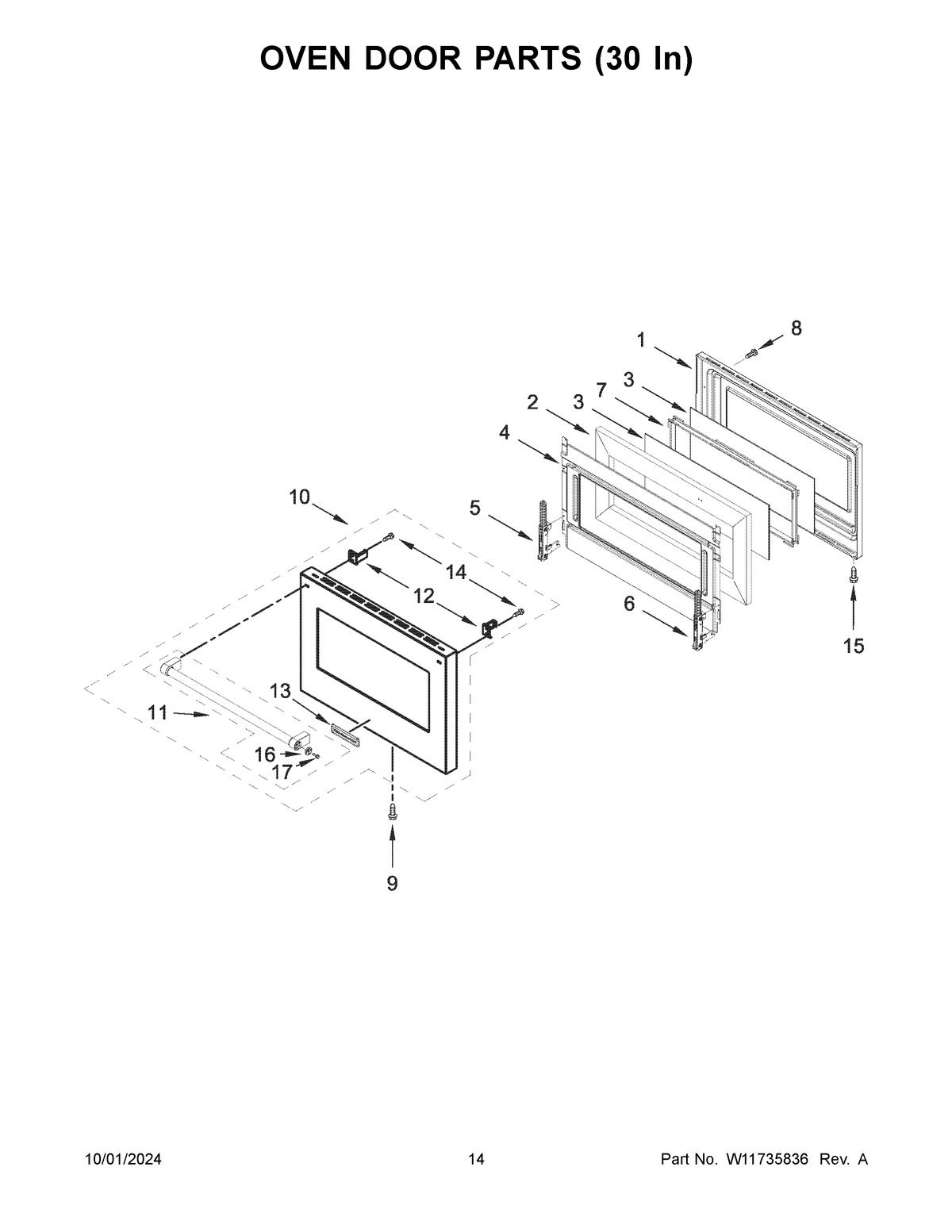

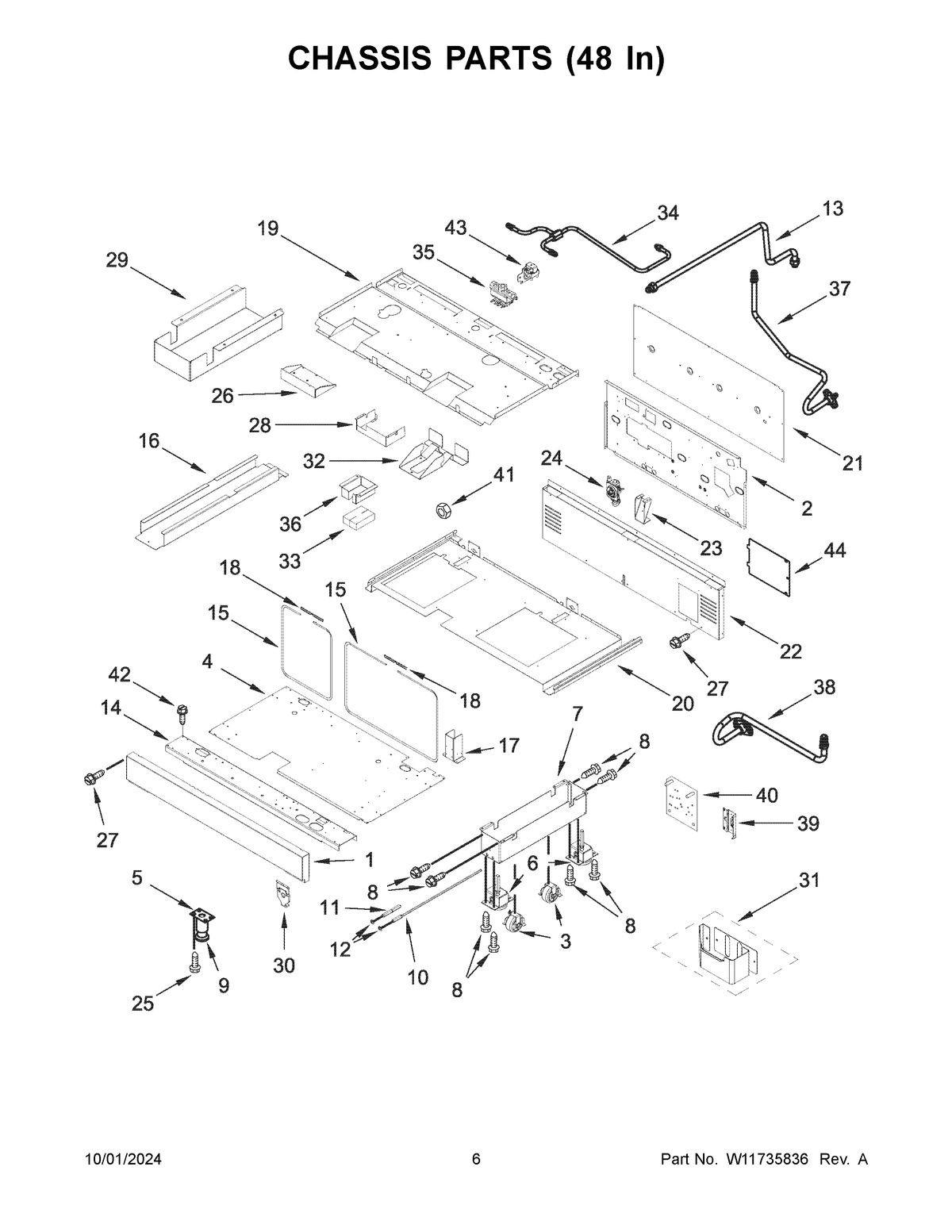

1

W11318335 Whirlpool Glass Frame Backorder WPL W11318335 $122.09

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $122.09

1

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $77.29

1

KICKPLATE WPL W11697044 Contact Us For Availability

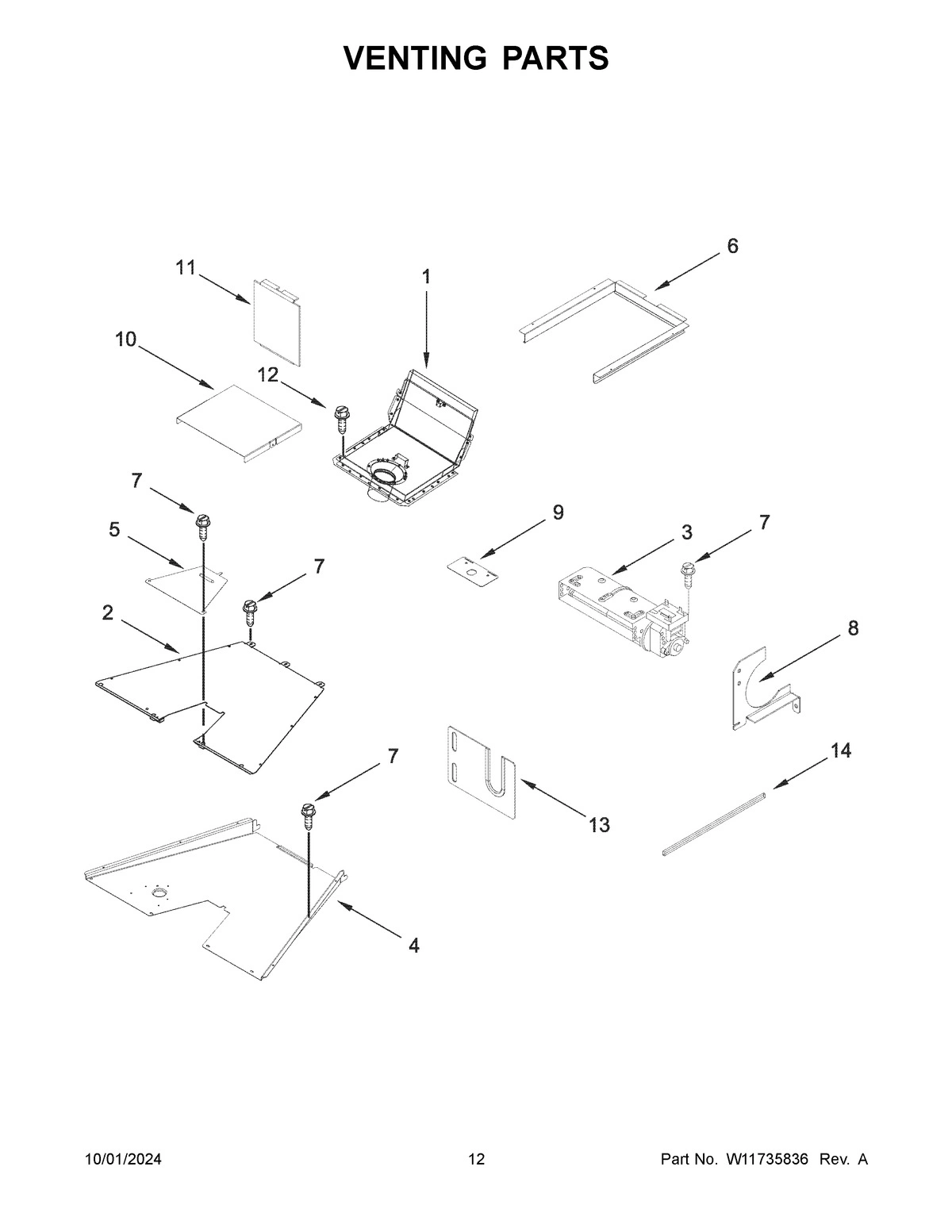

1A

VENT, CHIMNEY BOX (18 IN) WPL W11476247 Contact Us For Availability

2

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $57.87

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $109.81

2

W11688507 Whirlpool Insulation Backorder WPL W11688507 $9.10

2

BACK, CHASSIS WPL W11324987 Contact Us For Availability

2

VENT, COOLING TOP (30 IN) WPL W11105221 Contact Us For Availability

2

INSULATION, DOOR (30 IN) WPL W11413190 Contact Us For Availability

2

INSULATION, DOOR WPL W10884821 Contact Us For Availability

2A

VENT, COOLING TOP (18 IN) WPL W11113379 Contact Us For Availability

3

W10570879 Whirlpool Range Rack Assembly Backorder WPL W10570879 $67.64

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11317951 Whirlpool Glass Door Backorder WPL W11317951 $57.67

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $57.67

3

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $56.40

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.13

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

4

W10794440 Whirlpool Fan Motor In Stock WPL W10794440 $145.94

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $116.89

4

W11496977 Whirlpool Range Rack Backorder WPL W11496977 $209.37

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $7.61

4

VENT, COOLING BOTTOM (30 IN) WPL W11091676 Contact Us For Availability

4

RETAINER, GLASS WPL W11194821 Contact Us For Availability

4

RETAINER, GLASS WPL W11194818 Contact Us For Availability

4A

VENT, COOLING BOTTOM (18 IN) WPL W11113377 Contact Us For Availability

4B

W11628654 Whirlpool Surface Igniter Backorder WPL W11628654 $18.68

5

W10819914 Whirlpool Convection Fan Backorder WPL W10819914 $33.96

5

W11643630 Whirlpool Door Hinge Backorder WPL W11643630 $75.77

5

W11643896 Whirlpool Appliance Door Hinge In Stock WPL W11643896 $70.61

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $29.99

5

TUBE, VENT WPL W10145743 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

6

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $34.99

6

W11643898 Whirlpool Door Hinge Backorder WPL W11643898 $46.26

6

W11643900 Whirlpool Door Hinge In Stock WPL W11643900 $46.26

6

W11662207 Whirlpool Convection Baffle Backorder WPL W11662207 $57.18

6

DUCT, PRIMARY AIR (30 IN) WPL W10145363 Contact Us For Availability

6

COVER, FAN WPL W11211948 Contact Us For Availability

6A

DUCT, PRIMARY AIR (18 IN) WPL W10145364 Contact Us For Availability

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $75.57

7

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $66.39

7

SCREW WPL 7101P42660 Contact Us For Availability

8

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

9

W10115855 Whirlpool Support Bracket Backorder WPL W10115855 $26.21

9

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $60.62

9

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $26.21

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

RETAINER, INSULATION WPL W10246086 Contact Us For Availability

OUTER DOOR ASSEMBLY (INCLUDES HANDLE) WPL W11712125 Contact Us For Availability

OUTER DOOR ASSEMBLY (INCLUDES HANDLE) WPL W11712116 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

W11098505 Whirlpool Element Backorder WPL W11098505 $55.21

W11512758 Whirlpool Door Handle Assembly Backorder WPL W11512758 $222.45

LINER, OVEN (NOT SERVICED) WPL ARI0E41E73880FF530FBBE29D9D6A419FE4 Contact Us For Availability

INSULATION, CHIMNEY WPL W10246087 Contact Us For Availability

HANDLE ASSEMBLY WPL W11362706 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

RECEIVER, HINGE (NOT SERVICED) WPL ARI085D97BB298C0C5517612CE6B83B6134 Contact Us For Availability

RETAINER, LEFT SIDE CHASSIS WPL W11683297 Contact Us For Availability

SCREW WPL W10739592 Contact Us For Availability

12A

RETAINER, RIGHT SIDE CHASSIS WPL W11683296 Contact Us For Availability

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

W11193480 Whirlpool Screw Backorder WPL W11193480 $9.59

W11364214 Whirlpool Gas Tubing Backorder WPL W11364214 $37.95

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

SUPPORT, BAKE PAN WPL W10145651 Contact Us For Availability

COVER, CHANNEL WPL W11106956 Contact Us For Availability

W11175143 Whirlpool Gasket In Stock WPL W11175143 $8.55

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

SUPPORT, CHANNEL WPL W11369238 Contact Us For Availability

MEDALLION, HANDLE WPL W11361074 Contact Us For Availability

W10308051 Whirlpool Burner Box Backorder WPL W10308051 $131.13

W11643628 Whirlpool Screw In Stock WPL W11643628 $9.59

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

BRACKET, BAKE BURNER (18 IN CAVITY) WPL W10308041 Contact Us For Availability

15A

W11115326 Whirlpool Gasket Backorder WPL W11115326 $108.27

16

W10878505 Whirlpool Range Burner Backorder WPL W10878505 $83.33

16

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $58.75

16

SCREW WPL 7101P43460 Contact Us For Availability

W10115819 Whirlpool Brace Backorder WPL W10115819 $26.21

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

W11355920 Whirlpool Surface Igniter Backorder WPL W11355920 $23.46

W11355922 Whirlpool Surface Igniter In Stock WPL W11355922 $23.46

18

W10308040 Whirlpool Pan Bracket Backorder WPL W10308040 $26.21

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $57.47

18

WPW10145744 Whirlpool Support Backorder WPL WPW10145744 $72.15

18A

W11344757 Whirlpool Cooktop Backorder WPL W11344757 $60.09

18B

W11392645 Whirlpool Cooktop Backorder WPL W11392645 $171.65

W10145706 Whirlpool Gas Tubing Assembly Backorder WPL W10145706 $72.44

W11392643 Whirlpool Knob Backorder WPL W11392643 $41.30

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

TOP, CHASSIS WPL W11324984 Contact Us For Availability

20

W10323252 Whirlpool Trim Top Backorder WPL W10323252 $77.45

20

W11504377 Whirlpool Broiler Pan Backorder WPL W11504377 $70.08

20

CHASSIS, BOTTOM WPL W11040800 Contact Us For Availability

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

W10317437 Whirlpool Support Assembly Backorder WPL W10317437 $10.25

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.39

PANEL, BACK TOP WPL W11103335 Contact Us For Availability

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

22

W11509770 Whirlpool Screw In Stock WPL W11509770 $9.26

22

W11643161 Whirlpool Range Burner Backorder WPL W11643161 $63.82

22

PANEL, BACK BOTTOM WPL W11034123 Contact Us For Availability

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $39.36

23

W11661180 Whirlpool Burner Broiler Backorder WPL W11661180 $60.20

23

WPL W11700786 WPL W11700786 Contact Us For Availability

24

W11193822 Whirlpool Regulator Backorder WPL W11193822 $108.40

24

W11380561 Whirlpool Knob Backorder WPL W11380561 $41.30

24A

W11380562 Whirlpool Knob Assembly Backorder WPL W11380562 $41.30

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

25

W11661576 Whirlpool Range Bottom Pan Backorder WPL W11661576 $56.71

26

W11388057 Whirlpool Knob Bezel Backorder WPL W11388057 $39.35

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

WPL W11500871 WPL W11500871 Contact Us For Availability

28

WPL W11500869 WPL W11500869 Contact Us For Availability

28

CABINET, APPLIANCE MANAGER WPL W11369237 Contact Us For Availability

28A

W11548477 Whirlpool Knob Backorder WPL W11548477 $83.77

29

WPL W11205794 WPL W11205794 Contact Us For Availability

29

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

30

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 $31.66

30

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

31

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.85

31

W11199181 Whirlpool Foot Cover Backorder WPL W11199181 $54.37

31A

W11199178 Whirlpool Foot Cover Assembly Backorder WPL W11199178 $54.37

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

32

W11190223 Whirlpool Bracket Assembly Backorder WPL W11190223 $39.36

33

INSULATION, BROIL COVER WPL W10311009 Contact Us For Availability

34

W11318834 Whirlpool Infinite Heat Switch Backorder WPL W11318834 $116.16

34

W11355235 Whirlpool Gas Tubing Backorder WPL W11355235 $63.60

35

W11239228 Whirlpool Gas Valve In Stock WPL W11239228 $115.59

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

W10310985 Whirlpool Access Cover Backorder WPL W10310985 $26.21

36

W11241510 Whirlpool Push Button Backorder WPL W11241510 $25.40

37

W11355244 Whirlpool Gas Tubing Backorder WPL W11355244 $63.60

37

W11516014 Whirlpool Trim Top Backorder WPL W11516014 $177.61

38

W11241511 Whirlpool Push Button Backorder WPL W11241511 $24.16

38

W11355919 Whirlpool Range Gas Tubing Backorder WPL W11355919 $63.60

39

W10145362 Whirlpool Control Bracket Backorder WPL W10145362 $28.80

39

W10896366 Whirlpool Light Indicator Backorder WPL W10896366 $39.51

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $107.97

40

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $108.08

41

W10674068 Whirlpool Screw Backorder WPL W10674068 $8.62

41

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

42

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

42

W11620687-includeCORE Whirlpool W11620687 Ran Backorder WPL W11620687-includeCORE $237.68

43

W10311268 Whirlpool Gas Valve Backorder WPL W10311268 $151.62

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

44

W10115843 Whirlpool Access Cover Backorder WPL W10115843 $6.62

44

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

46

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

47

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $149.59

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $71.21

W11368841BN Whirlpool Medallion Backorder WPL W11368841BN $88.69

W11368841CF Whirlpool Range Medallion Backorder WPL W11368841CF $88.69

W11368841NE Whirlpool Medallion Backorder WPL W11368841NE $131.86

W11368841RE Whirlpool Range Commercial-Style Backorder WPL W11368841RE $83.26

W11502161 Whirlpool Conversion Kit In Stock WPL W11502161 $24.91

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

INSULATION, WRAP (30 IN) WPL W10282810 Contact Us For Availability

INSULATION, BOTTOM WPL W10299354 Contact Us For Availability

INSULATION, BACK (30 IN) WPL W11109145 Contact Us For Availability

INSULATION, WRAP (18 IN) WPL W10282820 Contact Us For Availability

INSULATION, BACK (18 IN) WPL W10299353 Contact Us For Availability

INSULATION, BOTTOM WPL W10299355 Contact Us For Availability

ACCESSORIES, GAS RANGE CONNECTOR KIT WPL 3048KITRC Contact Us For Availability

ACCESSORIES, MEDALLION, HANDLE (BLACK ANO) WPL W11368841BO Contact Us For Availability

ACCESSORIES, MEDALLION, HANDLE (DARK BLUE) WPL W11368841DD Contact Us For Availability

ACCESSORIES, MEDALLION, HANDLE (MARSCAPONE (C WPL W11368841MP Contact Us For Availability
