Model Whirlpool KFED500ESS00 ELECTRIC RANGE – Common Parts & Diagrams

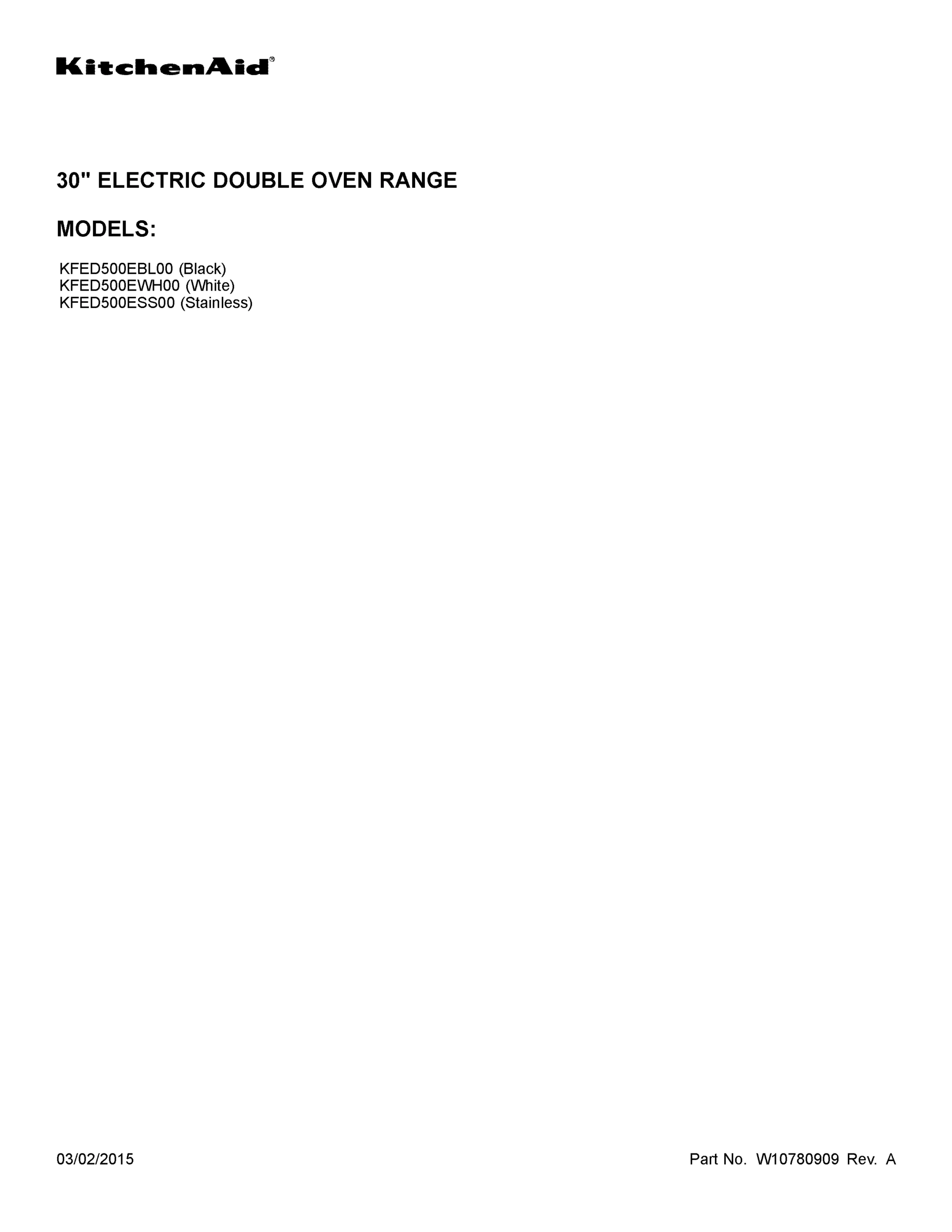

01 - COVER SHEET

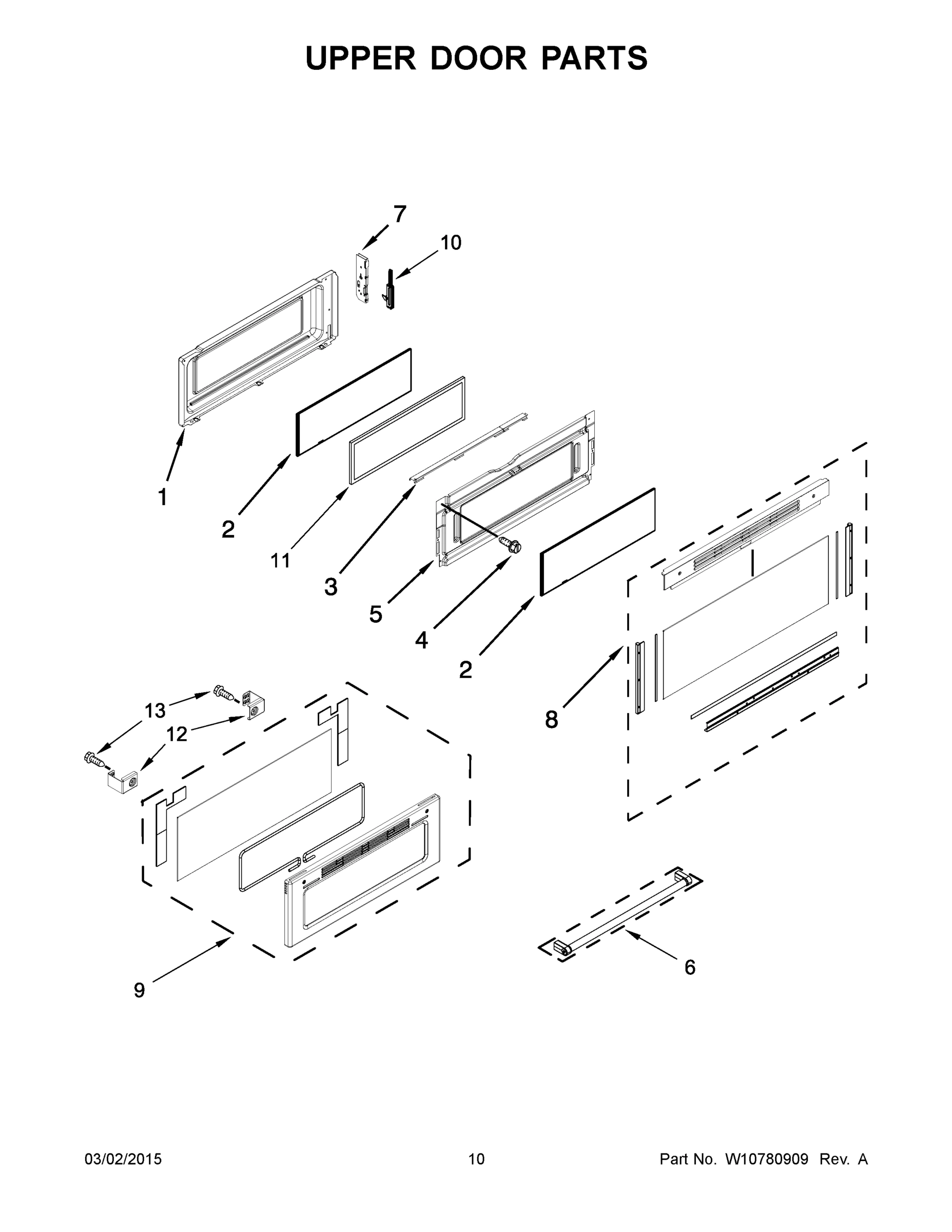

06 - UPPER DOOR PARTS
07 - LOWER DOOR PARTS
03 - CONTROL PANEL PARTS
02 - COOKTOP PARTS
04 - CHASSIS PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
05 - INTERNAL OVEN PARTS
Common parts from model Whirlpool KFED500ESS00 ELECTRIC RANGE
1
SUPPORT, BACKGUARD (BLACK (LEFT)) WPL W10319109 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) WPL W10319111 Contact Us For Availability
1B
SUPPORT, BACKGUARD (WHITE (LEFT)) WPL W10319110 Contact Us For Availability
1C
SUPPORT, BACKGUARD (WHITE (RIGHT)) WPL W10319112 Contact Us For Availability
4
ELEMENT, BROIL (UPPER) WPL W10317476 Contact Us For Availability
5
RETAINER, INSULATION WPL W10485723 Contact Us For Availability
6
COVER, ACCESS (TERMINAL BLOCK) WPL W10312612 Contact Us For Availability
6
ASSEMBLY, HANDLE (BLACK) WPL W10674700 Contact Us For Availability
6A
ASSEMBLY, HANDLE (WHITE) WPL W10674699 Contact Us For Availability
8
INSULATION, CONVECTION MOTOR WPL W10274268 Contact Us For Availability
9
PLATE, INSULATION WPL W10339476 Contact Us For Availability
9
BUMPER & SCREW WPL W10105790 Contact Us For Availability
11
ASSEMBLY, USER INTERFACE (BLACK) WPL W10692155 Contact Us For Availability
11
RETAINER, INSULATION WPL W10340464 Contact Us For Availability
11
COVER, FAN WPL 8303962BU Contact Us For Availability
11A
ASSEMBLY, USER INTERFACE (WHITE) WPL W10645824 Contact Us For Availability
12
COVER, BACKGUARD WPL W10296773 Contact Us For Availability
12A
COVER, BACKGUARD (STAINLESS MODELS ONLY) WPL W10776098 Contact Us For Availability
13
SHIELD, BROIL WPL W10319762 Contact Us For Availability
13
SHIELD, CORD WPL W10332449 Contact Us For Availability
14
SHIELD, VENT WPL W10278697 Contact Us For Availability
14
INSULATION, DOOR WPL W10321285 Contact Us For Availability
15
ELEMENT, CONVECTION (240VAC) WPL W10271639 Contact Us For Availability
15
TUBE, VENT (UPPER) WPL W10337391 Contact Us For Availability
16
BACK, MAIN WPL W10668730 Contact Us For Availability
19
ADAPTER, VENT TUBE WPL W10322408 Contact Us For Availability
20
BRACKET, U CHANNEL WPL W10319087 Contact Us For Availability
30
BRACKET, SIDE PANEL WPL W10357697 Contact Us For Availability
31
GASKET, OVEN DOOR (UPPER) WPL W10337392 Contact Us For Availability
36
COVER, HINGE (LEFT) WPL W10410463 Contact Us For Availability
36A
COVER, HINGE (RIGHT) WPL W10410461 Contact Us For Availability
38
PAN, ELEMENT WPL W10548601 Contact Us For Availability
39
BRACKET, RETAINING WPL W10253470 Contact Us For Availability
40
CLIP, RETAINING WPL W10260545 Contact Us For Availability
43
SCREW WPL 4449040 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) WPL 4392901 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) WPL 350956 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
HARNESS, SENSOR WPL W10225701 Contact Us For Availability
NI
HARNESS, INFINITE SWITCH (RIGHT) WPL W10406501 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) WPL 350942 Contact Us For Availability
NI
HARNESS, INFINITE SWITCH (LEFT) WPL W10406512 Contact Us For Availability
× ![]()
