Model Electrolux KF590HDW4 RANGE – Common Parts & Diagrams

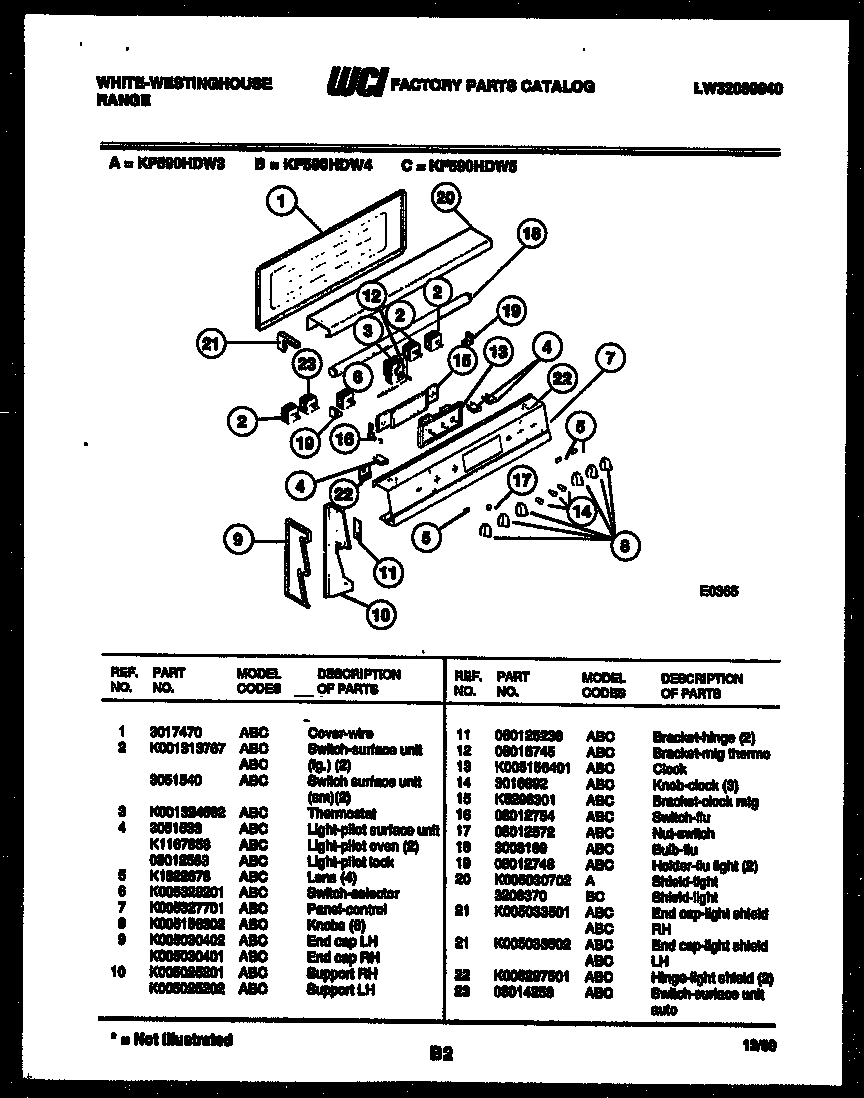

02 - CONTROL PANEL

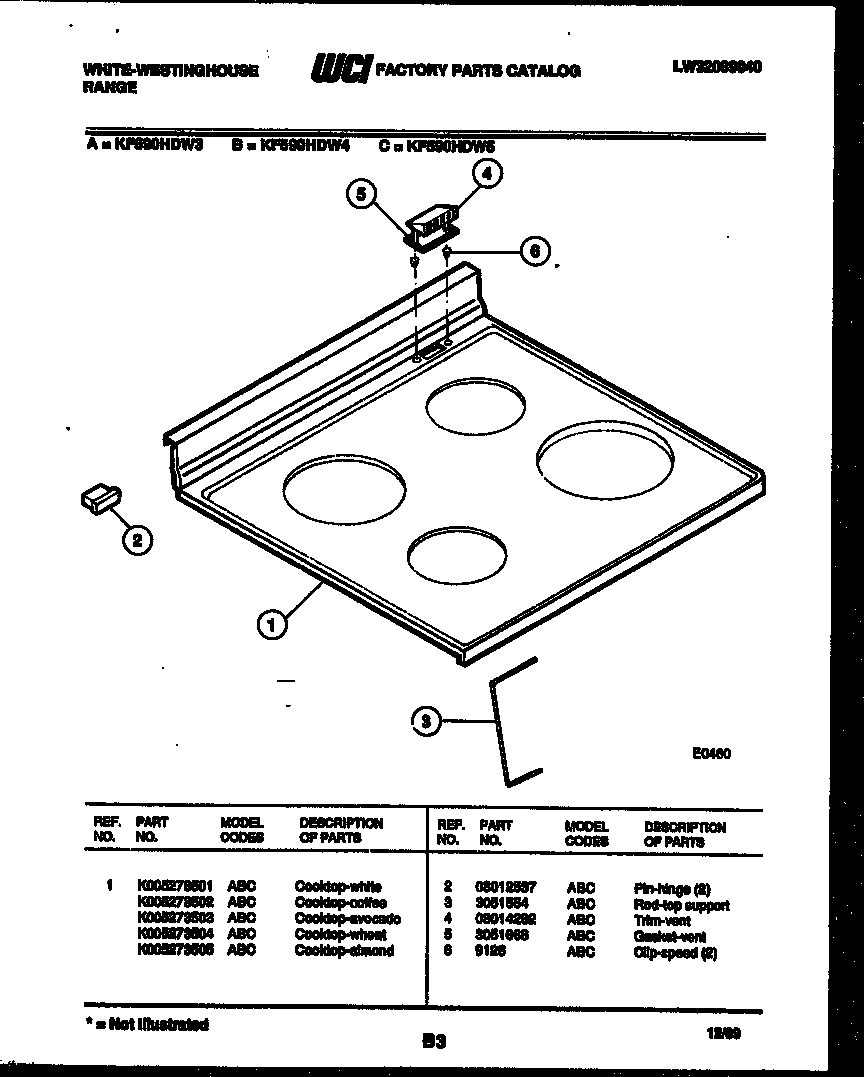

03 - COOKTOP PARTS

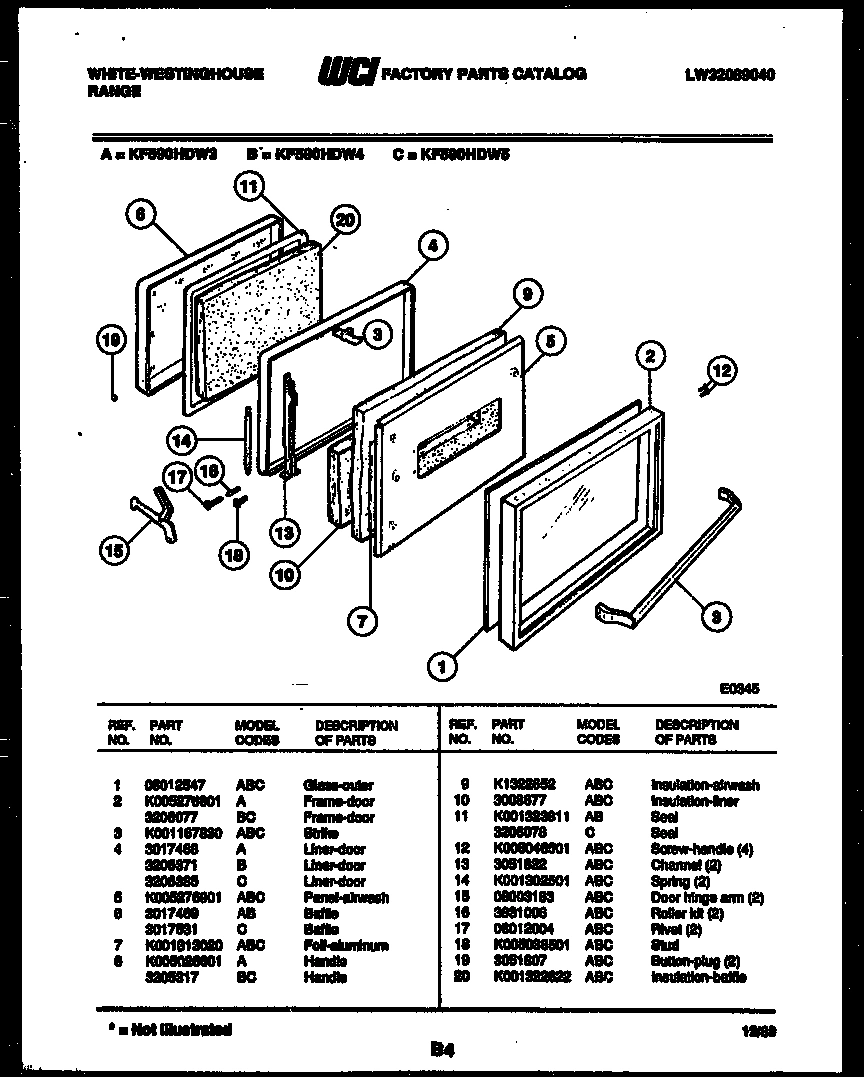

04 - DOOR PARTS

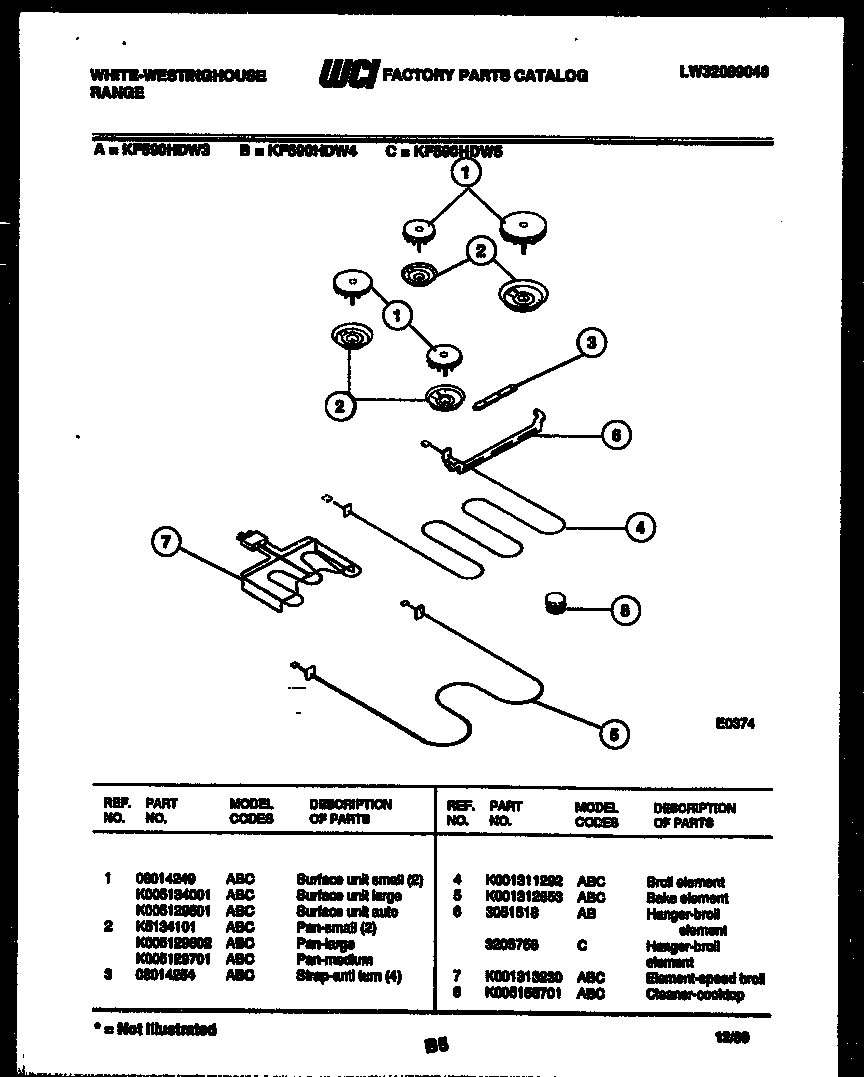

05 - BROILER PARTS

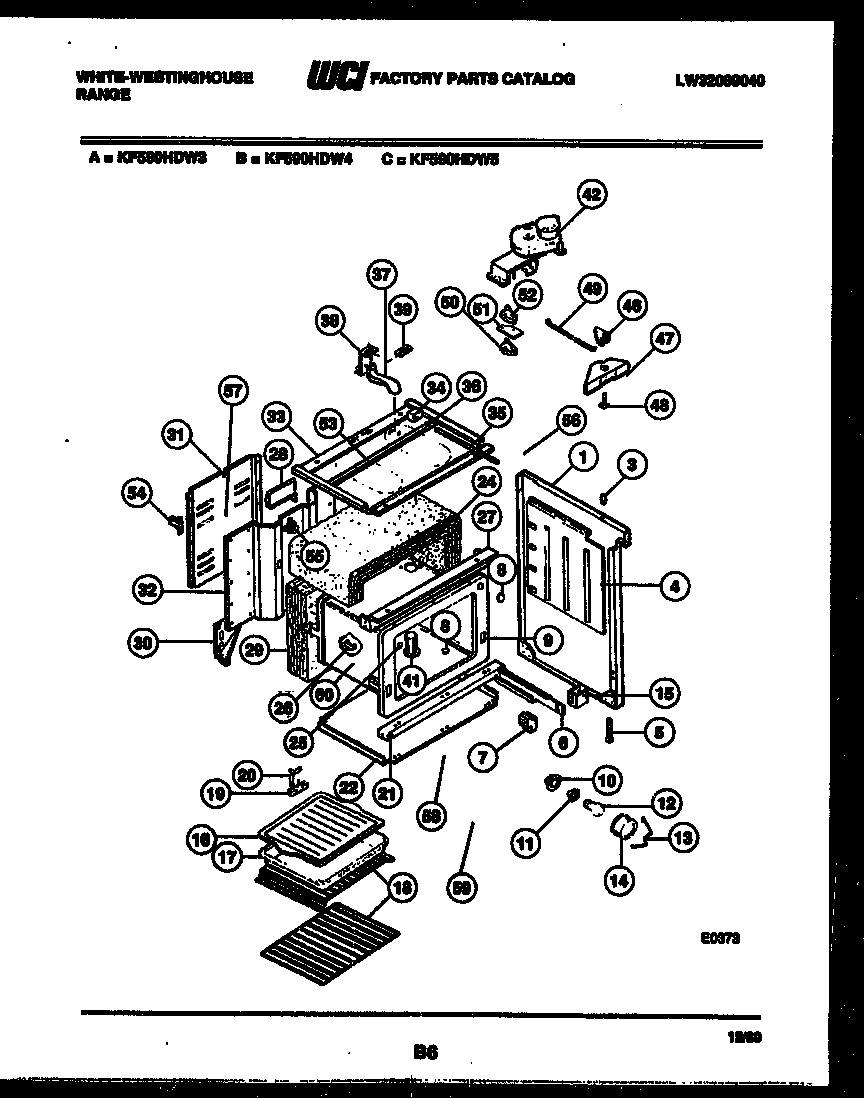

06 - BODY PARTS

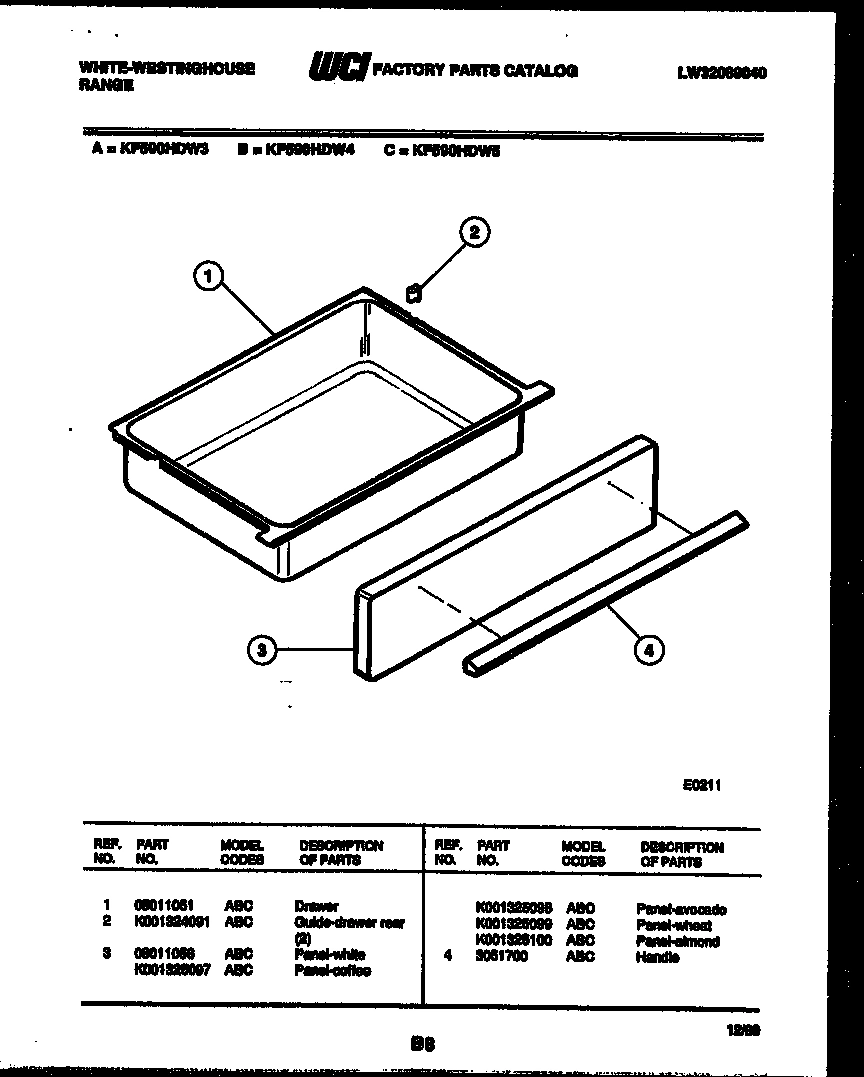

07 - DRAWER PARTS
Common parts from model Electrolux KF590HDW4 RANGE
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI K005273501 WCI K005273501 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
SURFACE UNIT-SMALL (2) WCI 08014249 Contact Us For Availability
1
SIDE PANEL-RH WHITE WCI 08012527 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1A
SURFACE UNIT LARGE WCI K005134001 Contact Us For Availability
1A
WCI 08012528 WCI 08012528 Contact Us For Availability
1B
WCI K005129501 WCI K005129501 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
PAN-SMALL (2) WCI K5134101 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
2A
WCI K005129602 WCI K005129602 Contact Us For Availability
2B
PAN-MEDIUM WCI K005129701 Contact Us For Availability
3
WCI K001324562 WCI K001324562 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI K001167830 WCI K001167830 Contact Us For Availability
3
WCI 08014254 WCI 08014254 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
4
LIGHT-PILOT SURFACE UNIT WCI 3051533 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
LINER-DOOR WCI 3206371 Contact Us For Availability
4
WCI K001325388 WCI K001325388 Contact Us For Availability
4
HANDLE WCI 3051700 Contact Us For Availability
4A
LIGHT-PILOT OVEN (2) WCI K1167858 Contact Us For Availability
4B
LIGHT-PILOT LOCK WCI 08012563 Contact Us For Availability
5
LENS (4) WCI K1322678 Contact Us For Availability
5
WCI K005276901 WCI K005276901 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
WCI K005328201 WCI K005328201 Contact Us For Availability
6
CLIP-SPEED (2) WCI 9126 Contact Us For Availability
6
BAFFLE WCI 3017469 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
WCI K005269902 WCI K005269902 Contact Us For Availability
7
WCI K005327701 WCI K005327701 Contact Us For Availability
7
WCI K001313020 WCI K001313020 Contact Us For Availability
7
WCI K001313230 WCI K001313230 Contact Us For Availability
7
GUIDE-DRAWER FRONT (2) WCI K001315216 Contact Us For Availability
8
KNOBS (6) WCI K005156302 Contact Us For Availability
8
WCI 3205317 WCI 3205317 Contact Us For Availability
8
WCI K005155701 WCI K005155701 Contact Us For Availability
8
PLUG-BUTTON-OVEN 3/4`` (2) WCI 3051784 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
WCI 3204605 WCI 3204605 Contact Us For Availability
9A
WCI K005030401 WCI K005030401 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
WCI 3008677 WCI 3008677 Contact Us For Availability
10
WCI K001325530 WCI K001325530 Contact Us For Availability
10A
WCI K005025202 WCI K005025202 Contact Us For Availability
11
WCI 080125238 WCI 080125238 Contact Us For Availability
11
WCI K001323811 WCI K001323811 Contact Us For Availability
12
BRACKET-MTG THERMO WCI 08015745 Contact Us For Availability
12
WCI K005046501 WCI K005046501 Contact Us For Availability
13
WCI K005156401 WCI K005156401 Contact Us For Availability
13
WCI 3051822 WCI 3051822 Contact Us For Availability
13
WCI K001325529 WCI K001325529 Contact Us For Availability
14
WCI 3016892 WCI 3016892 Contact Us For Availability
14
WCI K001302501 WCI K001302501 Contact Us For Availability
15
BRACKET-CLOCK MTG WCI K5296301 Contact Us For Availability
15
WCI 08003183 WCI 08003183 Contact Us For Availability
15
SPACER-DRAWER RAIL (2) WCI K001324860 Contact Us For Availability
16
WCI 08012754 WCI 08012754 Contact Us For Availability
16
ROLLER KIT (2) WCI 3931006 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
NUT-SWITCH WCI 08012572 Contact Us For Availability
17
RIVET (2) WCI 08012004 Contact Us For Availability
17
WCI 3206373 WCI 3206373 Contact Us For Availability
18
WCI 3008189 WCI 3008189 Contact Us For Availability
18A
WCI K005133401 WCI K005133401 Contact Us For Availability
19
WCI 08012748 WCI 08012748 Contact Us For Availability
19
WCI 3051807 WCI 3051807 Contact Us For Availability
20
WCI 3206370 WCI 3206370 Contact Us For Availability
20
WCI K001322622 WCI K001322622 Contact Us For Availability
20
STRAP-GROUND WCI K001145190 Contact Us For Availability
21
WCI K005033501 WCI K005033501 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
21A
WCI K005033502 WCI K005033502 Contact Us For Availability
22
WCI K005297501 WCI K005297501 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
23
WCI 08014258 WCI 08014258 Contact Us For Availability
24
WCI K001311331 WCI K001311331 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
27
WCI K001318075 WCI K001318075 Contact Us For Availability
27B
ANTI-TIP KIT SUPPORT UPPER (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
30A
GUSSET REAR, LH WCI K5285804 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
BACK-RANGE WCI 3017480 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI K001313226 Contact Us For Availability
34
WCI 3017799 WCI 3017799 Contact Us For Availability
35
WCI K001167847 WCI K001167847 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
TUBE-OVEN VENT WCI K005130601 Contact Us For Availability
38
WCI K005130701 WCI K005130701 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
41
WCI K005055201 WCI K005055201 Contact Us For Availability
42
WCI 3051650 WCI 3051650 Contact Us For Availability
46
WCI K005260202 WCI K005260202 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI K001324830 Contact Us For Availability
48
AXLE WCI K005038501 Contact Us For Availability
49
WCI K005271201 WCI K005271201 Contact Us For Availability
50
SWITCH-LOWER WCI K001315370 Contact Us For Availability
51
INSULATOR WCI K001308690 Contact Us For Availability
52
SWITCH-UPPER WCI K001167190 Contact Us For Availability
53
WCI K005303702 WCI K005303702 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
55
WCI K005328001 WCI K005328001 Contact Us For Availability
× ![]()
