Model Electrolux KF590HDD6 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

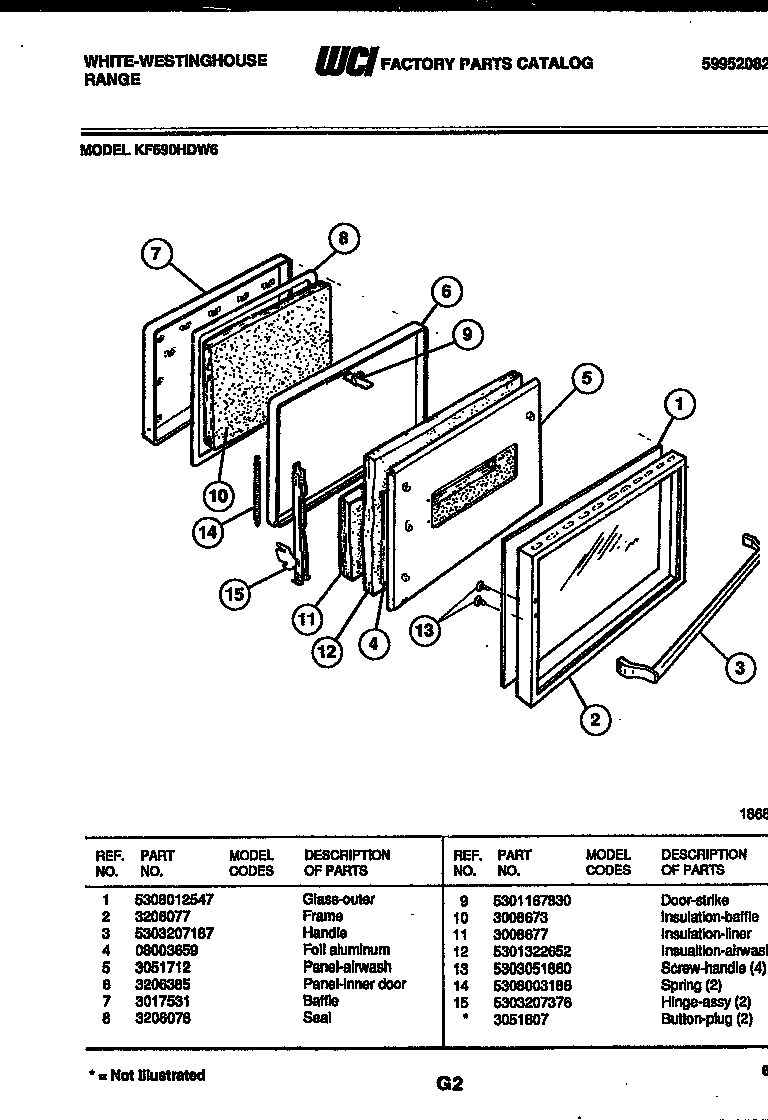

04 - DOOR PARTS
05 - BROILER PARTS

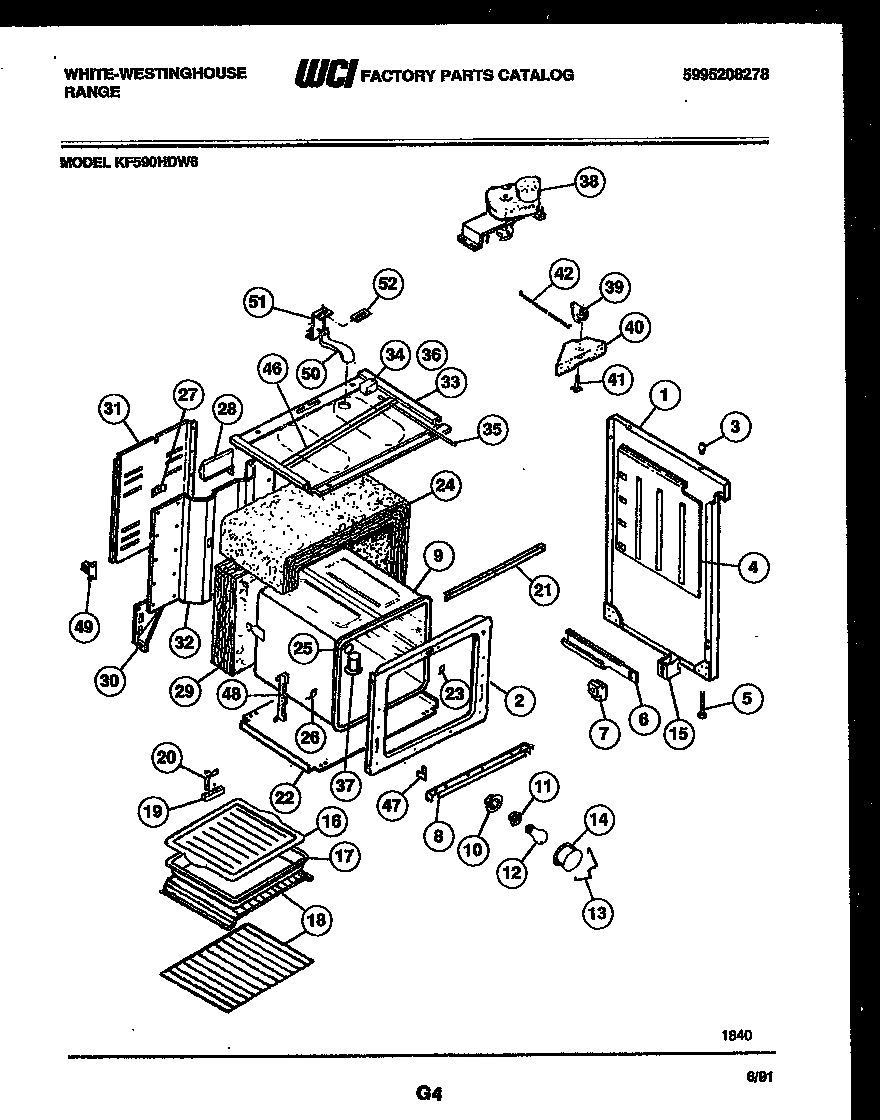

06 - BODY PARTS

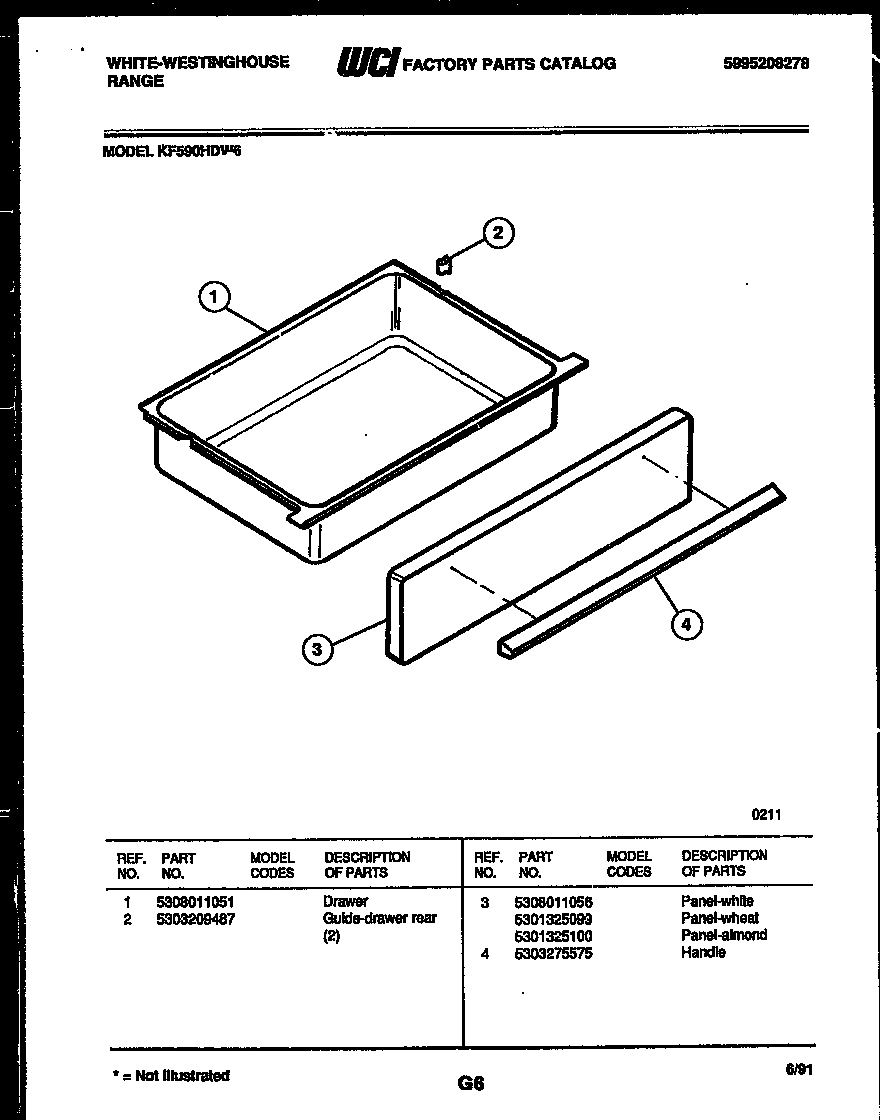

07 - DRAWER PARTS
Common parts from model Electrolux KF590HDD6 RANGE
*47449
WCI 19100210049 WCI 19100210049 Contact Us For Availability
1
SURFACE UNIT - SMALL (2) WCI 5303271867 Contact Us For Availability
1
WCI 5398484004 WCI 5398484004 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
SIDE PANEL RH-ALMD WCI 5308012529 Contact Us For Availability
1
SIDE PANEL LH-ALMD WCI 5308012530 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SURFACE UNIT - LARGE WCI 5303271910 Contact Us For Availability
1B
SURFACE UNIT, AUTO. WCI 5308014251 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 3206077 WCI 3206077 Contact Us For Availability
2
PAN-SMALL (2) WCI 5303051662 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
2A
WCI 5305129602 WCI 5305129602 Contact Us For Availability
2B
WCI 5305129701 WCI 5305129701 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI 5303207187 WCI 5303207187 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
WCI 08003659 WCI 08003659 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
WCI 5303275575 WCI 5303275575 Contact Us For Availability
5
LENS (4) WCI 5308006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
WCI 3206385 WCI 3206385 Contact Us For Availability
6
HANGER-BROILER ELEMENT WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K005327701 WCI K005327701 Contact Us For Availability
7
BAFFLE WCI 3017531 Contact Us For Availability
7
WCI 5303211101 WCI 5303211101 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
KNOBS (6) WCI 5305156302 Contact Us For Availability
8
WCI 3206078 WCI 3206078 Contact Us For Availability
8
WCI 5308016255 WCI 5308016255 Contact Us For Availability
8
CHANNEL, SUB TOP WCI 3205257 Contact Us For Availability
9
WCI 5305030402 WCI 5305030402 Contact Us For Availability
9
DOOR STRIKE WCI 5301167830 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
9A
WCI 5305030401 WCI 5305030401 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 3008673 WCI 3008673 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3008677 WCI 3008677 Contact Us For Availability
12
BRACKET-MTG THERMO WCI 08015745 Contact Us For Availability
12
INSUALTION-AIRWASH WCI 5301322652 Contact Us For Availability
13
WCI 5303051860 WCI 5303051860 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303016892 WCI 5303016892 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
15
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
15
WCI 5303207376 WCI 5303207376 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 5308012754 WCI 5308012754 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
NUT-SWITCH WCI 08012572 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
WCI 5308012712 WCI 5308012712 Contact Us For Availability
18A
RACK-OVEN OFFSET WCI 5305133401 Contact Us For Availability
19
WCI 08012748 WCI 08012748 Contact Us For Availability
20
WCI 3206370 WCI 3206370 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 5305033501 WCI 5305033501 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
21A
WCI 5305033502 WCI 5305033502 Contact Us For Availability
22
WCI K005297501 WCI K005297501 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 5308014258 WCI 5308014258 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
34
WCI 3017799 WCI 3017799 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
VENT TUBE WCI 3205683 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
46
BRKT-MAIN TOP WCI 5303207389 Contact Us For Availability
47
WCI 3019063 WCI 3019063 Contact Us For Availability
47A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
47B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
48
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
49
WCI 3017556 WCI 3017556 Contact Us For Availability
50
WCI 3051655 WCI 3051655 Contact Us For Availability
51
BRKT-VENT TUBE WCI 3051656 Contact Us For Availability
52
GASKET-OVEN VENT WCI 3051666 Contact Us For Availability
× ![]()
