Model Electrolux KF560GDF5 RANGE – Common Parts & Diagrams

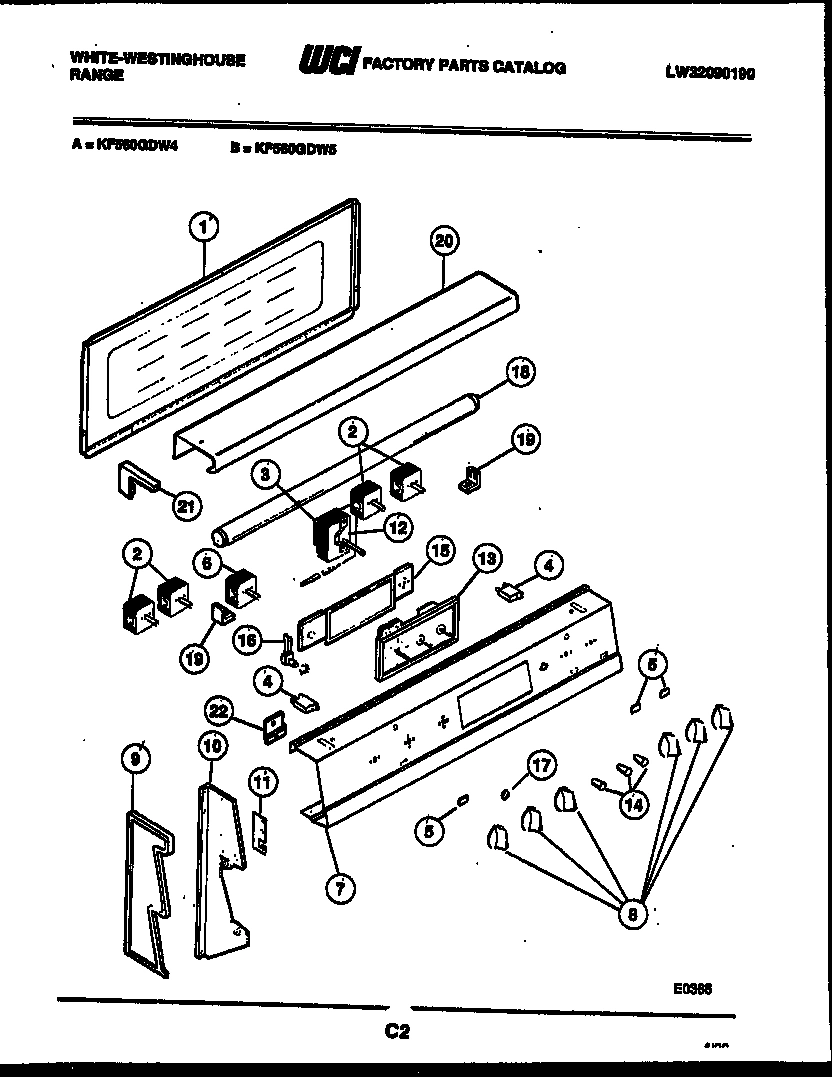

02 - CONTROL PANEL

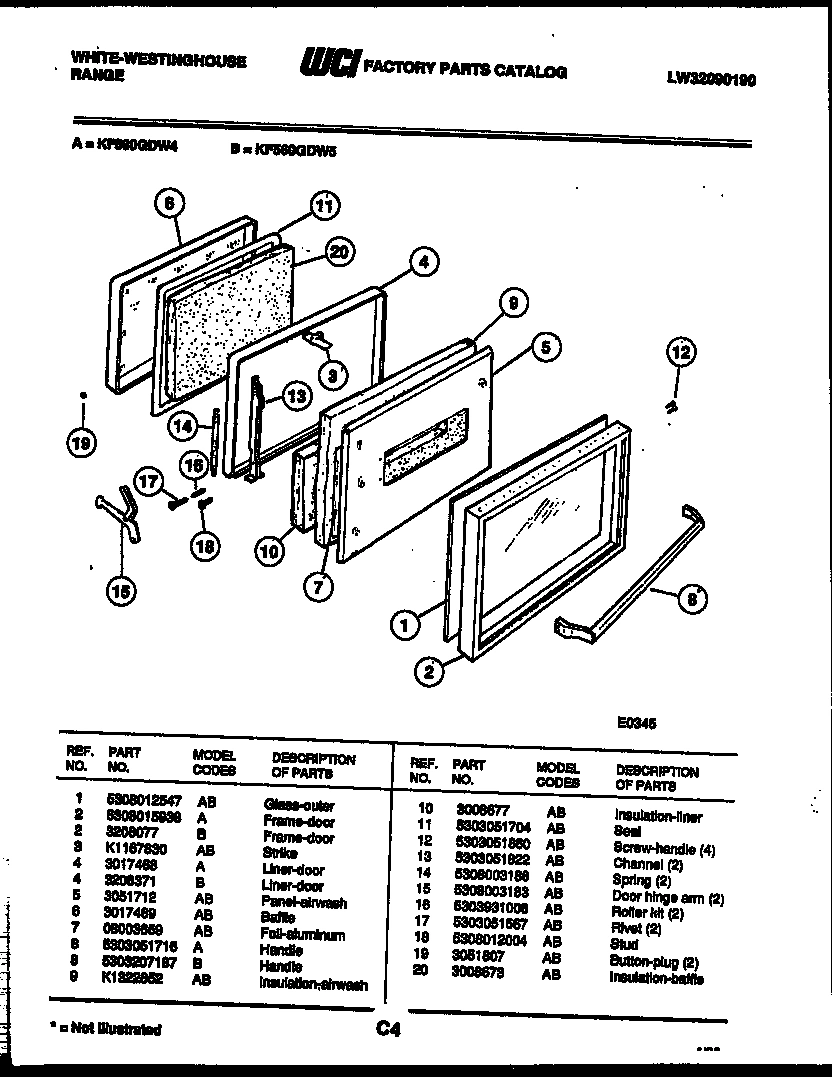

03 - DOOR PARTS
04 - COOKTOP PARTS
05 - BROILER PARTS
06 - DRAWER PARTS
07 - BODY PARTS
Common parts from model Electrolux KF560GDF5 RANGE
*72285
WCI 3934063 WCI 3934063 Contact Us For Availability
*72285
WCI Q000160978 WCI Q000160978 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
WCI K005024212 WCI K005024212 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PANEL RH-COFFEE WCI K005024605 Contact Us For Availability
1A
SIDE PANEL LH-COFFEE WCI K005024606 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
GUIDE-DWR REAR (3) WCI K001324091 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI K001325047 WCI K001325047 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
4
LINER-DOOR WCI 3206371 Contact Us For Availability
4
HANDLE WCI 5303051700 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
LENS (3) WCI 5308006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG, LEVELER (4) WCI 3205294 Contact Us For Availability
6
BAFFLE WCI 3017469 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
7
WCI 5301313230 WCI 5301313230 Contact Us For Availability
7
GUIDE-DRAWER FRNT (2) WCI 3051654 Contact Us For Availability
8
WCI 5303207187 WCI 5303207187 Contact Us For Availability
8
BUTTON, PLUG (2) WCI 3204817 Contact Us For Availability
9
WCI 5305030401 WCI 5305030401 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
WCI 3204605 WCI 3204605 Contact Us For Availability
9A
WCI 5305030402 WCI 5305030402 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 3008677 WCI 3008677 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
SEAL WCI 5303051704 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
12
WCI 5303051860 WCI 5303051860 Contact Us For Availability
12
WCI K1317816 WCI K1317816 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
CHANNEL (2) WCI 5303051822 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303016892 WCI 5303016892 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
15
DOOR HINGE ARM (2) WCI 5308003183 Contact Us For Availability
15
WCI 08015861 WCI 08015861 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 5308012754 WCI 5308012754 Contact Us For Availability
16
ROLLER KIT (2) WCI 5303931006 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
NUT-SWITCH WCI 08012572 Contact Us For Availability
17
RIVET (2) WCI 5303051567 Contact Us For Availability
17
WCI 3200723 WCI 3200723 Contact Us For Availability
17
WCI 3206373 WCI 3206373 Contact Us For Availability
18
WCI 5308012712 WCI 5308012712 Contact Us For Availability
18A
WCI 5305133401 WCI 5305133401 Contact Us For Availability
19
WCI 08012748 WCI 08012748 Contact Us For Availability
19
WCI 3051807 WCI 3051807 Contact Us For Availability
20
WCI 5305030702 WCI 5305030702 Contact Us For Availability
20
WCI 3008673 WCI 3008673 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
WCI 5305033501 WCI 5305033501 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
21A
WCI 5305033502 WCI 5305033502 Contact Us For Availability
22
WCI K005297501 WCI K005297501 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI K005328001 WCI K005328001 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
WCI 3051550 WCI 3051550 Contact Us For Availability
27
CHANNEL-OVEN SUPPORT UPPER WCI 5303208390 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
BACK-RANGE WCI 3017480 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI 3051785 Contact Us For Availability
34
WCI 3017799 WCI 3017799 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 3017800 WCI 3017800 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
MOTOR-LATCH WCI 5308015743 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LOWER WCI K001315370 Contact Us For Availability
51
WCI 08003090 WCI 08003090 Contact Us For Availability
52
SWITCH - UPPER WCI 5301167190 Contact Us For Availability
53
WCI 5303209282 WCI 5303209282 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
× ![]()
