Model Electrolux KF520GDW7 RANGE – Common Parts & Diagrams

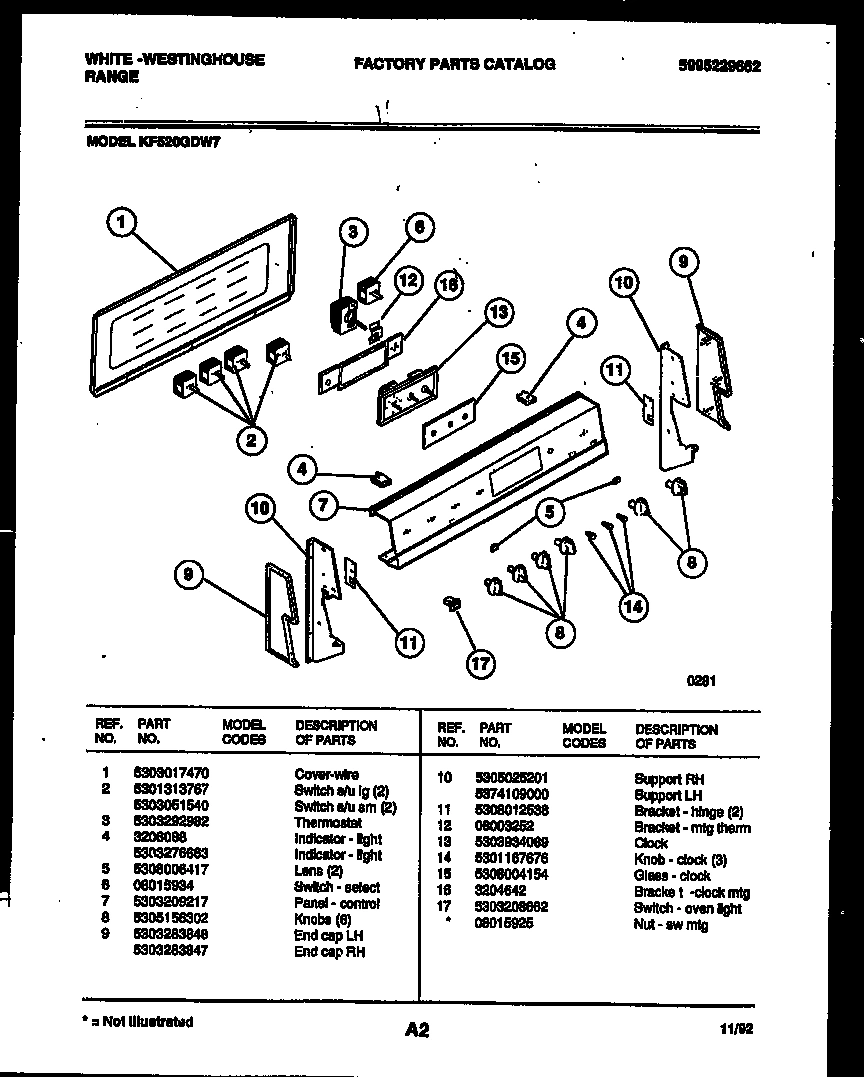

02 - BACKGUARD

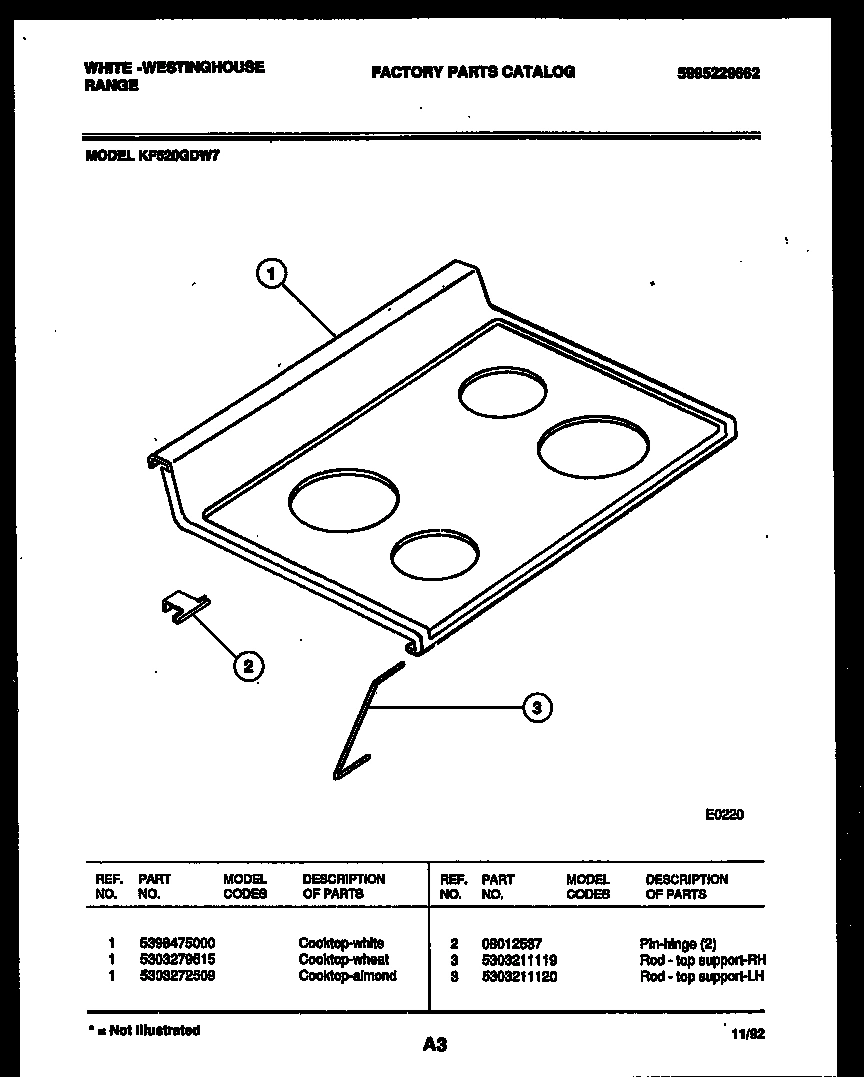

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER PARTS
06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux KF520GDW7 RANGE
*71603
PLATE ANTI-TIP WCI 316042301 Contact Us For Availability
*71610
WCI 316002007 WCI 316002007 Contact Us For Availability
*71610
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 5398475000 WCI 5398475000 Contact Us For Availability
1
LINER - DOOR WCI 316041801 Contact Us For Availability
1
BODY - OVEN WCI 5303292686 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
PANEL-DOOR WHITE WCI 35069000 Contact Us For Availability
2
WCI 3202082 WCI 3202082 Contact Us For Availability
3
ROD - TOP SUPPORT-RH WCI 5303211119 Contact Us For Availability
3
ROD - TOP SUPPORT-LH WCI 5303211120 Contact Us For Availability
3
WCI 5301325512 WCI 5301325512 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
4
WCI 5303276663 WCI 5303276663 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
5
LENS (2) WCI 5308006417 Contact Us For Availability
5
RETAINER-OUTER GLASS (2) WCI 3205109 Contact Us For Availability
5
WCI 5303274967 WCI 5303274967 Contact Us For Availability
6
SWITCH - SELECT WCI 08015934 Contact Us For Availability
6
WCI 5301325511 WCI 5301325511 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
PANEL-END LH (WHITE) WCI 5308012528 Contact Us For Availability
6A
PANEL-END RH (WHITE) WCI 5308012527 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
RETAINER - INNER GLASS (4) WCI 3205108 Contact Us For Availability
8
PANEL-BACK WCI 3205757 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
WCI 3017481 WCI 3017481 Contact Us For Availability
9A
WCI 3017482 WCI 3017482 Contact Us For Availability
10
WCI 3206199 WCI 3206199 Contact Us For Availability
10
WCI 5303207391 WCI 5303207391 Contact Us For Availability
11
WCI 5303284325 WCI 5303284325 Contact Us For Availability
11
WCI 3205294 WCI 3205294 Contact Us For Availability
12
WCI 3019063 WCI 3019063 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 3201632 WCI 3201632 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
15
WCI 5308004154 WCI 5308004154 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
15
WCI 3206095 WCI 3206095 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
SPACER DRAWER GUIDE (2) WCI 3051653 Contact Us For Availability
17
HINGE - ASSY (2) WCI 5303207598 Contact Us For Availability
17
GUIDE, FRONT (2) WCI 3051654 Contact Us For Availability
18
GLIDE-DRAWER RH WCI 5308015746 Contact Us For Availability
18A
GLIDE-DRAWER LH WCI 3051652 Contact Us For Availability
19
BUMPER (4) WCI 5308003107 Contact Us For Availability
22
PLATE-GROUNDING WCI 5301145190 Contact Us For Availability
23
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
25
WCI 5303051856 WCI 5303051856 Contact Us For Availability
26
CUPT - OVEN LIGHT WCI 5303271606 Contact Us For Availability
30
RETAINER-LENS WCI 5303205904 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
33
FRONT - OVEN WCI 316042103 Contact Us For Availability
34
WCI 5303292688 WCI 5303292688 Contact Us For Availability
35
WCI 3205234 WCI 3205234 Contact Us For Availability
37
WCI 5301314211 WCI 5301314211 Contact Us For Availability
× ![]()
