Model Electrolux KF520GDF5 RANGE – Common Parts & Diagrams

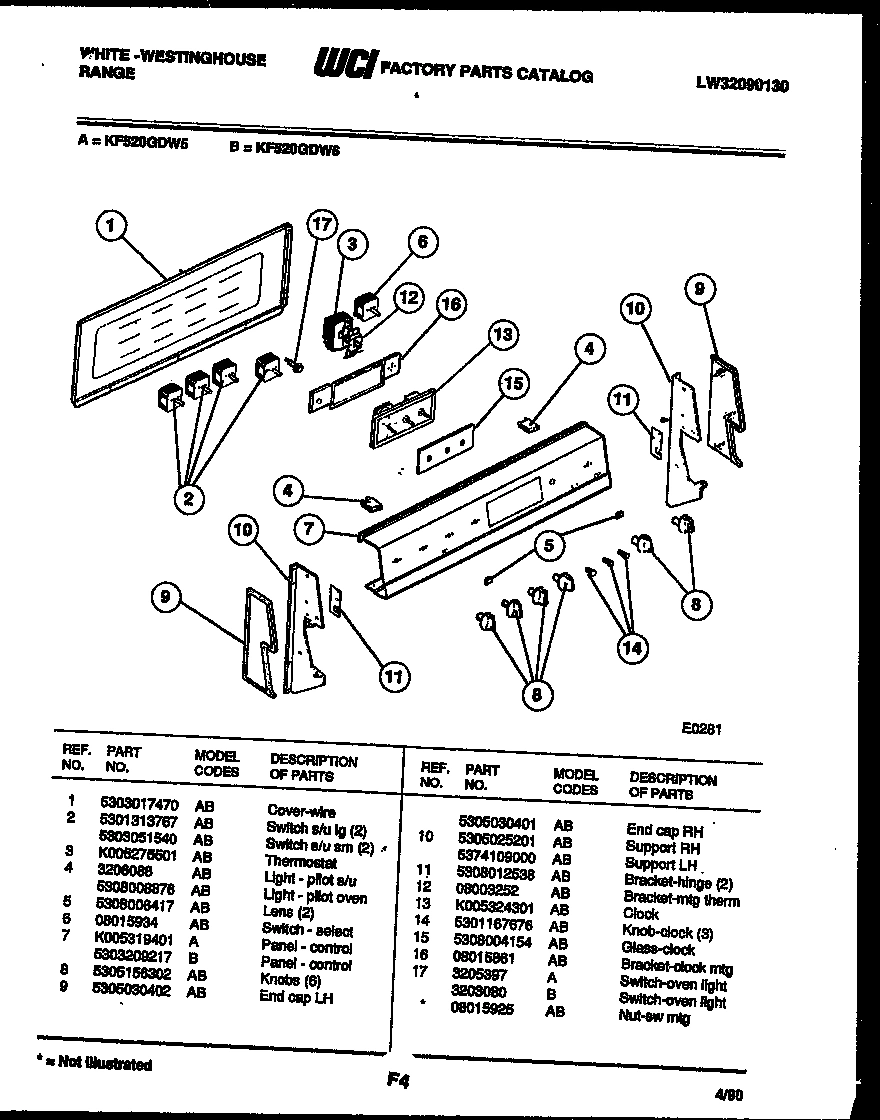

02 - CONTROL PANEL

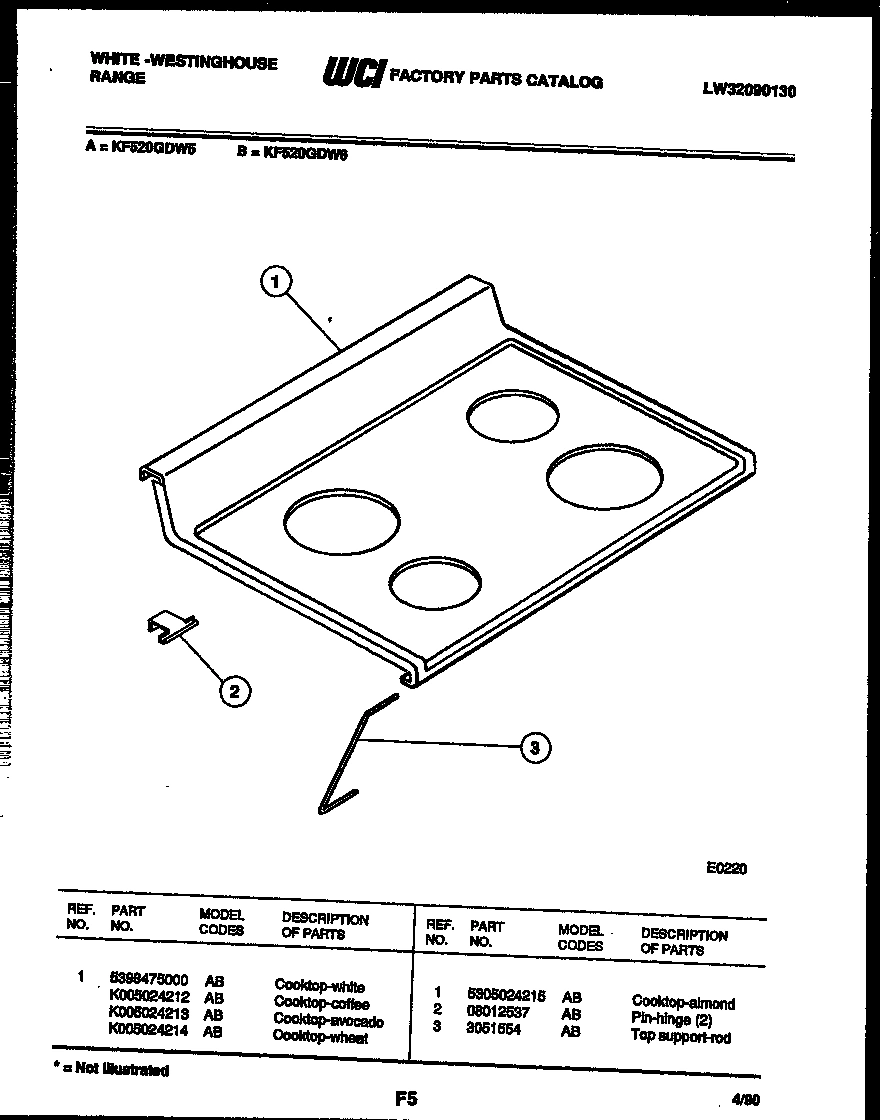

03 - COOKTOP PARTS

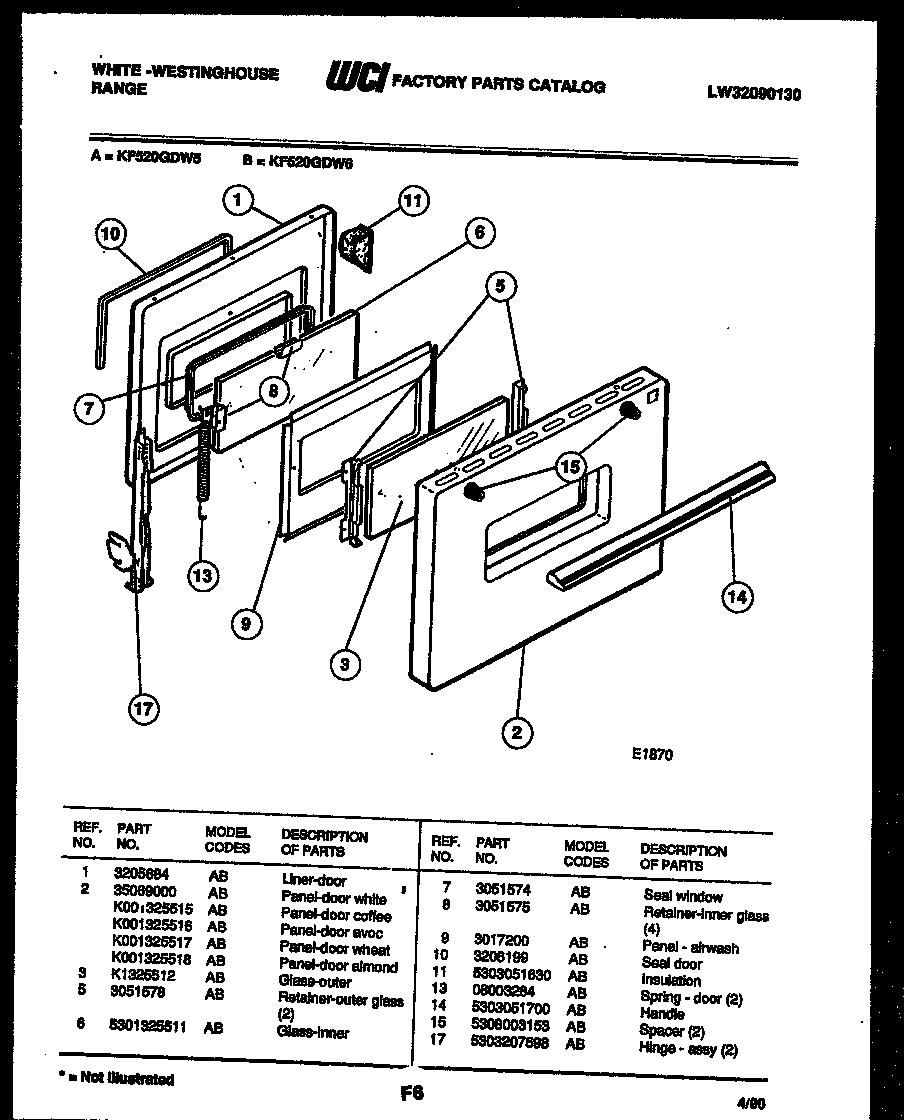

04 - DOOR PARTS

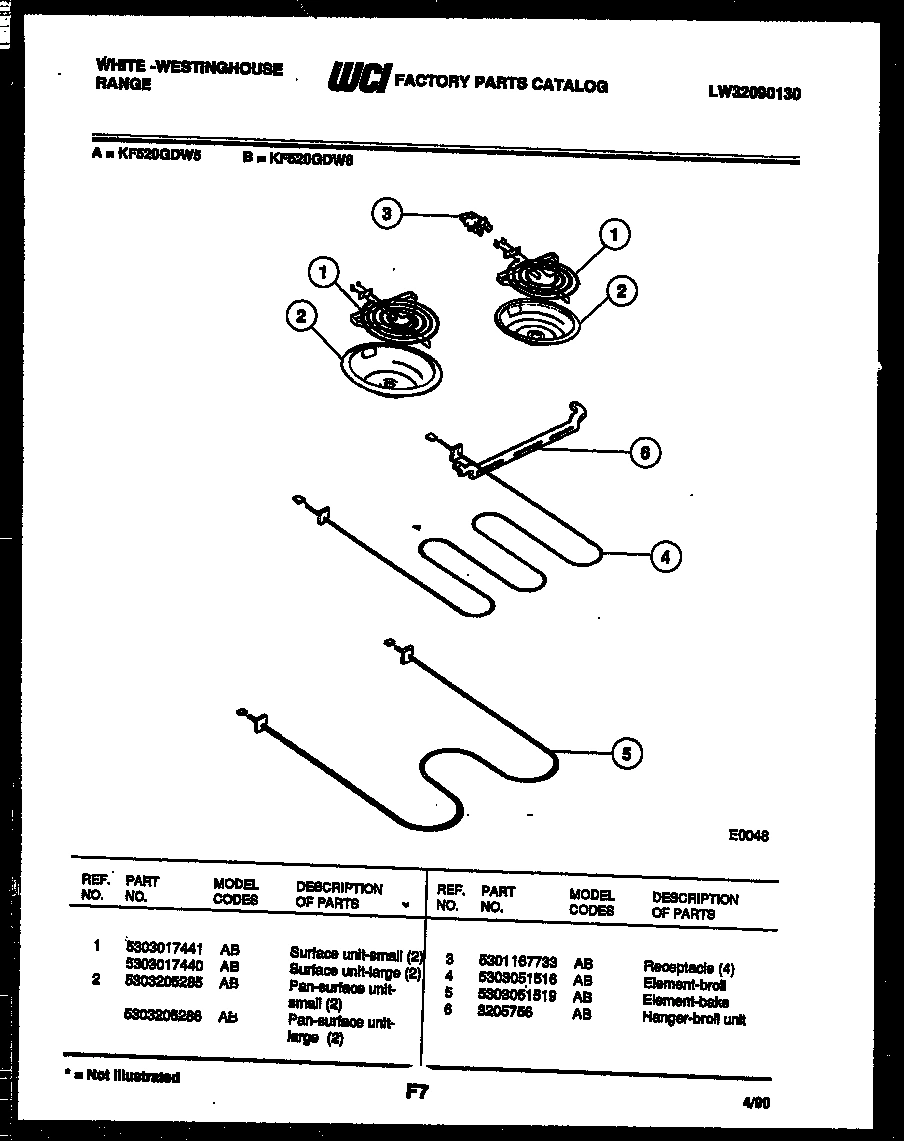

05 - BROILER PARTS

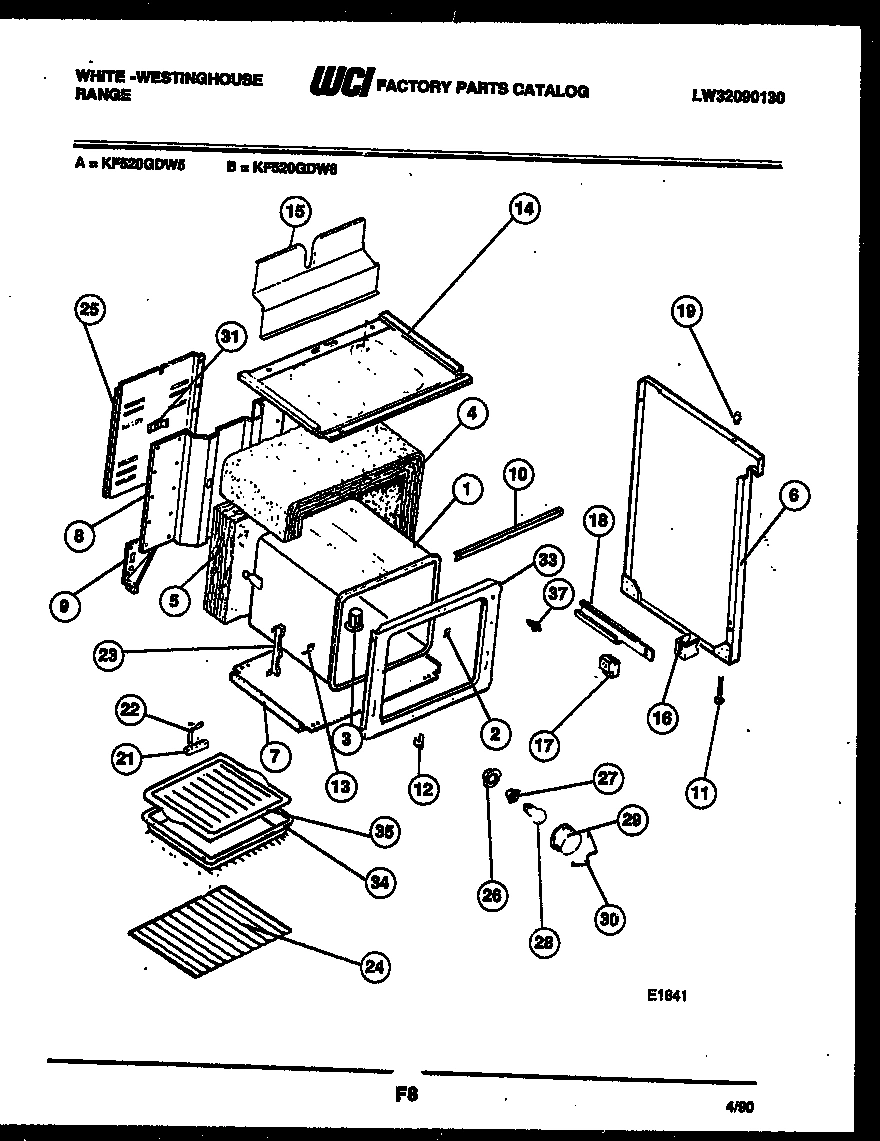

06 - BODY PARTS

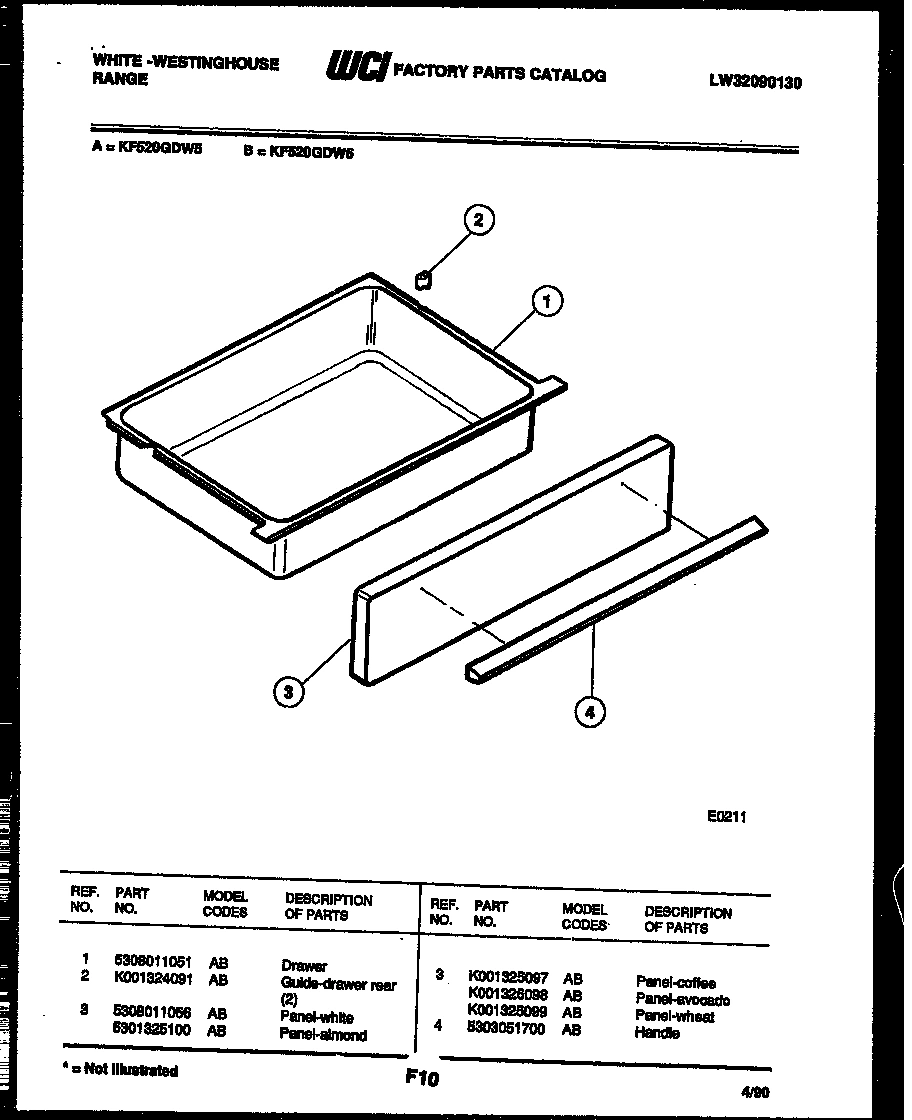

07 - DRAWER PARTS
Common parts from model Electrolux KF520GDF5 RANGE
*29577
WCI 3934063 WCI 3934063 Contact Us For Availability
*29577
WCI 5300009126 WCI 5300009126 Contact Us For Availability
1
WCI K005024212 WCI K005024212 Contact Us For Availability
1
LINER-DOOR WCI 3205684 Contact Us For Availability
1
BODY-OVEN WCI 3206079 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K001325515 WCI K001325515 Contact Us For Availability
2
WCI 3202082 WCI 3202082 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
3
TOP SUPPORT-ROD WCI 3051554 Contact Us For Availability
3
WCI K1325512 WCI K1325512 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
WCI K001325097 WCI K001325097 Contact Us For Availability
4
HANDLE WCI 5303051700 Contact Us For Availability
4
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
5
LENS (2) WCI 5308006417 Contact Us For Availability
5
WCI 3051578 WCI 3051578 Contact Us For Availability
5
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
6
SWITCH - SELECT WCI 08015934 Contact Us For Availability
6
WCI 5301325511 WCI 5301325511 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
PANEL-END LH COFFEE WCI K005024606 Contact Us For Availability
6A
PANEL-END RH COFFEE WCI K005024605 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 3051575 WCI 3051575 Contact Us For Availability
8
PANEL-BACK WCI 3205757 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
WCI 3017481 WCI 3017481 Contact Us For Availability
9A
WCI 5305030401 WCI 5305030401 Contact Us For Availability
9A
WCI 3017482 WCI 3017482 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 3206199 WCI 3206199 Contact Us For Availability
10
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3205294 WCI 3205294 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 3019063 WCI 3019063 Contact Us For Availability
13
WCI K005324301 WCI K005324301 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 3201632 WCI 3201632 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
WCI 08012542 WCI 08012542 Contact Us For Availability
15
WCI 5308004154 WCI 5308004154 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
15
WCI 3206095 WCI 3206095 Contact Us For Availability
16
WCI 08015861 WCI 08015861 Contact Us For Availability
16
SPACER DRAWER GUIDE (2) WCI 3051653 Contact Us For Availability
17
WCI 3205397 WCI 3205397 Contact Us For Availability
17
HINGE - ASSY (2) WCI 5303207598 Contact Us For Availability
17
GUIDE, FRONT (2) WCI 3051654 Contact Us For Availability
18
GLIDE-DRAWER RH WCI 5308015746 Contact Us For Availability
18A
GLIDE-DRAWER LH WCI 3051652 Contact Us For Availability
19
BUMPER (4) WCI 5308003107 Contact Us For Availability
22
PLATE-GROUNDING WCI K1145190 Contact Us For Availability
23
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
25
WCI 5303051856 WCI 5303051856 Contact Us For Availability
26
CUPT - OVEN LIGHT WCI 3051511 Contact Us For Availability
30
RETAINER-LENS WCI 5303205904 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
33
WCI 5303207446 WCI 5303207446 Contact Us For Availability
34
WCI 3205539 WCI 3205539 Contact Us For Availability
35
WCI 3205234 WCI 3205234 Contact Us For Availability
37
WCI 5301314211 WCI 5301314211 Contact Us For Availability
× ![]()
