Model Electrolux KF520GDF4 RANGE – Common Parts & Diagrams

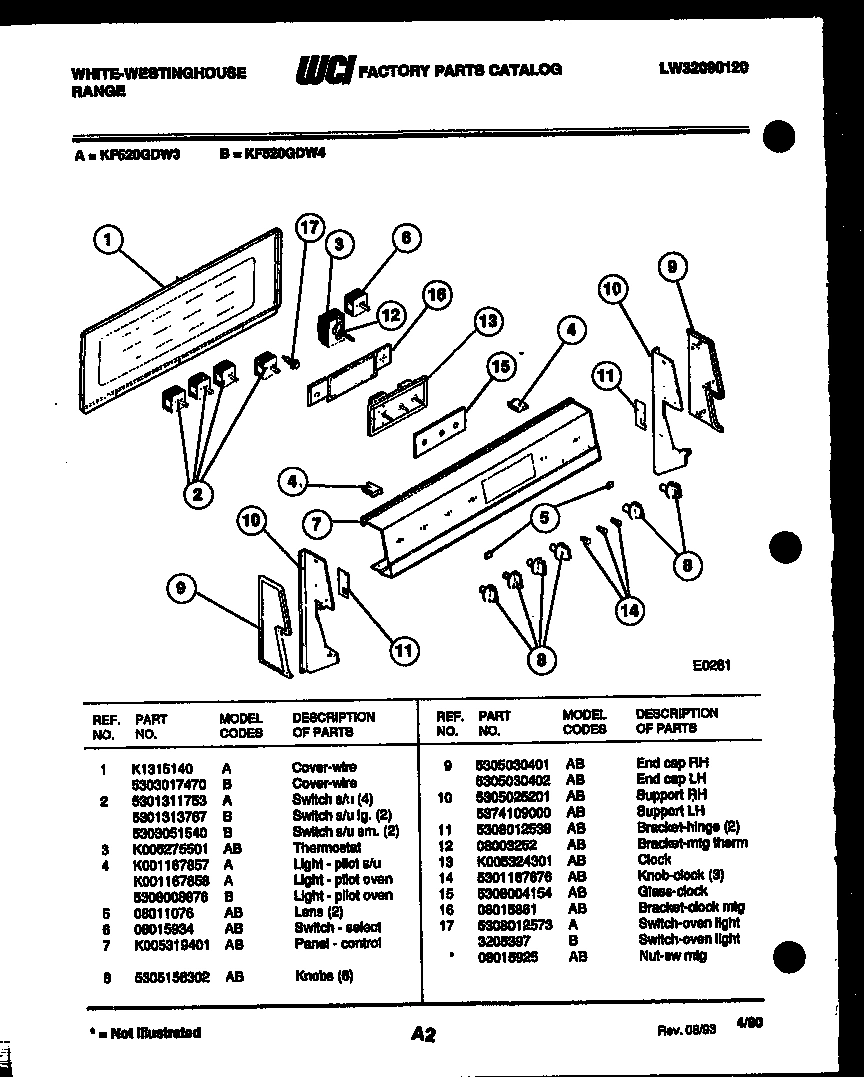

02 - CONTROL PANEL

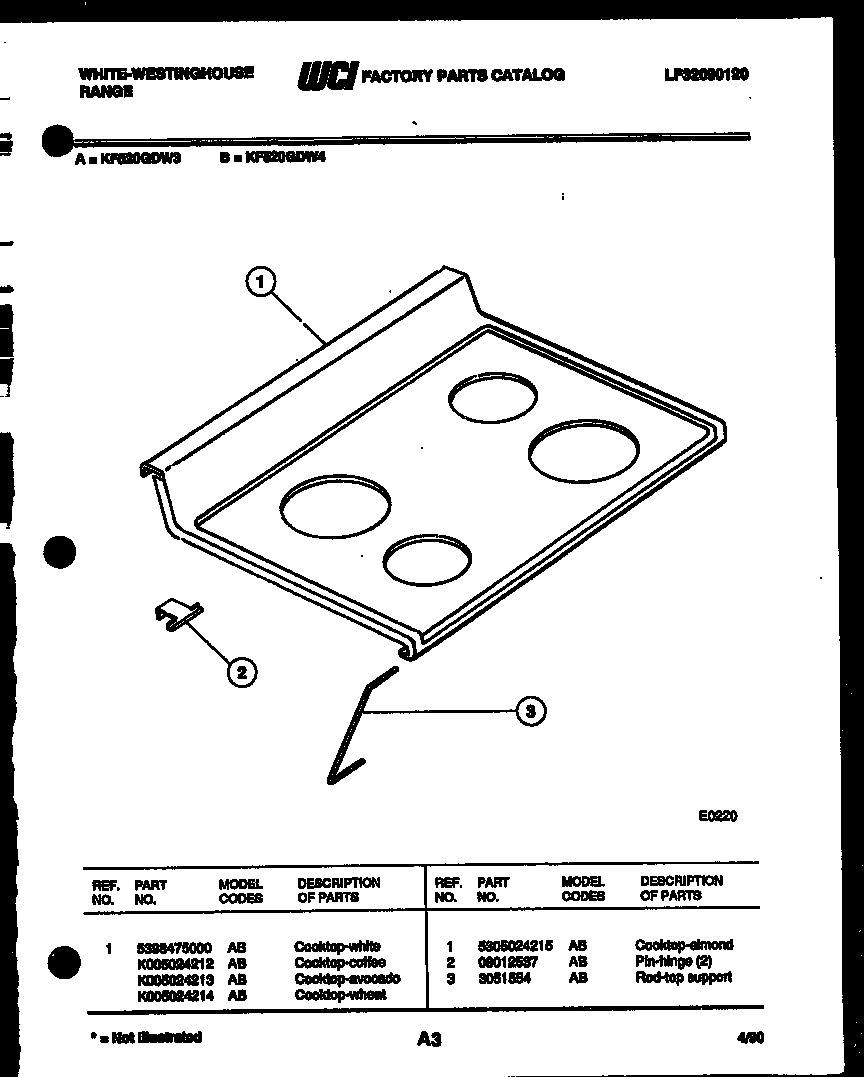

03 - COOKTOP PARTS

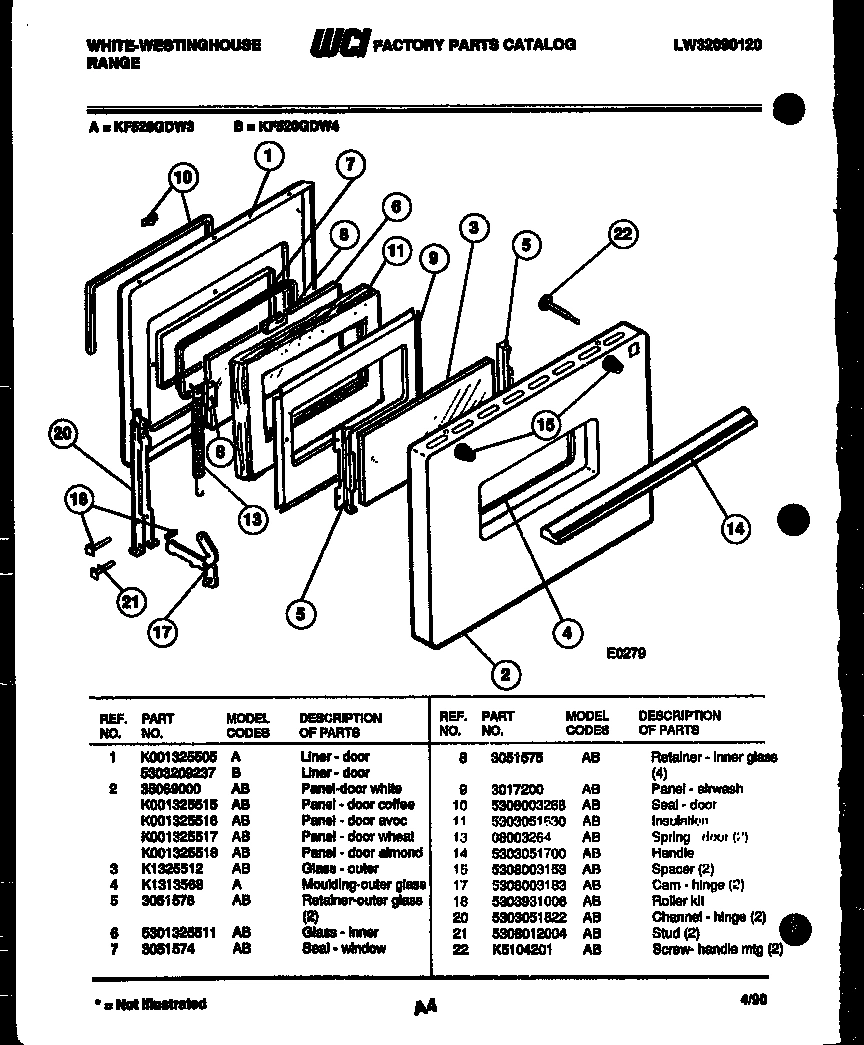

04 - DOOR PARTS
05 - BROILER PARTS

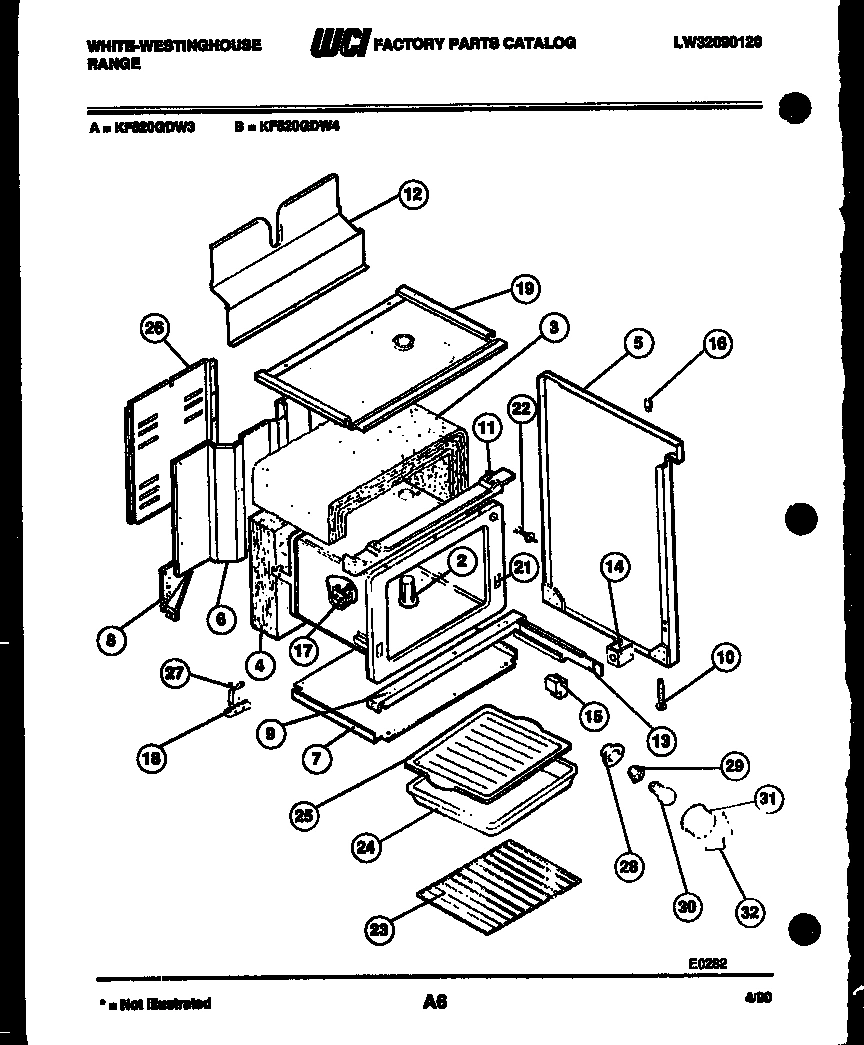

06 - BODY PARTS

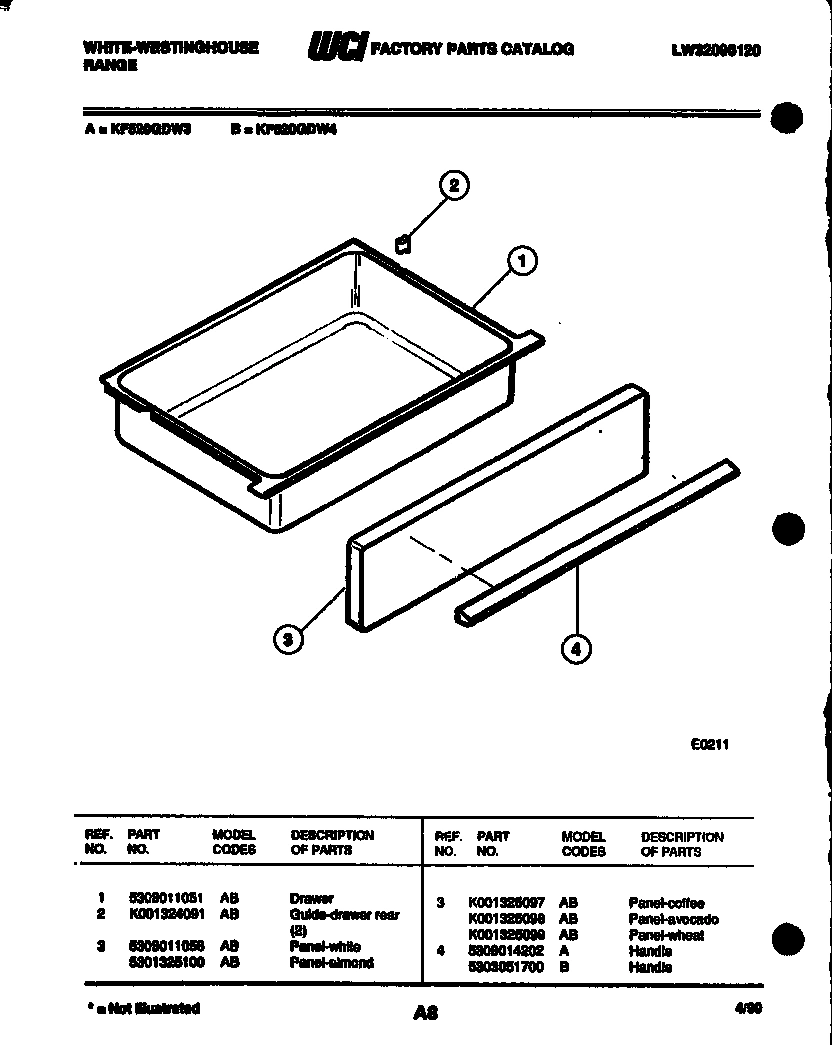

07 - DRAWER PARTS
Common parts from model Electrolux KF520GDF4 RANGE
1
WCI K005024212 WCI K005024212 Contact Us For Availability
1
WCI 5303209237 WCI 5303209237 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K001325515 WCI K001325515 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI K1325512 WCI K1325512 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
WCI K001325097 WCI K001325097 Contact Us For Availability
4
MOULDING OUTER GLASS WCI K1313568 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
4
HANDLE WCI 5303051700 Contact Us For Availability
5
WCI 3051578 WCI 3051578 Contact Us For Availability
5
WCI K005024605 WCI K005024605 Contact Us For Availability
5A
WCI K005024606 WCI K005024606 Contact Us For Availability
6
SWITCH - SELECT WCI 08015934 Contact Us For Availability
6
WCI 5301325511 WCI 5301325511 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 3017535 WCI 3017535 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 3051575 WCI 3051575 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
CHANNEL - OVEN SPRT WCI 3200927 Contact Us For Availability
9A
WCI 5305030402 WCI 5305030402 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 5308003268 WCI 5308003268 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
CHANNEL - OVEN SPRT. WCI 5303208360 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
WCI K005324301 WCI K005324301 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
WCI 5308004154 WCI 5308004154 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
15
GUIDE-DRWR FRNT (2) WCI 3051654 Contact Us For Availability
16
WCI 08015861 WCI 08015861 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
CAM HINGE (2) WCI 5308003183 Contact Us For Availability
17
WCI 3205397 WCI 3205397 Contact Us For Availability
17
BRACKET-THERMO BULB (2) WCI 3051552 Contact Us For Availability
18
ROLLER-KIT WCI 5303931006 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
WCI 5303051822 WCI 5303051822 Contact Us For Availability
21
STUD (2) WCI 5308012004 Contact Us For Availability
21
WCI 3204607 WCI 3204607 Contact Us For Availability
22
WCI 5301314211 WCI 5301314211 Contact Us For Availability
22
SCREW- HANDLE MTG (2) WCI K5104201 Contact Us For Availability
24
WCI 3206373 WCI 3206373 Contact Us For Availability
25
GRILL BROILER WCI 3204234 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI 3051511 WCI 3051511 Contact Us For Availability
32
RETAINER-LENS WCI 5303205904 Contact Us For Availability
× ![]()
