Model Electrolux KF480NW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

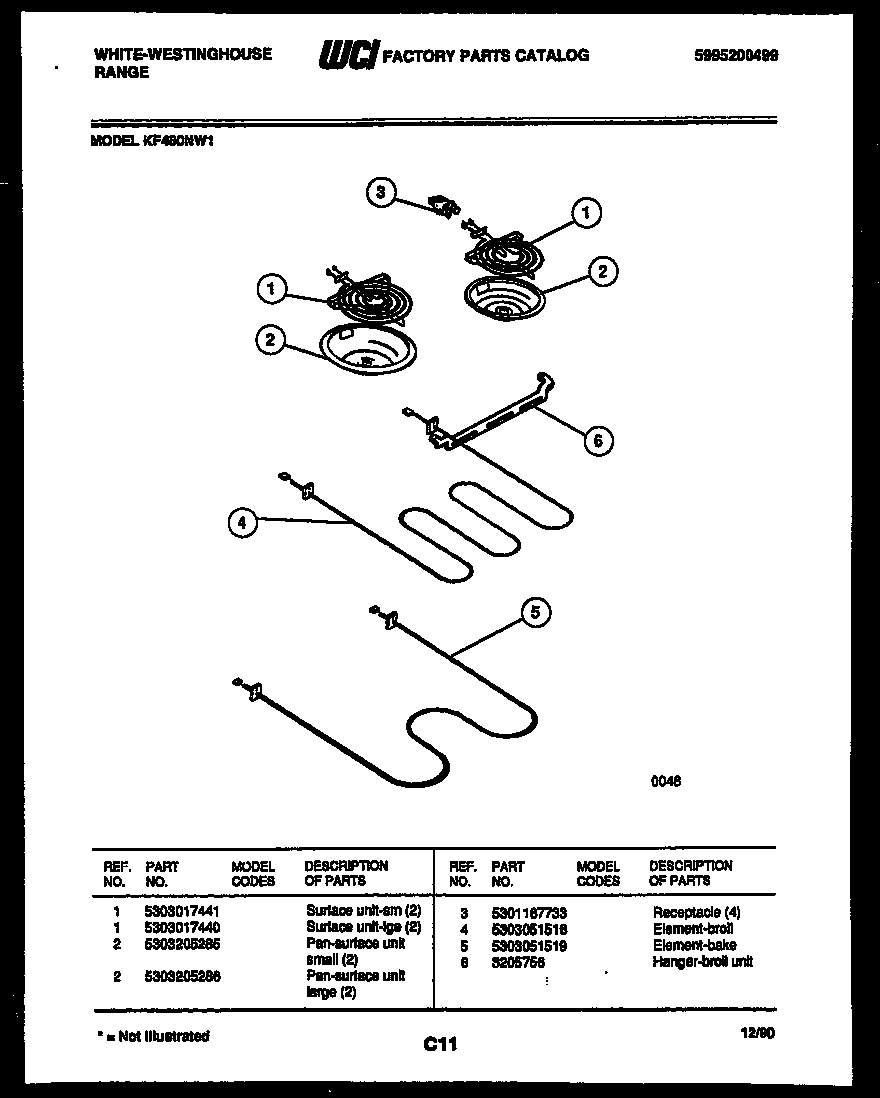

03 - COOKTOP PARTS
04 - BROILER PARTS

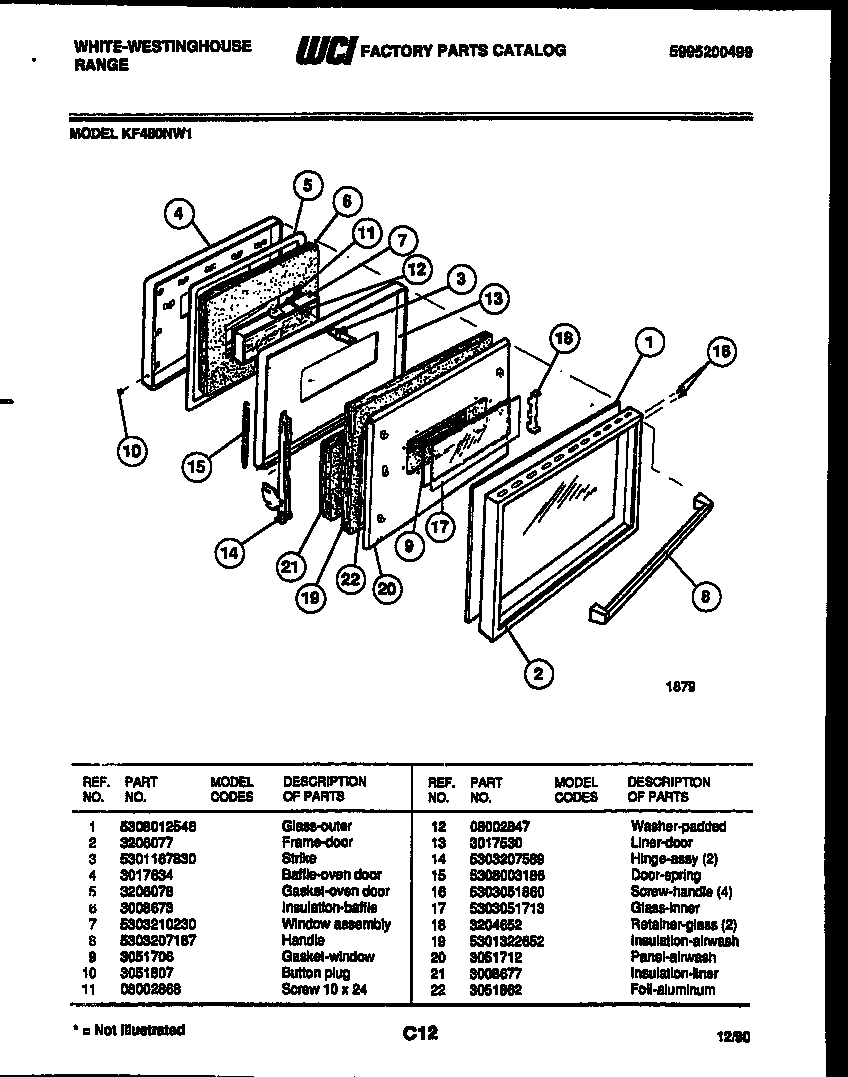

05 - DOOR PARTS

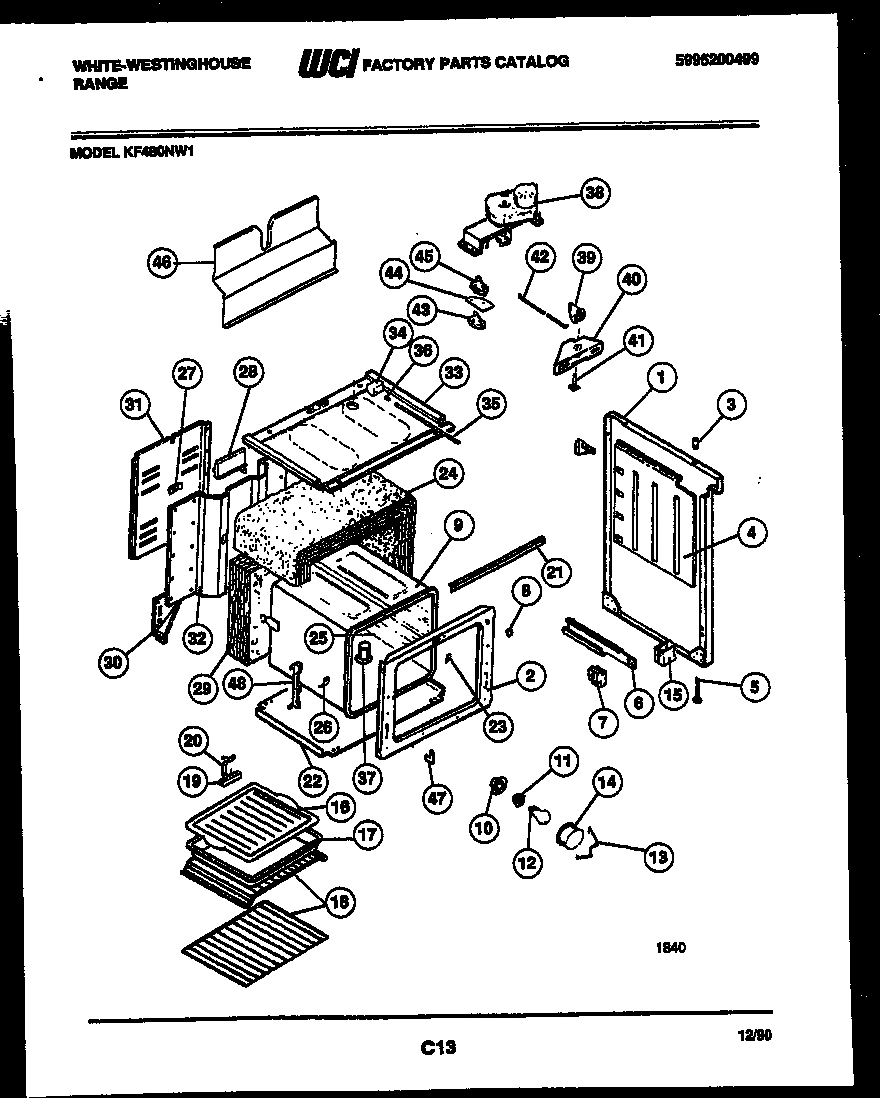

06 - BODY PARTS

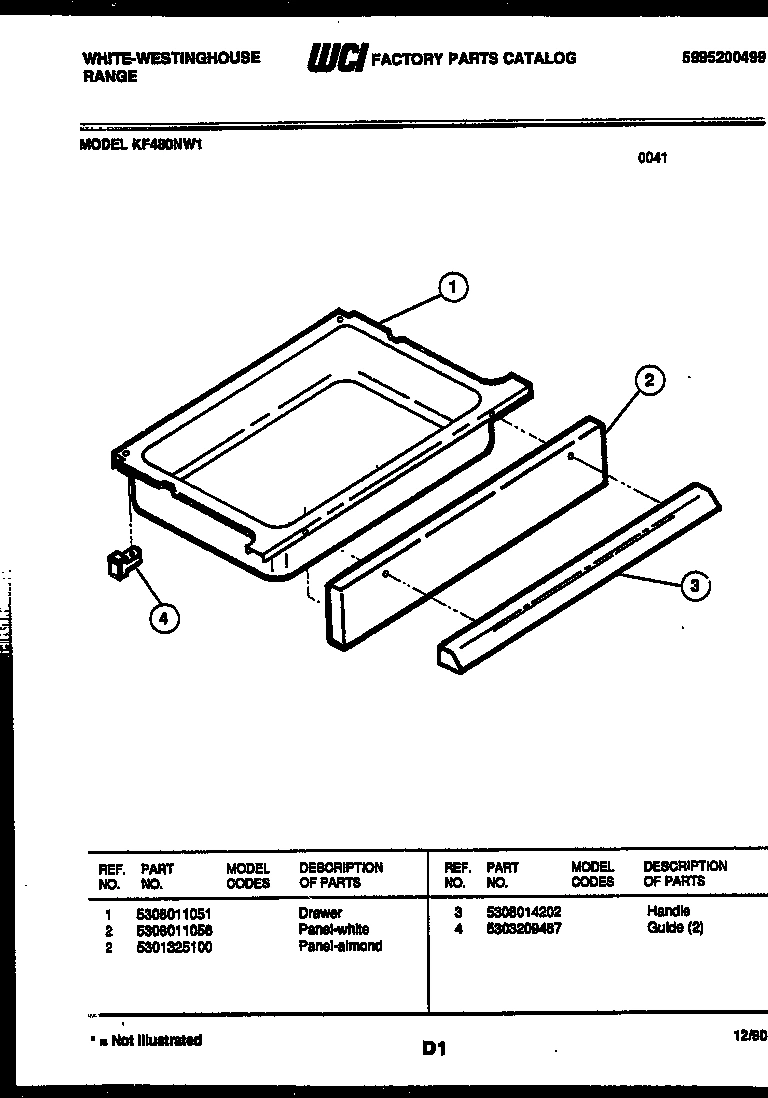

07 - DRAWER PARTS
Common parts from model Electrolux KF480NW1 RANGE
*37138
WCI 191S021P47 WCI 191S021P47 Contact Us For Availability
1
WCI 5303270312 WCI 5303270312 Contact Us For Availability
1
WCI 5308012546 WCI 5308012546 Contact Us For Availability
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
SIDE PANEL, LH WHITE WCI 5308012528 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
2
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3
ROD-SUPT LH WCI 5303211119 Contact Us For Availability
3
ROD-SUPT RH WCI 5303211120 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
WCI 3017634 WCI 3017634 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
LENS (2) WCI 5308006417 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
5
WCI 5303205294 WCI 5303205294 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WINDOW-ASSEMBLY WCI 5303210230 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 5303207187 WCI 5303207187 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
9
WCI 5305030402 WCI 5305030402 Contact Us For Availability
9
WCI 3051706 WCI 3051706 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
SUPPORT LH WCI 5374109000 Contact Us For Availability
10
BUTTON PLUG WCI 3051807 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
12
BRACKET-MTG. THERM. WCI 08015745 Contact Us For Availability
12
WASHER-PADDED WCI 08002847 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
WCI 3017530 WCI 3017530 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
KNOB-CLOCK WCI 5303016892 Contact Us For Availability
14
HINGE, ASSY (2) WCI 5303207589 Contact Us For Availability
15
DOOR, SPRING WCI 5308003186 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 5303051860 WCI 5303051860 Contact Us For Availability
16
BRACKET-MTG CLOCK WCI 3204642 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 5303051713 WCI 5303051713 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
20
WCI 3051712 WCI 3051712 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 3008677 WCI 3008677 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3051862 WCI 3051862 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 08013680 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
43
SWITCH, LOWER WCI 5308006582 Contact Us For Availability
44
WCI 08003090 WCI 08003090 Contact Us For Availability
45
SWITCH, UPPER WCI 5303051740 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
47
WCI 3019063 WCI 3019063 Contact Us For Availability
47A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
47B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
48
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
