Model Electrolux KF480ND2 RANGE – Common Parts & Diagrams

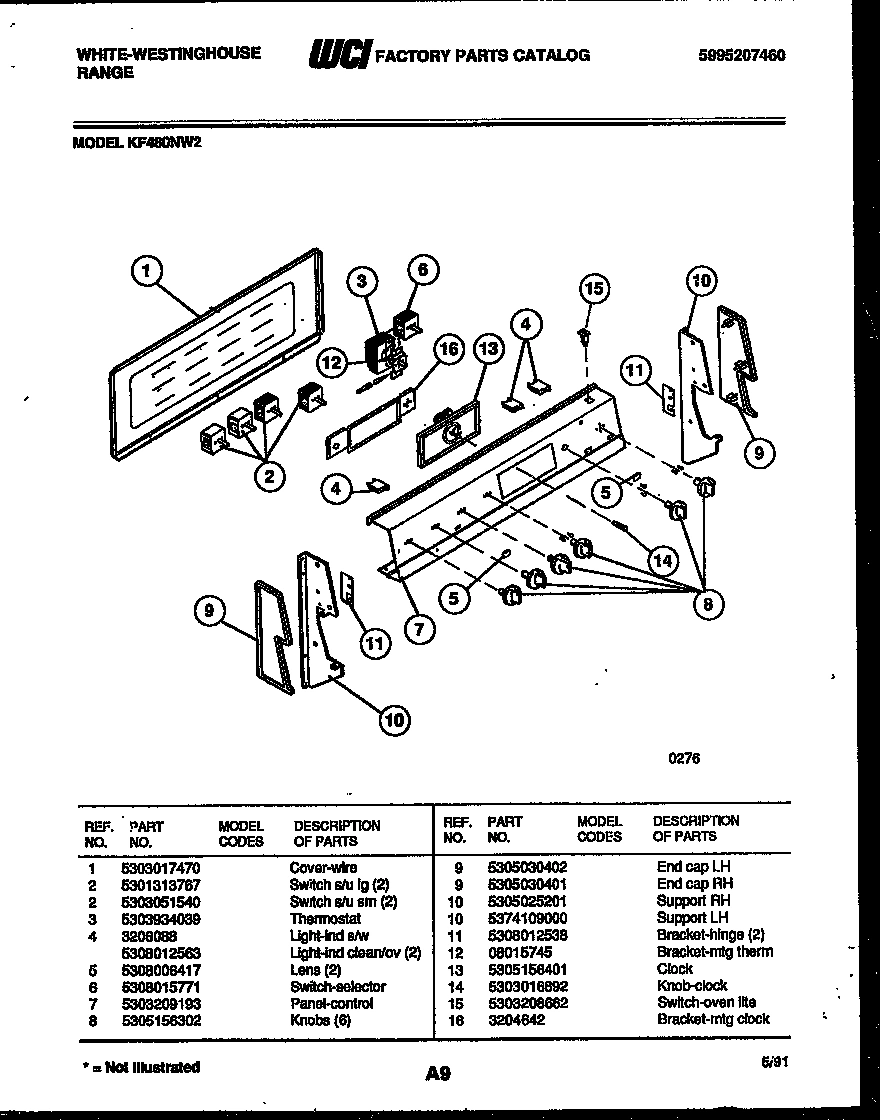

02 - CONTROL PANEL

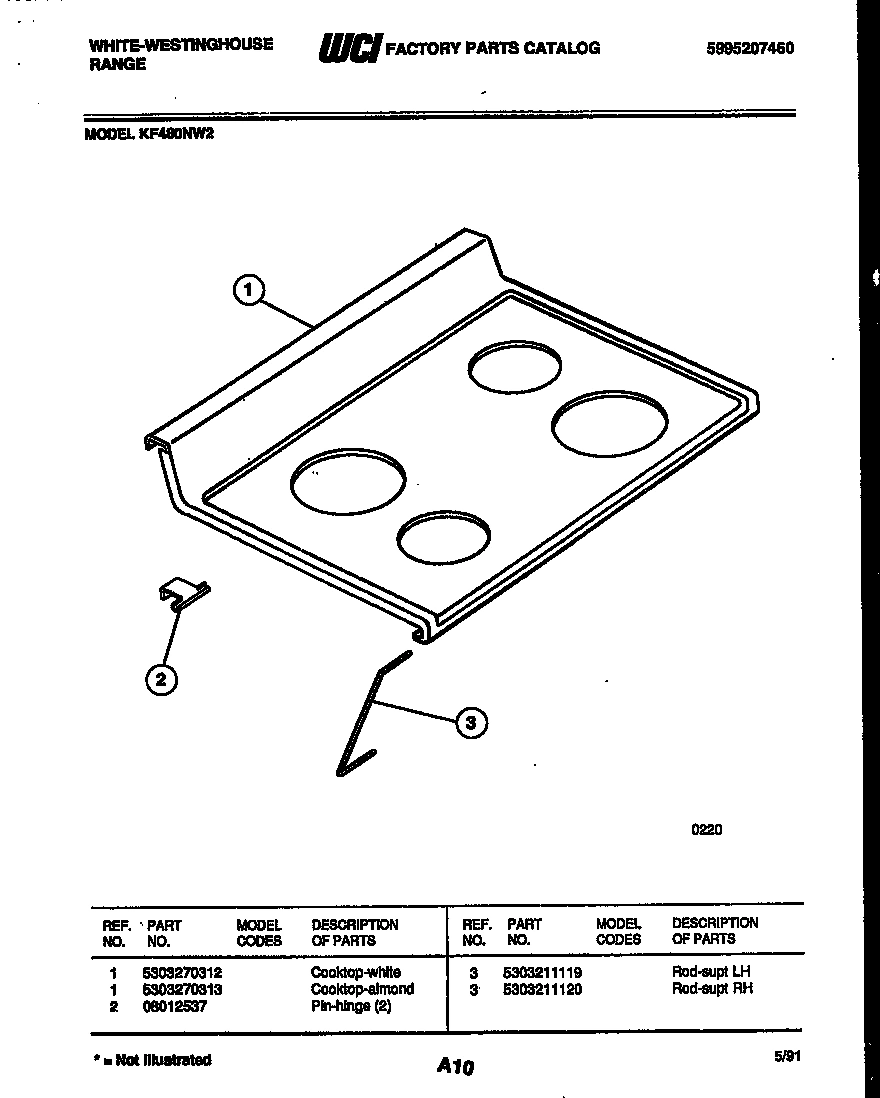

03 - COOKTOP PARTS

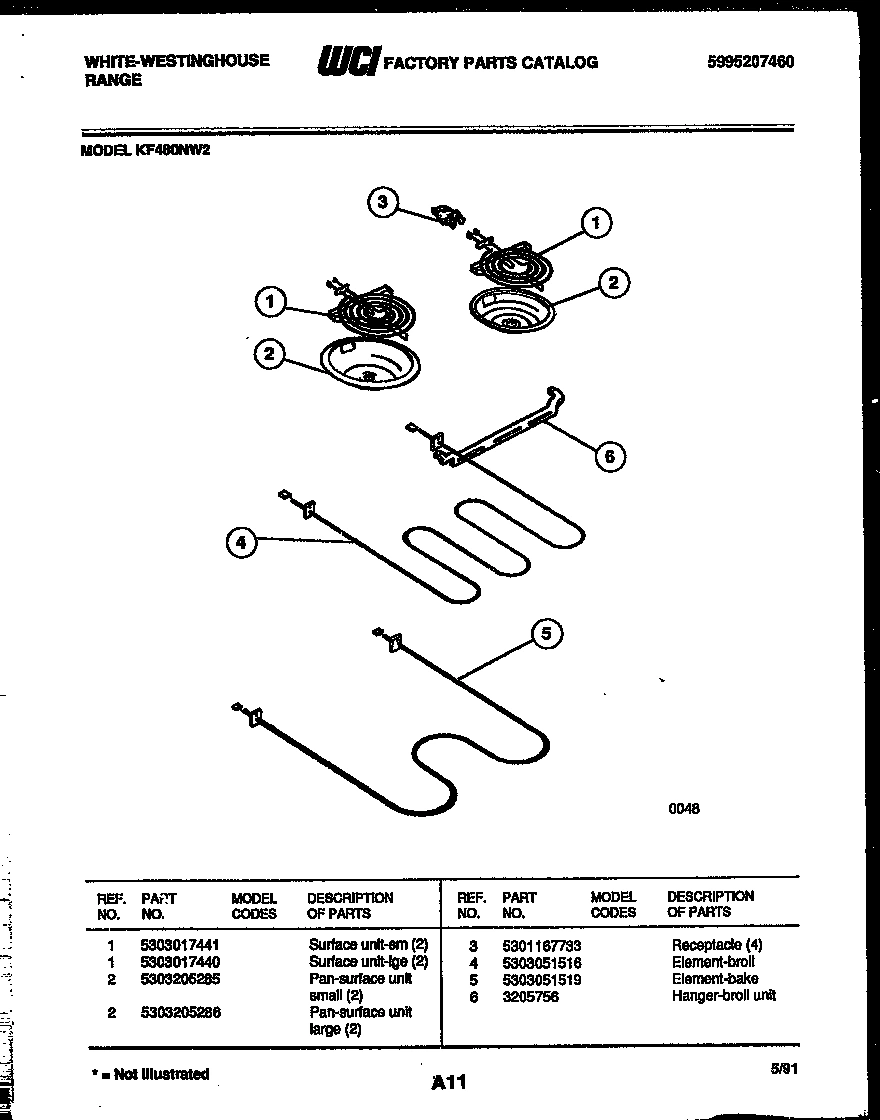

04 - BROILER PARTS

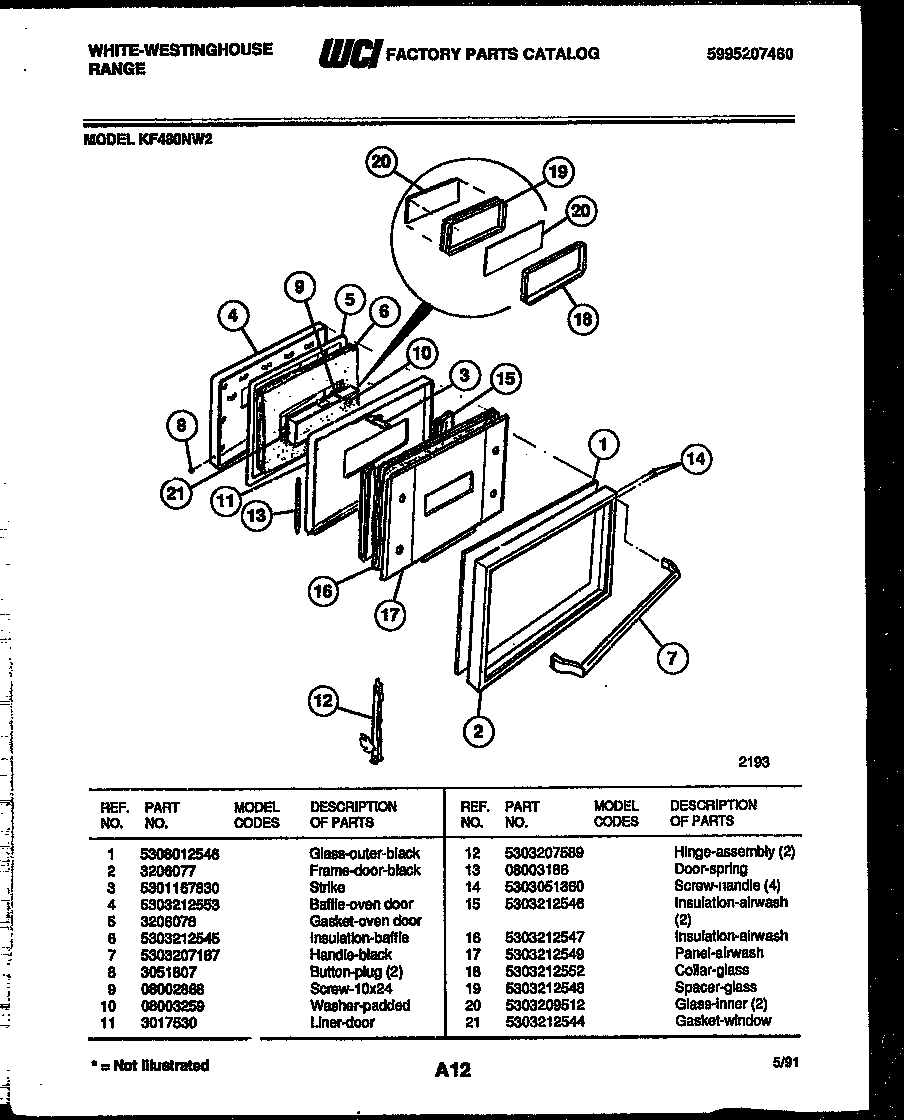

05 - DOOR PARTS

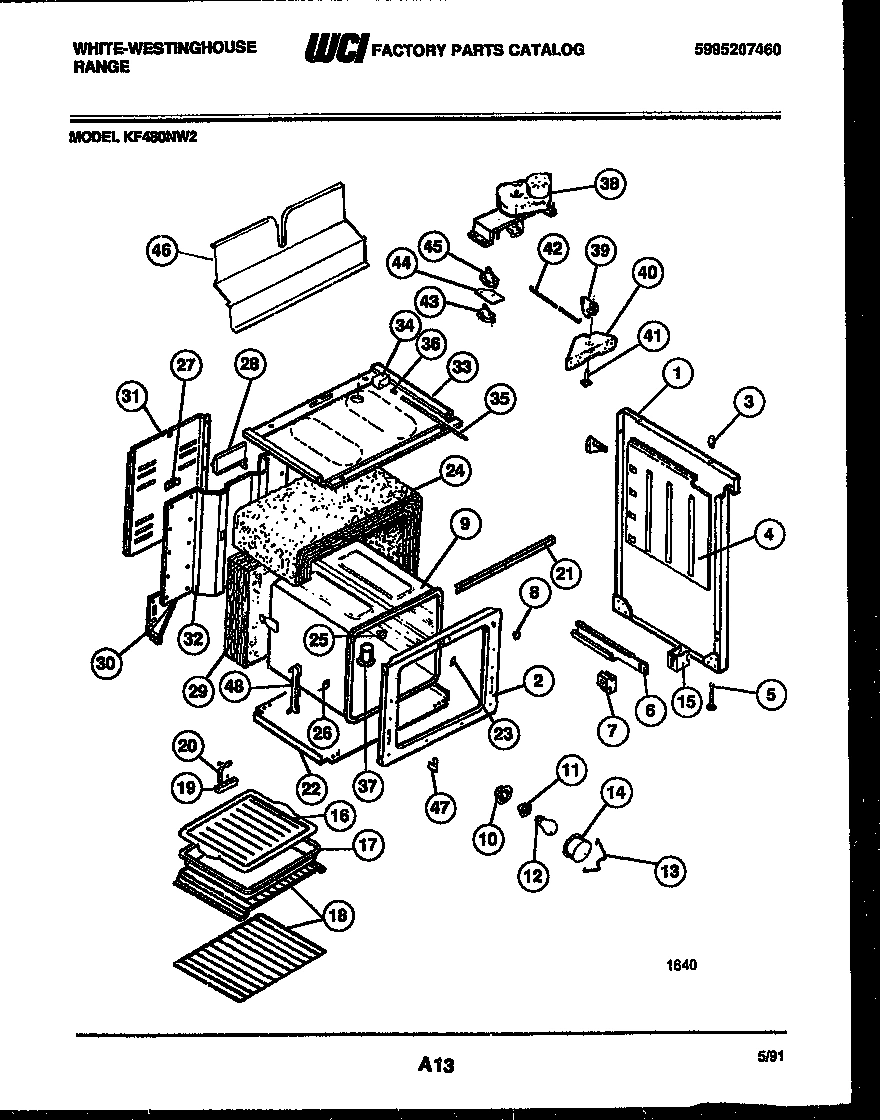

06 - BODY PARTS

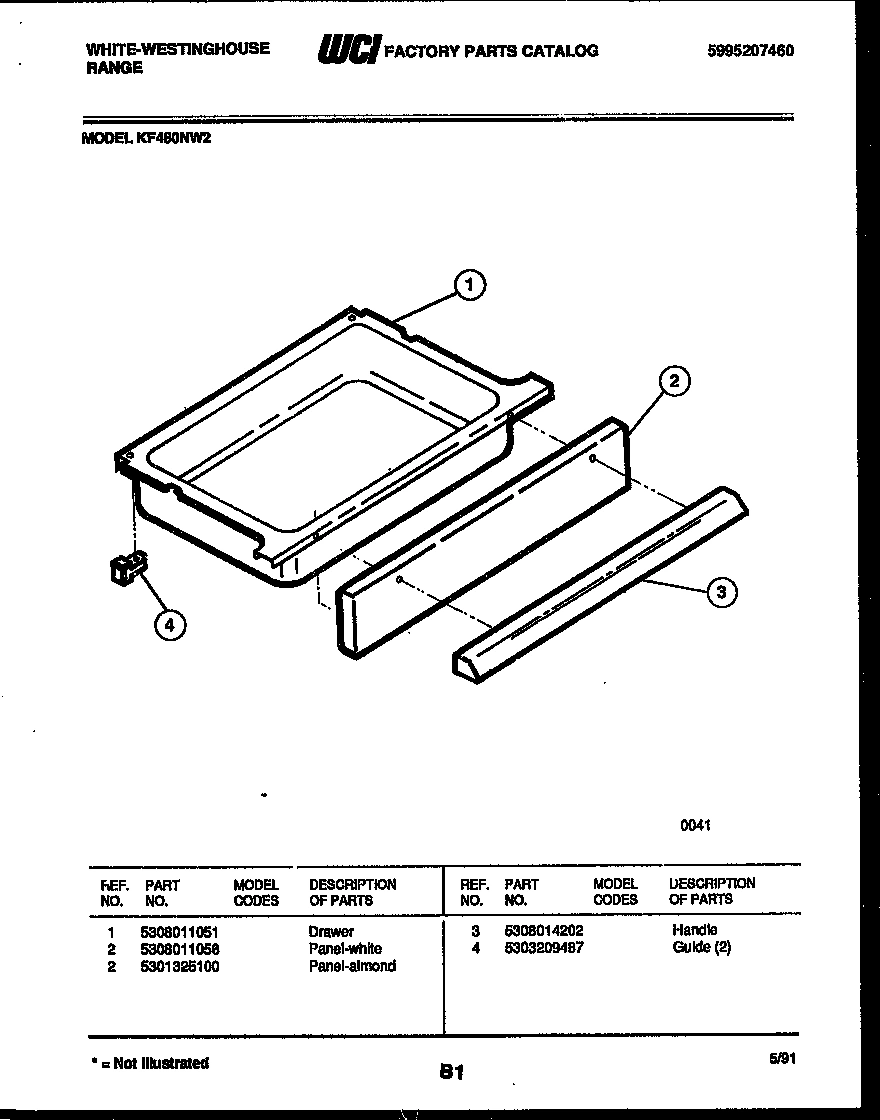

07 - DRAWER PARTS
Common parts from model Electrolux KF480ND2 RANGE
*46743
WCI 191S021P47 WCI 191S021P47 Contact Us For Availability
1
WCI 5303270313 WCI 5303270313 Contact Us For Availability
1
GLASS, OUTER, BLACK WCI 5308012546 Contact Us For Availability
1
SIDE PANEL RH-ALMD WCI 5308012529 Contact Us For Availability
1
SIDE PANEL LH-ALMD WCI 5308012530 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME-DOOR (BLACK) WCI 3206077 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
2
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
3
ROD-SUPT LH WCI 5303211119 Contact Us For Availability
3
ROD-SUPT RH WCI 5303211120 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303212553 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
LENS (2) WCI 5308006417 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
HANDLE - BLACK WCI 5303207187 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 3051807 WCI 3051807 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
SUPPORT LH WCI 5374109000 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
BRACKET-MTG. THERM. WCI 08015745 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303207589 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
DOOR - SPRING WCI 08003186 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
KNOB-CLOCK WCI 5303016892 Contact Us For Availability
15
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
BRACKET-MTG CLOCK WCI 3204642 Contact Us For Availability
16
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
WCI 5303212548 WCI 5303212548 Contact Us For Availability
20
GLASS-INNER (2) WCI 5303209512 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 08013680 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
43
SWITCH, LOWER WCI 5308006582 Contact Us For Availability
44
WCI 08008090 WCI 08008090 Contact Us For Availability
45
SWITCH, UPPER WCI 5303051740 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
47
WCI 3019063 WCI 3019063 Contact Us For Availability
47A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
47B
WCI 5300009126 WCI 5300009126 Contact Us For Availability
48
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
