Model Electrolux KF460GDF5 RANGE – Common Parts & Diagrams

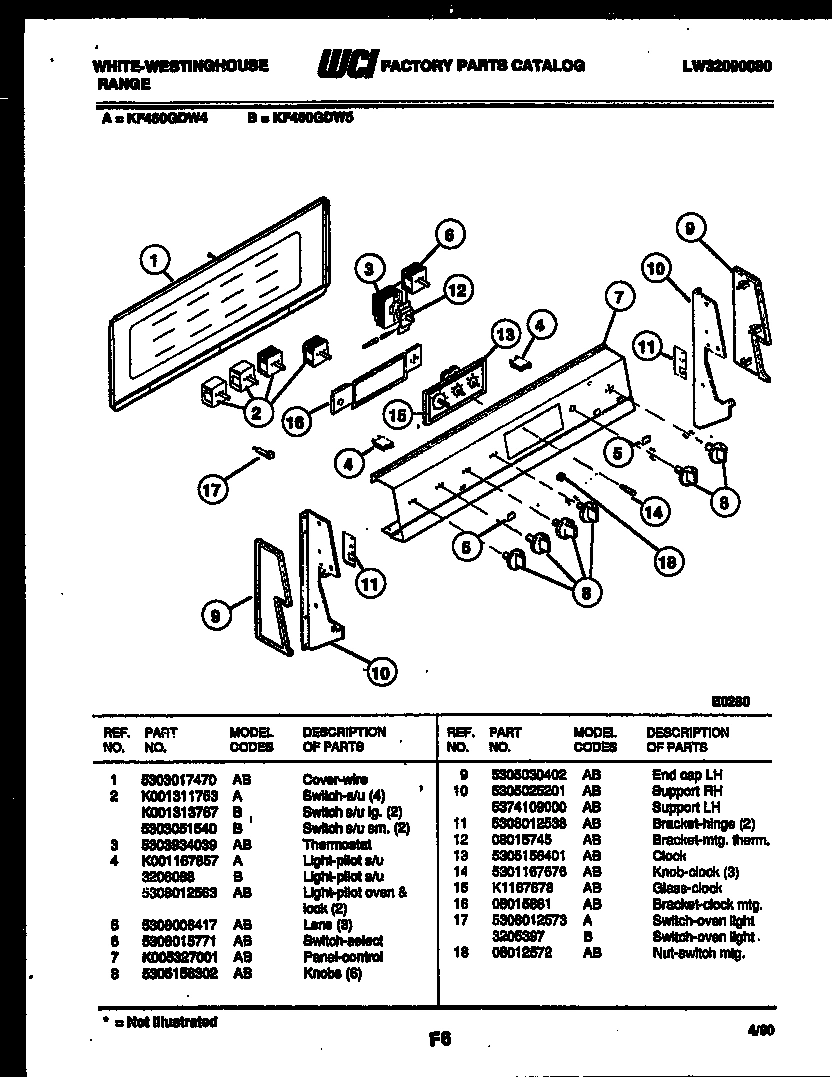

02 - CONTROL PANEL

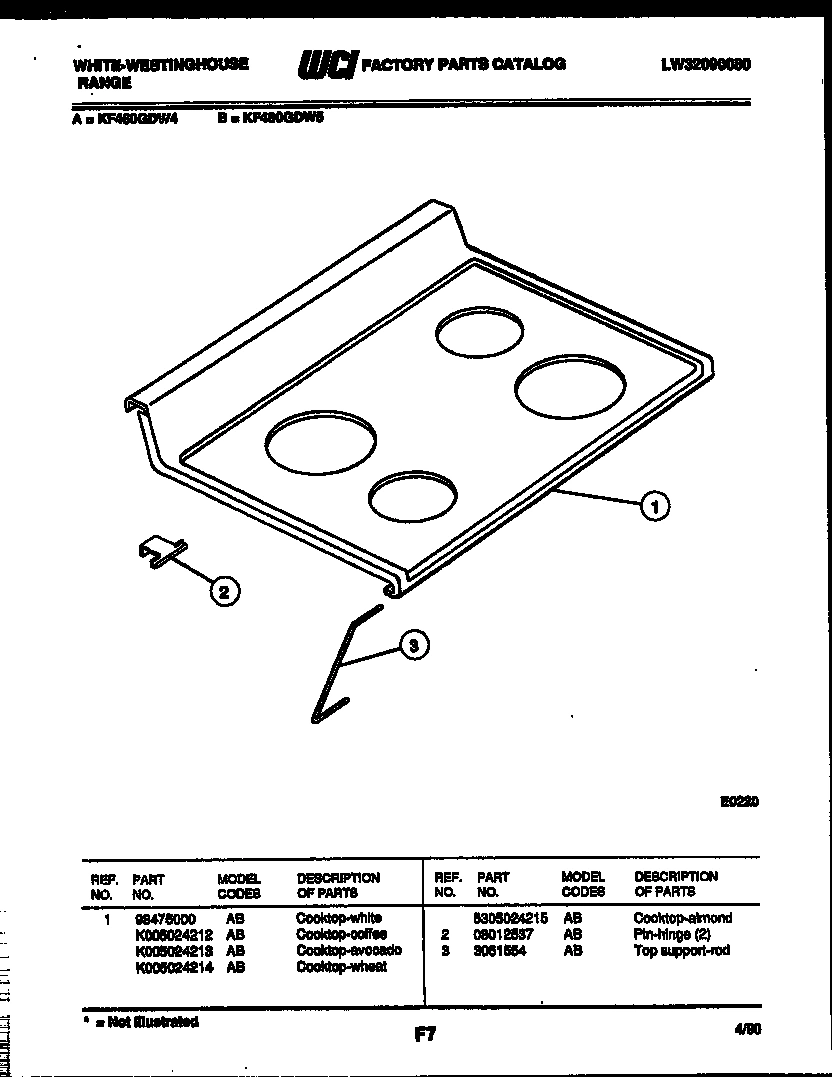

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER PARTS
06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux KF460GDF5 RANGE
1
WCI K005024212 WCI K005024212 Contact Us For Availability
1
WCI K001317631 WCI K001317631 Contact Us For Availability
1
SIDE PANEL RH-COFFEE WCI K005024605 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SIDE PANEL LH-COFFEE WCI K005024606 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 3051706 WCI 3051706 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI K001324091 Contact Us For Availability
3
TOP SUPPORT-ROD WCI 3051554 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
WCI K001325097 WCI K001325097 Contact Us For Availability
4
WCI 3017627 WCI 3017627 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
5
LENS (3) WCI 5308006417 Contact Us For Availability
5
GASKET, DOOR WCI 5303051704 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WINDOW ASSEMBLY WCI 3205235 Contact Us For Availability
7
GUIDE, DRAWER FR (2) WCI 3051654 Contact Us For Availability
8
PLUG, BUTTON 3/4`` (2) WCI 3204817 Contact Us For Availability
9
WCI 5305030402 WCI 5305030402 Contact Us For Availability
9
WCI 3008605 WCI 3008605 Contact Us For Availability
9
OVEN LINER WCI 3204607 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 3051807 WCI 3051807 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
SCREW 10 X 24 (2) WCI 5303051859 Contact Us For Availability
12
BRACKET-MTG. THERM. WCI 08015745 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
LINER, DOOR WCI 3017468 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
CHANNEL (2) WCI 5303051822 Contact Us For Availability
15
GLASS-CLOCK WCI K1167678 Contact Us For Availability
15
SPRING (2) WCI 5308003186 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 08015861 WCI 08015861 Contact Us For Availability
16
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
DOOR HINGE ARM (2) WCI 5308003183 Contact Us For Availability
17
WCI 3205397 WCI 3205397 Contact Us For Availability
17
WCI 3200723 WCI 3200723 Contact Us For Availability
18
NUT - SWITCH MTG WCI 08012572 Contact Us For Availability
18
RETAINER-GLASS WCI 3051714 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
20
WCI 3051712 WCI 3051712 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
WCI 5303051567 WCI 5303051567 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
22
WCI 3051862 WCI 3051862 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
24
ROLLER KIT (2) WCI 5303931006 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
WCI 5303051713 WCI 5303051713 Contact Us For Availability
26
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
27
WCI K001313244 WCI K001313244 Contact Us For Availability
27
CHANNEL-OVEN SUPPORT UPPER WCI 5303208390 Contact Us For Availability
28
WCI K001314506 WCI K001314506 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
WCI K001313344 WCI K001313344 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 5308003153 WCI 5308003153 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
MOULDING J WCI K1313568 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3017535 WCI 3017535 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI 3051785 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
MOTOR-LATCH WCI 5308015743 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LOWER WCI 5303051740 Contact Us For Availability
51
WCI 08003090 WCI 08003090 Contact Us For Availability
52
SWITCH - UPPER WCI 5301167190 Contact Us For Availability
53
WCI 3206095 WCI 3206095 Contact Us For Availability
× ![]()
