Model Electrolux KF450GDW9 RANGE – Common Parts & Diagrams

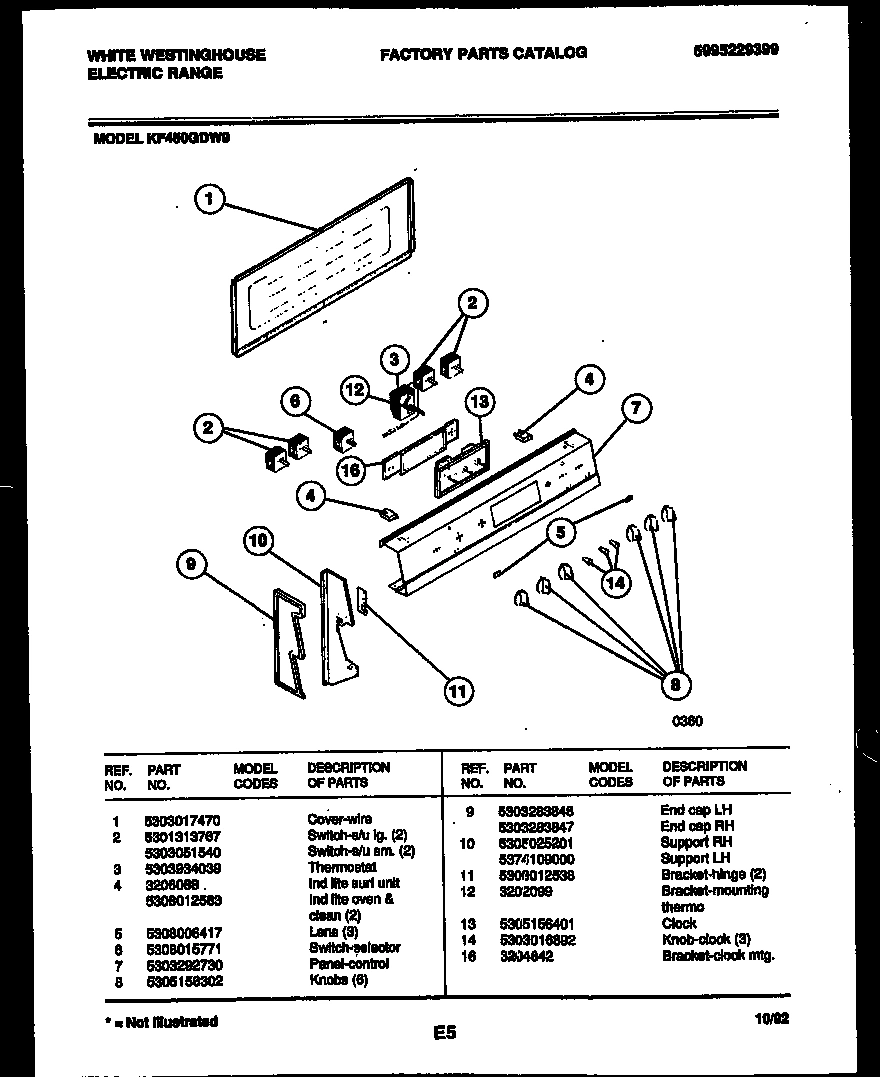

02 - CONTROL PANEL

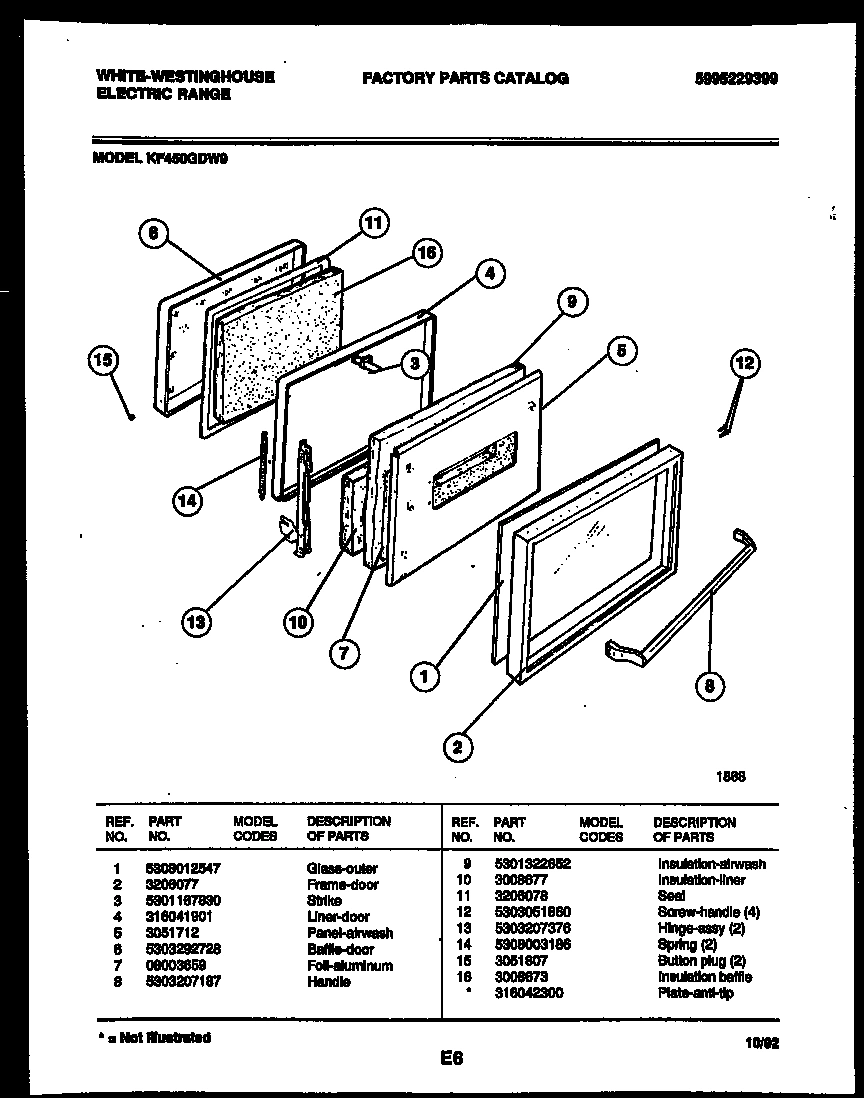

03 - DOOR PARTS
04 - COOKTOP PARTS
05 - BROILER PARTS
06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux KF450GDW9 RANGE
*69928
PLATE ANTI-TIP WCI 316042300 Contact Us For Availability
*69938
WCI 191S021P46 WCI 191S021P46 Contact Us For Availability
*69938
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
WCI 5303275914 WCI 5303275914 Contact Us For Availability
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SIDE PANEL, LH WHITE WCI 5308012528 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3A
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
3A
RETAINER-INSULATION (2) (NON-ILLUSTRATED) WCI 3051632 Contact Us For Availability
4
LINER-DOOR WCI 316041901 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
5
LENS (3) WCI 5308006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
BAFFLE-DOOR WCI 5303292728 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 5303207187 WCI 5303207187 Contact Us For Availability
8
PLUG, BUTTON 3/4`` (2) WCI 3204817 Contact Us For Availability
9
WCI 5303283848 WCI 5303283848 Contact Us For Availability
9
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
9
OVEN LINER WCI 5303292686 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
WCI 3008677 WCI 3008677 Contact Us For Availability
10
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3206078 WCI 3206078 Contact Us For Availability
12
WCI 5303051860 WCI 5303051860 Contact Us For Availability
12
BRACKET-MOUNTING THERMO WCI 3202099 Contact Us For Availability
13
WCI 5305156401 WCI 5305156401 Contact Us For Availability
13
WCI 5303207376 WCI 5303207376 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303016892 WCI 5303016892 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
15
WCI 3051807 WCI 3051807 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
WCI 3008673 WCI 3008673 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 5303292688 WCI 5303292688 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
FRAME-FRONT WCI 316042101 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
24
INSULATION, OVEN WRAP WCI 3203029 Contact Us For Availability
27
WCI 3201632 WCI 3201632 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
PUSH ROD SWITCH WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 5033207391 WCI 5033207391 Contact Us For Availability
38
WCI 3016281 WCI 3016281 Contact Us For Availability
39
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
40
SWITCH-LIMIT LOWER WCI 5308006582 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
MOTOR-LATCH WCI 5308015743 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LIMIT UPPER WCI 3202114 Contact Us For Availability
53
WCI 3019063 WCI 3019063 Contact Us For Availability
54
SHIELD-WIRE WCI 08003090 Contact Us For Availability
55
WCI 3206095 WCI 3206095 Contact Us For Availability
56
WCI 3202082 WCI 3202082 Contact Us For Availability
× ![]()
