Model Electrolux KF450GDH7 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

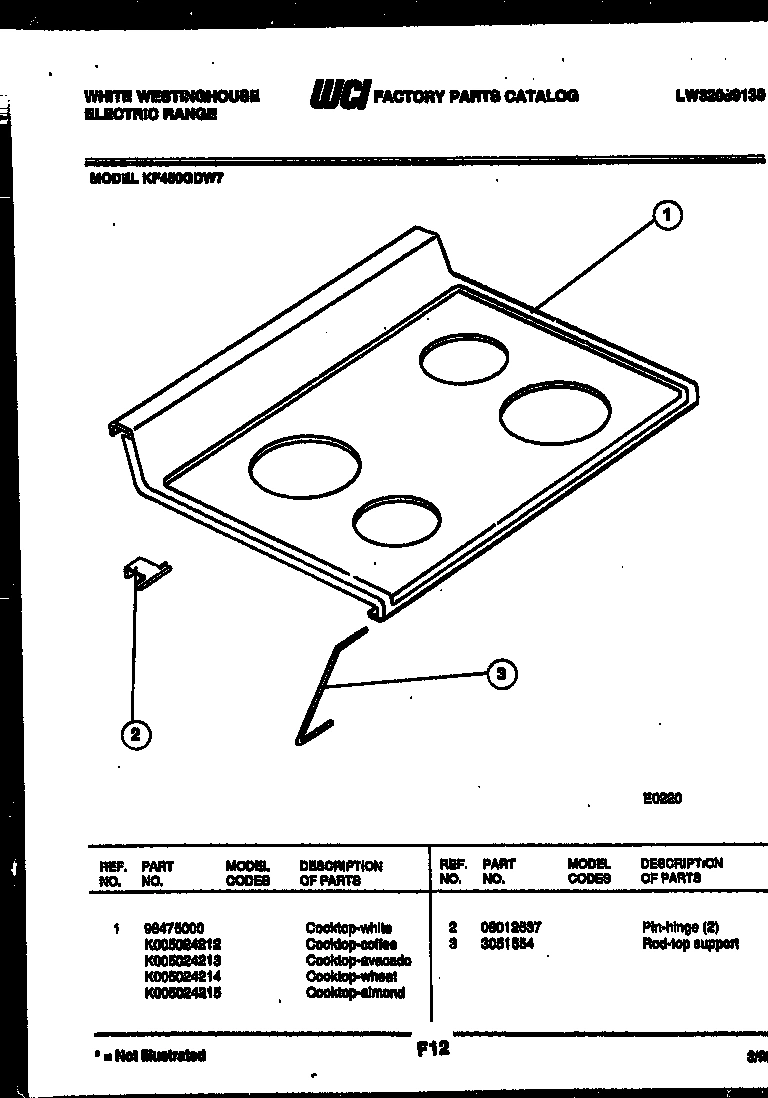

04 - COOKTOP PARTS

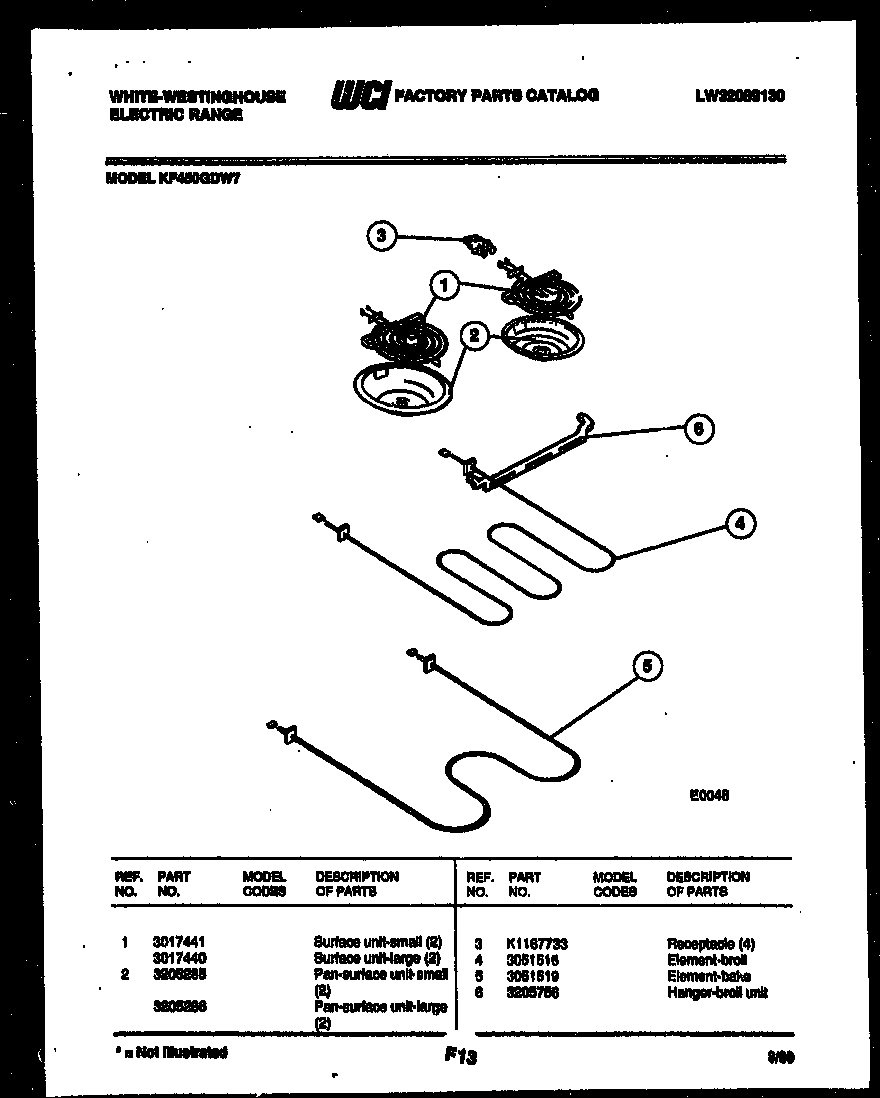

05 - BROILER PARTS

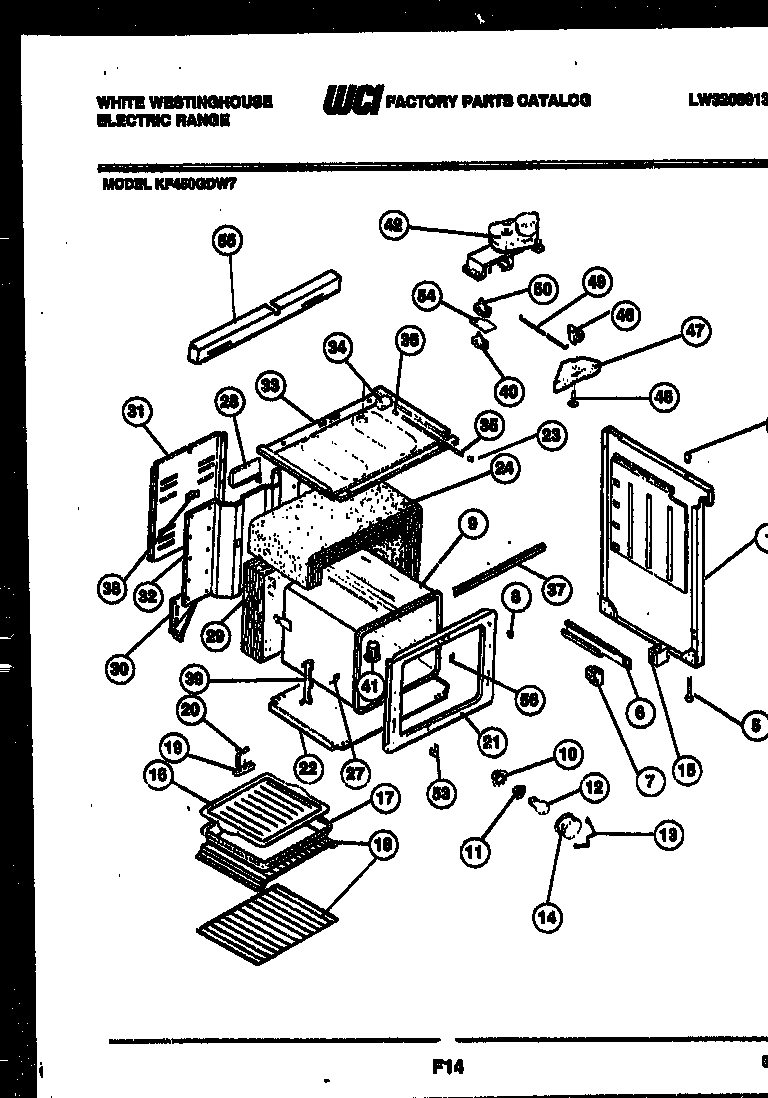

06 - BODY PARTS

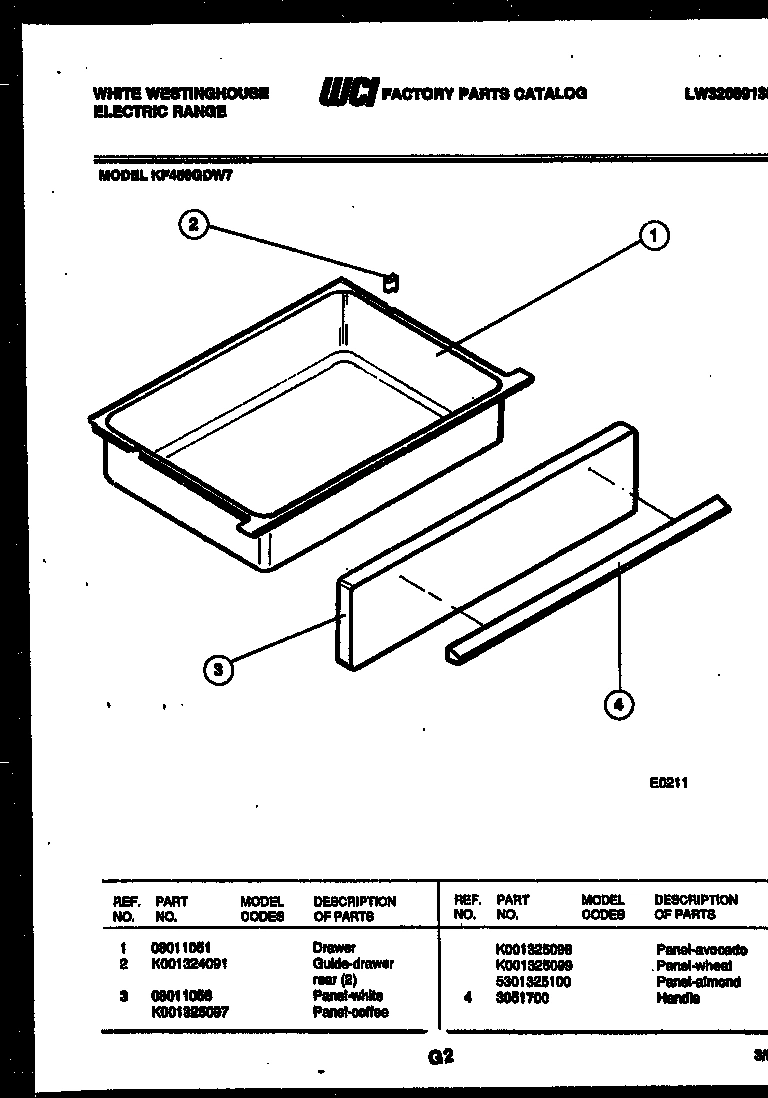

07 - DRAWER PARTS
Common parts from model Electrolux KF450GDH7 RANGE
*27181
WCI 3934063 WCI 3934063 Contact Us For Availability
*27181
CLIP CAPILLARY WCI 530009126 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI K005024214 WCI K005024214 Contact Us For Availability
1
SIDE PANEL-RH WHEAT WCI K005024609 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1A
SIDE PANEL-LH WHEAT WCI K005024610 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
3
WCI K001325099 WCI K001325099 Contact Us For Availability
4
LIGHT-PILOT SURFACE UNIT WCI 3206088 Contact Us For Availability
4
WCI 3206835 WCI 3206835 Contact Us For Availability
4
HANDLE WCI 3051700 Contact Us For Availability
4A
WCI 08012563 WCI 08012563 Contact Us For Availability
5
WCI 08006417 WCI 08006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
SWITCH-SELECTOR WCI 08015771 Contact Us For Availability
6
WCI 3017531 WCI 3017531 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K005326901 WCI K005326901 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
KNOBS (6) WCI 5305156302 Contact Us For Availability
8
WCI 3205317 WCI 3205317 Contact Us For Availability
8
PLUG, BUTTON 3/4`` (2) WCI 3204817 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
9A
WCI K005030401 WCI K005030401 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
WCI 3008677 WCI 3008677 Contact Us For Availability
10A
WCI 74109000 WCI 74109000 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI 3206078 WCI 3206078 Contact Us For Availability
12
BRACKET-MOUNTING THERMO WCI 08015745 Contact Us For Availability
12
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
13
WCI K005156401 WCI K005156401 Contact Us For Availability
13
WCI 5303207376 WCI 5303207376 Contact Us For Availability
13
RETAINER - LENS WCI 3205904 Contact Us For Availability
14
WCI 3016892 WCI 3016892 Contact Us For Availability
14
SPRING (2) WCI 08003186 Contact Us For Availability
15
WCI 3051807 WCI 3051807 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 08015861 WCI 08015861 Contact Us For Availability
16
WCI 3008673 WCI 3008673 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
FRAME-FRONT WCI 5303207390 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
COVER, ROD END WCI 3051251 Contact Us For Availability
27
WCI 3201632 WCI 3201632 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
PUSH ROD SWITCH WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 5033207391 WCI 5033207391 Contact Us For Availability
38
WCI 3016281 WCI 3016281 Contact Us For Availability
39
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
40
SWITCH-LIMIT LOWER WCI 5308006582 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
MOTOR-LATCH WCI 08015743 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LIMIT UPPER WCI 3202114 Contact Us For Availability
53
WCI 3019063 WCI 3019063 Contact Us For Availability
54
SHIELD-WIRE WCI 08003090 Contact Us For Availability
55
WCI 3206095 WCI 3206095 Contact Us For Availability
56
WCI 3202082 WCI 3202082 Contact Us For Availability
× ![]()
