Model Electrolux KF450GDF4 RANGE – Common Parts & Diagrams

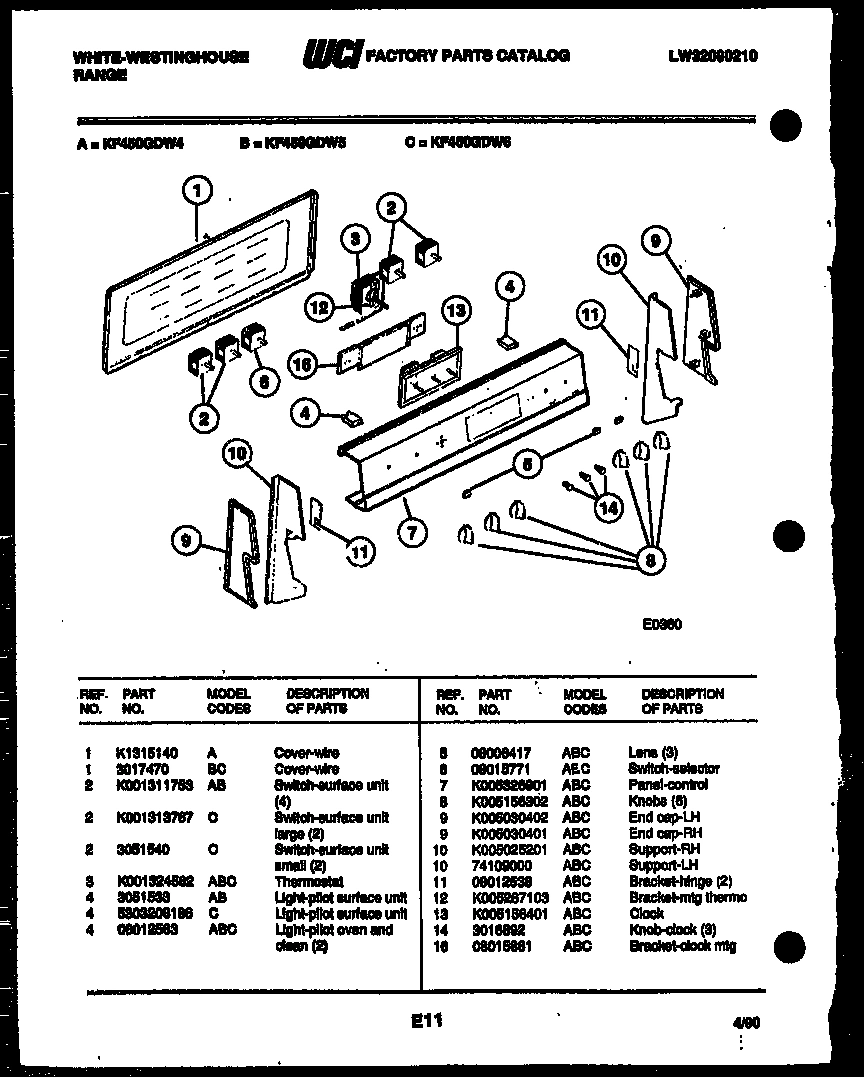

02 - CONTROL PANEL

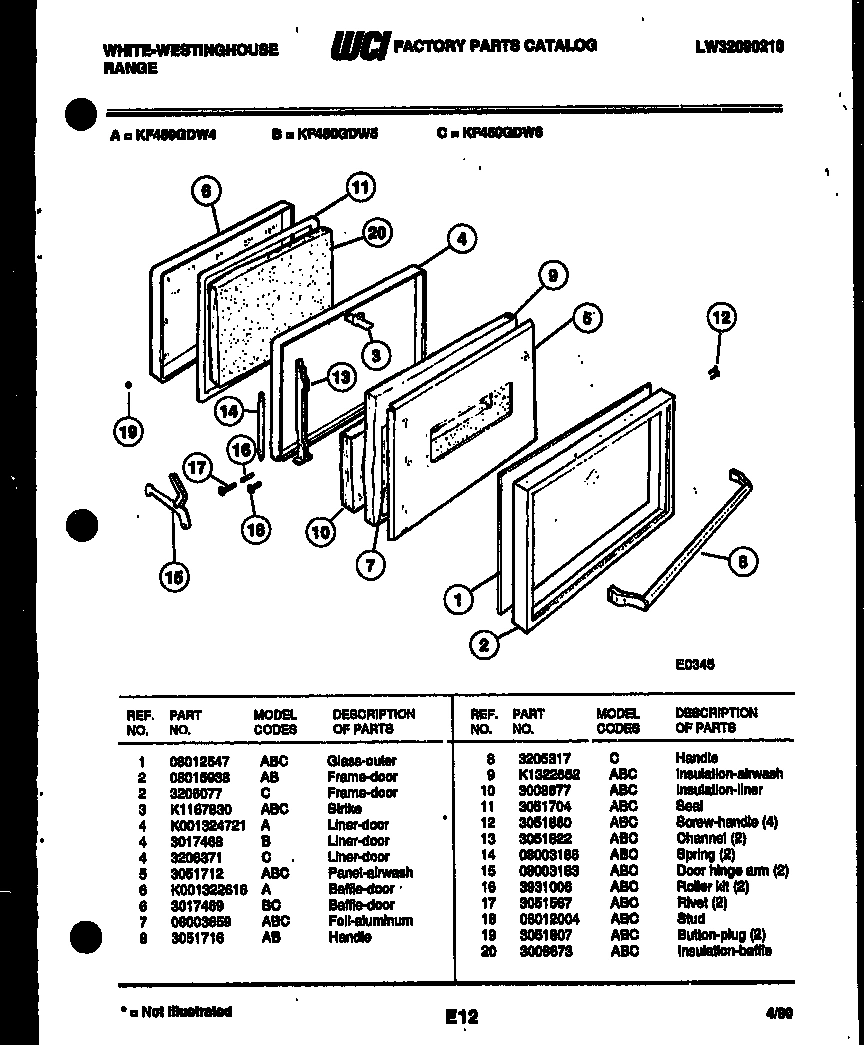

03 - DOOR PARTS

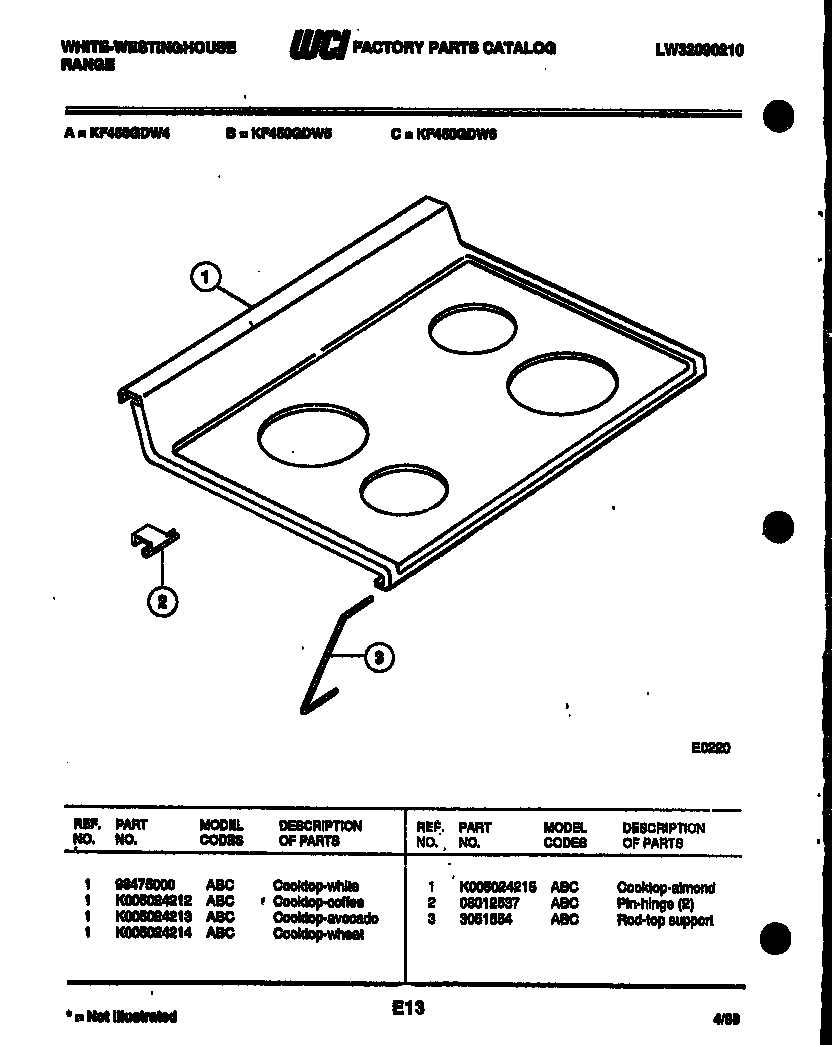

04 - COOKTOP PARTS

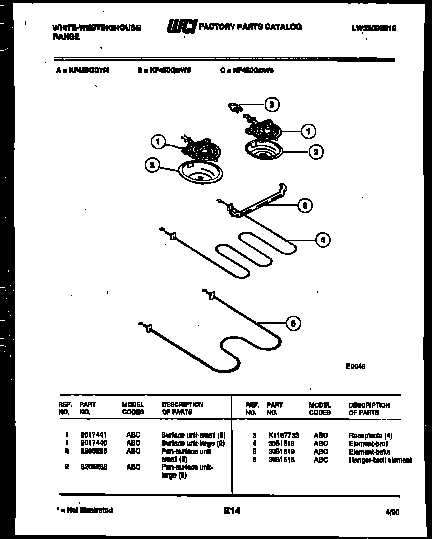

05 - BROILER PARTS

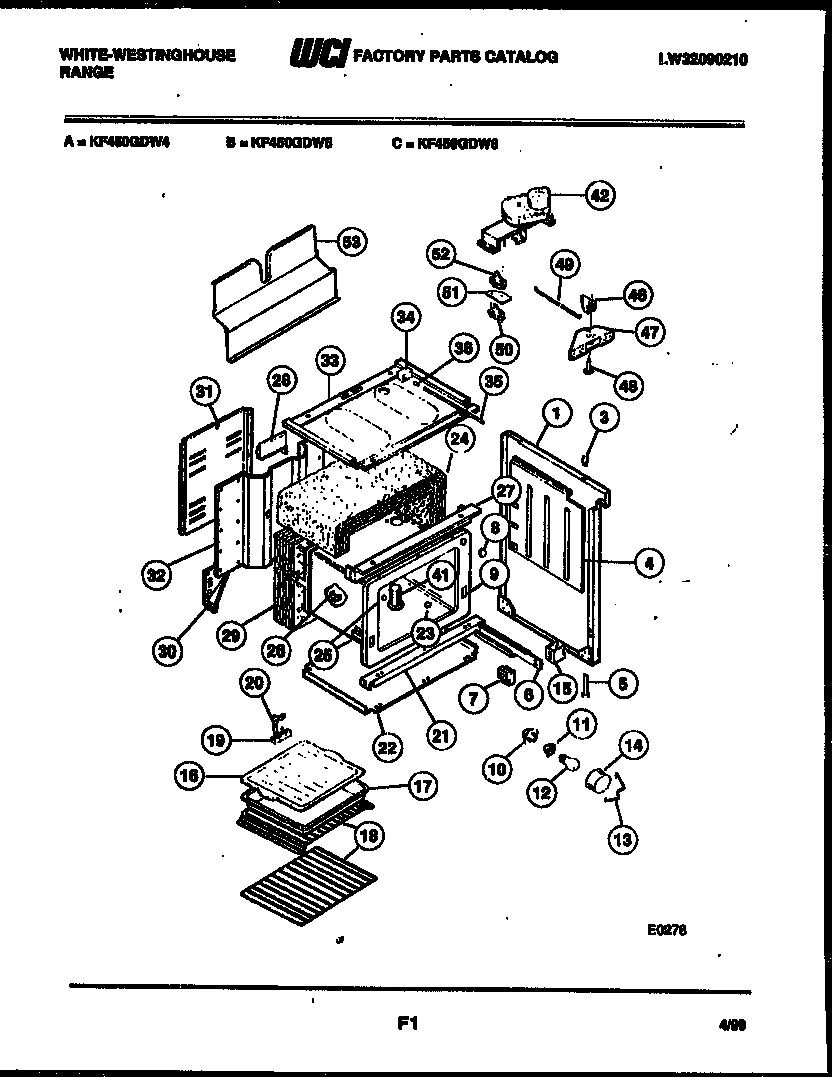

06 - BODY PARTS

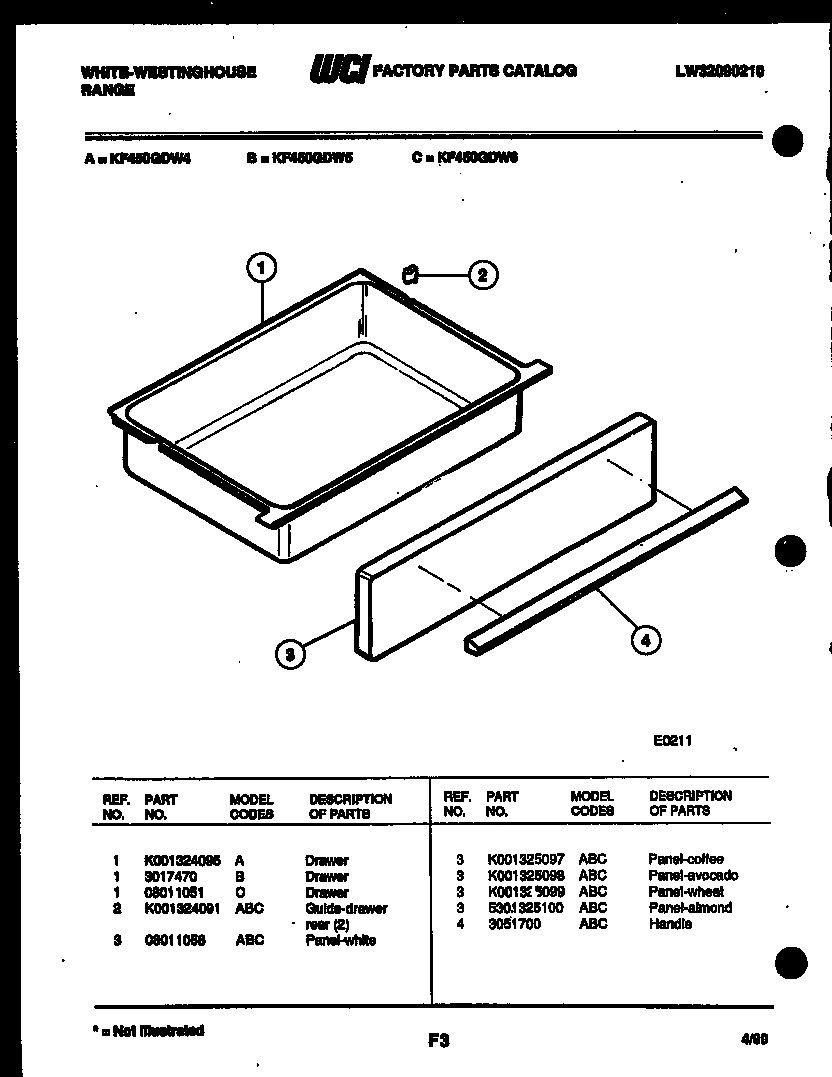

07 - DRAWER PARTS
Common parts from model Electrolux KF450GDF4 RANGE
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI K005024212 WCI K005024212 Contact Us For Availability
1
SIDE PANEL RH-COFFEE WCI K005024605 Contact Us For Availability
1
SIDE PANEL LH-COFFEE WCI K005024606 Contact Us For Availability
1
WCI K001324095 WCI K001324095 Contact Us For Availability
2
SWITCH-SURFACE UNIT (4) WCI K001311753 Contact Us For Availability
2
FRAME - DOOR WCI 08015938 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K001324091 WCI K001324091 Contact Us For Availability
3
WCI K001324562 WCI K001324562 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
WCI K001325097 WCI K001325097 Contact Us For Availability
4
WCI 08012563 WCI 08012563 Contact Us For Availability
4
LIGHT-PILOT SURFACE UNIT WCI 3051533 Contact Us For Availability
4
WCI K001324721 WCI K001324721 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
HANDLE WCI 3051700 Contact Us For Availability
5
WCI 08006417 WCI 08006417 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG-LEVELER (4) WCI K001322905 Contact Us For Availability
6
SWITCH-SELECTOR WCI 08015771 Contact Us For Availability
6
WCI K001322616 WCI K001322616 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K005326901 WCI K005326901 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
7
GUIDE-DRAWER FRNT (2) WCI 3051654 Contact Us For Availability
8
KNOBS (6) WCI K005156302 Contact Us For Availability
8
WCI 3051716 WCI 3051716 Contact Us For Availability
8
BUTTON-PLUG WCI 3204817 Contact Us For Availability
9
WCI K005030401 WCI K005030401 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
OVEN LINER WCI 3204607 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 74109000 WCI 74109000 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
WCI 3008677 WCI 3008677 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
SEAL WCI 3051704 Contact Us For Availability
12
WCI K005267103 WCI K005267103 Contact Us For Availability
12
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
13
WCI K005156401 WCI K005156401 Contact Us For Availability
13
WCI 3051822 WCI 3051822 Contact Us For Availability
13
RETAINER - LENS WCI 3205904 Contact Us For Availability
14
WCI 3016892 WCI 3016892 Contact Us For Availability
14
SPRING (2) WCI 08003186 Contact Us For Availability
15
WCI 08003183 WCI 08003183 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 08015861 WCI 08015861 Contact Us For Availability
16
ROLLER KIT (2) WCI 3931006 Contact Us For Availability
16
WCI 3051562 WCI 3051562 Contact Us For Availability
17
RIVET (2) WCI 3051567 Contact Us For Availability
17
WCI 3200723 WCI 3200723 Contact Us For Availability
18
STUD WCI 08012004 Contact Us For Availability
18
RACK-OFFSET WCI 08014219 Contact Us For Availability
18
WCI K001311570 WCI K001311570 Contact Us For Availability
19
WCI 3051807 WCI 3051807 Contact Us For Availability
20
WCI 3008673 WCI 3008673 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
CHANNEL-OVEN SUPPORT LOWER WCI K001315108 Contact Us For Availability
22
WCI 3017394 WCI 3017394 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
27
CHANNEL-OVEN SUPPORT UPPER WCI K001323561 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI K005285802 WCI K005285802 Contact Us For Availability
30
WCI K005285804 WCI K005285804 Contact Us For Availability
31
WIRE COVER WCI K005276202 Contact Us For Availability
32
BACK - RANGE WCI K005275802 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI 3051785 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
WCI K001323421 WCI K001323421 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
41
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
42
MOTOR-LATCH WCI 08015743 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LOWER WCI 5303051740 Contact Us For Availability
51
WCI 08003090 WCI 08003090 Contact Us For Availability
52
SWITCH - UPPER WCI 5301167190 Contact Us For Availability
53
WCI K005029503 WCI K005029503 Contact Us For Availability
× ![]()
