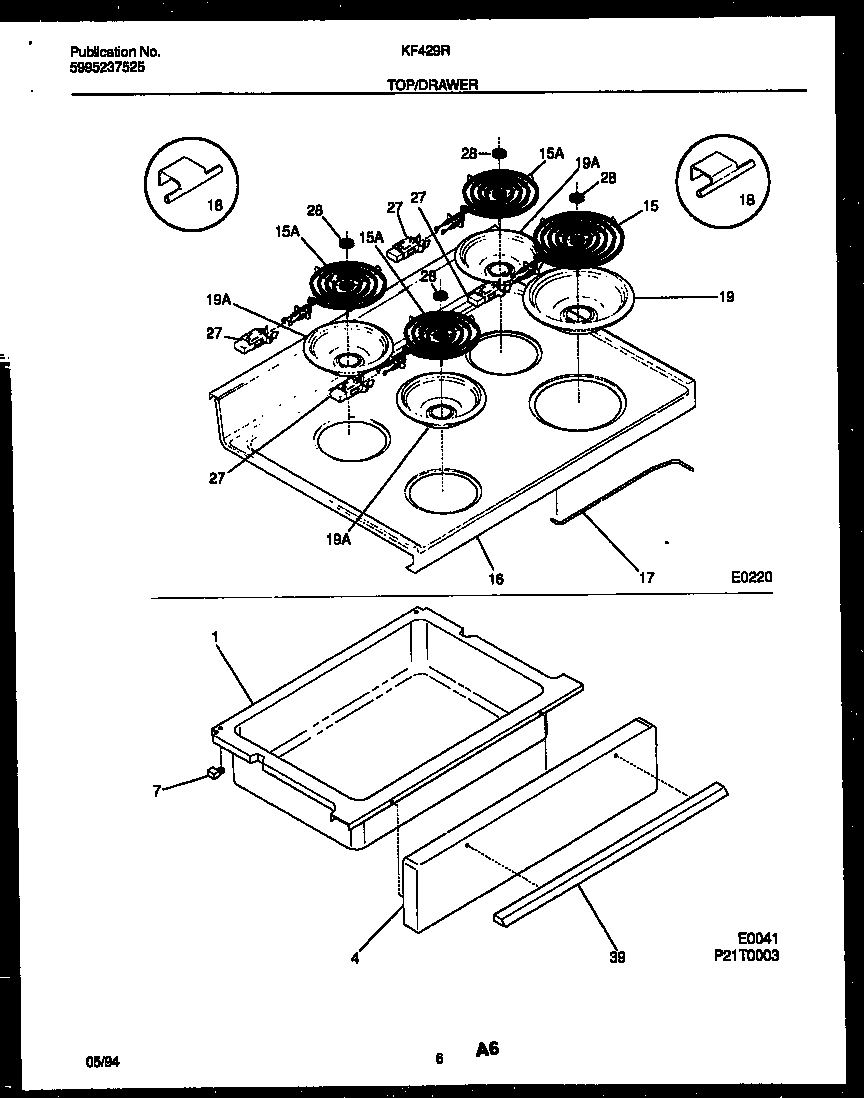

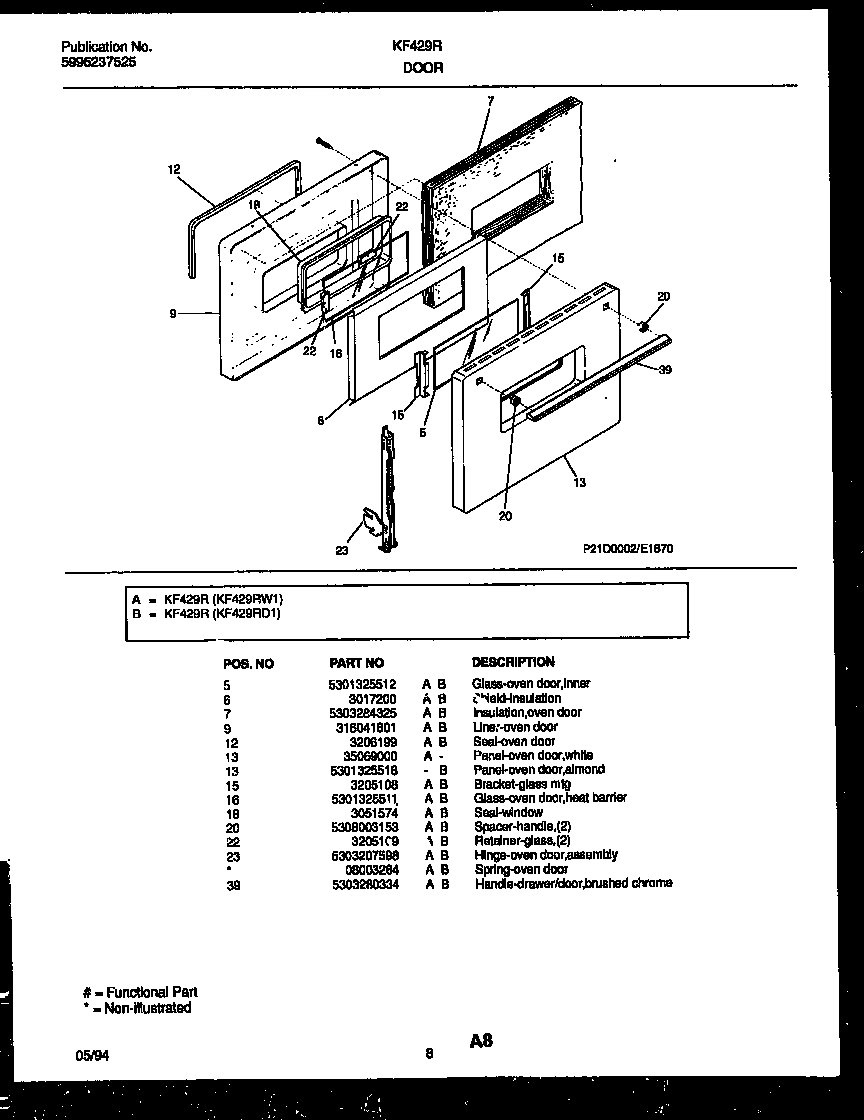

Model Electrolux KF429RW1 RANGE – Common Parts & Diagrams

1
BACK-MAIN
BACK-MAIN WCI 3205757 Contact Us For Availability
View on Model
1
DRAWER-UTILITY
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
View on Model
1A
SCREW-SHOULDER, (NON-ILLUSTRATED)
SCREW-SHOULDER, (NON-ILLUSTRATED) WCI 3051050 Contact Us For Availability
View on Model
3
PANEL-BODYSIDE, WHITE, RH
PANEL-BODYSIDE, WHITE, RH WCI 5308012527 Contact Us For Availability
View on Model
3A
PANEL-BODYSIDE, WHITE, LH, (NON-ILLUSTRATED)
PANEL-BODYSIDE, WHITE, LH, (NON-ILLUSTRATED) WCI 5308012528 Contact Us For Availability
View on Model
4
WCI 5303292692
WCI 5303292692 WCI 5303292692 Contact Us For Availability
View on Model
4
WCI 5308011056
WCI 5308011056 WCI 5308011056 Contact Us For Availability
View on Model
5
SCREW-LEVELING
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
View on Model
5
GLASS-OVEN DOOR, INNER
GLASS-OVEN DOOR, INNER WCI 5301325512 Contact Us For Availability
View on Model
5A
ANTI-TIP KIT, (NON-ILLUSTRATED)
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
View on Model
6
SHIELD-INSULATION
SHIELD-INSULATION WCI 3017200 Contact Us For Availability
View on Model
7
GLIDE-DRAWER, REAR
GLIDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
View on Model
7
INSULATION, OVEN DOOR
INSULATION, OVEN DOOR WCI 5303284325 Contact Us For Availability
View on Model
9
WCI 5303292688
WCI 5303292688 WCI 5303292688 Contact Us For Availability
View on Model
9
WCI 316041801
WCI 316041801 WCI 316041801 Contact Us For Availability
View on Model
10
WCI 3205234
WCI 3205234 WCI 3205234 Contact Us For Availability
View on Model
12
WCI 5308005306
WCI 5308005306 WCI 5308005306 Contact Us For Availability
View on Model
12
SEAL-OVEN DOOR
SEAL-OVEN DOOR WCI 3206199 Contact Us For Availability
View on Model
13
SWITCH-SELECTOR
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
View on Model
13
WCI 35069000
WCI 35069000 WCI 35069000 Contact Us For Availability
View on Model
15
BRACKET-GLASS MTG
BRACKET-GLASS MTG WCI 3205108 Contact Us For Availability
View on Model
16
WCI 98476000
WCI 98476000 WCI 98476000 Contact Us For Availability
View on Model
16
GLASS-OVEN DOOR, HEAT BARRIER
GLASS-OVEN DOOR, HEAT BARRIER WCI 5301325511 Contact Us For Availability
View on Model
17
RETAINER-GLASS
RETAINER-GLASS WCI 5303205904 Contact Us For Availability
View on Model
17
WCI 5303211119
WCI 5303211119 WCI 5303211119 Contact Us For Availability
View on Model
17A
WCI 5303211120
WCI 5303211120 WCI 5303211120 Contact Us For Availability
View on Model
18
SEAL WINDOW
SEAL WINDOW WCI 3051574 Contact Us For Availability
View on Model
18
WCI 08012537
WCI 08012537 WCI 08012537 Contact Us For Availability
View on Model
20
WCI 5308003153
WCI 5308003153 WCI 5308003153 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE
SPACER-BODYSIDE WCI 3051653 Contact Us For Availability
View on Model
22
RETAINER-GLASS, (2)
RETAINER-GLASS, (2) WCI 3205109 Contact Us For Availability
View on Model
23
WCI 5303207598
WCI 5303207598 WCI 5303207598 Contact Us For Availability
View on Model
23A
WCI 08003264
WCI 08003264 WCI 08003264 Contact Us For Availability
View on Model
28
MEDALLION, STAINLESS STEEL, SURF ELEM
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
View on Model
29
WCI 08004148
WCI 08004148 WCI 08004148 Contact Us For Availability
View on Model
29
GUIDE-DRAWER, FRONT
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
View on Model
32
WCI 5303207391
WCI 5303207391 WCI 5303207391 Contact Us For Availability
View on Model
36
WCI 5305156302
WCI 5305156302 WCI 5305156302 Contact Us For Availability
View on Model
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
View on Model
41
RETAINER-DOOR
RETAINER-DOOR WCI 3019063 Contact Us For Availability
View on Model
44
WCI 3204817
WCI 3204817 WCI 3204817 Contact Us For Availability
View on Model
46
WCI 5308006417
WCI 5308006417 WCI 5308006417 Contact Us For Availability
View on Model
48
WCI 08003252
WCI 08003252 WCI 08003252 Contact Us For Availability
View on Model
53
WCI 3206095
WCI 3206095 WCI 3206095 Contact Us For Availability
View on Model
54
WCI 5303271606
WCI 5303271606 WCI 5303271606 Contact Us For Availability
View on Model
58A
INSULATION, OVEN WRAPPER
INSULATION, OVEN WRAPPER WCI 3051521 Contact Us For Availability
View on Model
58B
WCI 5303274967
WCI 5303274967 WCI 5303274967 Contact Us For Availability
View on Model
59
WCI 5308012538
WCI 5308012538 WCI 5308012538 Contact Us For Availability
View on Model
59
TUBE-OVEN VENT
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
View on Model
63
PLATE=GROUND STRAP
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
View on Model
68
SUPPORT-ELEMENT
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
View on Model
71
SHIELD-REAR WALL, LOWER
SHIELD-REAR WALL, LOWER WCI 5303051856 Contact Us For Availability
View on Model
74
WCI 5308003107
WCI 5308003107 WCI 5308003107 Contact Us For Availability
View on Model
75
COVER-OVEN SEAM
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
View on Model
76
WCI 316042103
WCI 316042103 WCI 316042103 Contact Us For Availability
View on Model
77
WCI 5308015746
WCI 5308015746 WCI 5308015746 Contact Us For Availability
View on Model
77A
RAIL-DRAWER LH, (NON-ILLUSTRATED)
RAIL-DRAWER LH, (NON-ILLUSTRATED) WCI 3051652 Contact Us For Availability
View on Model
80
SPRING-OVEN REAR
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
View on Model
81
SPACER-OVEN
SPACER-OVEN WCI 3201632 Contact Us For Availability
View on Model
82
SHIELD, OVEN BOTTOM
SHIELD, OVEN BOTTOM WCI 3206275 Contact Us For Availability
View on Model
83
WCI 5303292686
WCI 5303292686 WCI 5303292686 Contact Us For Availability
View on Model
83A
PLUG-BUTTON, LINER, (NON-ILLUSTRATED)
PLUG-BUTTON, LINER, (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
View on Model
84
WCI 3017482
WCI 3017482 WCI 3017482 Contact Us For Availability
View on Model
84A
GUSSET-REAR, RH, (NON-ILLUSTRATED)
GUSSET-REAR, RH, (NON-ILLUSTRATED) WCI 3017481 Contact Us For Availability
View on Model
86
CHANNEL, HINGE
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
View on Model
87
BRACKET-CABLE MTG
BRACKET-CABLE MTG WCI 3203574 Contact Us For Availability
View on Model
