Model Electrolux KF420GDD8 RANGE – Common Parts & Diagrams

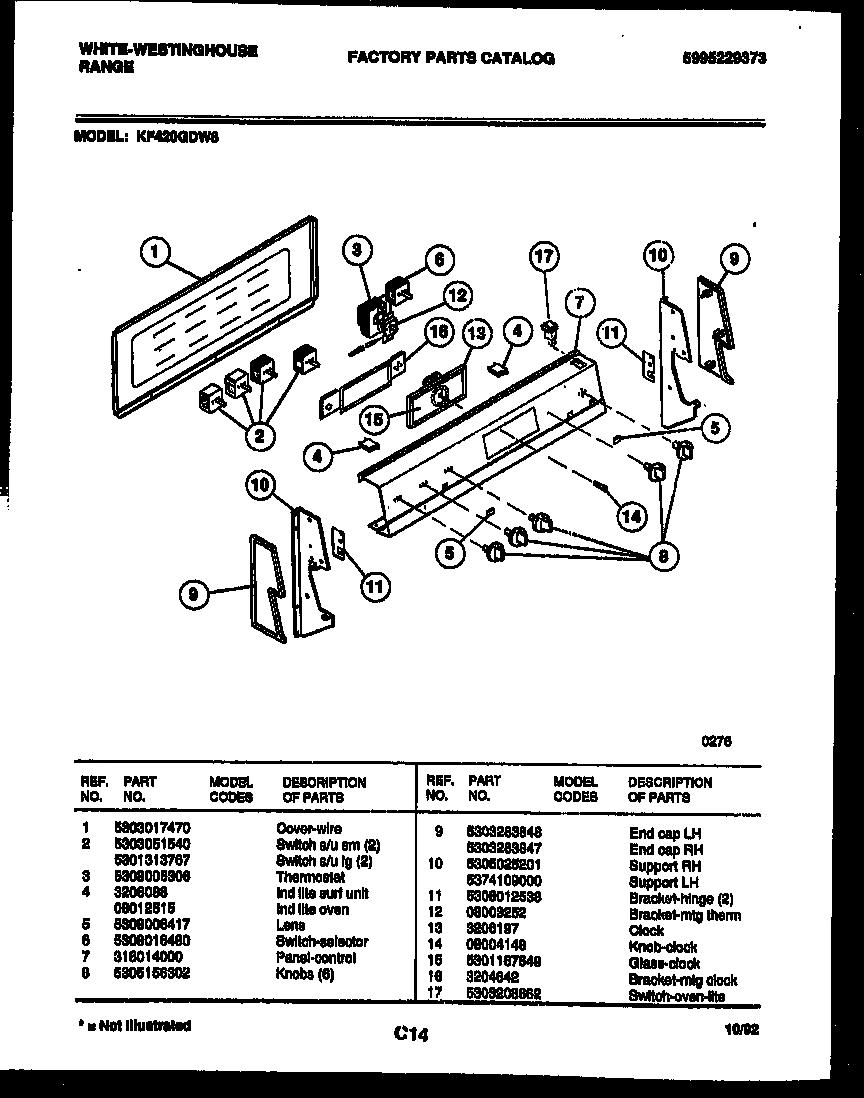

02 - CONTROL PANEL

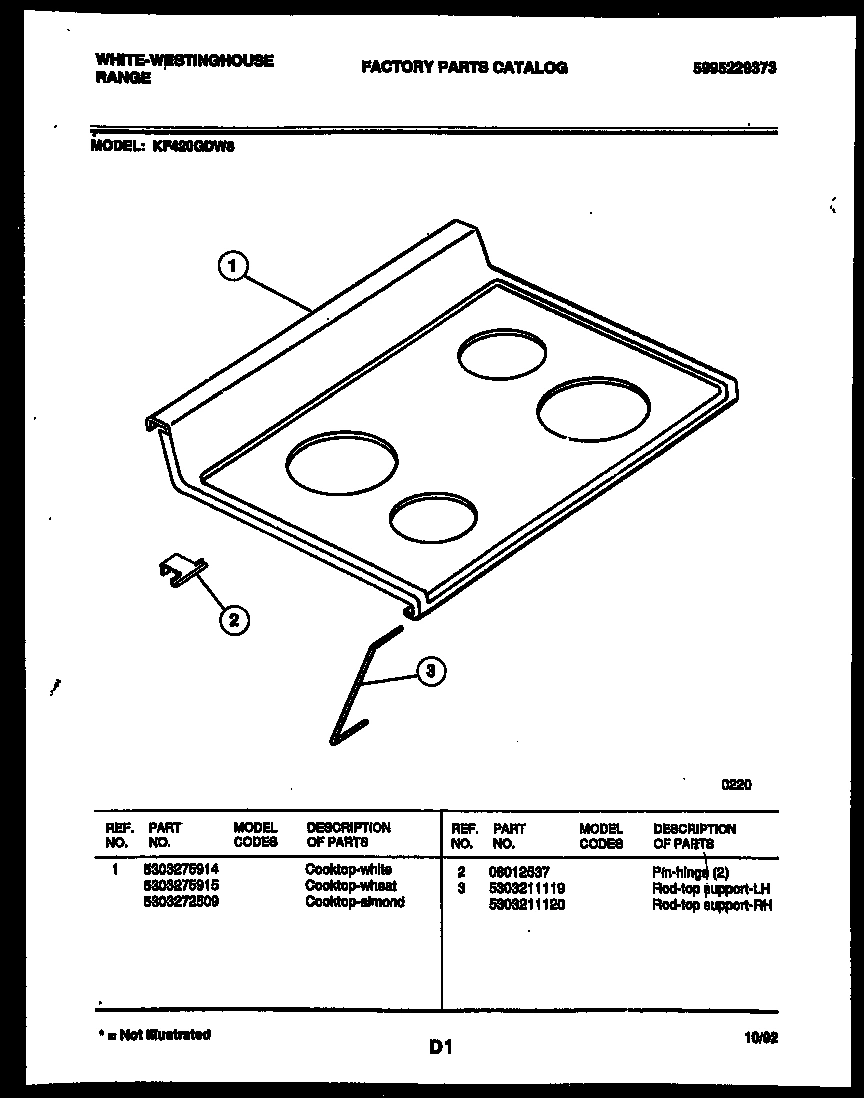

03 - COOKTOP PARTS
04 - BROILER PARTS
05 - DRAWER PARTS
06 - DOOR PARTS
07 - BODY PARTS
Common parts from model Electrolux KF420GDD8 RANGE
*69757
PLATE ANTI-TIP WCI 316042301 Contact Us For Availability
*69765
WCI 19100210122 WCI 19100210122 Contact Us For Availability
1
WCI 5303272509 WCI 5303272509 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
LINER - DOOR WCI 316041801 Contact Us For Availability
1
BODY - OVEN WCI 5303292686 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
PANEL-DOOR ALMOND WCI 5301325518 Contact Us For Availability
2
WCI 3202082 WCI 3202082 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
3
PANEL - ALMOND WCI 5301325100 Contact Us For Availability
3
WCI 5301325512 WCI 5301325512 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
4
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
5
LENS WCI 5308006417 Contact Us For Availability
5
RTNR - OUTER GLASS (2) WCI 3205109 Contact Us For Availability
5
WCI 5303274967 WCI 5303274967 Contact Us For Availability
6
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
GLASS INNER DOOR WCI 5301325511 Contact Us For Availability
6
PANEL, END, RH (ALMOND) WCI 5308012529 Contact Us For Availability
6
PANEL-END LH (ALMD) WCI 5308012530 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
RTNR - INNER GLASS (4) WCI 3205108 Contact Us For Availability
8
PANEL-BACK WCI 3205757 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
WCI 3017481 WCI 3017481 Contact Us For Availability
9
WCI 3017482 WCI 3017482 Contact Us For Availability
10
WCI 3206199 WCI 3206199 Contact Us For Availability
10
WCI 5303207391 WCI 5303207391 Contact Us For Availability
11
WCI 5303284325 WCI 5303284325 Contact Us For Availability
11
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 08003264 WCI 08003264 Contact Us For Availability
12
WCI 3019063 WCI 3019063 Contact Us For Availability
13
WCI 3206197 WCI 3206197 Contact Us For Availability
13
HANDLE WCI 5303280334 Contact Us For Availability
13
WCI 3201632 WCI 3201632 Contact Us For Availability
14
WCI 08004148 WCI 08004148 Contact Us For Availability
14
SPACER (2) WCI 5308003153 Contact Us For Availability
14
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
15
WCI 5301167549 WCI 5301167549 Contact Us For Availability
15
HINGE - ASSY (2) WCI 5303207598 Contact Us For Availability
15
WCI 3206095 WCI 3206095 Contact Us For Availability
16
BRACKET-MTG CLOCK WCI 3204642 Contact Us For Availability
16
SPACER DRAWER GUIDE (2) WCI 3051653 Contact Us For Availability
17
GUIDE, FRONT (2) WCI 3051654 Contact Us For Availability
18
GLIDE-DRAWER LH WCI 3051652 Contact Us For Availability
18
GLIDE-DRAWER RH WCI 5308015746 Contact Us For Availability
19
BUMPER (4) WCI 5308003107 Contact Us For Availability
22
PLATE-GROUNDING WCI 5301145190 Contact Us For Availability
23
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
25
WCI 5303051856 WCI 5303051856 Contact Us For Availability
26
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
30
RETAINER-LENS WCI 5303205904 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
33
FRONT - OVEN WCI 316042103 Contact Us For Availability
34
WCI 5303292688 WCI 5303292688 Contact Us For Availability
35
WCI 3205234 WCI 3205234 Contact Us For Availability
35A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
35C
PLUG BUTTON (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
37
PLUG-LITE-SWITCH WCI 3204817 Contact Us For Availability
× ![]()
