Model Electrolux KF404GDH4 RANGE – Common Parts & Diagrams

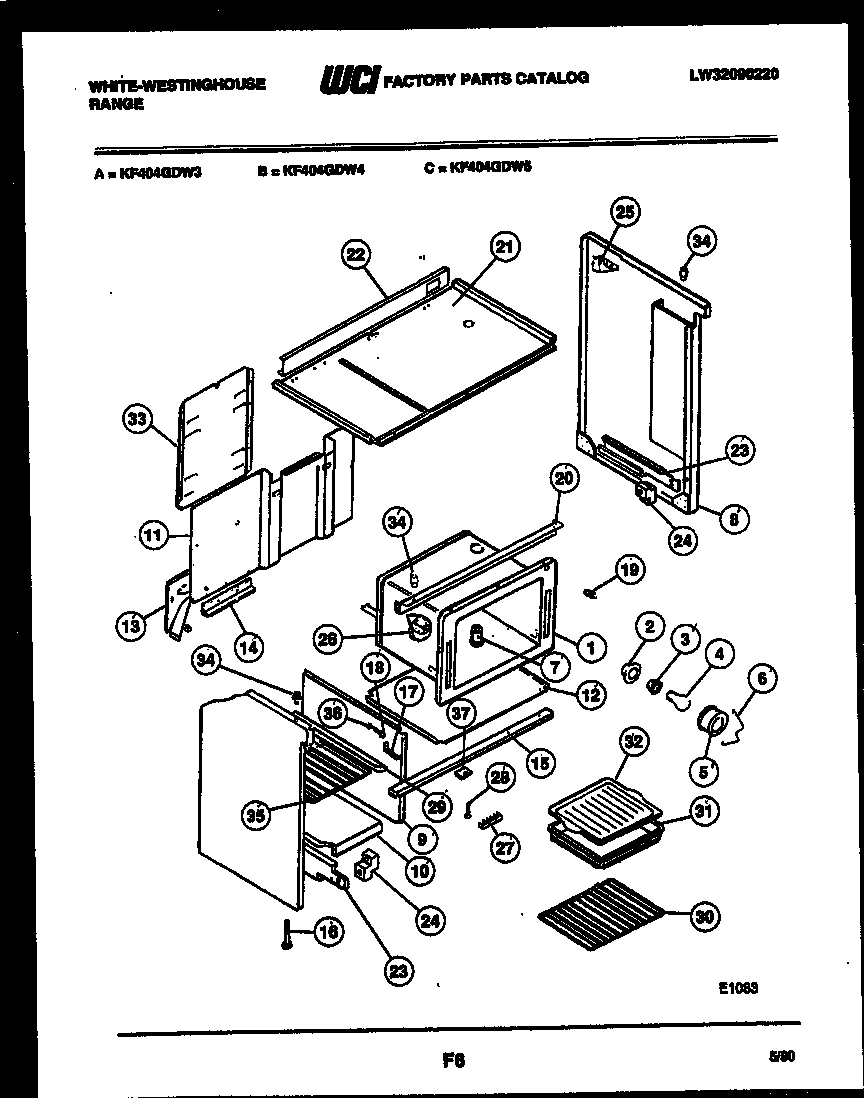

02 - BODY PARTS

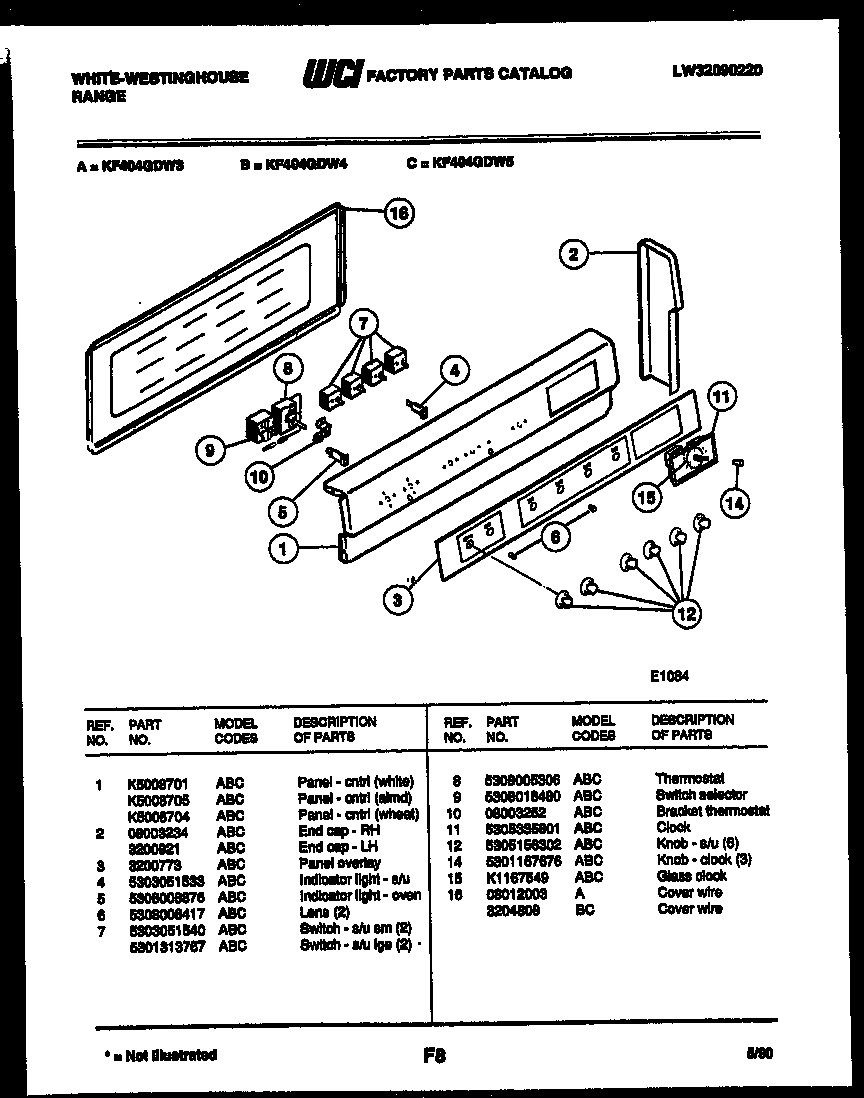

03 - CONTROL PANEL
04 - DRAWER AND PANEL COMPARTMENT PARTS
05 - DOOR PARTS
06 - BROILER PARTS
07 - COOKTOP PARTS
Common parts from model Electrolux KF404GDH4 RANGE
1
PANEL - CNTRL (WHEAT) WCI K5008704 Contact Us For Availability
1
PNL DWR (WHEAT) WCI K1322712 Contact Us For Availability
1
WCI 3204144 WCI 3204144 Contact Us For Availability
1
COOKTOP (WHEAT) WCI K1319058 Contact Us For Availability
2
DRAWER WCI 3202108 Contact Us For Availability
2
WCI 08003234 WCI 08003234 Contact Us For Availability
2
PANEL DOOR (WHEAT) WCI K1325736 Contact Us For Availability
2
ROD COOKTOP WCI 3051554 Contact Us For Availability
2A
WCI 3200921 WCI 3200921 Contact Us For Availability
3
WCI 3200773 WCI 3200773 Contact Us For Availability
3
GUIDE (2) WCI K1315217 Contact Us For Availability
3
WCI K1325512 WCI K1325512 Contact Us For Availability
3
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3A
HINGE COOKTOP LH WCI 3051659 Contact Us For Availability
4
INDICATOR LIGHT S/U WCI 5303051533 Contact Us For Availability
4
WCI 3008534 WCI 3008534 Contact Us For Availability
4
MOULDING OUTER GLASS WCI 3201571 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
5
INDICATOR LIGHT, OVEN WCI 5308008876 Contact Us For Availability
5
WCI K1312503 WCI K1312503 Contact Us For Availability
5
RETAINER - OTR GL (2) WCI 3205109 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
6
LENS (2) WCI 5308006417 Contact Us For Availability
6
PANEL COMPARTMENT (WHITE) WCI 08012211 Contact Us For Availability
6
WCI K1317749 WCI K1317749 Contact Us For Availability
6
PANEL COMPARTMENT (ALMOND) WCI K1317750 Contact Us For Availability
6
GLASS INNER DOOR WCI 5301325511 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 08013441 WCI 08013441 Contact Us For Availability
8
THERMOSTAT WCI 5308005306 Contact Us For Availability
8
WCI 08011971 WCI 08011971 Contact Us For Availability
8
RETAINER - INR GL (4) WCI 3205108 Contact Us For Availability
9
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
9
SPACER HINGE PIN (2) WCI K1306686 Contact Us For Availability
9
PANEL AIRWASH WCI K1325729 Contact Us For Availability
10
WCI 08003252 WCI 08003252 Contact Us For Availability
10
HANDLE WCI 08011969 Contact Us For Availability
10
WCI 5308003268 WCI 5308003268 Contact Us For Availability
11
WCI 5305335801 WCI 5305335801 Contact Us For Availability
11
INSULATION WCI 5303051630 Contact Us For Availability
12
KNOB - S/U (6) WCI 5305156302 Contact Us For Availability
12
WCI Q000310113 WCI Q000310113 Contact Us For Availability
12
COLLAR ACTUATOR WCI 5303051582 Contact Us For Availability
13
WCI 3204822 WCI 3204822 Contact Us For Availability
13
WCI 3204823 WCI 3204823 Contact Us For Availability
13
WCI Q000310114 WCI Q000310114 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
14
WCI 08011953 WCI 08011953 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
14
WCI 5308014202 WCI 5308014202 Contact Us For Availability
15
CHANNEL, OVEN SUPPORT WCI 08011954 Contact Us For Availability
15
GLASS CLOCK WCI K1167549 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
16
ACTUATOR-PLUNGER WCI 5303051583 Contact Us For Availability
16
SCREW - LEVELLING WCI 5303205540 Contact Us For Availability
16
WCI 3204808 WCI 3204808 Contact Us For Availability
17
CAM HINGE (2) WCI 5308003183 Contact Us For Availability
17
BRACKET - DOOR STRIKE WCI K5138301 Contact Us For Availability
18
WCI 08011945 WCI 08011945 Contact Us For Availability
18
WCI K1167752 WCI K1167752 Contact Us For Availability
19
SWITCH - OV LT WCI 5301314211 Contact Us For Availability
19
RIVET WCI 5303051567 Contact Us For Availability
20
WCI K5048203 WCI K5048203 Contact Us For Availability
20
CHANNEL HINGE (2) WCI 3051565 Contact Us For Availability
21
WCI 08011947 WCI 08011947 Contact Us For Availability
21
STUD WCI 5308012004 Contact Us For Availability
22
WCI 5303209319 WCI 5303209319 Contact Us For Availability
23
GLIDE - DWR RH WCI 3204818 Contact Us For Availability
23A
GLIDE - DWR LH WCI 3204819 Contact Us For Availability
24
GLIDE, FRONT (2) WCI 3051654 Contact Us For Availability
25
GUSSET - BKGRD (2) WCI 3204821 Contact Us For Availability
26
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
28
PLATE-GROUNDING WCI K1145190 Contact Us For Availability
29
WCI 08011959 WCI 08011959 Contact Us For Availability
31
PAN-BROILER WCI 5303013568 Contact Us For Availability
32
WCI 5303131356 WCI 5303131356 Contact Us For Availability
33
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
33A
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
34
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
35
RACK - COMPARTMENT WCI 08011960 Contact Us For Availability
× ![]()
