Model Electrolux KF404GDD6 RANGE – Common Parts & Diagrams
02 - BODY PARTS
03 - BACKGUARD

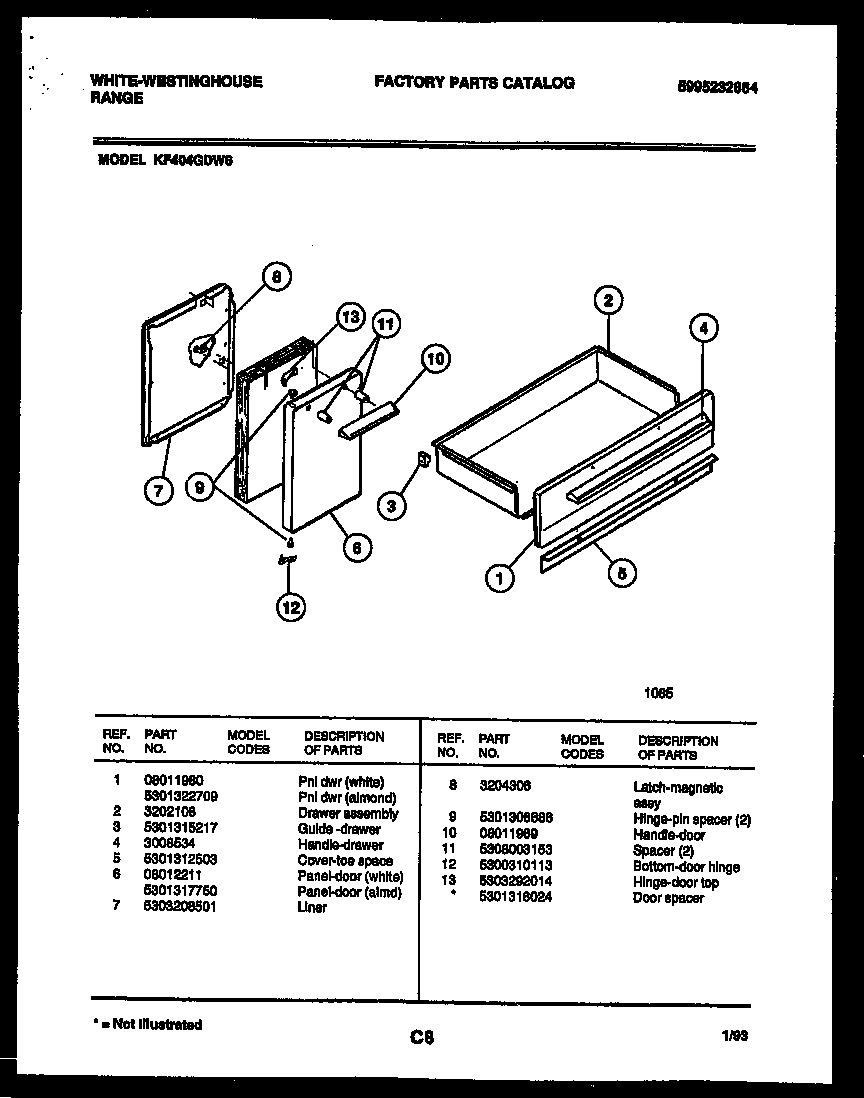

04 - DOOR AND DRAWER PARTS

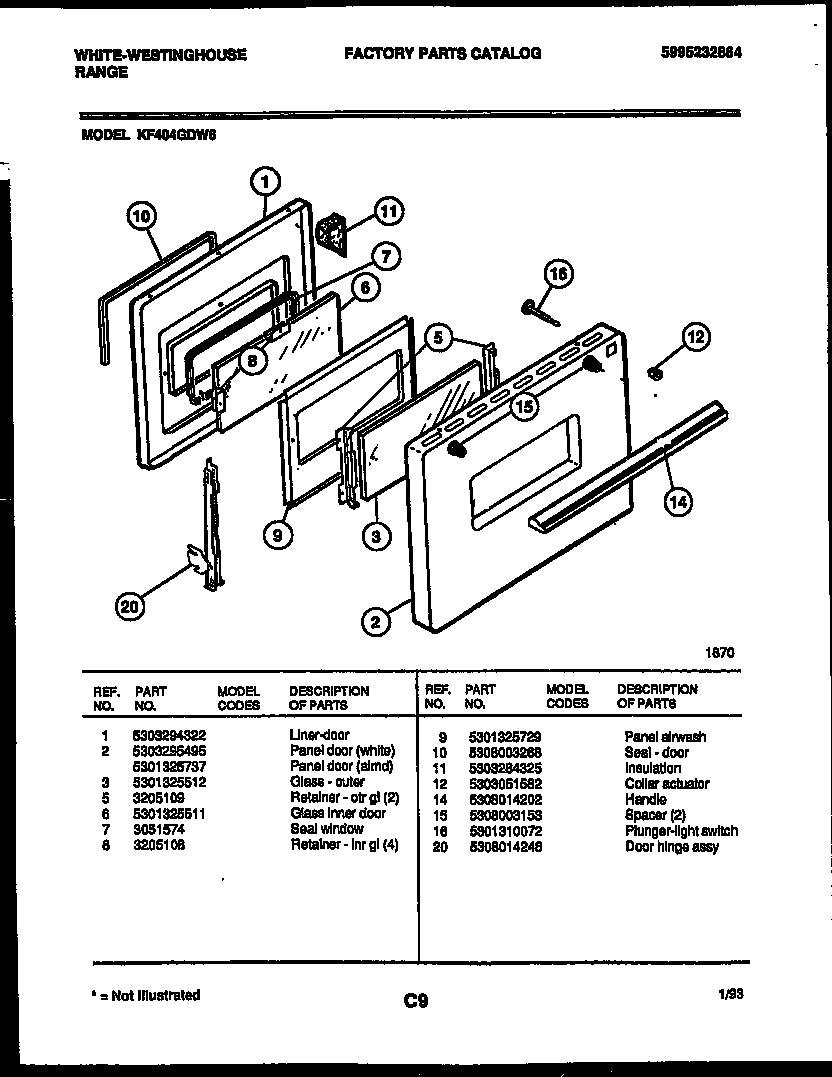

05 - DOOR PARTS

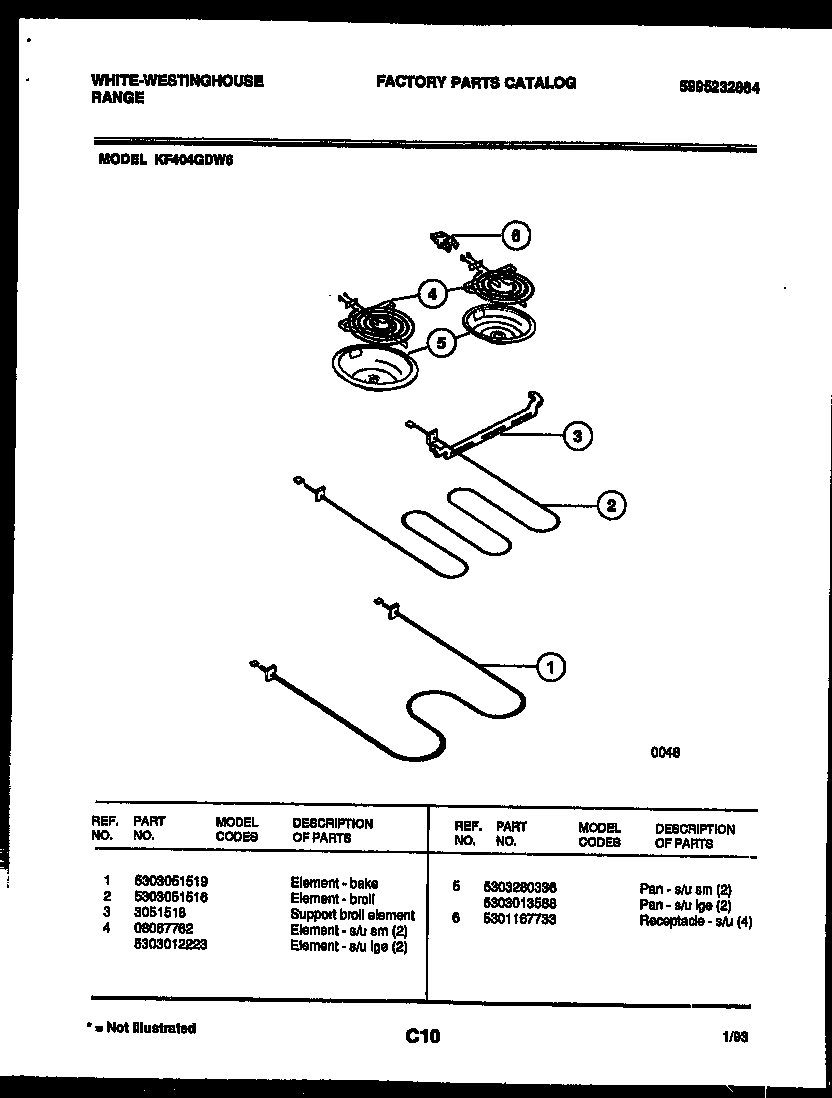

06 - BROILER PARTS

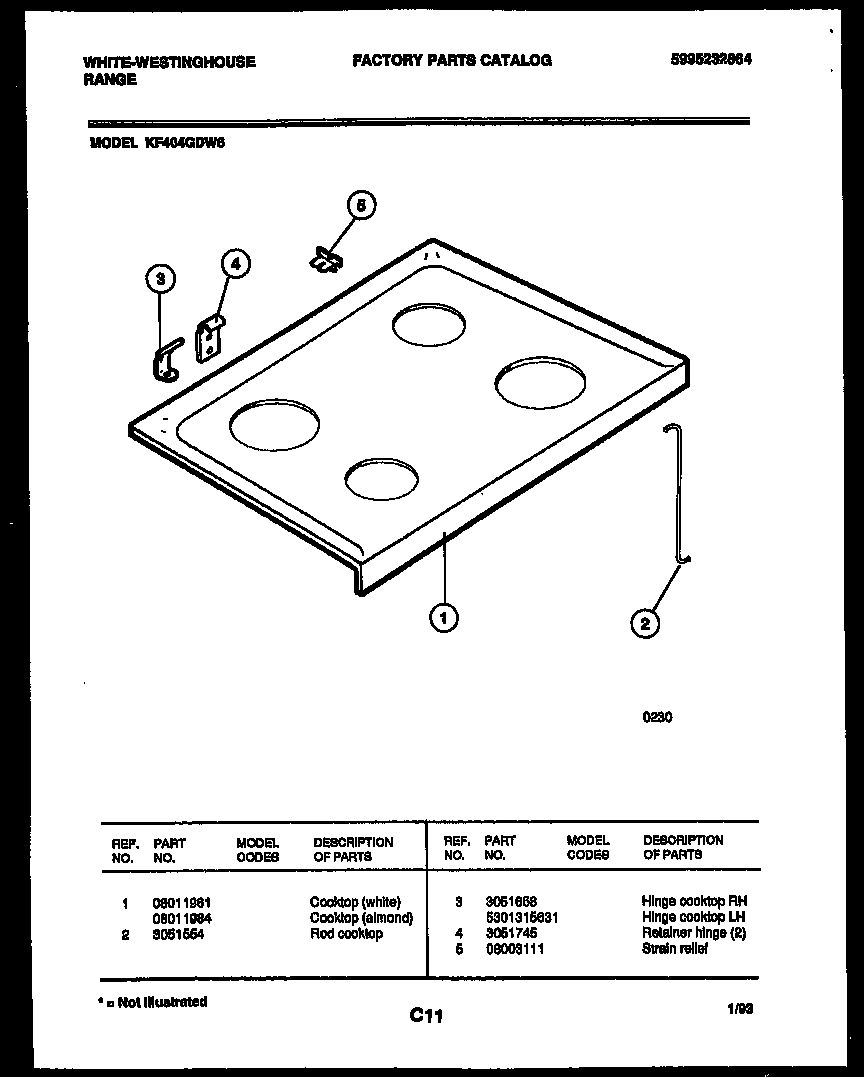

07 - COOKTOP PARTS
Common parts from model Electrolux KF404GDD6 RANGE
*72547
ANTI-TIP BRKT KIT WCI 3934058 Contact Us For Availability
*72552
WCI 5301318024 WCI 5301318024 Contact Us For Availability
1
PANEL - CNTRL (ALMD) WCI 5303295489 Contact Us For Availability
1
PNL DWR (ALMOND) WCI 5301322709 Contact Us For Availability
1
WCI 5303294322 WCI 5303294322 Contact Us For Availability
1
WCI 08011984 WCI 08011984 Contact Us For Availability
2
DRAWER ASSEMBLY WCI 3202108 Contact Us For Availability
2
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
2
WCI 08003234 WCI 08003234 Contact Us For Availability
2
WCI 5301325737 WCI 5301325737 Contact Us For Availability
2
ROD COOKTOP WCI 3051554 Contact Us For Availability
2A
WCI 3200921 WCI 3200921 Contact Us For Availability
3
WCI 3200773 WCI 3200773 Contact Us For Availability
3
GUIDE-DRAWER WCI 5301315217 Contact Us For Availability
3
WCI 5301325512 WCI 5301325512 Contact Us For Availability
3
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI 5301315631 Contact Us For Availability
4
INDICATOR LIGHT S/U WCI 5303051533 Contact Us For Availability
4
HANDLE, DRAWER WCI 3008534 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
5
INDICATOR LIGHT, OVEN WCI 5308008876 Contact Us For Availability
5
COVER-TOE SPACE WCI 5301312503 Contact Us For Availability
5
RETAINER - OTR GL (2) WCI 3205109 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
6
LENS (2) WCI 5308006417 Contact Us For Availability
6
PANEL-DOOR (ALMD) WCI 5301317750 Contact Us For Availability
6
GLASS INNER DOOR WCI 5301325511 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
LINER WCI 5303208501 Contact Us For Availability
8
THERMOSTAT WCI 5308005306 Contact Us For Availability
8
WCI 3204306 WCI 3204306 Contact Us For Availability
8
RETAINER - INR GL (4) WCI 3205108 Contact Us For Availability
9
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
9
HINGE-PIN SPACER (2) WCI 5301306686 Contact Us For Availability
9
WCI 5301325729 WCI 5301325729 Contact Us For Availability
10
WCI 08003252 WCI 08003252 Contact Us For Availability
10
WCI 08011969 WCI 08011969 Contact Us For Availability
10
WCI 5308003268 WCI 5308003268 Contact Us For Availability
11
WCI 5305335801 WCI 5305335801 Contact Us For Availability
11
WCI 5303284325 WCI 5303284325 Contact Us For Availability
12
WCI 3206275 WCI 3206275 Contact Us For Availability
12
KNOB - S/U (6) WCI 5305156302 Contact Us For Availability
12
BOTTOM-DOOR HINGE WCI 5300310113 Contact Us For Availability
12
COLLAR ACTUATOR WCI 5303051582 Contact Us For Availability
13
WCI 3204822 WCI 3204822 Contact Us For Availability
13
HINGE-DOOR TOP WCI 5303292014 Contact Us For Availability
13A
WCI 3204823 WCI 3204823 Contact Us For Availability
14
WCI 5301307085 WCI 5301307085 Contact Us For Availability
14
WCI 5308014202 WCI 5308014202 Contact Us For Availability
15
CHANNEL, OVEN SUPPORT WCI 08011954 Contact Us For Availability
15
SPACER (2) WCI 5308003153 Contact Us For Availability
16
LEG LEVELER (4) WCI 5303205540 Contact Us For Availability
16
WCI 3204808 WCI 3204808 Contact Us For Availability
16
WCI 5301310072 WCI 5301310072 Contact Us For Availability
19
WCI 5301314211 WCI 5301314211 Contact Us For Availability
20
WCI 5303294354 WCI 5303294354 Contact Us For Availability
20
DOOR HINGE ASSY WCI 5308014248 Contact Us For Availability
21
WCI 5303294355 WCI 5303294355 Contact Us For Availability
22
WCI 5303209319 WCI 5303209319 Contact Us For Availability
23
GLIDE - DWR RH WCI 5308015746 Contact Us For Availability
23A
GLIDE - DWR LH WCI 3051652 Contact Us For Availability
24
GLIDE, FRONT (2) WCI 3051654 Contact Us For Availability
25
GUSSET - BKGRD (2) WCI 3051657 Contact Us For Availability
26
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
28
PLATE-GROUNDING WCI 5301145190 Contact Us For Availability
29
WCI 5301315199 WCI 5301315199 Contact Us For Availability
31
WCI 5303293416 WCI 5303293416 Contact Us For Availability
32
WCI 5303293415 WCI 5303293415 Contact Us For Availability
33
PANEL - WIRE COVER WCI 5303051856 Contact Us For Availability
34
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
35
RACK - COMPARTMENT WCI 08011960 Contact Us For Availability
37
WCI 3204318 WCI 3204318 Contact Us For Availability
× ![]()
