Model Electrolux KF350GDW8 RANGE – Common Parts & Diagrams
01 - RANGE, ELECTRIC
02 - BACKGUARD

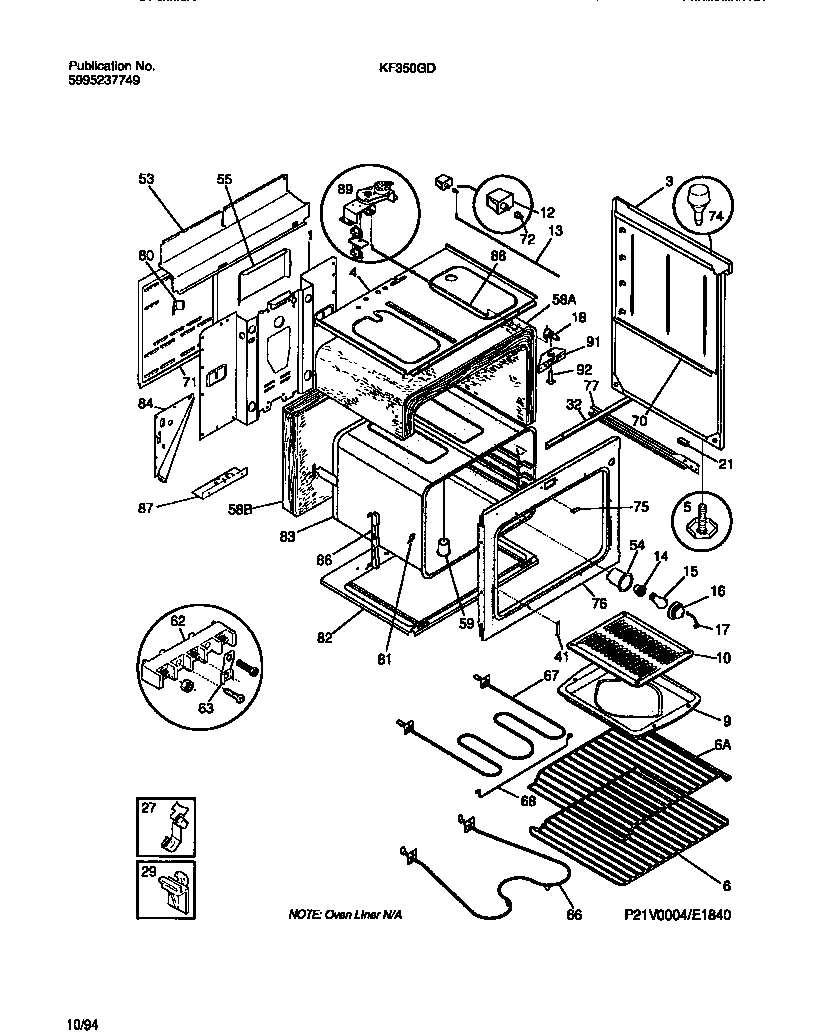

03 - BODY

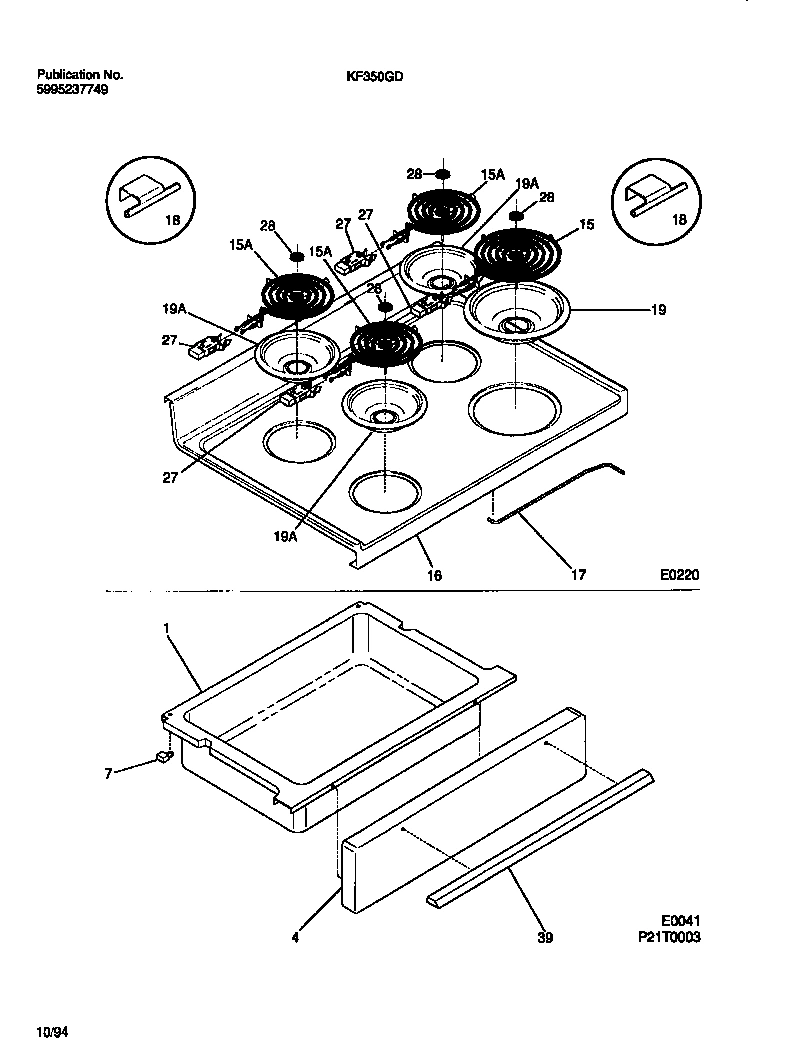

04 - TOP/DRAWER

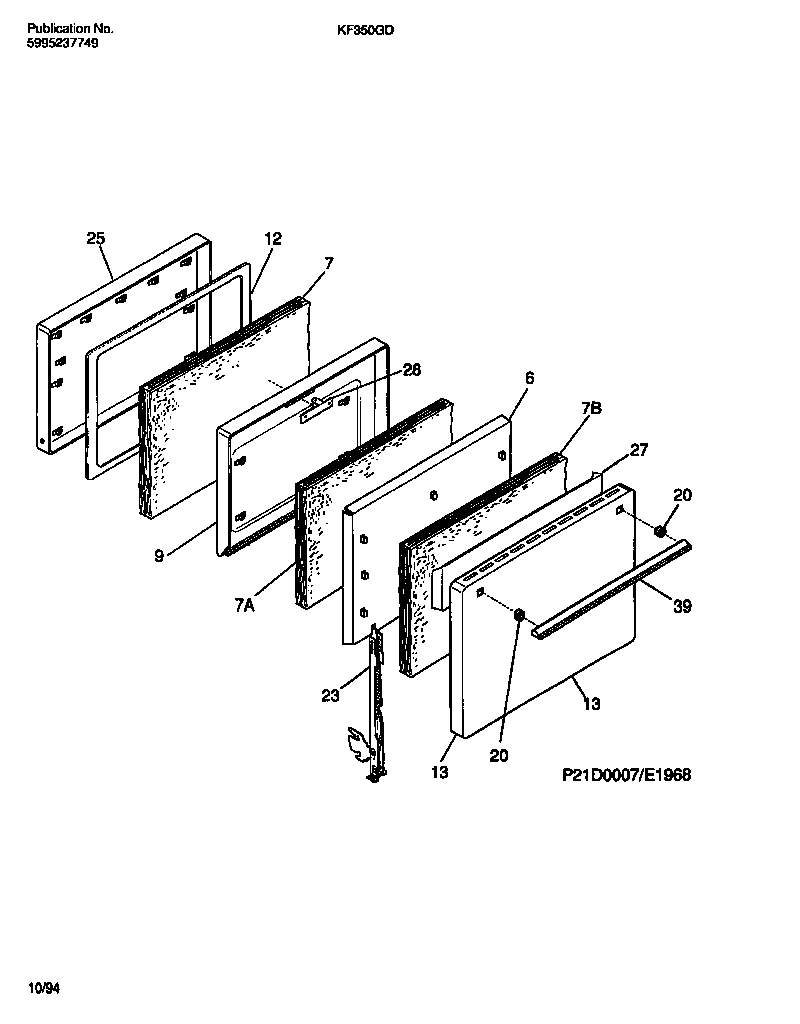

05 - DOOR

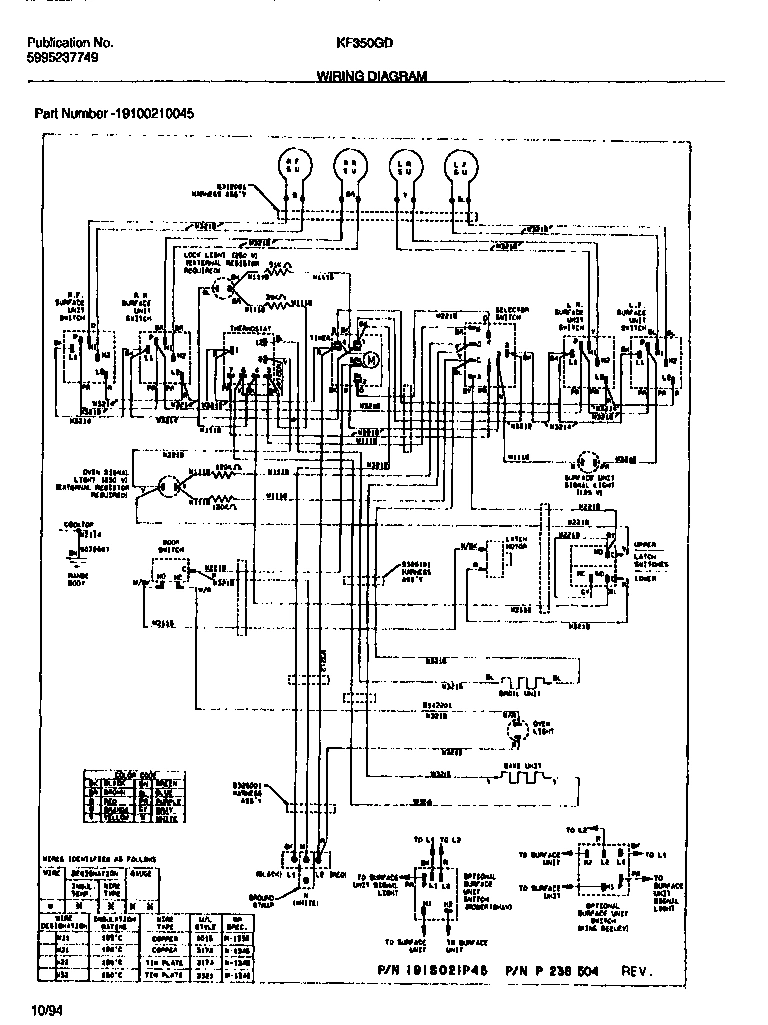

06 - WIRING DIAGRAM
Common parts from model Electrolux KF350GDW8 RANGE
1
BACK-MAIN WCI 3205757 Contact Us For Availability
1
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
1A
SCREW-SHOULDER, (NON-ILLUSTRATED) WCI 3051050 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5308012527 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH WCI 5308012528 Contact Us For Availability
4
WCI 5303292692 WCI 5303292692 Contact Us For Availability
4
WCI 5308011056 WCI 5308011056 Contact Us For Availability
5
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
5A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
6
SHIELD-INSULATION WCI 3051712 Contact Us For Availability
6A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
7
GLIDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
7
INSULATION-BAFFLE, OVEN DOOR WCI 3008673 Contact Us For Availability
7A
INSULATION-LINER, OVEN DOOR WCI 3008677 Contact Us For Availability
7B
INSULATION-AIRWASH, OVEN DOOR WCI 5301322652 Contact Us For Availability
9
WCI 5303292688 WCI 5303292688 Contact Us For Availability
9
WCI 316041901 WCI 316041901 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SWITCH-LATCH WCI 5308003081 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3206078 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 08007445 Contact Us For Availability
13
PANEL-OVEN DOOR, WHITE WCI 08003656 Contact Us For Availability
16
WCI 98476000 WCI 98476000 Contact Us For Availability
17
RETAINER-GLASS WCI 5303205904 Contact Us For Availability
17
WCI 5303211119 WCI 5303211119 Contact Us For Availability
17A
WCI 5303211120 WCI 5303211120 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
WCI 08012537 WCI 08012537 Contact Us For Availability
19
WCI 5303292730 WCI 5303292730 Contact Us For Availability
20
WCI 5301325730 WCI 5301325730 Contact Us For Availability
20
WCI 5308003153 WCI 5308003153 Contact Us For Availability
21
SPACER-BODYSIDE WCI 3051653 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 5303209154 Contact Us For Availability
23A
WCI 08003264 WCI 08003264 Contact Us For Availability
25
WCI 5303292728 WCI 5303292728 Contact Us For Availability
27
PANEL-PAD INSULATOR WCI 5301314506 Contact Us For Availability
28
STRIKE PLATE WCI 5301167830 Contact Us For Availability
29
WCI 5301167676 WCI 5301167676 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
32
WCI 5303207391 WCI 5303207391 Contact Us For Availability
36
WCI 5305156302 WCI 5305156302 Contact Us For Availability
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
46
WCI 5308006417 WCI 5308006417 Contact Us For Availability
48
WCI 3202099 WCI 3202099 Contact Us For Availability
53
WCI 3206095 WCI 3206095 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
SHIELD-FLUE WCI 3051634 Contact Us For Availability
58A
INSULATION, OVEN WRAP WCI 3203029 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
59
WCI 5308012538 WCI 5308012538 Contact Us For Availability
59
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
70
SHIELD-INSULATION WCI 3051632 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 5303051856 Contact Us For Availability
72
COVER-ROD END WCI 08007444 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
75
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
76
WCI 316042101 WCI 316042101 Contact Us For Availability
77
WCI 5308015746 WCI 5308015746 Contact Us For Availability
77A
RAIL-DRAWER LH, (NON-ILLUSTRATED) WCI 3051652 Contact Us For Availability
80
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3206275 Contact Us For Availability
83
WCI 5303292686 WCI 5303292686 Contact Us For Availability
83A
PLUG-BUTTON, LINER, (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
84
WCI 3017482 WCI 3017482 Contact Us For Availability
84A
GUSSET-REAR, RH, (NON-ILLUSTRATED) WCI 3017481 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
BRACKET-CABLE MTG WCI 3203574 Contact Us For Availability
88
ROD-LATCH, AUTO WCI 3051649 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5308015743 Contact Us For Availability
91
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
× ![]()
