Model Electrolux KF330JDW5 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER PARTS

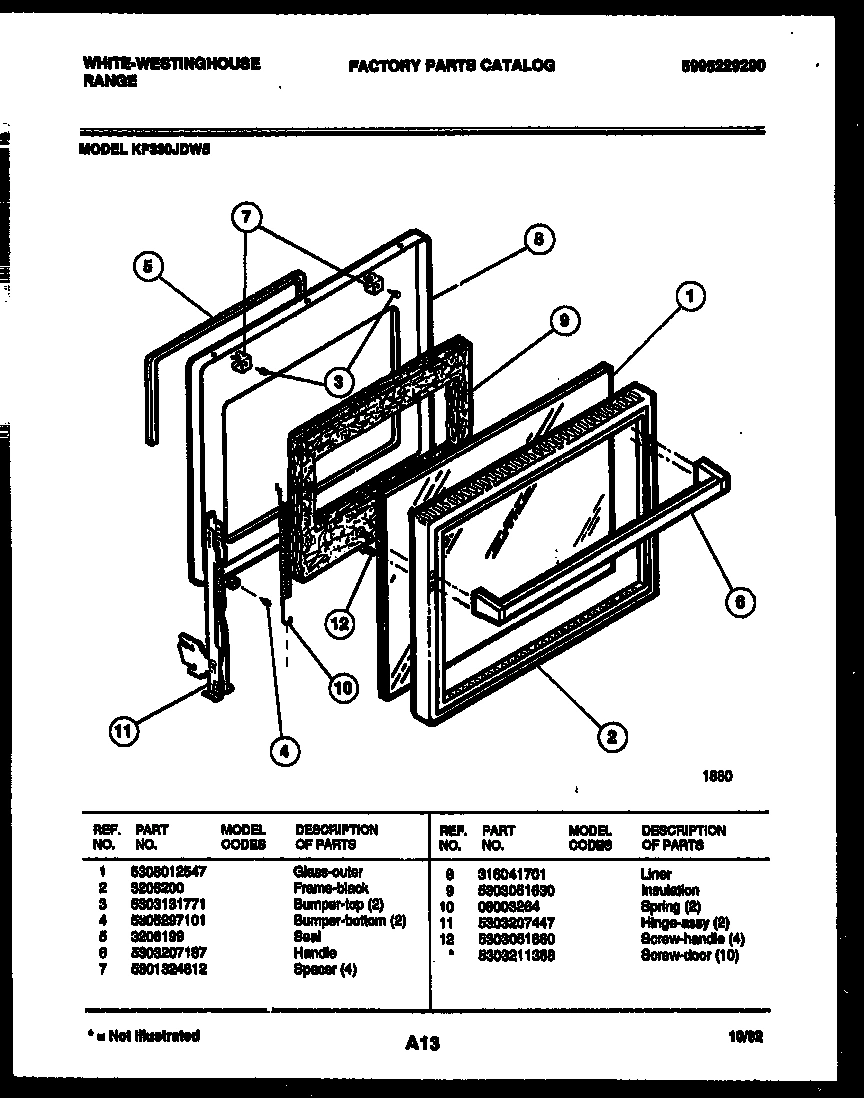

04 - DOOR PARTS

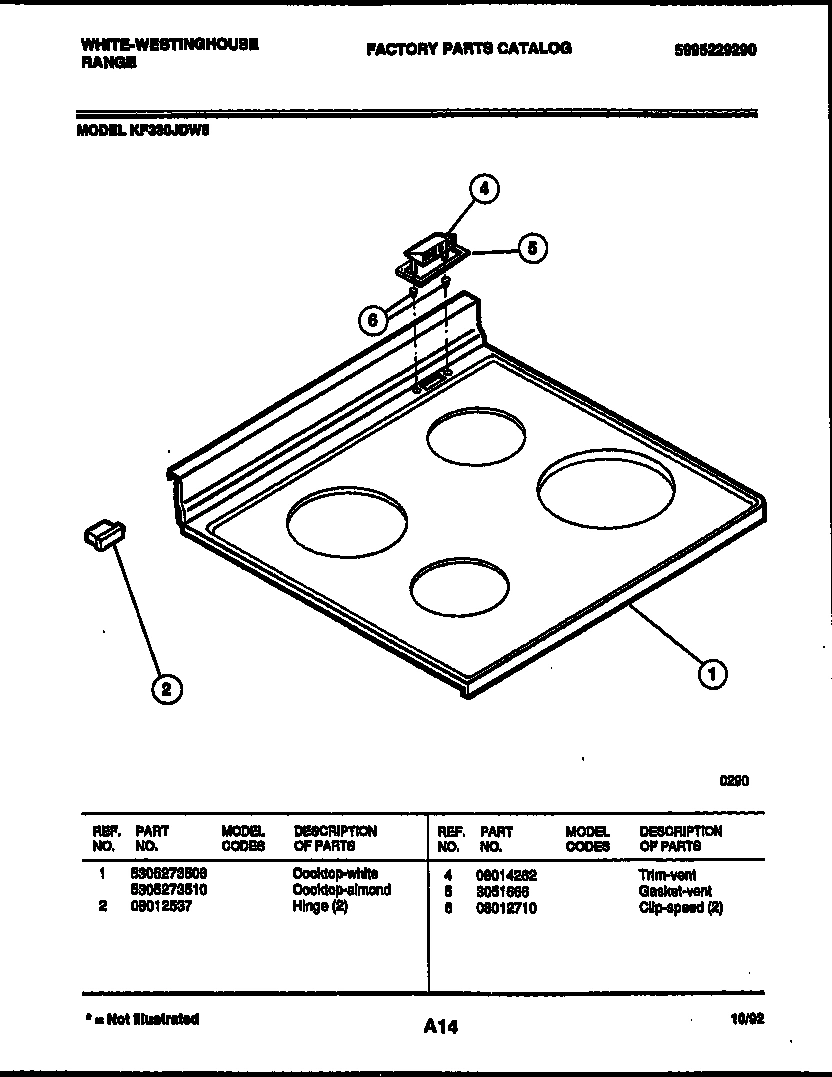

05 - COOKTOP PARTS

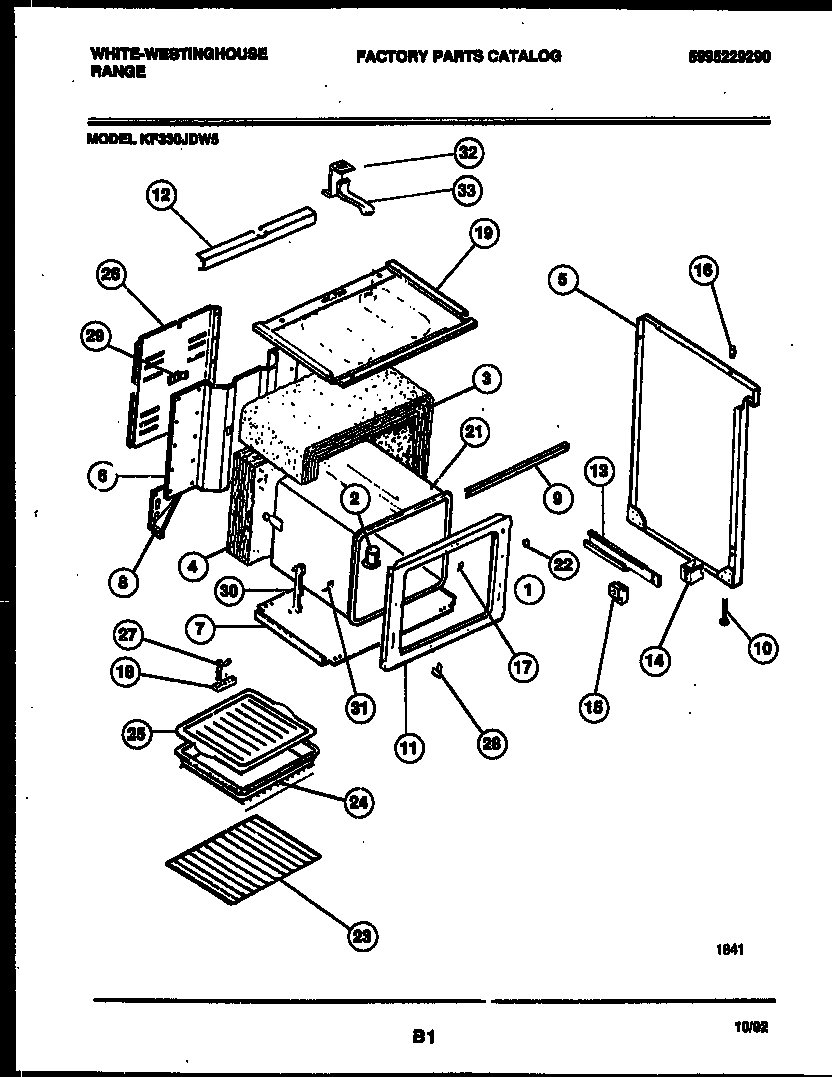

06 - BODY PARTS

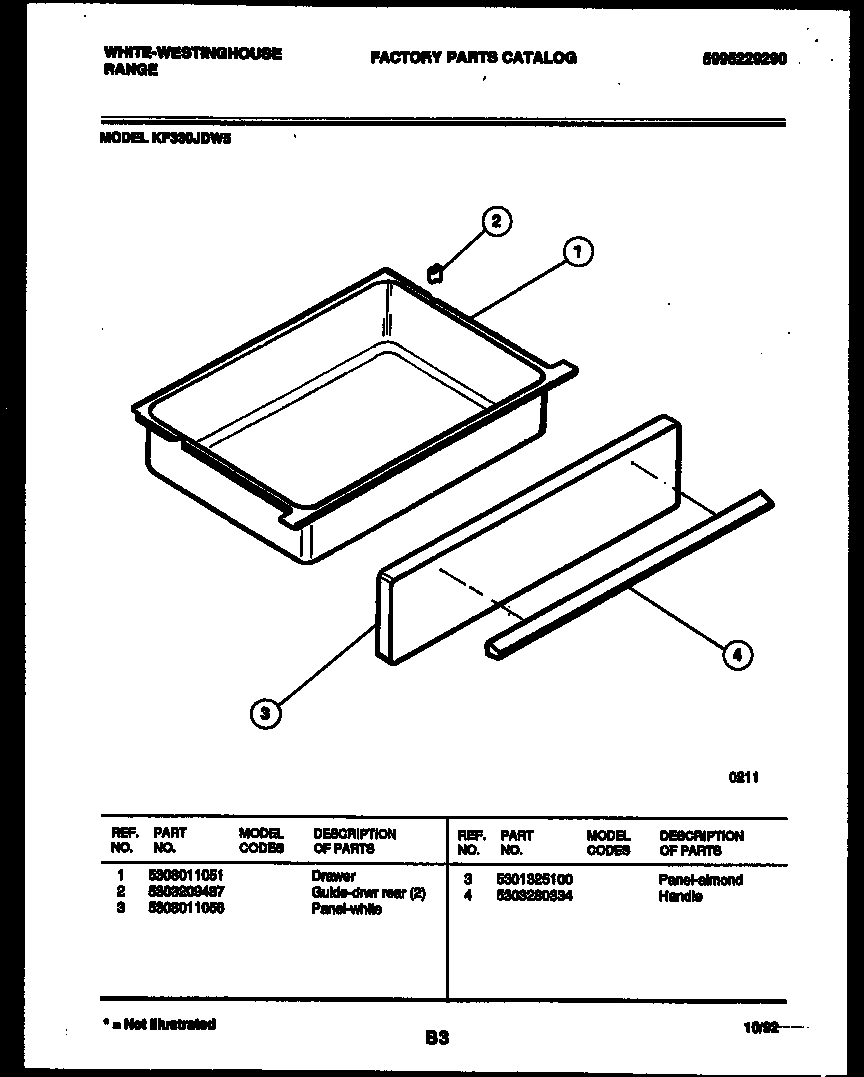

07 - DRAWER PARTS
Common parts from model Electrolux KF330JDW5 RANGE
*70346
NUT-HEX 6MM (4) WCI 08014256 Contact Us For Availability
*70346
BRKT-MAINTOP EGO WCI 5303207389 Contact Us For Availability
*70347
WCI 5303211368 WCI 5303211368 Contact Us For Availability
*70352
WCI 19100210022 WCI 19100210022 Contact Us For Availability
*70352
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 5303271867 WCI 5303271867 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
WCI 5305273506 WCI 5305273506 Contact Us For Availability
1
COVER - OVEN IT HOLE WCI 3017576 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SURFACE UNIT LGE (2) WCI 5303271868 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
PAN - SM (2) WCI 5303271880 Contact Us For Availability
2
FRAME-BLACK WCI 3206200 Contact Us For Availability
2
HINGE (2) WCI 08012537 Contact Us For Availability
2
TUBE-OVEN VENT LWR WCI 5303206498 Contact Us For Availability
2A
PAN - LGE (2) WCI 5308014551 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
BUMPER-TOP (2) WCI 5303131771 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
4
BUMPER-BOTTOM (2) WCI 5305297101 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
WCI 5303274967 WCI 5303274967 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
5
LENS WCI 5308006417 Contact Us For Availability
5
SEAL WCI 3206199 Contact Us For Availability
5
GASKET-VENT WCI 3051666 Contact Us For Availability
5
WCI 5308012527 WCI 5308012527 Contact Us For Availability
5A
WCI 5308012528 WCI 5308012528 Contact Us For Availability
6
SWITCH - SELECT WCI 5308016480 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
WCI 5303207187 WCI 5303207187 Contact Us For Availability
6
WCI 08012710 WCI 08012710 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 5301324812 WCI 5301324812 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
LINER WCI 316041701 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
INSULATION WCI 5303051630 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 5303207447 WCI 5303207447 Contact Us For Availability
11
FRONT - OVEN WCI 316042103 Contact Us For Availability
12
WCI 5303051860 WCI 5303051860 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 305257 WCI 305257 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
COVER-DRUM SEAM WCI 3202082 Contact Us For Availability
19
WCI 5303292687 WCI 5303292687 Contact Us For Availability
21
LINER-OVEN WCI 5303292686 Contact Us For Availability
22
BUTTON-PLUG WCI 3204817 Contact Us For Availability
24
WCI 5303292688 WCI 5303292688 Contact Us For Availability
25
INSERT-BROIL WCI 3205234 Contact Us For Availability
26
WCI 5303051856 WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
WCI 3019063 WCI 3019063 Contact Us For Availability
29
WCI 3016281 WCI 3016281 Contact Us For Availability
30
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
31
WCI 3201632 WCI 3201632 Contact Us For Availability
32
BRKT-VENT TUBE WCI 3051656 Contact Us For Availability
33
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
× ![]()
