Model Electrolux KF330JDW3 RANGE – Common Parts & Diagrams

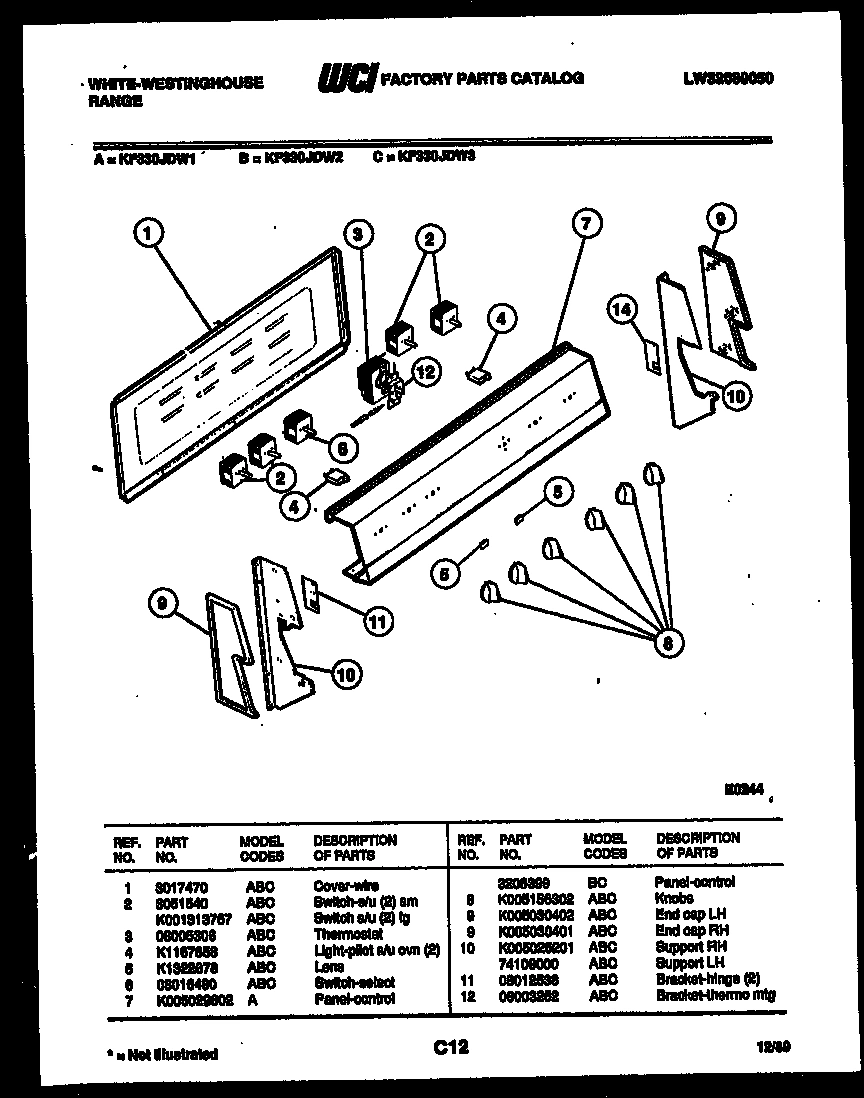

02 - CONTROL PANEL

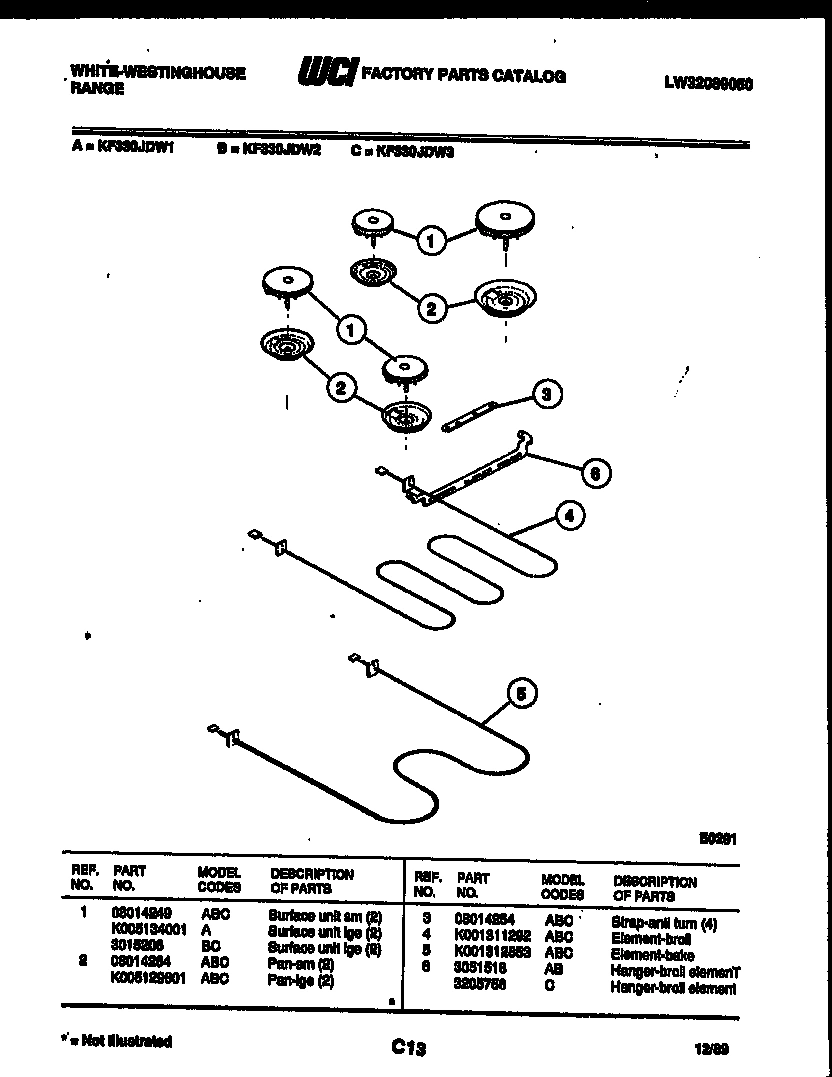

03 - BROILER PARTS

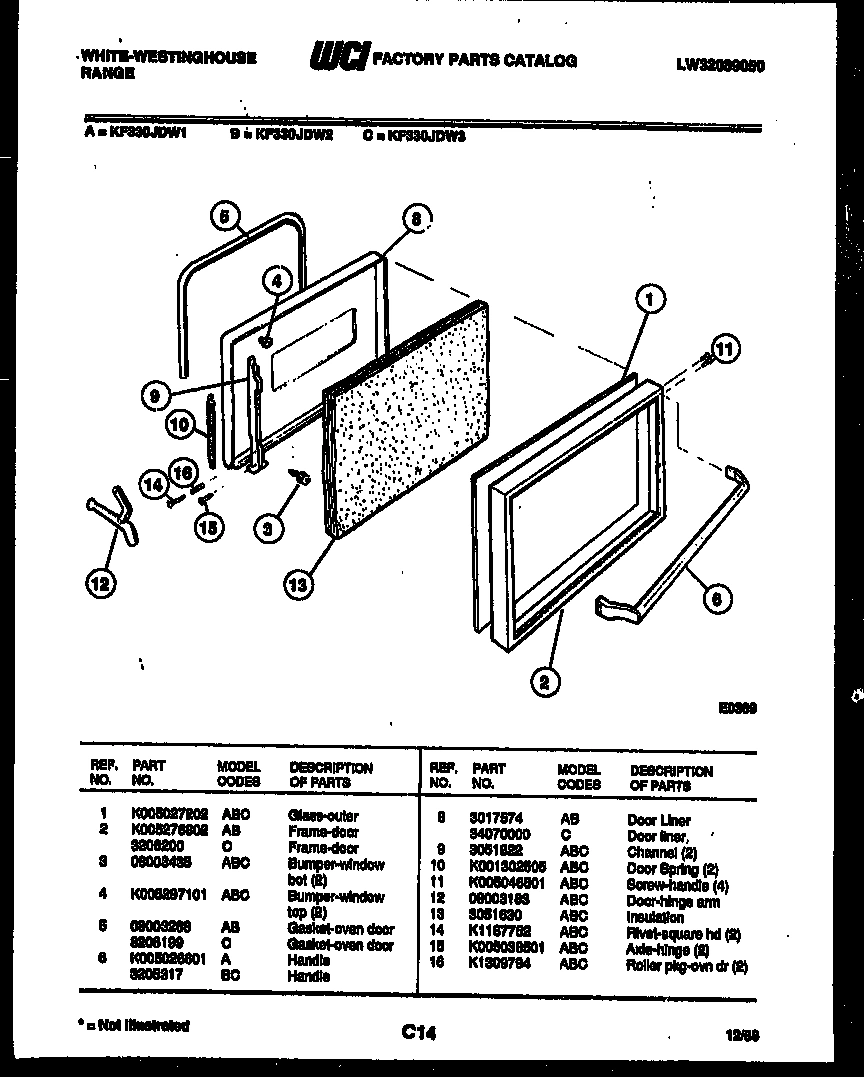

04 - DOOR PARTS

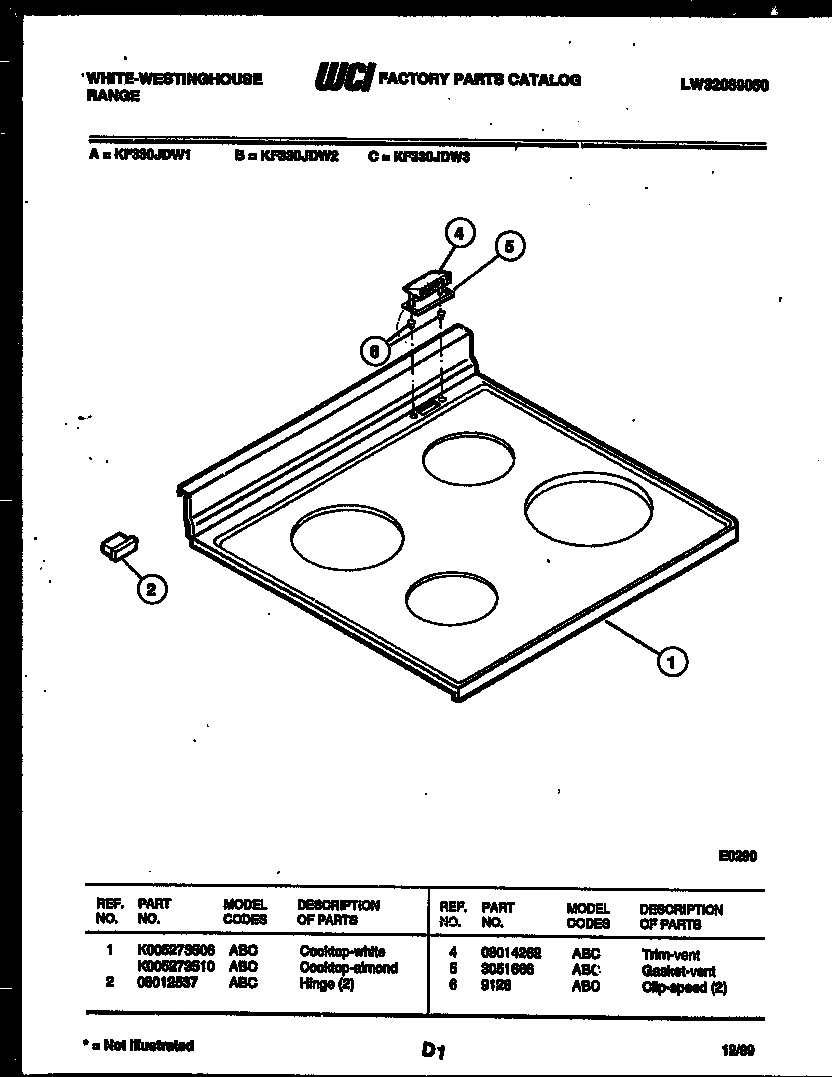

05 - COOKTOP PARTS

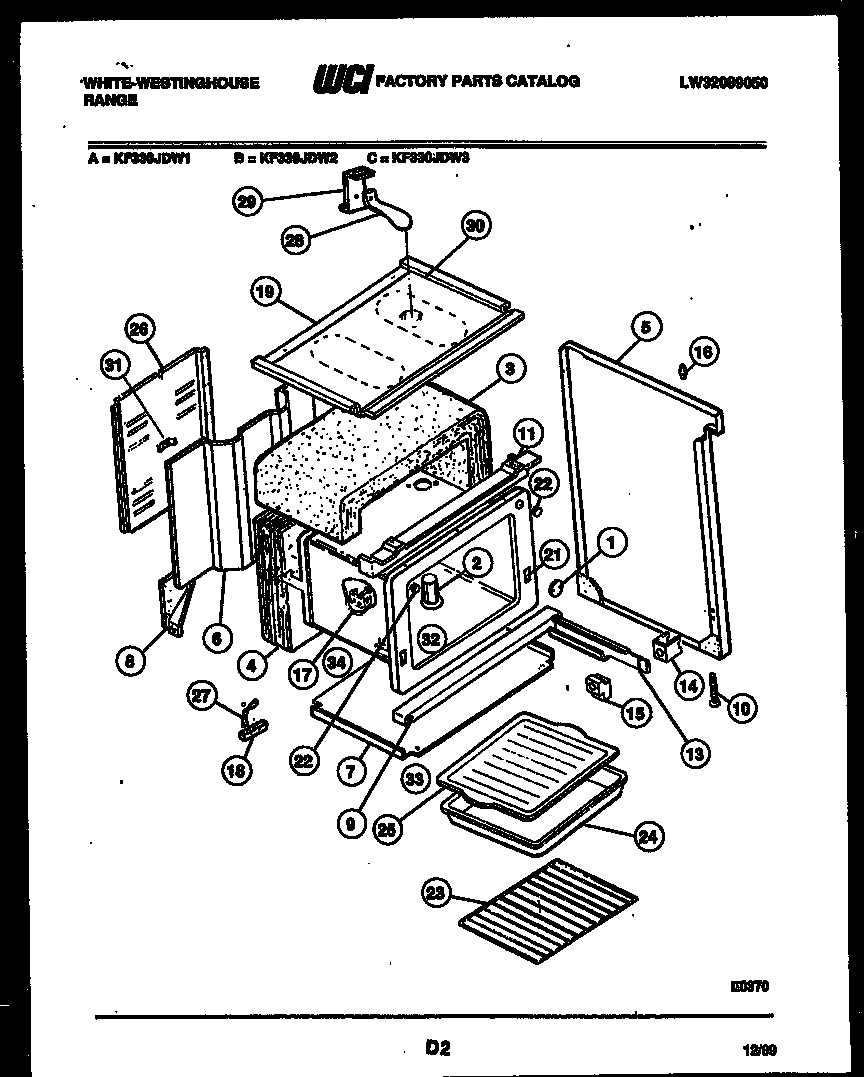

06 - BODY PARTS

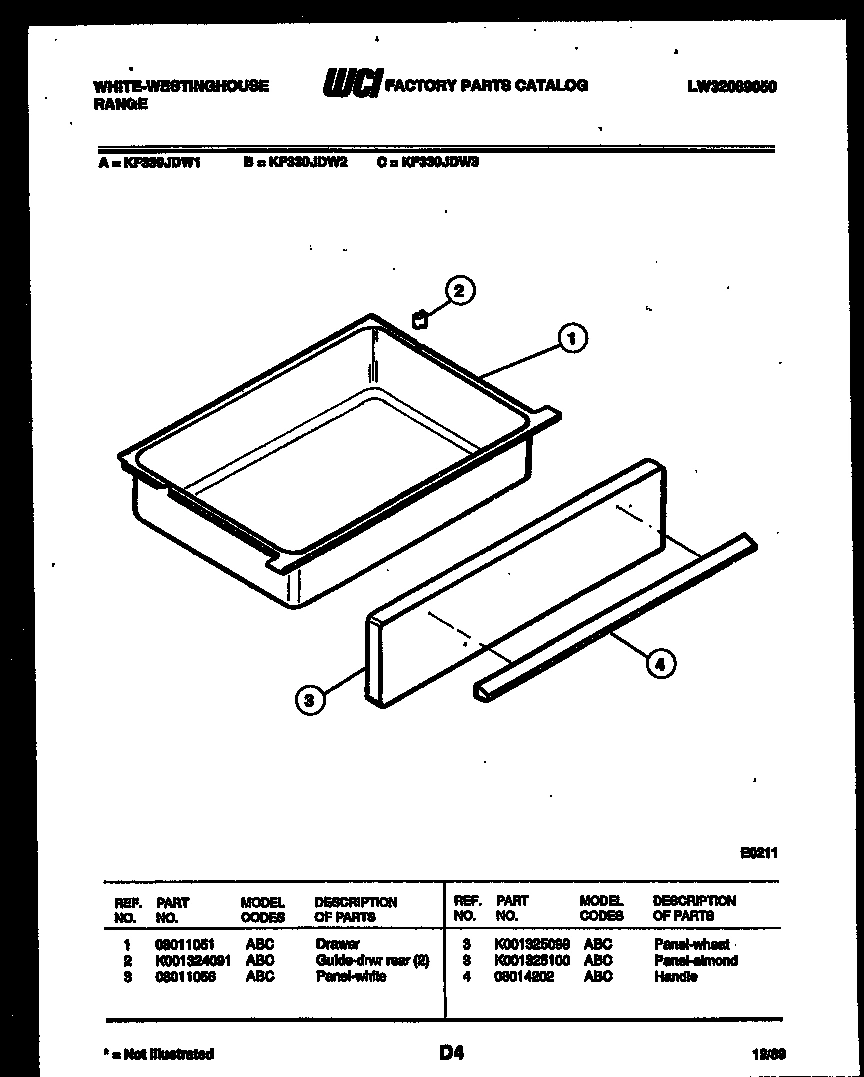

07 - DRAWER PARTS
Common parts from model Electrolux KF330JDW3 RANGE
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI 08014249 WCI 08014249 Contact Us For Availability
1
WCI K005027202 WCI K005027202 Contact Us For Availability
1
WCI K005273506 WCI K005273506 Contact Us For Availability
1
COVER - OVEN LT HOLE WCI 3017576 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1A
WCI 3015206 WCI 3015206 Contact Us For Availability
2
WCI 08014264 WCI 08014264 Contact Us For Availability
2
FRAME-DOOR WCI 3206200 Contact Us For Availability
2
HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI K005053701 WCI K005053701 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI K001324091 Contact Us For Availability
2A
WCI K005129601 WCI K005129601 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
WCI 08014254 WCI 08014254 Contact Us For Availability
3
WCI 08003435 WCI 08003435 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
4
LIGHT-PILOT S/U OVN (2) WCI K1167858 Contact Us For Availability
4
WCI K005297101 WCI K005297101 Contact Us For Availability
4
TRIM-VENT WCI 08014262 Contact Us For Availability
4
INSULATION-OVEN BACK WCI K001325625 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
5
LENS WCI K1322678 Contact Us For Availability
5
GASKET-OVEN DOOR WCI 3206199 Contact Us For Availability
5
GASKET-VENT WCI 3051666 Contact Us For Availability
5
WCI 08012527 WCI 08012527 Contact Us For Availability
5A
PANEL-SIDE LH WHITE WCI 08012528 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
WCI 3205317 WCI 3205317 Contact Us For Availability
6
CLIP-SPEED (2) WCI 9126 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 3206399 WCI 3206399 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
KNOBS WCI K005156302 Contact Us For Availability
8
DOOR LINER WCI 34070000 Contact Us For Availability
8
WCI K005285802 WCI K005285802 Contact Us For Availability
8A
WCI K001325113 WCI K001325113 Contact Us For Availability
9
WCI K005030401 WCI K005030401 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI 3051822 WCI 3051822 Contact Us For Availability
9
CHANNEL - OVEN SPRT WCI 3200927 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
DOOR SPRING (2) WCI K001302505 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 74109000 WCI 74109000 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI K005046501 WCI K005046501 Contact Us For Availability
11
CHANNEL-OVEN SPRT. WCI 3200950 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 08003183 WCI 08003183 Contact Us For Availability
13
INSULATION WCI 3051630 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
WCI K005269902 WCI K005269902 Contact Us For Availability
14
RIVET-SQUARE HD (2) WCI K1167752 Contact Us For Availability
14
WCI K001324860 WCI K001324860 Contact Us For Availability
15
AXLE-HINGE (2) WCI K005038501 Contact Us For Availability
15
GUIDE-DRWR FRONT (2) WCI K001315216 Contact Us For Availability
16
ROLLER PKG-OVN DR (2) WCI K1309794 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
19
WCI K005025704 WCI K005025704 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
INSERT-BROILER WCI 3205234 Contact Us For Availability
25A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K001145190 Contact Us For Availability
28
WCI K005130601 WCI K005130601 Contact Us For Availability
29
WCI K005130701 WCI K005130701 Contact Us For Availability
30
WCI K005303702 WCI K005303702 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
32
COVER, SEAM WCI 3203082 Contact Us For Availability
33
RETAINER-DOOR (1) WCI 3019063 Contact Us For Availability
34
WCI 3201632 WCI 3201632 Contact Us For Availability
× ![]()
