Model Electrolux KF320JDW4 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - BROILER PARTS

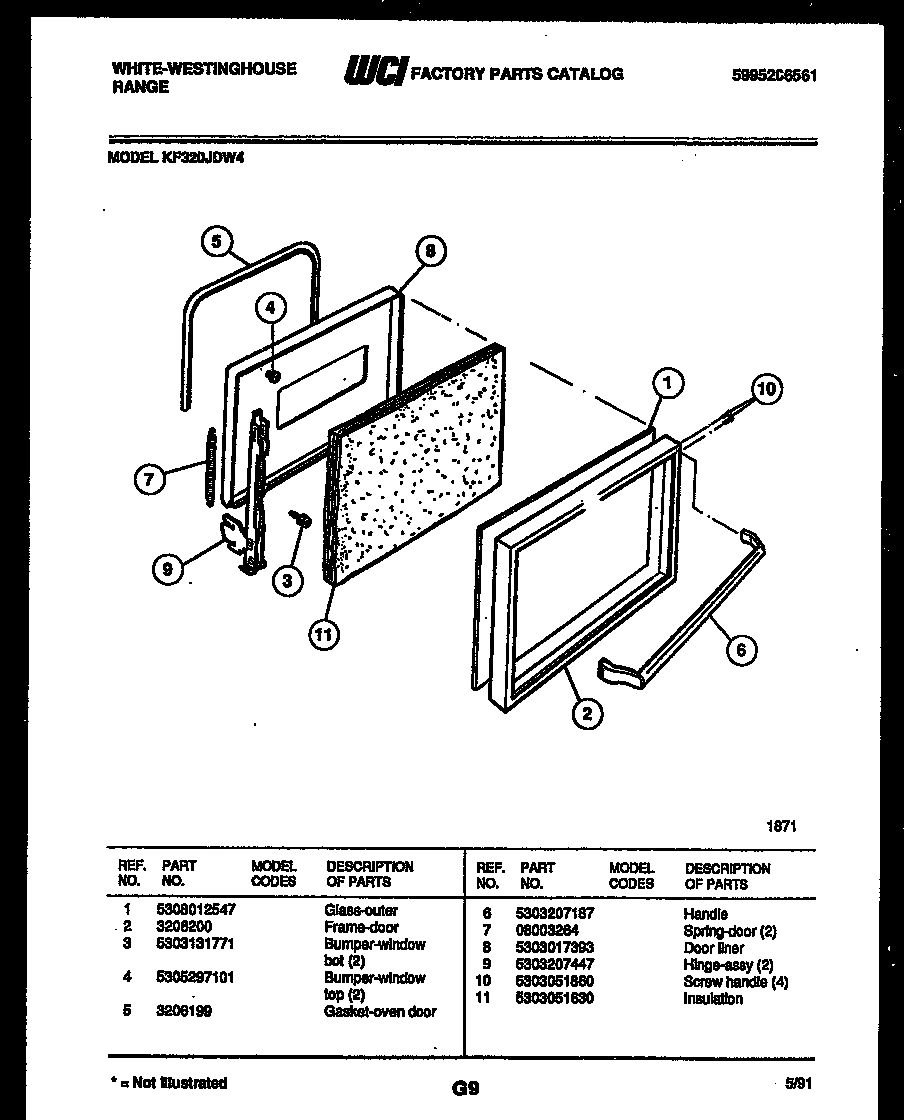

04 - DOOR PARTS

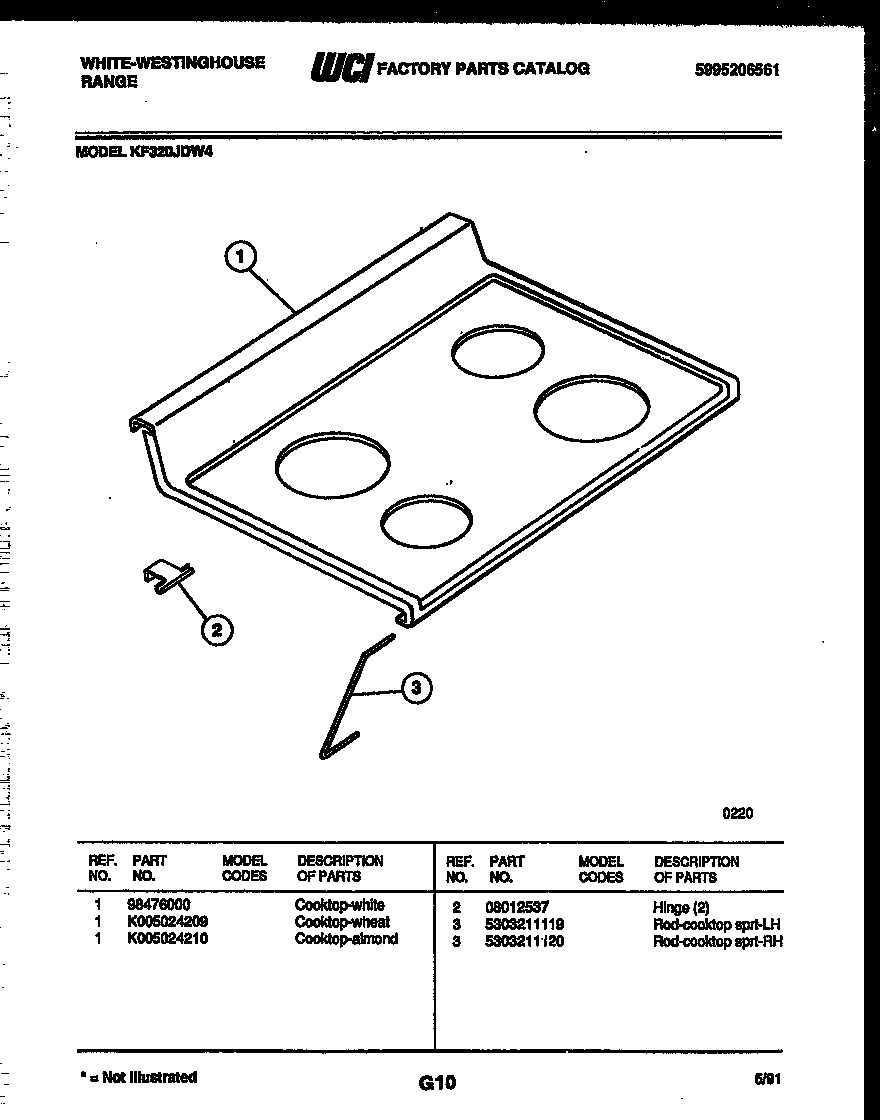

05 - COOKTOP PARTS

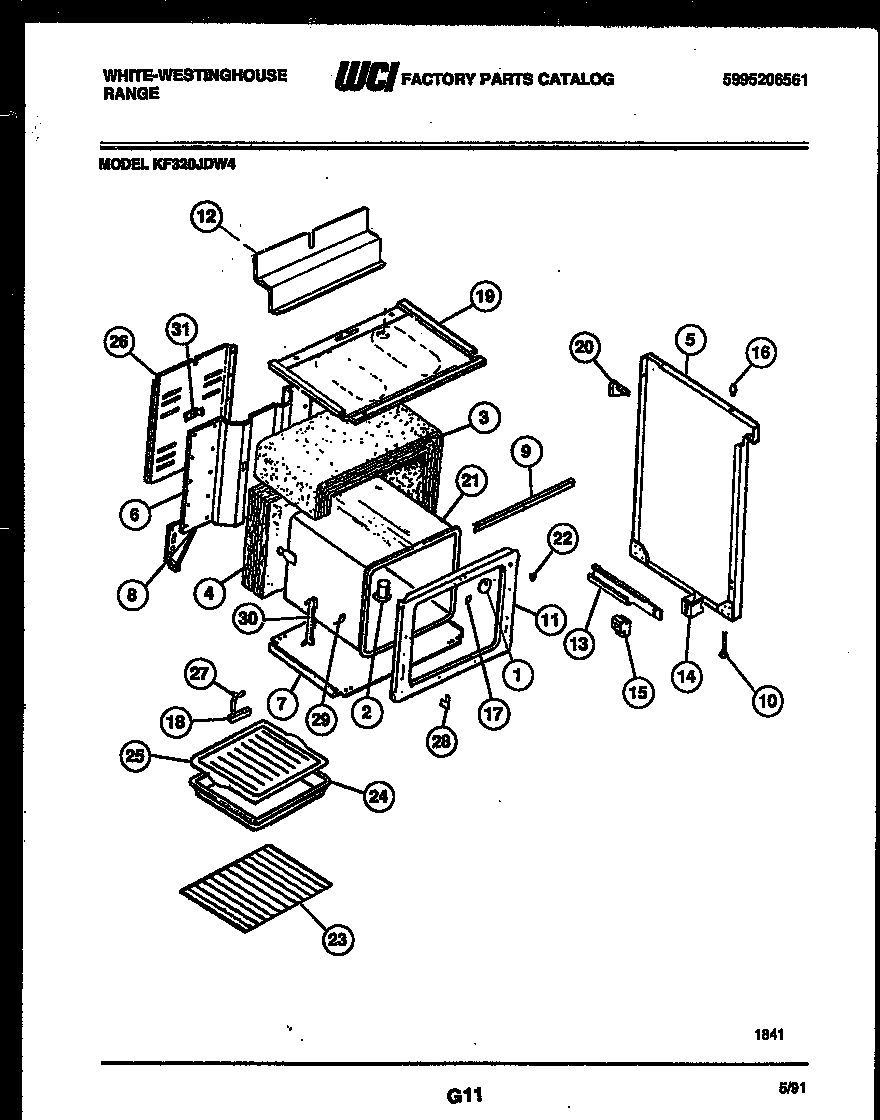

06 - BODY PARTS

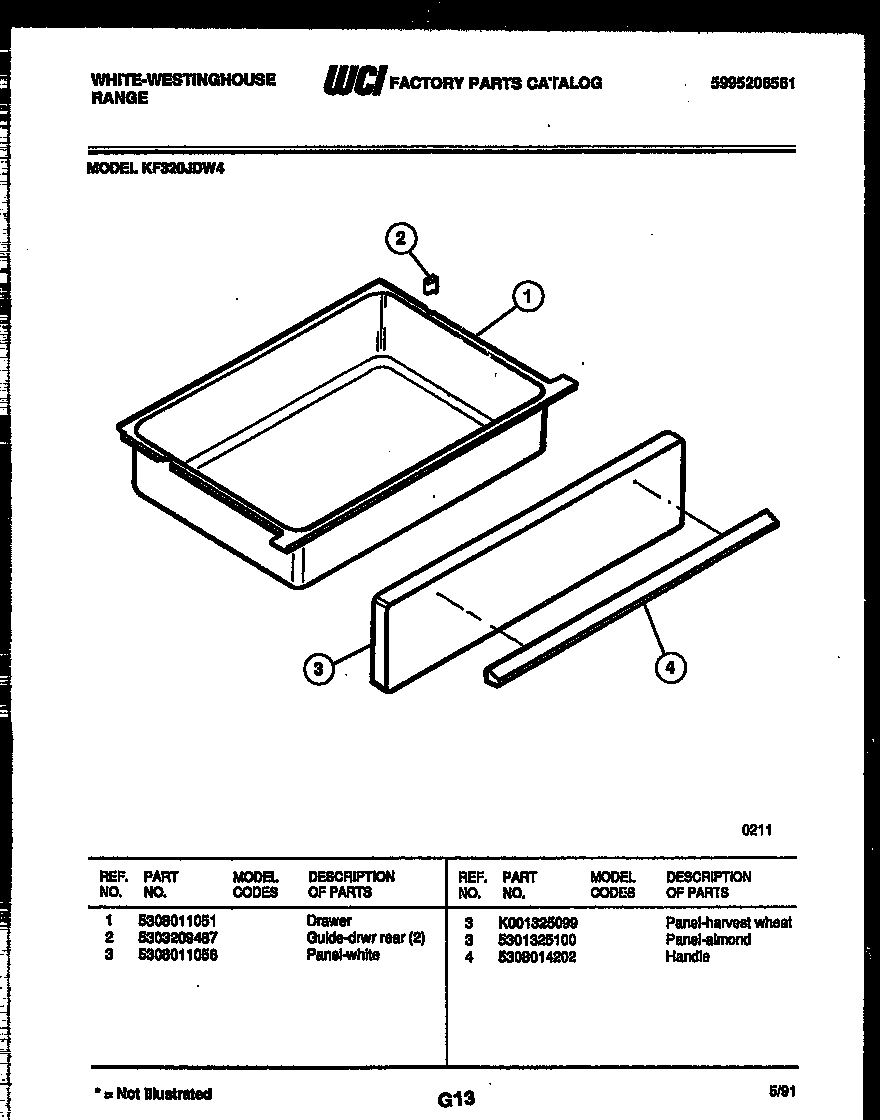

07 - DRAWER PARTS
Common parts from model Electrolux KF320JDW4 RANGE
*46605
WCI 191S021P21 WCI 191S021P21 Contact Us For Availability
*46605
BUTTON-PLUG WCI 3016334 Contact Us For Availability
1
WCI 5308012547 WCI 5308012547 Contact Us For Availability
1
COOKTOP-WHITE WCI 98476000 Contact Us For Availability
1
COVER - OVEN LT HOLE WCI 3017576 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
FRAME-DOOR WCI 3206200 Contact Us For Availability
2
HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
BUMPER - WINDOW BOT. (2) WCI 5303131771 Contact Us For Availability
3
ROD-COOKTOP SPRT LH WCI 5303211119 Contact Us For Availability
3
ROD-COOKTOP SPRT RH WCI 5303211120 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
4
BUMPER-WINDOW TOP (2) WCI 5305297101 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
5
LENS WCI 5308006417 Contact Us For Availability
5
GASKET-OVEN DOOR WCI 3206199 Contact Us For Availability
5
PANEL-SIDE RH-WHITE WCI 5308012527 Contact Us For Availability
5A
PANEL-SIDE LH-WHITE WCI 5308012528 Contact Us For Availability
6
SWITCH - SELECT WCI 5308016480 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5303207187 WCI 5303207187 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 08003264 WCI 08003264 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
DOOR LINER WCI 5303017393 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 5303207447 WCI 5303207447 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
WCI 5303051860 WCI 5303051860 Contact Us For Availability
10
SUPPORT RH WCI 5305025201 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
10A
SUPPORT LH WCI 5374109000 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
FRAME-FRONT WCI 5303207446 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE, DRAWER FR (2) WCI 3051654 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
WCI 3202082 WCI 3202082 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
GUSSET-BACKGRD (2) WCI 3204821 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
24
WCI 3205539 WCI 3205539 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WIRE, COVER WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
27A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
28
WCI 3019063 WCI 3019063 Contact Us For Availability
29
WCI 3201632 WCI 3201632 Contact Us For Availability
30
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
30A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
× ![]()
