Model Electrolux KF320JDH1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - BROILER PARTS

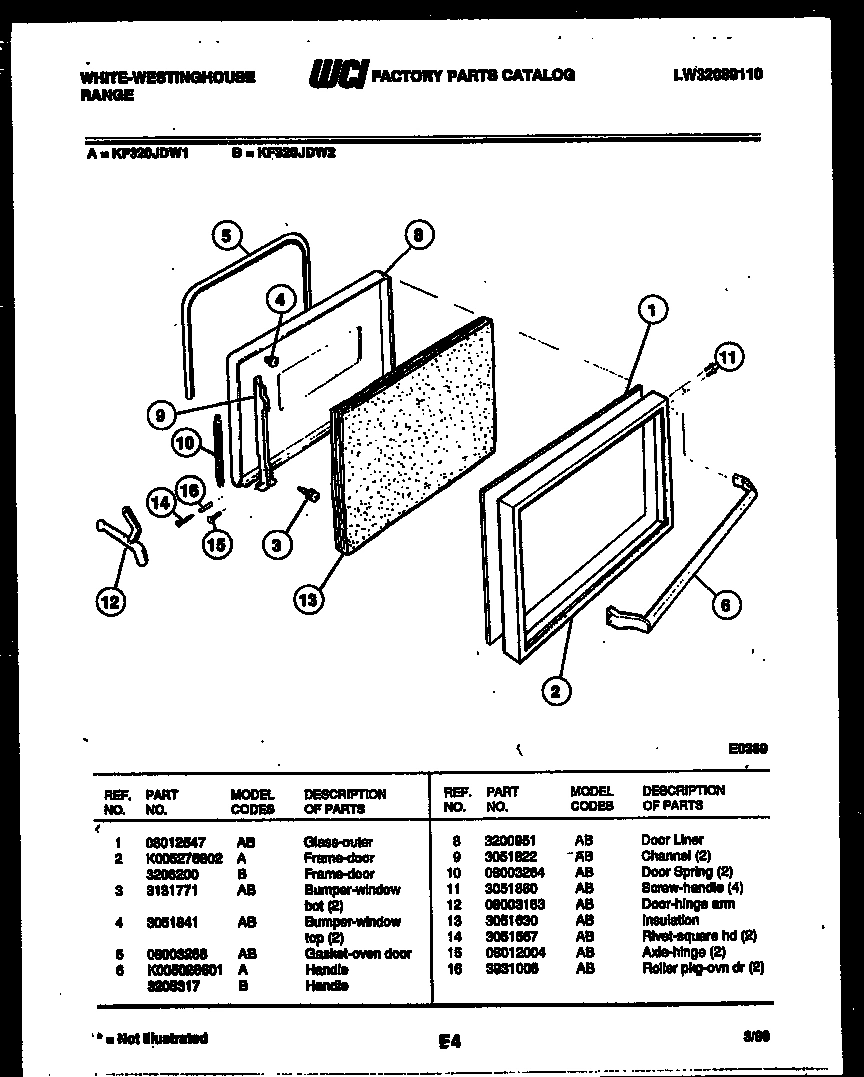

04 - DOOR PARTS

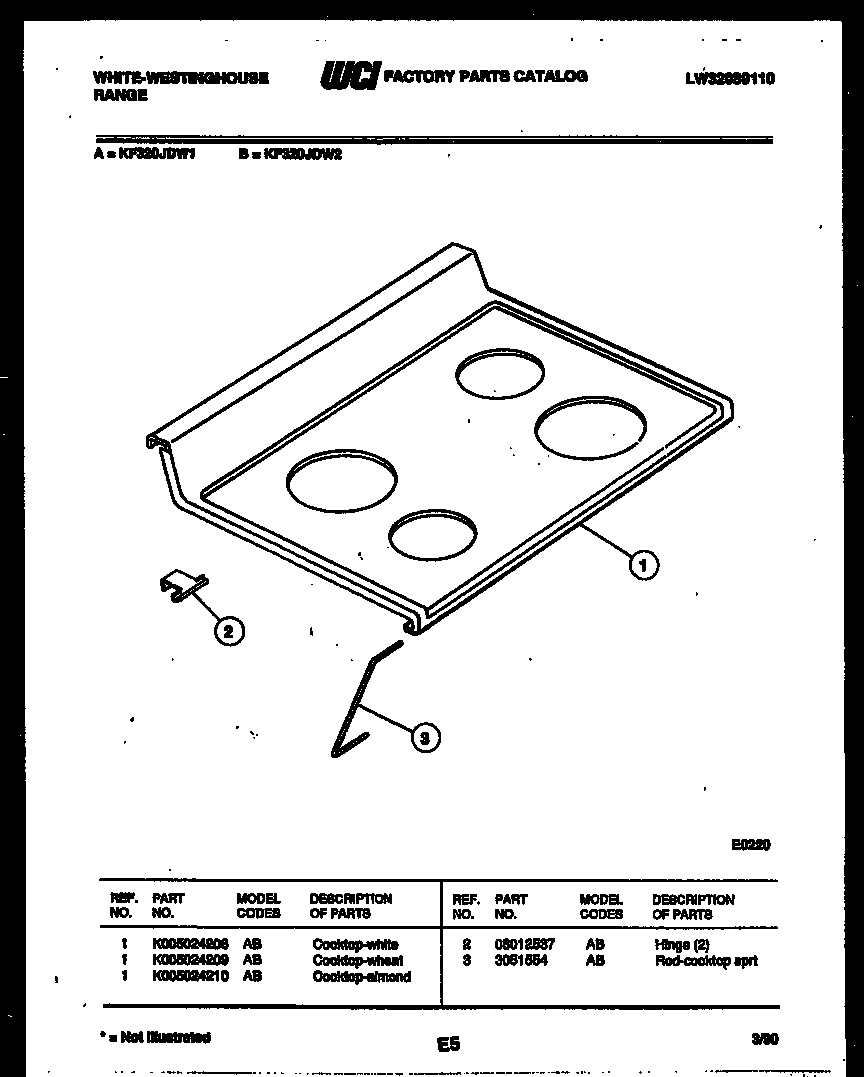

05 - COOKTOP PARTS

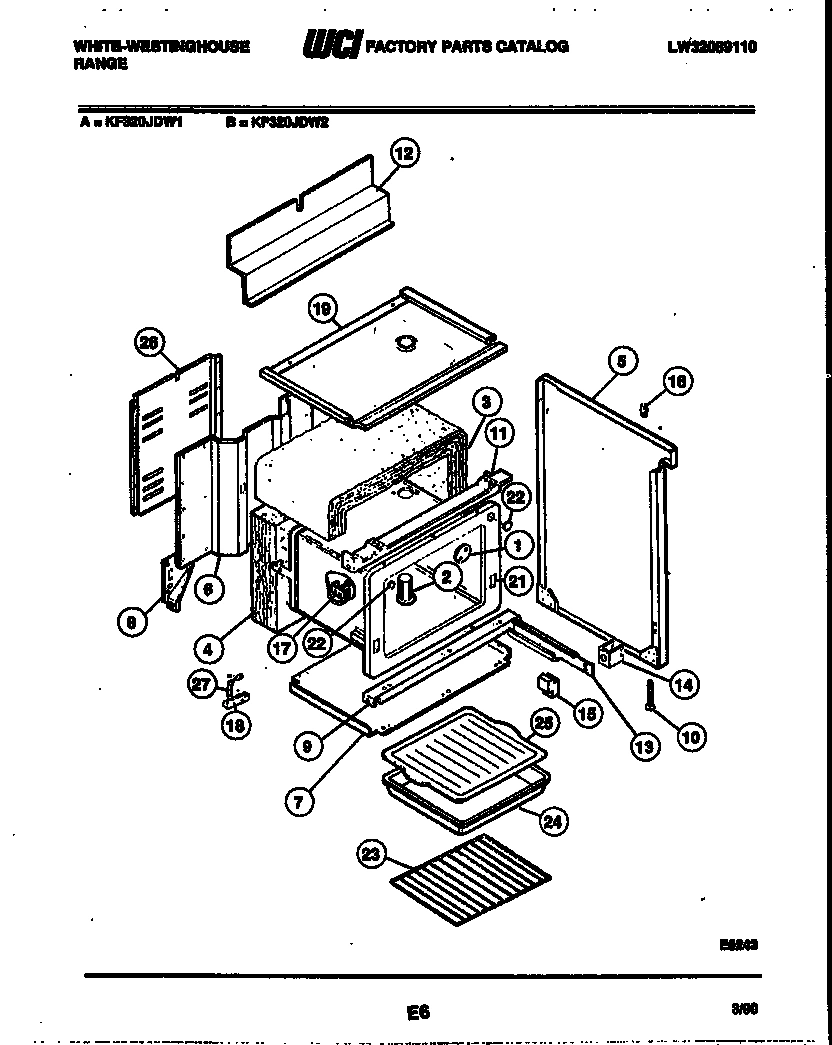

06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux KF320JDH1 RANGE
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI K005024209 WCI K005024209 Contact Us For Availability
1
COVER - OVEN LT HOLE WCI 3017576 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
2
WCI K001311753 WCI K001311753 Contact Us For Availability
2
WCI K005276802 WCI K005276802 Contact Us For Availability
2
HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI K001324091 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
BUMPER-WINDOW BOT (2) WCI 3131771 Contact Us For Availability
3
ROD - COOKTOP SPRT WCI 3051554 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
4
LIGHT-PILOT S/U OVN (2) WCI K001167858 Contact Us For Availability
4
BUMPER-WINDOW TOP (2) WCI 3051841 Contact Us For Availability
4
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
5
WCI 08006417 WCI 08006417 Contact Us For Availability
5
GASKET-OVEN DOOR WCI 08003268 Contact Us For Availability
5
PANEL-SIDE RH WHEAT WCI K005024609 Contact Us For Availability
5A
PANEL-SIDE LH WHEAT WCI K005024610 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
WCI K005026601 WCI K005026601 Contact Us For Availability
6
WCI 3017535 WCI 3017535 Contact Us For Availability
7
WCI K005029602 WCI K005029602 Contact Us For Availability
7
WCI 3017394 WCI 3017394 Contact Us For Availability
8
KNOBS WCI K005156302 Contact Us For Availability
8
WCI 3200951 WCI 3200951 Contact Us For Availability
8A
GUSSET - REAR LH WCI 3051636 Contact Us For Availability
9
WCI K005030402 WCI K005030402 Contact Us For Availability
9
WCI 3051822 WCI 3051822 Contact Us For Availability
9
CHANNEL-OV SPRT BOTTOM WCI 3017484 Contact Us For Availability
9A
WCI K005030401 WCI K005030401 Contact Us For Availability
10
WCI K005025201 WCI K005025201 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
SCREW-LEVELLING (4) WCI 3205540 Contact Us For Availability
10A
WCI 7410900 WCI 7410900 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
11
WCI K001325472 WCI K001325472 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 08003183 WCI 08003183 Contact Us For Availability
12
WCI 3017602 WCI 3017602 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI 3051567 WCI 3051567 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
AXLE-HINGE (2) WCI 08012004 Contact Us For Availability
15
GUIDE, DRAWER FR (2) WCI 3051654 Contact Us For Availability
16
WCI 3931006 WCI 3931006 Contact Us For Availability
16
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
17
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
21
WCI 3204607 WCI 3204607 Contact Us For Availability
22
BUTTON-PLUG WCI 3204817 Contact Us For Availability
24
WCI 3206373 WCI 3206373 Contact Us For Availability
25
INSERT-BROILER WCI 3051562 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
× ![]()
