Model Electrolux KF204KDW0 RANGE – Common Parts & Diagrams

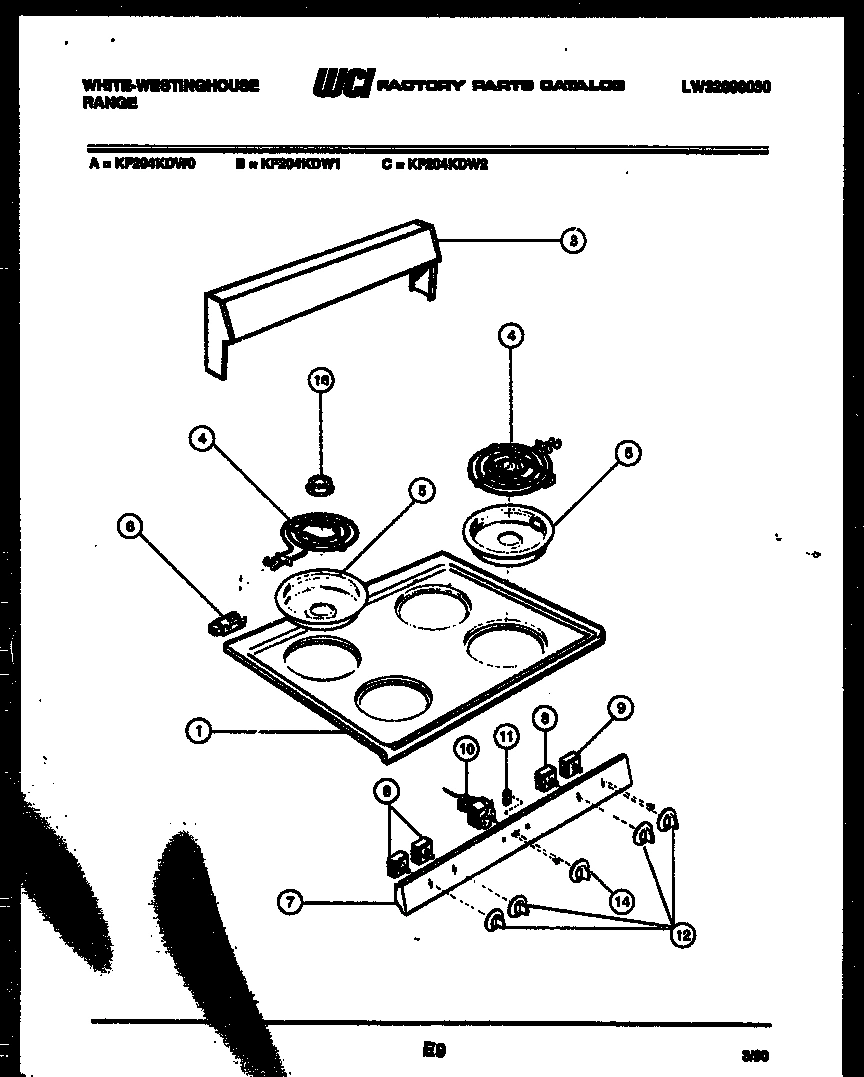

02 - BACKGUARD AND COOKTOP PARTS

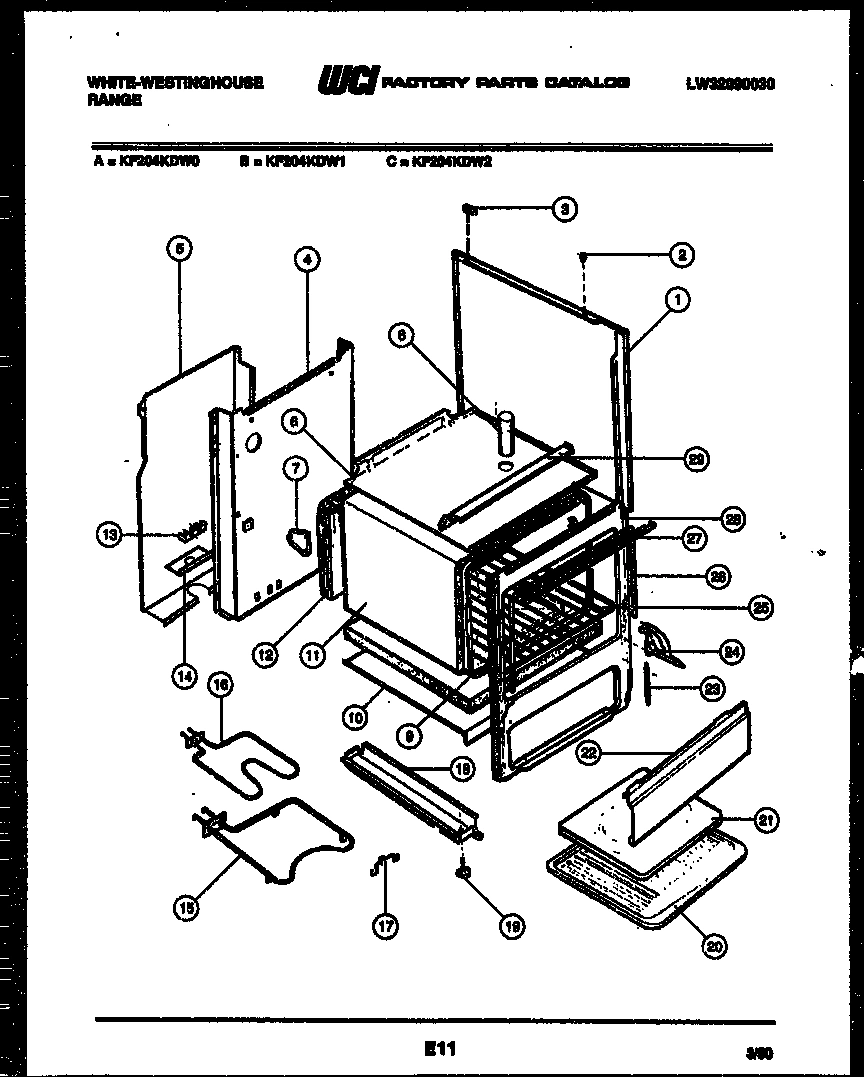

03 - BODY PARTS

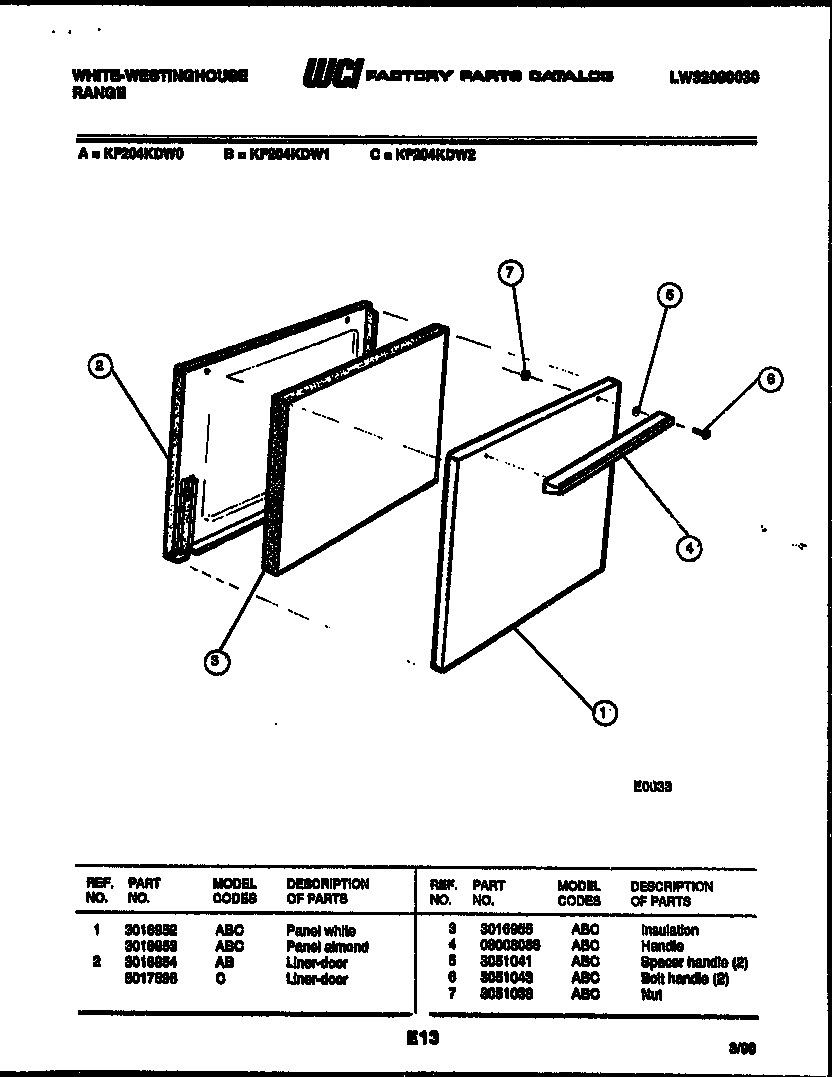

04 - DOOR PARTS
Common parts from model Electrolux KF204KDW0 RANGE
*66982
WCI 3015721 WCI 3015721 Contact Us For Availability
*67045
CLIP-CAPILLARY WCI 9126 Contact Us For Availability
*67045
STRAP-GROUND WCI K1145190 Contact Us For Availability
1
TOP-WHITE WCI 3014543 Contact Us For Availability
1
PANEL SD LH & RH WHITE WCI 3051061 Contact Us For Availability
1
PANEL SD LH & RH ALMOND WCI 3051062 Contact Us For Availability
1
WCI 3016952 WCI 3016952 Contact Us For Availability
1
PANEL ALMOND WCI 3016953 Contact Us For Availability
2
WCI 08068054 WCI 08068054 Contact Us For Availability
2
LINER-DOOR WCI 3016954 Contact Us For Availability
3
BACKGUARD WHITE WCI 3016959 Contact Us For Availability
3
GROMMET (2) WCI 3016129 Contact Us For Availability
3
INSULATION WCI 3016955 Contact Us For Availability
4
WCI 3016944 WCI 3016944 Contact Us For Availability
4
WCI 08008085 WCI 08008085 Contact Us For Availability
5
COVER-WIRE WCI 3203808 Contact Us For Availability
5
SPACER HANDLE (2) WCI 3051041 Contact Us For Availability
6
WCI 3205692 WCI 3205692 Contact Us For Availability
7
PANEL-SWITCH WHITE WCI 3016124 Contact Us For Availability
7
SUPPORT REAR OVEN (2) WCI 3051096 Contact Us For Availability
8
TUBE OVEN VENT WCI 3051064 Contact Us For Availability
9
LINER-OVEN RH WCI 3051086 Contact Us For Availability
9A
LINER-OVEN LH WCI 3051087 Contact Us For Availability
9B
WCI 3016941 WCI 3016941 Contact Us For Availability
9C
WCI 3016939 WCI 3016939 Contact Us For Availability
9D
WCI 3016940 WCI 3016940 Contact Us For Availability
10
WCI 3015184 WCI 3015184 Contact Us For Availability
10
PAN-BOTTOM WCI 3016945 Contact Us For Availability
11
LIGHT-INDICATOR (2) WCI 3051034 Contact Us For Availability
11
WCI 3016946 WCI 3016946 Contact Us For Availability
12
KNOB SURFACE UNIT (4) WCI 3051028 Contact Us For Availability
12
WCI 3016947 WCI 3016947 Contact Us For Availability
14
WCI 3051030 WCI 3051030 Contact Us For Availability
14
WCI 3051097 WCI 3051097 Contact Us For Availability
15
WCI 3009292 WCI 3009292 Contact Us For Availability
16
WCI 3017801 WCI 3017801 Contact Us For Availability
16
WCI 3009293 WCI 3009293 Contact Us For Availability
17
WCI 3009445 WCI 3009445 Contact Us For Availability
18
BASE RAIL WCI 08068047 Contact Us For Availability
19
LEG LEVELING (4) WCI 3051080 Contact Us For Availability
20
WCI 3051074 WCI 3051074 Contact Us For Availability
21
GRILLE WCI 3131021 Contact Us For Availability
22
WCI 35048000 WCI 35048000 Contact Us For Availability
23
WCI 3051079 WCI 3051079 Contact Us For Availability
24
HINGE ASSEMBLY RH WCI 3204670 Contact Us For Availability
25
WCI 3016128 WCI 3016128 Contact Us For Availability
26
SEAL - DOOR WCI 08013916 Contact Us For Availability
27
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
28
FRAME FRONT WCI 3016942 Contact Us For Availability
29
WCI 3016951 WCI 3016951 Contact Us For Availability
× ![]()
