Model Electrolux KF100KDD1 RANGE – Common Parts & Diagrams

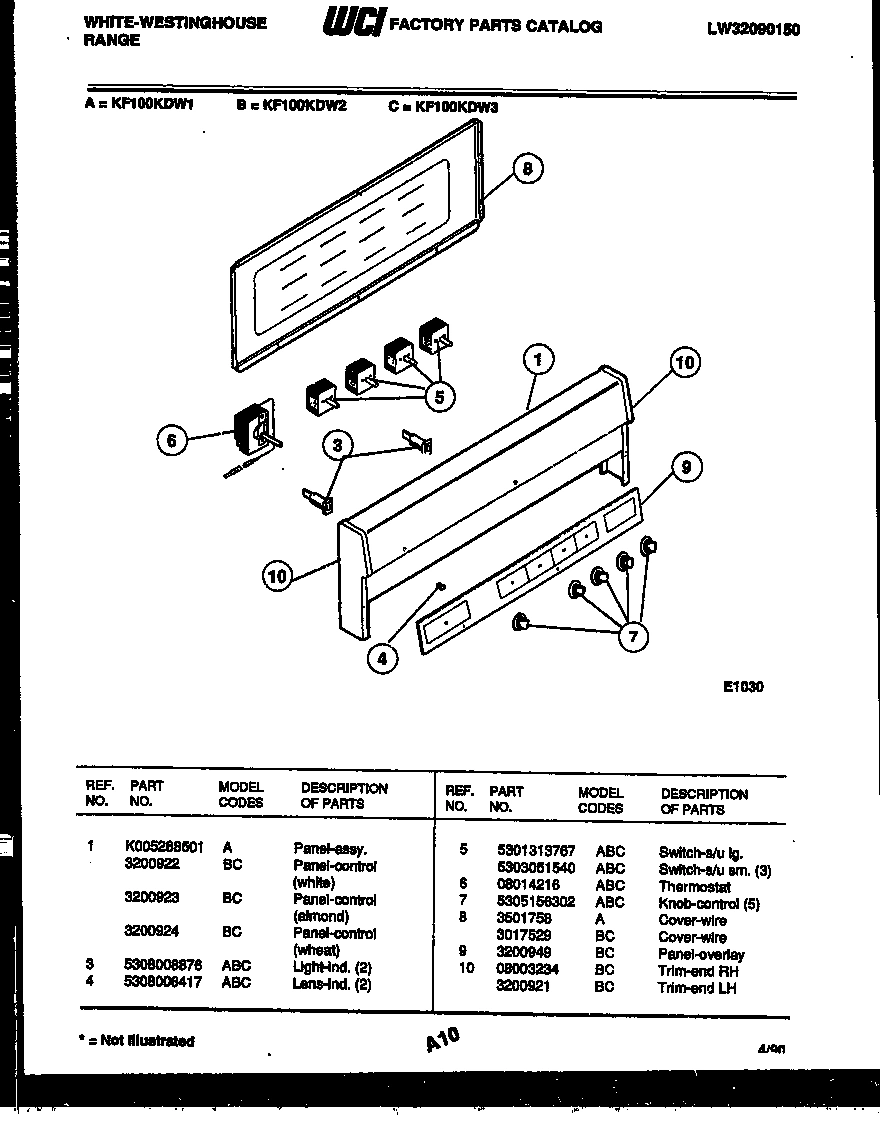

02 - CONTROL PANEL

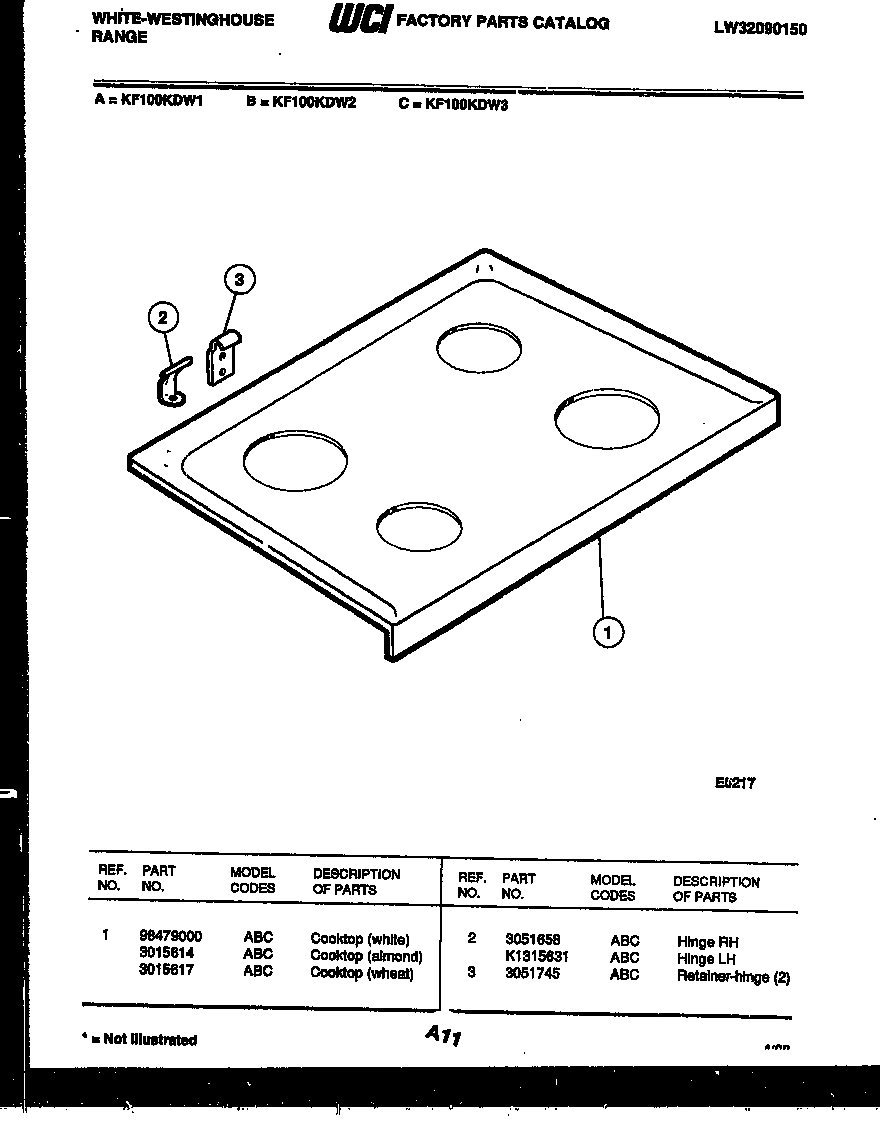

03 - COOKTOP PARTS

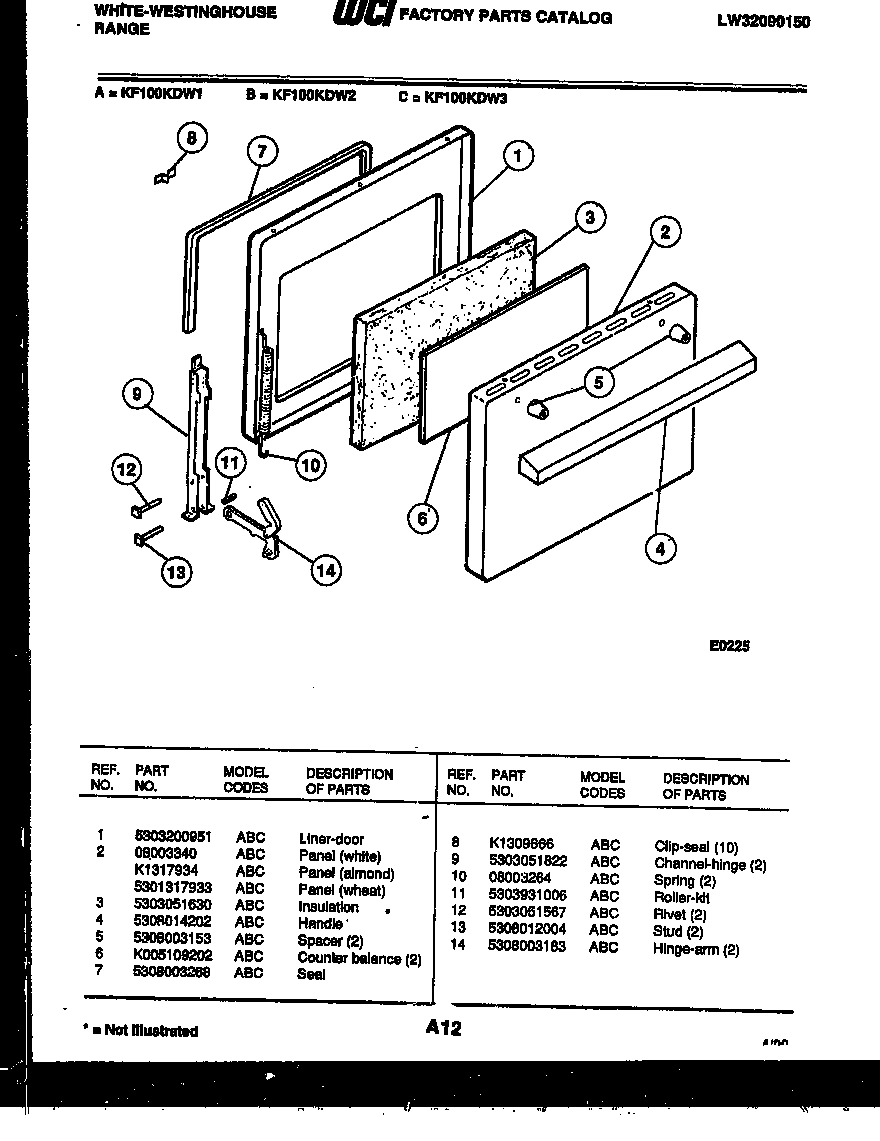

04 - DOOR PARTS

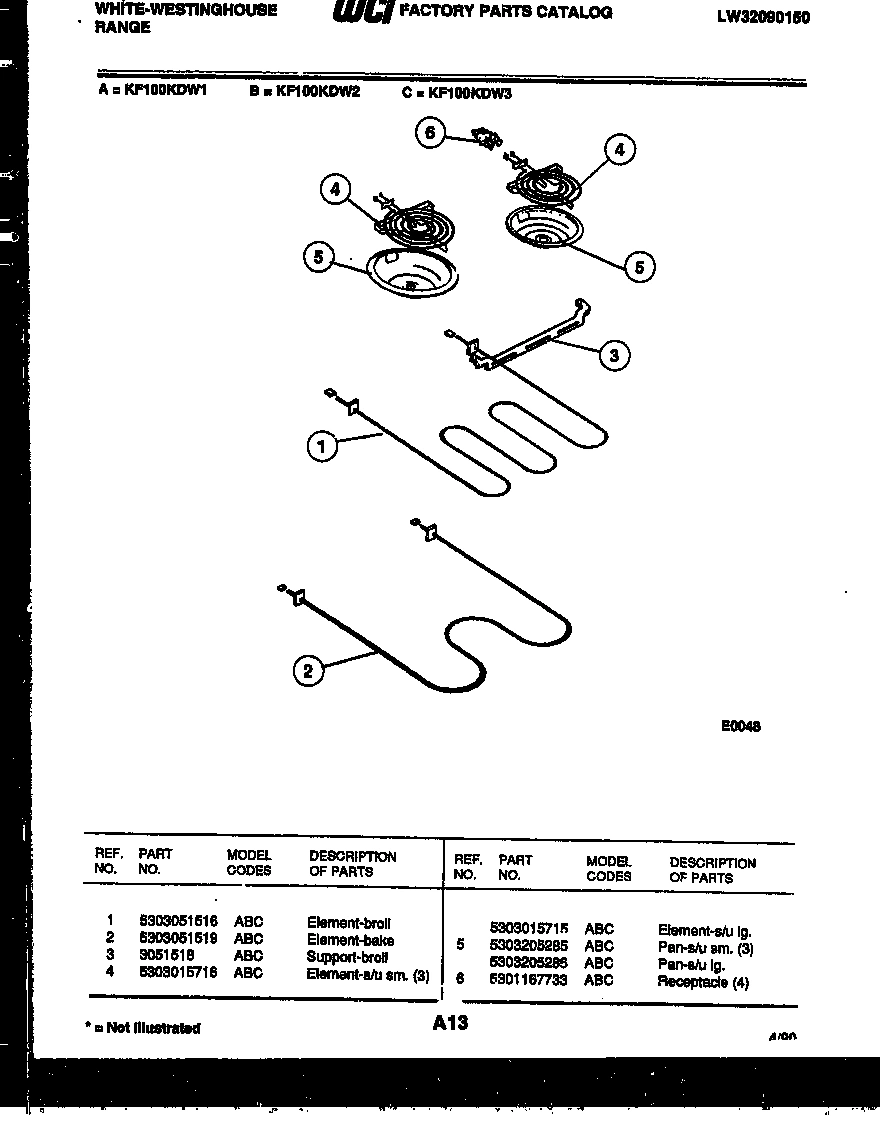

05 - BROILER PARTS
06 - BODY PARTS

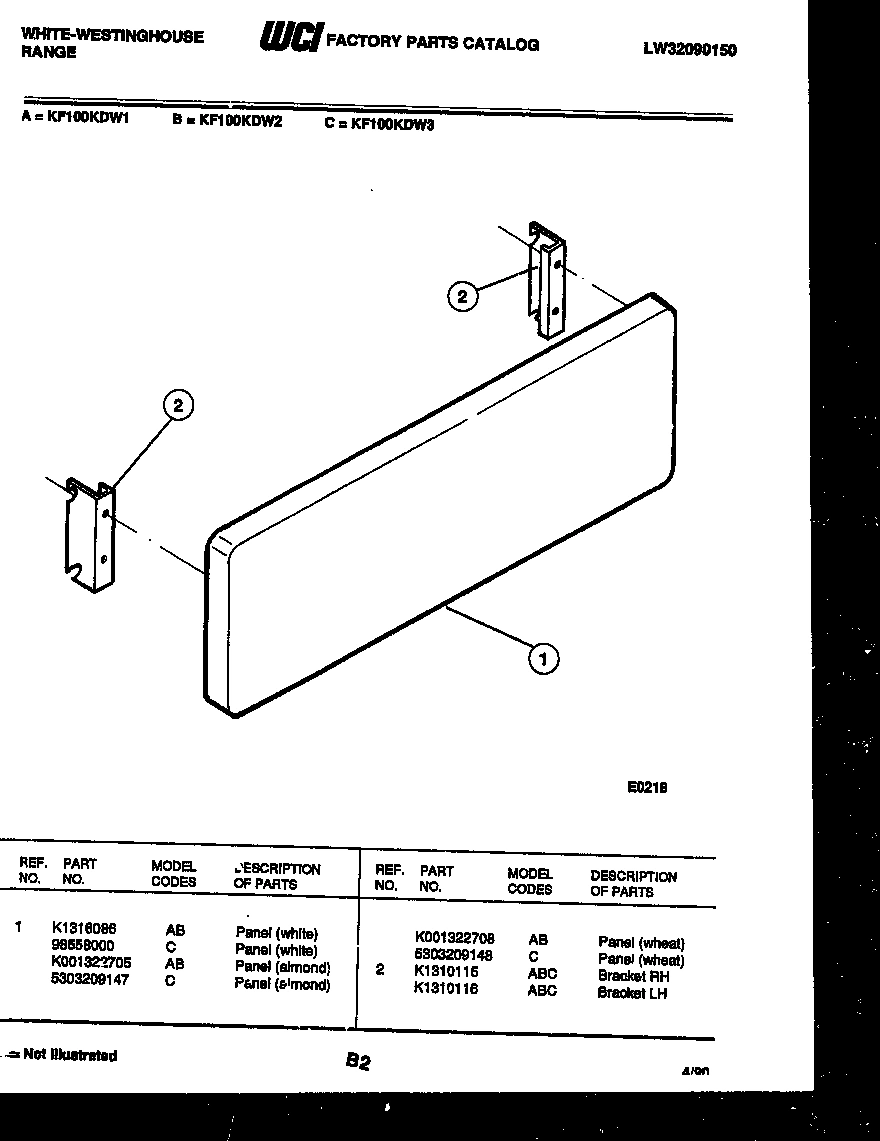

07 - PANEL WITH BRACKET
Common parts from model Electrolux KF100KDD1 RANGE
1
WCI 3015614 WCI 3015614 Contact Us For Availability
1
WCI 5303200951 WCI 5303200951 Contact Us For Availability
1
OVEN WCI 3204607 Contact Us For Availability
1
WCI 5303209147 WCI 5303209147 Contact Us For Availability
1
WCI K001322705 WCI K001322705 Contact Us For Availability
2
HINGE R.H. WCI 3051658 Contact Us For Availability
2
PANEL (ALMOND) WCI K1317934 Contact Us For Availability
2
WCI K001325524 WCI K001325524 Contact Us For Availability
2
WCI K1310115 WCI K1310115 Contact Us For Availability
2A
HINGE L.H. WCI K1315631 Contact Us For Availability
2A
WCI K1310116 WCI K1310116 Contact Us For Availability
3
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
3
SUPPORT-BROIL WCI 3051518 Contact Us For Availability
3
VENT-TUBE WCI 08012541 Contact Us For Availability
4
LENS-IND. (2) WCI 5308006417 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
INSULATION WRAP WCI 3051521 Contact Us For Availability
5
WCI 5303051630 WCI 5303051630 Contact Us For Availability
5
SPACER (2) WCI 5308003153 Contact Us For Availability
6
COUNTER BALANCE (2) WCI K005109202 Contact Us For Availability
6
PANEL, END, LH (ALMOND) WCI 5308012530 Contact Us For Availability
6A
PANEL, END, RH (ALMOND) WCI 5308012529 Contact Us For Availability
7
KNOB-CONTROL (5) WCI 5305156302 Contact Us For Availability
7
SEAL WCI 5308003268 Contact Us For Availability
7
WCI K005275802 WCI K005275802 Contact Us For Availability
8
WCI 3501758 WCI 3501758 Contact Us For Availability
8
CLIP-SEAL (10) WCI K1309666 Contact Us For Availability
8
WCI K005276504 WCI K005276504 Contact Us For Availability
9
WCI 5303051822 WCI 5303051822 Contact Us For Availability
9
WCI 3017484 WCI 3017484 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
SCREW-LEVEL (4) WCI 5303205540 Contact Us For Availability
11
ROLLER-KIT WCI 5303931006 Contact Us For Availability
11
BUTTON-PLUG WCI 3204817 Contact Us For Availability
12
RIVET (2) WCI 5303051567 Contact Us For Availability
12
CHANNEL-OVEN SUPPORT TOP WCI K005009403 Contact Us For Availability
13
STUD (2) WCI 5308012004 Contact Us For Availability
13
WCI K005025704 WCI K005025704 Contact Us For Availability
14
HINGE, ARM (2) WCI 5308003183 Contact Us For Availability
14
WCI K5287902 WCI K5287902 Contact Us For Availability
15
WCI 3051657 WCI 3051657 Contact Us For Availability
16
BUMPER (4) WCI 5308003107 Contact Us For Availability
17
BRACKET-THERMOSTAT BULB WCI K001321147 Contact Us For Availability
18
WCI 08014181 WCI 08014181 Contact Us For Availability
20
PLATE-GROUNDING WCI K1145190 Contact Us For Availability
21
WCI K005276202 WCI K005276202 Contact Us For Availability
23A
GUSSET - REAR LH WCI 3051636 Contact Us For Availability
× ![]()
