Model Whirlpool KESS300BAL0 – Common Parts & Diagrams

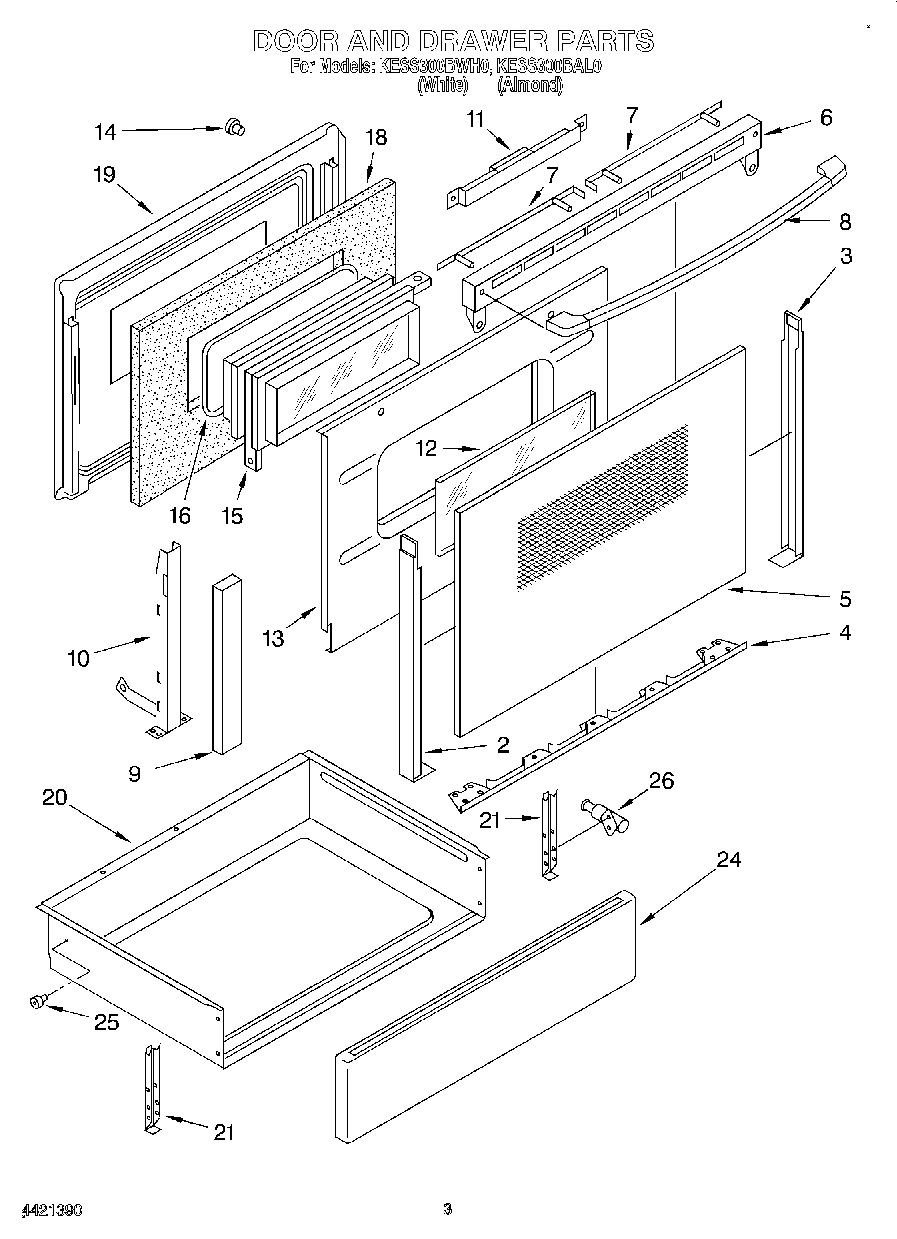

03 - DOOR AND DRAWER

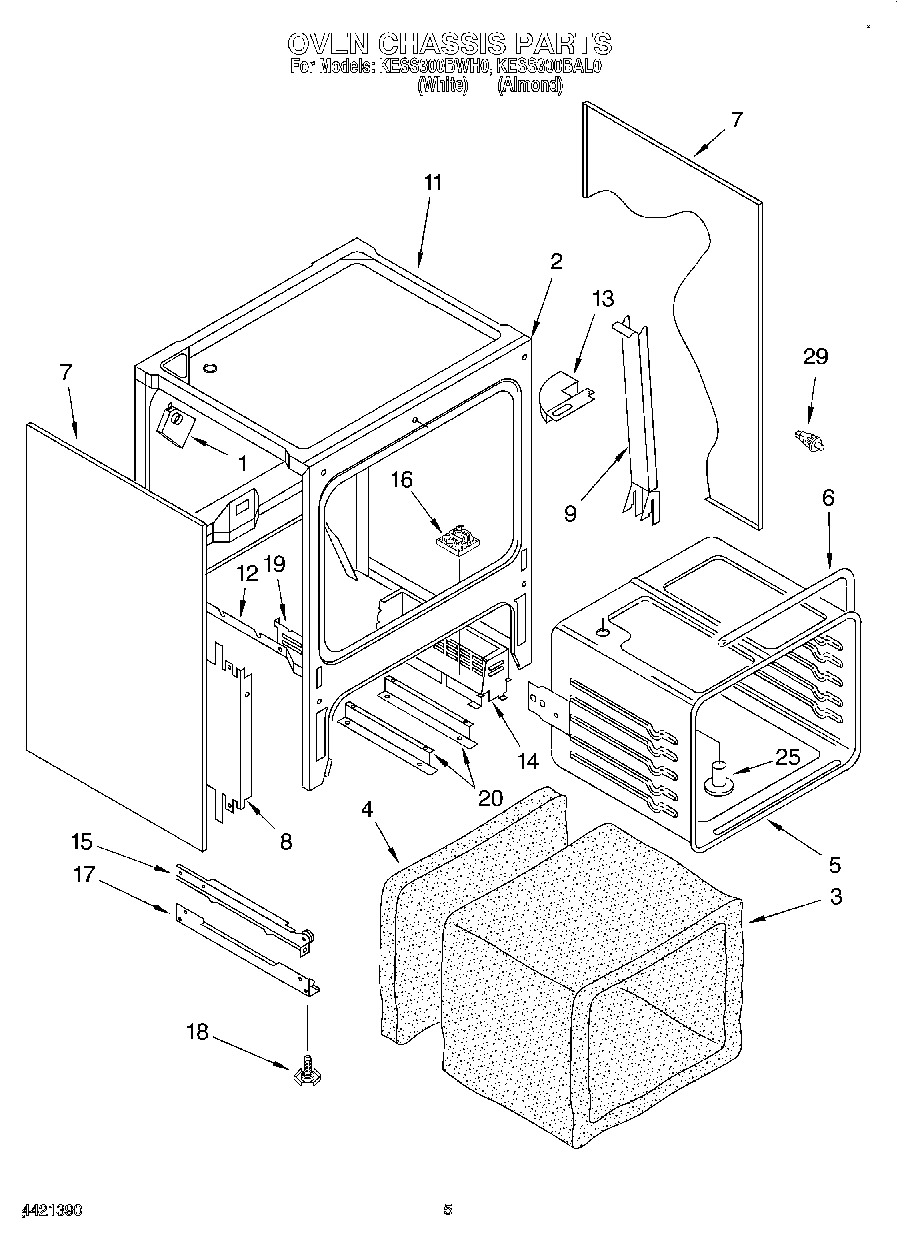

04 - OVEN CHASSIS

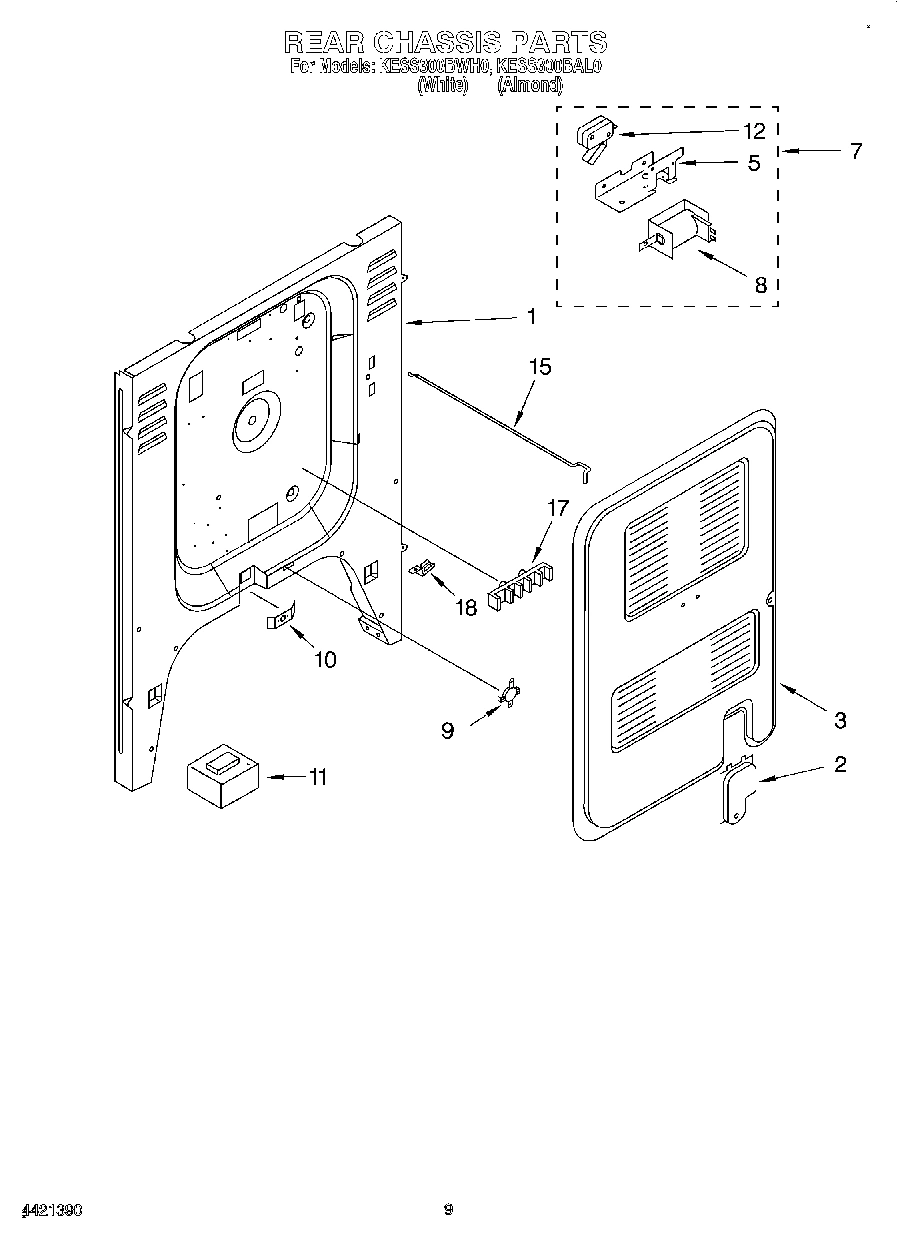

07 - REAR CHASSIS, OPTIONAL

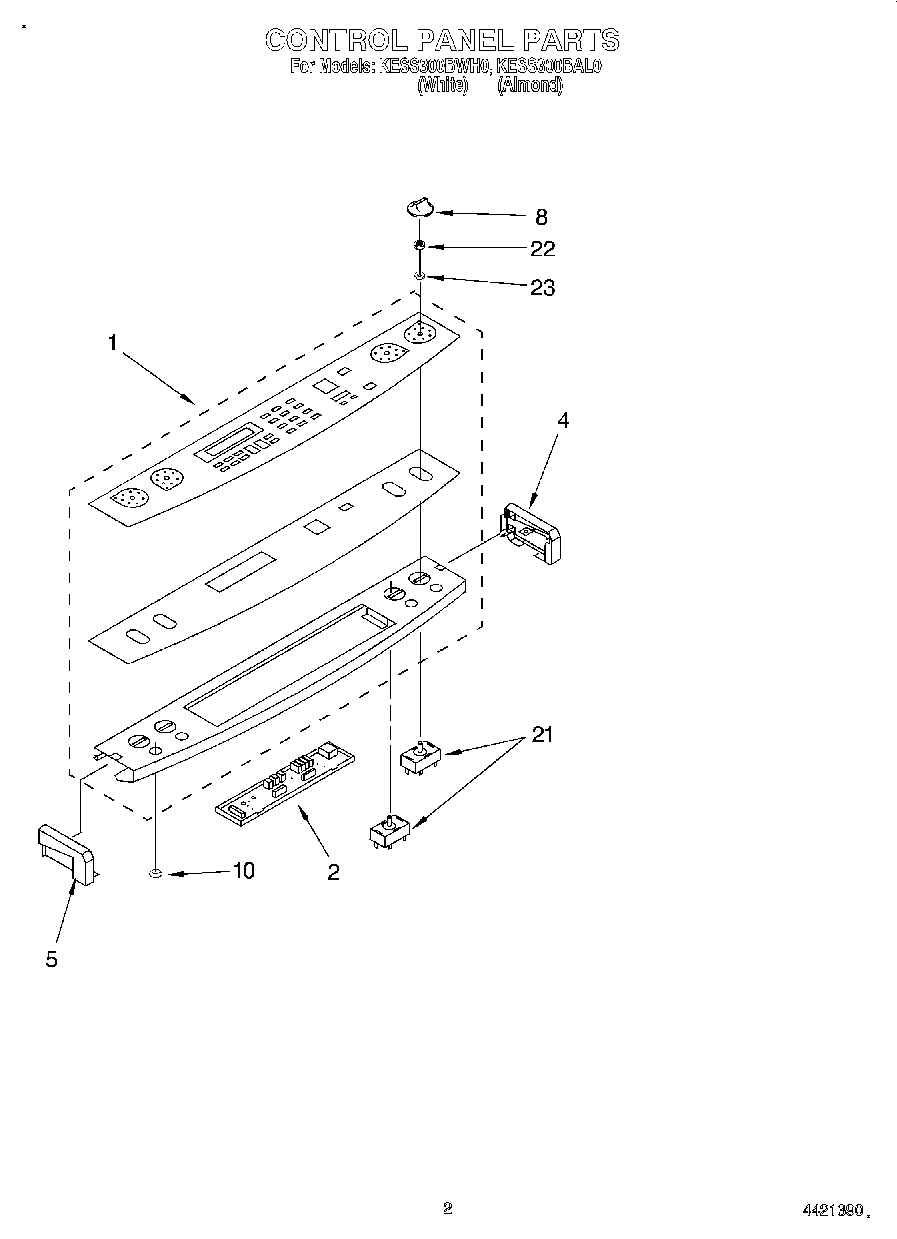

02 - CONTROL PANEL

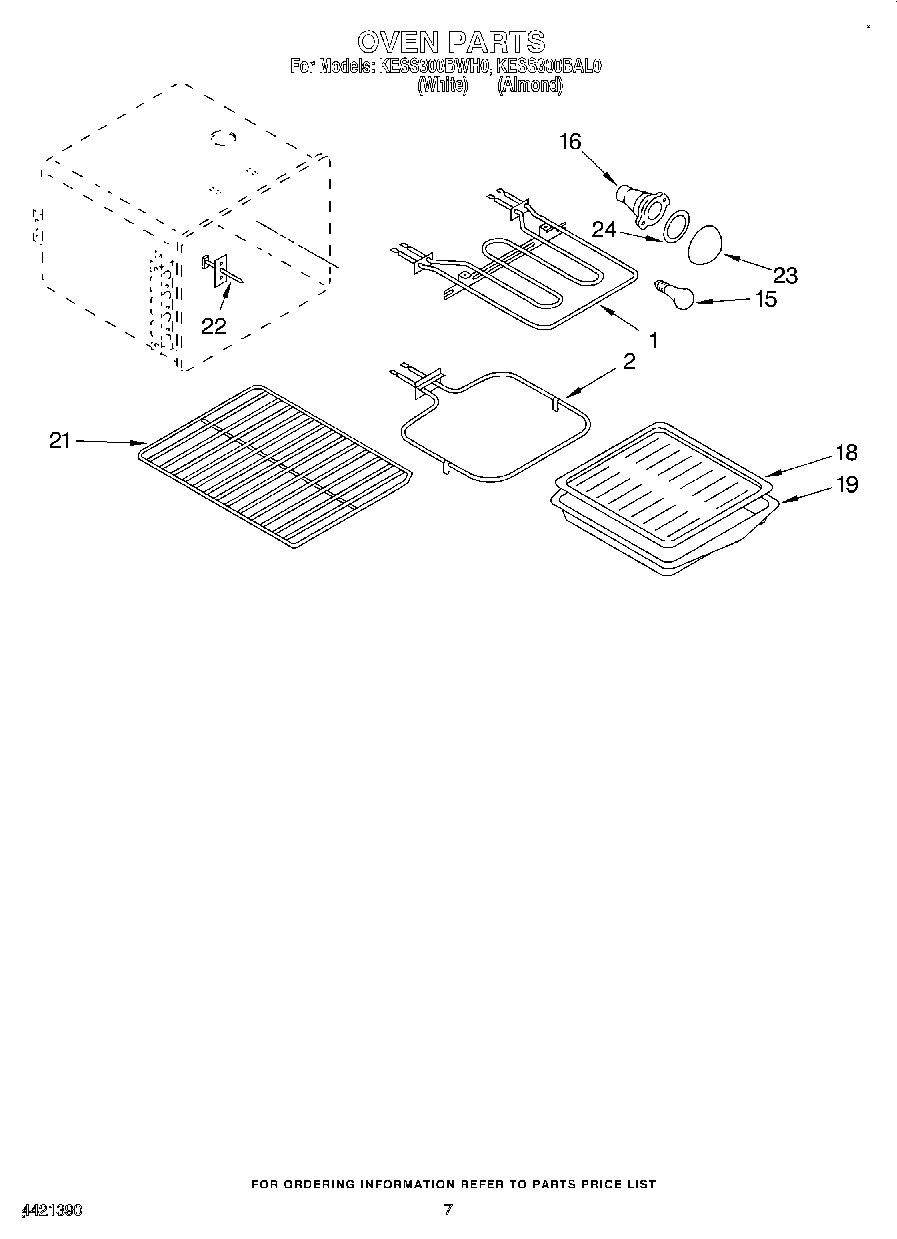

05 - OVEN

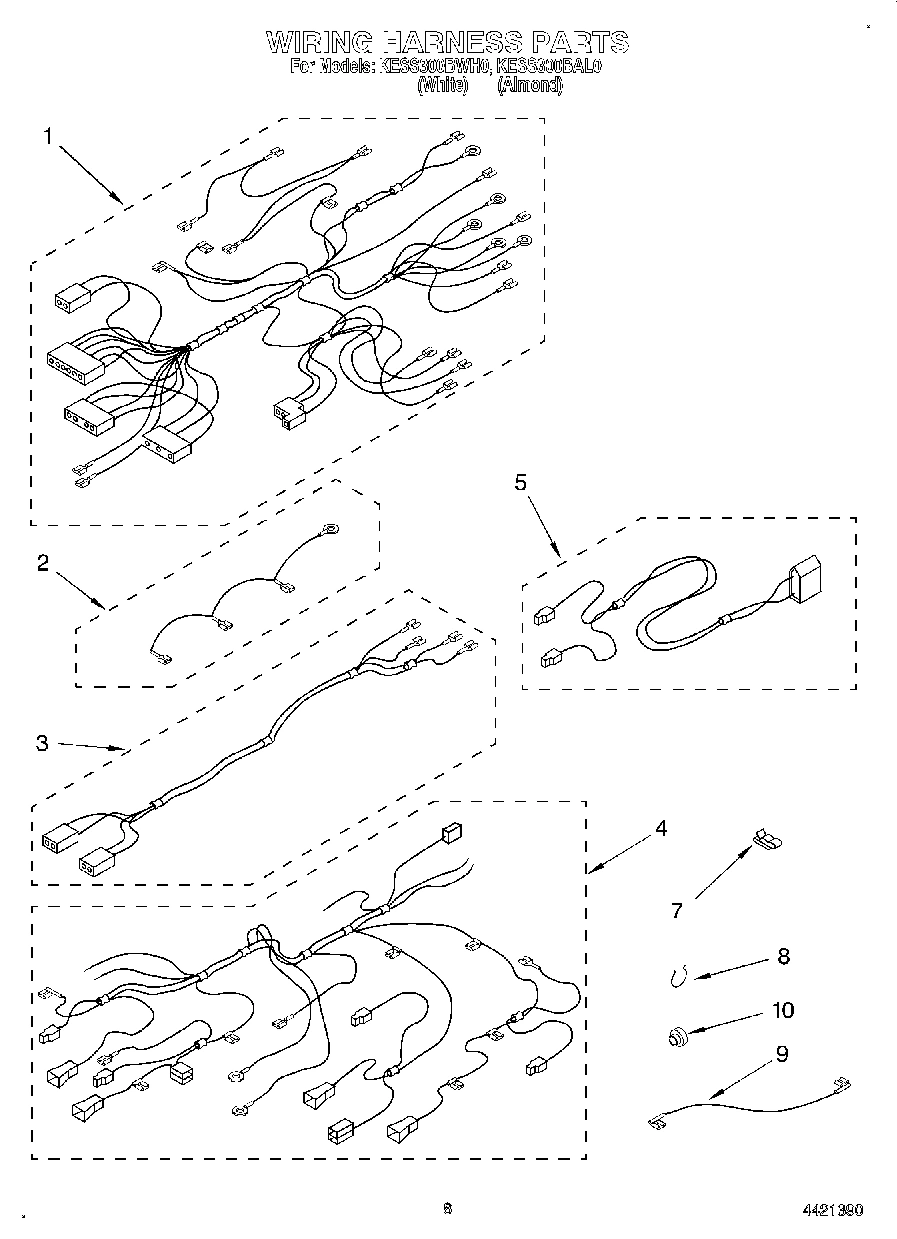

06 - WIRING HARNESS

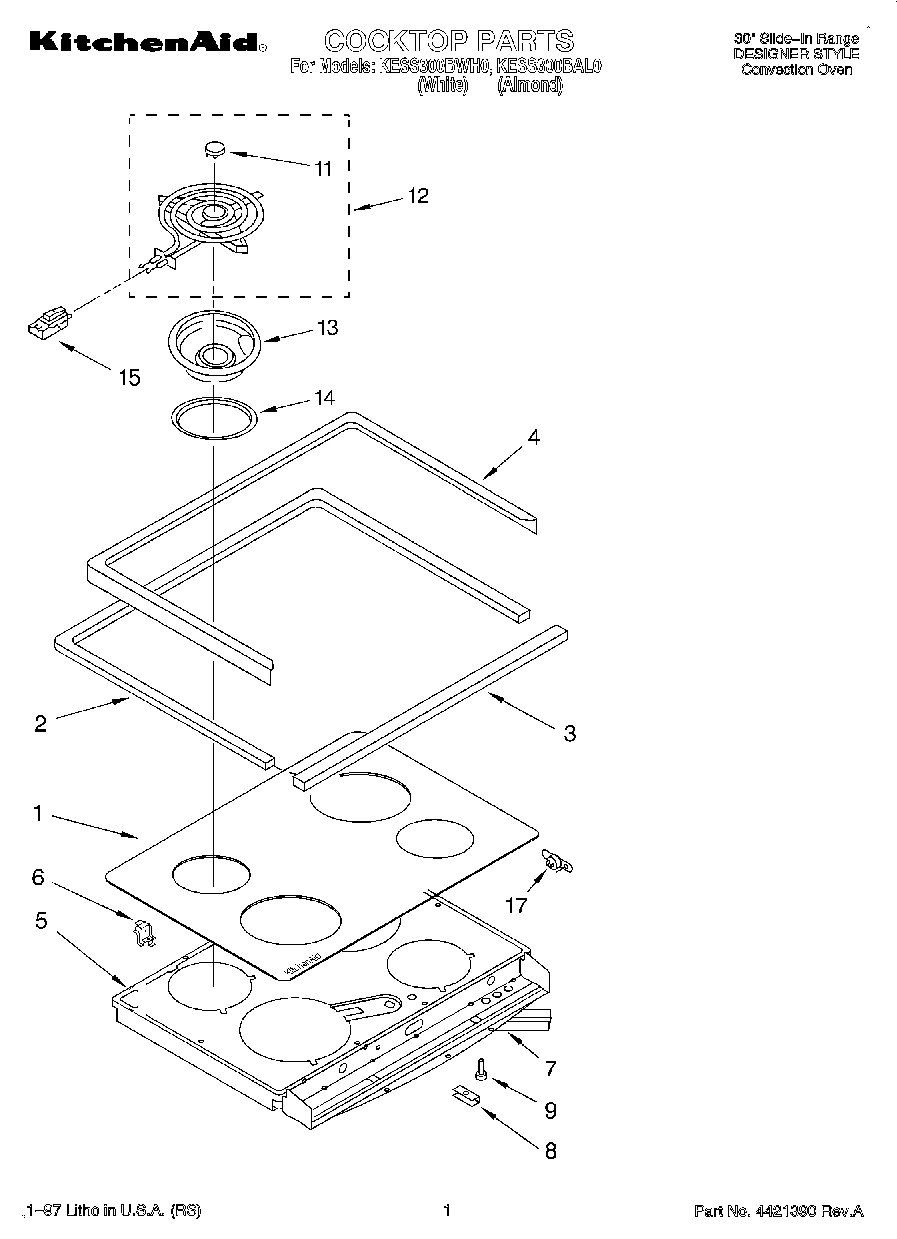

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool KESS300BAL0
Instructions, Installation WPL LIT9751596 Contact Us For Availability
Tech Sheet-K/A WPL LIT9751598 Contact Us For Availability
Quick Set (Oven) WPL LIT9751599 Contact Us For Availability
Wiring Diagram WPL LIT9751760 Contact Us For Availability
Use And Care Guide WPL LIT9781684 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Vent Box, Oven WPL 9751799 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (White) WPL 9751897 Contact Us For Availability
1
Console, Glass (Almond) WPL 9751902 Contact Us For Availability
1
Harness, (Oven) WPL 9751522 Contact Us For Availability
1
Cooktop, Glass (White Mdl.) WPL 9751029 Contact Us For Availability
1
Cooktop, Glass (Almond Mdl.) WPL 9751966 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 4211893 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
2
Timer, Electronic WPL 9751213 Contact Us For Availability
2
Screw, (2) WPL 9780271 Contact Us For Availability
2
Harness, (L-2, Electric) WPL 9751838 Contact Us For Availability
2
Harness, (L-2, Neutral) WPL 9751840 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Panel, Rear Cover WPL 9751354 Contact Us For Availability
3
Harness, (Cooktop) WPL 9751014 Contact Us For Availability
3
Gasket, Console (White) WPL 9751859 Contact Us For Availability
3
Gasket, Console (Almond) WPL 9751860 Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
End Cap R.H. (White) WPL 4421439 Contact Us For Availability
4
End Cap R.H. (Almond) WPL 4421440 Contact Us For Availability
4
Harness, (Control) WPL 9751751 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4421430 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4421431 Contact Us For Availability
5
End Cap L.H. (Screw, (3) 10 x 1/2) WPL 3149333 Contact Us For Availability
5
Oven Liner WPL 4211948 Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
End Cap L.H. (White) WPL 4421436 Contact Us For Availability
5
End Cap L.H. (Almond) WPL 4421437 Contact Us For Availability
5
Harness, (Door) WPL 9750376 Contact Us For Availability
5
Support, Element WPL 9751028 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Hanger, Cable WPL 9750984 Contact Us For Availability
8
Screw, (4) 10 x 3/4 WPL 4211831 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Fuse, Safety WPL 3149652 Contact Us For Availability
9
Lead, Ground WPL 9751003 Contact Us For Availability
9
18`` Green WPL 9780112 Contact Us For Availability
10
Bracket, Power Cord WPL 9750491 Contact Us For Availability
10
Len`s Indicator (4) WPL 9780799 Contact Us For Availability
10
Grommet, Harness WPL 9751868 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Burner Box WPL 9751166 Contact Us For Availability
11
Block, Balance WPL 312804 Contact Us For Availability
11
Medallion, (4) WPL 4211952 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Coil, 6`` LR-RF WPL 9751944 Contact Us For Availability
12
Coil, 8`` LF-RR WPL 9751945 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Ring-Bowl 6`` (2) WPL 4421412 Contact Us For Availability
13
Ring-Bowl 8`` (2) WPL 4421413 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Seal, Element (6`` (2)) WPL 4211828 Contact Us For Availability
14
Seal, Element (8`` (2)) WPL 4211834 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Clip, Receptacle WPL 9750735 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw, (3) No.8 x 1`` WPL 9751808 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 308498 WPL 308498 Contact Us For Availability
18
WPL 313660 WPL 313660 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Oven (2) WPL 9750498 Contact Us For Availability
22
Nut, Mounting (4) WPL 4211830 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Seal, Switch (4) WPL 4211860 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
29
Anti-Tip Kit WPL 9751745 Contact Us For Availability
29
Door Switch WPL 9750897 Contact Us For Availability
× ![]()
