Model Whirlpool KESK901SSS02 30`` SLIDE-IN ELECTRIC OVEN THERMAL OVEN – Common Parts & Diagrams

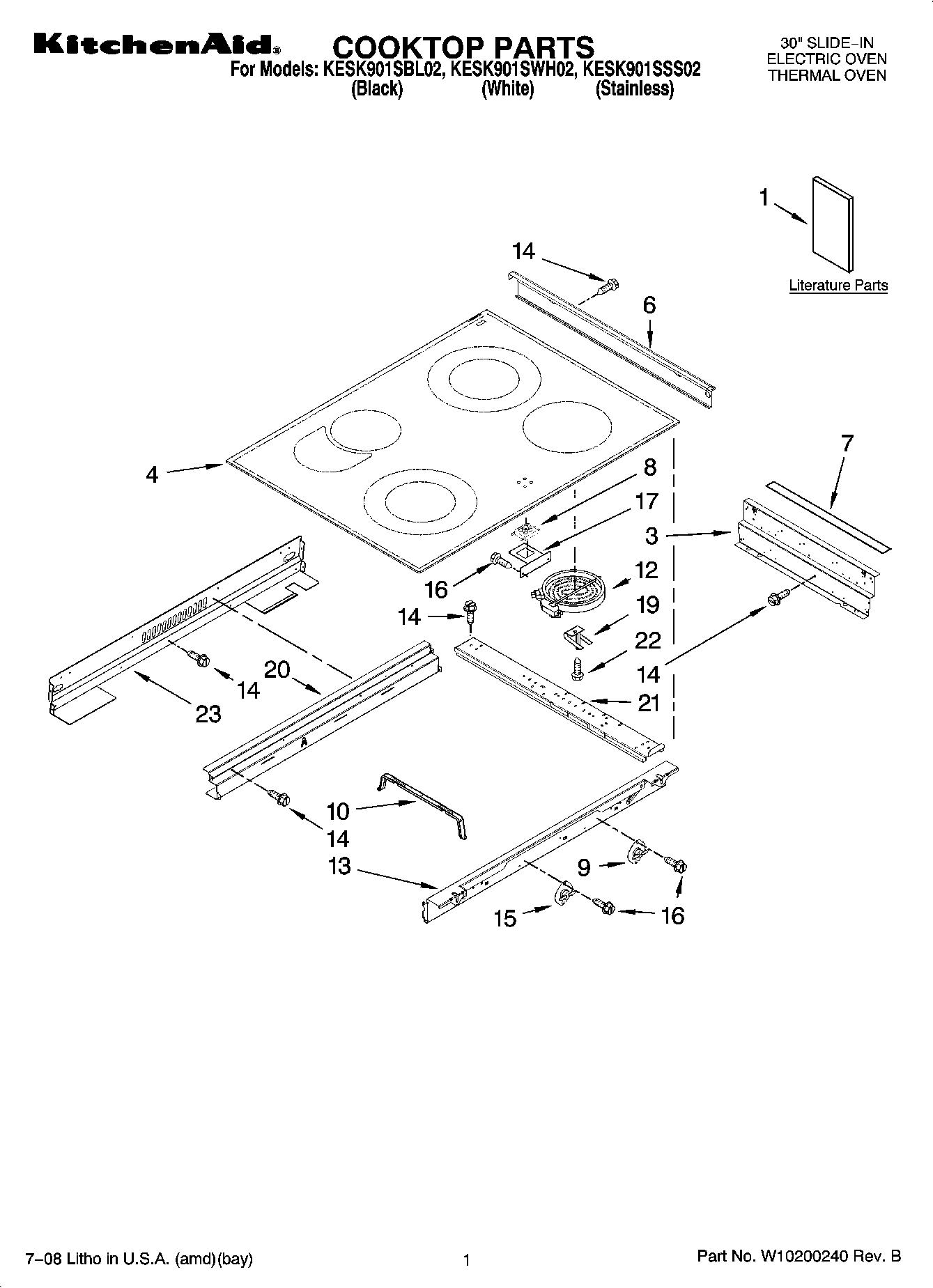

01 - COOKTOP PARTS

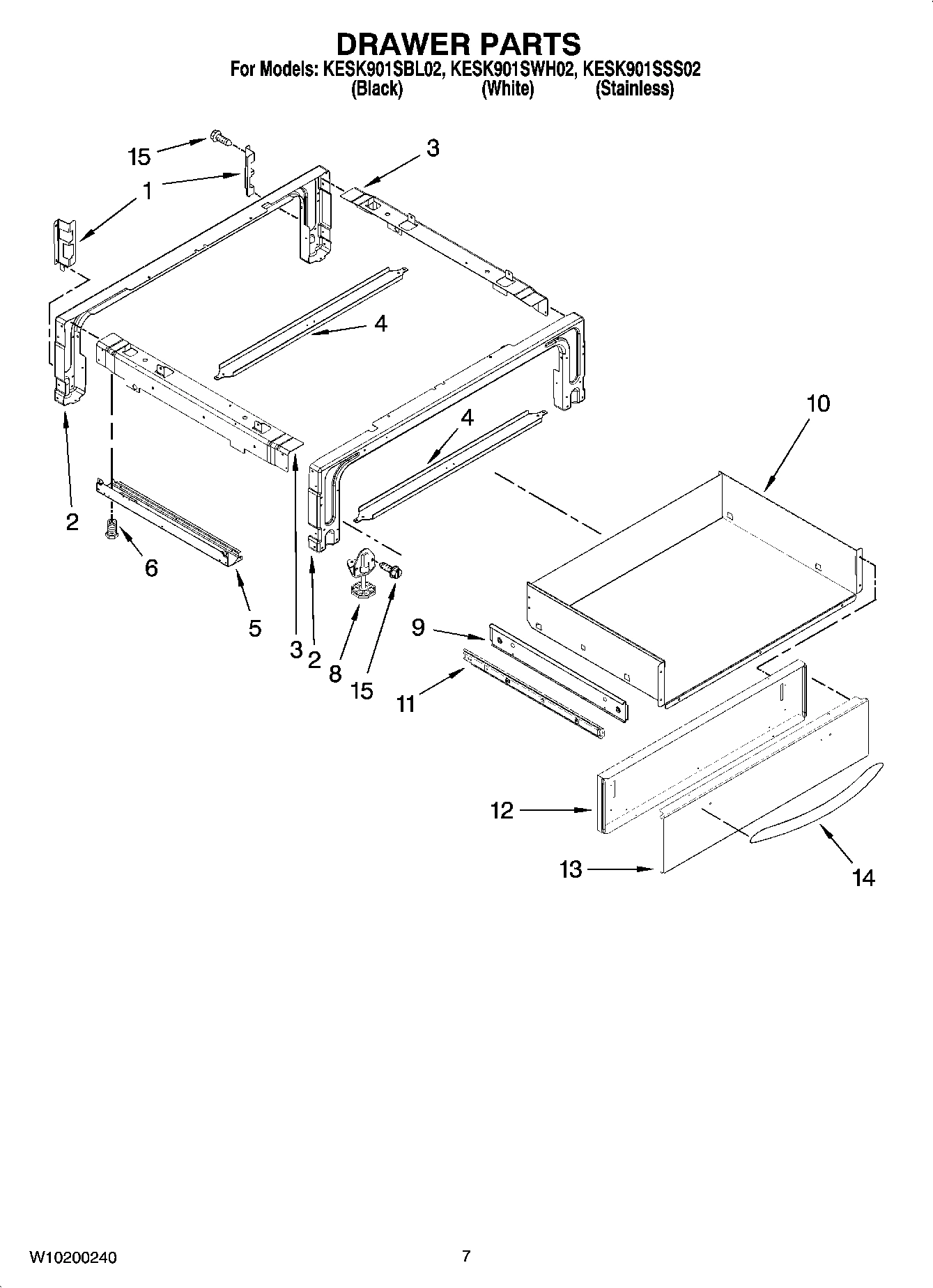

04 - DRAWER PARTS
06 - INTERNAL OVEN PARTS
07 - TOP VENTING PARTS, OPTIONAL PARTS
03 - DOOR PARTS
05 - CONTROL PANEL PARTS
02 - OVEN PARTS
Common parts from model Whirlpool KESK901SSS02 30`` SLIDE-IN ELECTRIC OVEN THERMAL OVEN
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
FILLER, COUNTERTOP (STAINLESS) WPL W10113901A Contact Us For Availability
Filler, Counter Top (Black) WPL W10113902A Contact Us For Availability
Filler, Counter Top (White) WPL W10113903A Contact Us For Availability
HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability
WPL 9756817 WPL 9756817 Contact Us For Availability
Harness, Ground Strap WPL 9763481 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
ADHESIVE WPL ARI86745A8 Contact Us For Availability
SPLICING WIRES--25FT. LENGTH WPL ARI86746A1 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI86747A6 Contact Us For Availability
Miscellaneous WPL ARI86748A9 Contact Us For Availability
Harness, Switch WPL W10118727 Contact Us For Availability
Cooktop, Electric Switch WPL W10137676 Contact Us For Availability
Harness, Main WPL W10137679 Contact Us For Availability
Grommet, Flex WPL W10177363 Contact Us For Availability
WPL 9756470 WPL 9756470 Contact Us For Availability
WPL ARI86743A5 WPL ARI86743A5 Contact Us For Availability
WPL ARI86744A1 WPL ARI86744A1 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel (Black) WPL W10117046 Contact Us For Availability
1
Control Panel (White) WPL W10117047 Contact Us For Availability
1
Control Panel (Stainless) WPL W10156275 Contact Us For Availability
1
TRIM, SIDE (LEFT) (BLACK) WPL W10109490 Contact Us For Availability
1
TRIM, SIDE (LEFT) (WHITE) WPL W10109520 Contact Us For Availability
1
Trim, Side Right (Black) WPL W10109540 Contact Us For Availability
1
Trim, Side Right (White) WPL W10109570 Contact Us For Availability
1
TRIM, SIDE (LEFT STAINLESS) WPL W10140547 Contact Us For Availability
1
TRIM, SIDE (RIGHT STAINLESS) WPL W10140548 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
4
Bumper, Door (2) WPL W10105790 Contact Us For Availability
4
Shield, Console Vent WPL W10105370 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Side, Base (Right) WPL 9759953 Contact Us For Availability
5
Side, Base (Left) WPL 9759954 Contact Us For Availability
5
Tray, Hidden Bake WPL 4455037 Contact Us For Availability
6
Bracket, Terminal Box WPL W10143041 Contact Us For Availability
7
Gasket (2) WPL W10076030 Contact Us For Availability
7
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
7
Bracket, Thermostat (2) WPL 9761745 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Light, Indicator WPL 8523739 Contact Us For Availability
8
Gasket, Vent Shield WPL W10116195 Contact Us For Availability
9
Knob LR,LF,RR (Stainless) WPL W10156264 Contact Us For Availability
9
Knob RF (Stainless) WPL W10156263 Contact Us For Availability
9
Shield, Heat Top WPL 4457103 Contact Us For Availability
9
Knob RF (Black) WPL W10130380 Contact Us For Availability
9
Knob RF (White) WPL W10130381 Contact Us For Availability
10
Lens, Light (2) WPL W10067870 Contact Us For Availability
10
Screw WPL 4449040 Contact Us For Availability
11
Drawer Slide (Right) WPL 9756836 Contact Us For Availability
11
Bracket, Central WPL 9759230 Contact Us For Availability
11
Screw WPL 9780271 Contact Us For Availability
12
Switch, Simmer (White) WPL W10163901 Contact Us For Availability
12
Bracket, Handle (Left) WPL 9763496 Contact Us For Availability
12
Bracket, Handle (Right) WPL 9763497 Contact Us For Availability
13
Membrane, Switch WPL 9761565 Contact Us For Availability
13
Badge (Stainless) WPL 8304603SS Contact Us For Availability
13
Badge (Black) WPL 8304603BL Contact Us For Availability
13
Badge (White) WPL 8304603WH Contact Us For Availability
14
Assembly, Door Kit (Stainless) WPL W10155557 Contact Us For Availability
14
Assembly, Door Kit (White) WPL W10131889 Contact Us For Availability
14
Assembly, Door Kit (Black) WPL W10131888 Contact Us For Availability
14
Gasket, Console WPL W10110246 Contact Us For Availability
15
Thermostat WPL 341196 Contact Us For Availability
15
Handle, Door (Black) WPL 8303774BL Contact Us For Availability
15
Handle, Door (Stainless) WPL 8303774SS Contact Us For Availability
15
Handle, Door (White) WPL 8303774WH Contact Us For Availability
15
Bracket, Gasket WPL W10117524 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
19
Bumper, Door WPL 4448520 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Body, Side (Black/Stainless) WPL 9760723PB Contact Us For Availability
20
Body, Side (White) WPL 9760723PW Contact Us For Availability
21
BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability
24
Brace, Side Panel WPL 9757811 Contact Us For Availability
26
Back, Chassis WPL 9759761 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI86742A7 Contact Us For Availability
28
Clip, Side Panel WPL 9759890 Contact Us For Availability
33
Base, Chassis WPL 9759713 Contact Us For Availability
36
Vent, Bottom Upper (Stainless) WPL W10160347 Contact Us For Availability
36
Vent, Bottom Upper (White) WPL W10116897 Contact Us For Availability
36
Vent, Bottom Upper (Black) WPL W10116899 Contact Us For Availability
37
Vent, Bottom Lower (Black) WPL W10104890 Contact Us For Availability
37
Vent, Bottom Lower (White) WPL W10104910 Contact Us For Availability
37
Vent, Bottom Lower (Stainless) WPL W10140546 Contact Us For Availability
43
Screw WPL 3400080 Contact Us For Availability
45
Cover, Termianl Box WPL 9757405 Contact Us For Availability
46
Insulator, Termianl Box WPL 9759721 Contact Us For Availability
48
APPLIANCE, MANAGER WPL W10181438 Contact Us For Availability
49
Slide, GOC WPL W10083460 Contact Us For Availability
50
Bracket, Appliance Manager WPL 9756454 Contact Us For Availability
51
I WPL 9759884 Contact Us For Availability
52
WPL 9759722 WPL 9759722 Contact Us For Availability
53
WPL 9760481 WPL 9760481 Contact Us For Availability
54
WPL 9758583 WPL 9758583 Contact Us For Availability
55
WPL 9759885 WPL 9759885 Contact Us For Availability
56
WPL 9759945 WPL 9759945 Contact Us For Availability
× ![]()
