Model Whirlpool KESI901PWH01 30`` SLIDE-IN ELECTRIC OVEN – Common Parts & Diagrams

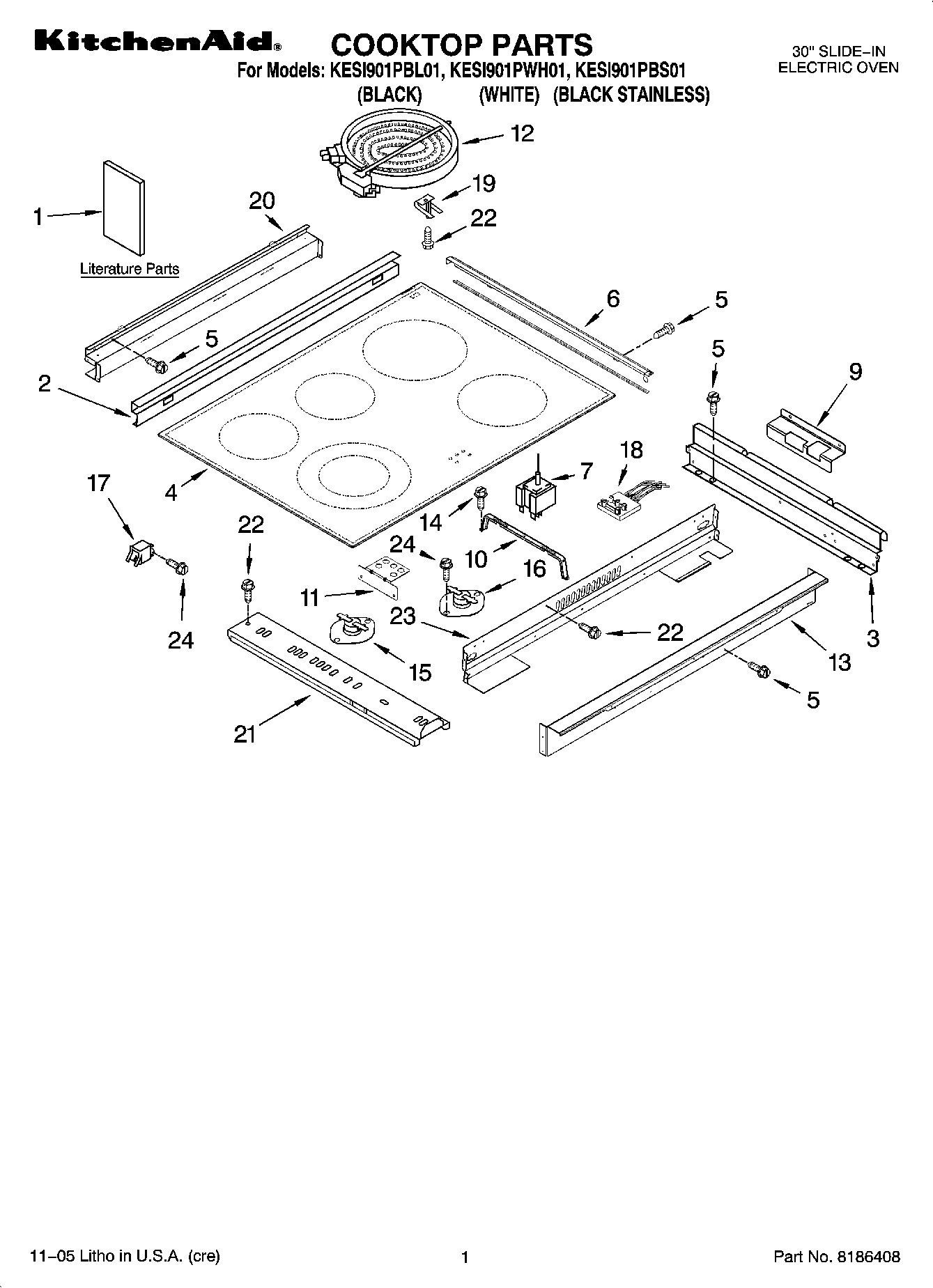

01 - COOKTOP PARTS

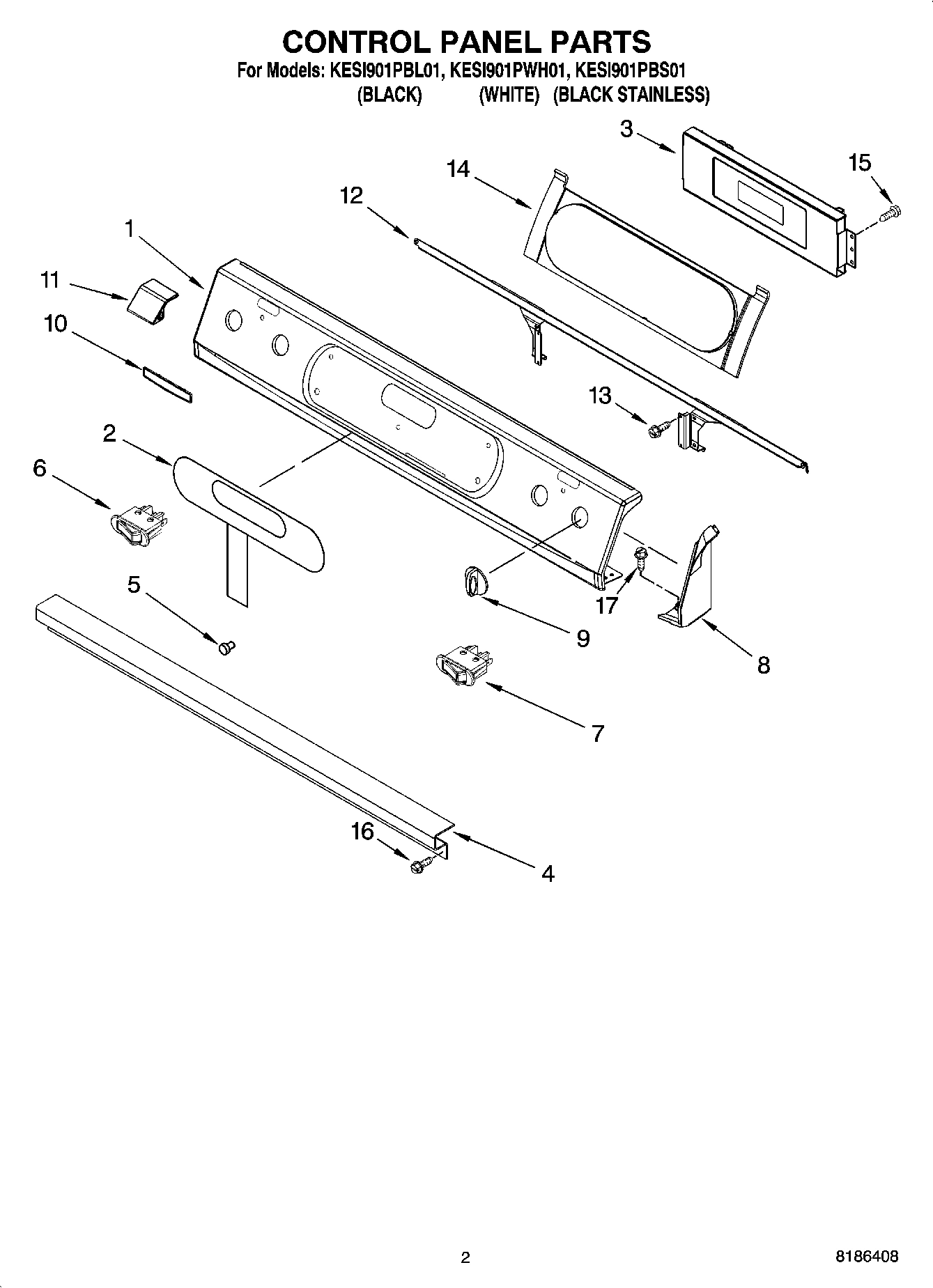

02 - CONTROL PANEL PARTS
04 - DOOR AND DRAWER PARTS
05 - INTERNAL OVEN PARTS
03 - OVEN PARTS
06 - TOP VENTING PARTS, OPTIONAL PARTS
Common parts from model Whirlpool KESI901PWH01 30`` SLIDE-IN ELECTRIC OVEN
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
Hinge Pin Kit WPL 814381 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
Clamp WPL 4448664 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Harness, Main WPL 9756554 Contact Us For Availability
Bushing WPL 9757778 Contact Us For Availability
Conduit WPL 9759715 Contact Us For Availability
Harness, Wire (Switch, Elec) WPL 9760527 Contact Us For Availability
Harness, Wire Cooktop WPL 9760529 Contact Us For Availability
Ha WPL 9760532 Contact Us For Availability
WPL ARI86692A8 WPL ARI86692A8 Contact Us For Availability
WPL ARI86693A9 WPL ARI86693A9 Contact Us For Availability
WPL ARI86694A5 WPL ARI86694A5 Contact Us For Availability
WPL ARI86695A1 WPL ARI86695A1 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel (S.Steel) WPL 4453822SS Contact Us For Availability
1
Control Panel (White) WPL 4453822WH Contact Us For Availability
1
Trim, Side (Right Hand) (Black) WPL 9756619BL Contact Us For Availability
1
Trim, Side (Right Hand) (S.Steel) WPL 9756619SS Contact Us For Availability
1
Trim, Side (Right Hand) (White) WPL 9756619WH Contact Us For Availability
1
Trim, Side (Left Hand) (Black) WPL 9756620BL Contact Us For Availability
1
Trim, Side (Left Hand) (S.Steel) WPL 9756620SS Contact Us For Availability
1
Trim, Side (Left Hand) (White) WPL 9756620WH Contact Us For Availability
2
Membrane Switch (Black) WPL 9756591BL Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Membrane Switch (White) WPL 9756591WH Contact Us For Availability
2
Trim, Cooktop Rear (Black) WPL 9760520BL Contact Us For Availability
4
Cooktop (Gasket) WPL 9756450 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Bracket, Console WPL 9757119 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Glass, Door Front (Black) WPL 9757102BL Contact Us For Availability
5
Glass, Door Front (Brushed Stainless) WPL 9757102BS Contact Us For Availability
5
Glass, Door Front (White) WPL 9757102WH Contact Us For Availability
5
Insulation, Bottom Vent WPL 9757717 Contact Us For Availability
6
Trim-CkTop, SI (S.Steel LH) WPL 9759531SS Contact Us For Availability
6
Trim-CkTop, SI (White LH) WPL 9759531WH Contact Us For Availability
6
Switch, Warming (S.Steel) WPL 9757406CM Contact Us For Availability
6
Switch, Warming (White) WPL 9757406WH Contact Us For Availability
7
Switch, Infinite (Dual) WPL 9757124 Contact Us For Availability
7
Switch, Simmer (White) WPL 9758366WH Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
7
Bracket, Term.Box WPL 9759938 Contact Us For Availability
8
Endcap (Black RH) WPL 9760456BL Contact Us For Availability
8
Endcap (Cashmere Metal RH) WPL 9760456CM Contact Us For Availability
8
Endcap (White RH) WPL 9760456WH Contact Us For Availability
8
Endcap (Black LH) WPL 9760457BL Contact Us For Availability
8
Endcap (Cashmere Metal LH) WPL 9760457CM Contact Us For Availability
8
Endcap (White LH) WPL 9760457WH Contact Us For Availability
8
Handle, Door (Black) WPL 9756833BL Contact Us For Availability
8
Handle, Door (White) WPL 9756833WH Contact Us For Availability
9
Knob WPL 9756943 Contact Us For Availability
9
Insulator, Termianl Box WPL 9759721 Contact Us For Availability
9
Bracket, Central WPL 8302094 Contact Us For Availability
10
Nameplate (Black) WPL 9757730BL Contact Us For Availability
10
Nameplate (Biscuit) WPL 9757730BT Contact Us For Availability
10
Nameplate (White) WPL 9757730WH Contact Us For Availability
10
Lens, Light WPL 4452165 Contact Us For Availability
11
Tray, Hidden Bake WPL 4455037 Contact Us For Availability
11
Insert, Console (R.Hand) WPL 9759466 Contact Us For Availability
11
Insert, Console (L.Hand) WPL 9759467 Contact Us For Availability
12
Cover, Term Box WPL 9757405 Contact Us For Availability
12
Bracket, User Interface WPL 9757787 Contact Us For Availability
12
Cover, Bake Tray WPL 4450039 Contact Us For Availability
13
Shield, Heat WPL 9757732 Contact Us For Availability
13
Vent, (Control Panel) WPL 9757118BL Contact Us For Availability
14
Insert, Membrane WPL 9759827 Contact Us For Availability
14
Frame, Front WPL 9759060 Contact Us For Availability
15
Thermostat (205) WPL 341196 Contact Us For Availability
15
Screw WPL 9780271 Contact Us For Availability
15
Transformer WPL 9756551 Contact Us For Availability
16
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
16
Deflector, Vent Bottom WPL 4453951 Contact Us For Availability
16
Insulation WPL 9759884 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
Screw WPL 3196172 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Drawer WPL 9757806 Contact Us For Availability
20
Body, Side (Black) WPL 9781907PB Contact Us For Availability
20
Body, Side (White) WPL 9781907PW Contact Us For Availability
21
BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability
22
Panel, Drawer WPL 9760591 Contact Us For Availability
23
Brace, Side Panel WPL 9757811 Contact Us For Availability
24
Front, Drawer (Black) WPL 4453799BL Contact Us For Availability
24
Front, Drawer (S.Steel) WPL 4453799SS Contact Us For Availability
24
Front, Drawer (White) WPL 4453799WH Contact Us For Availability
25
Bracket, Handle (R.Hand) WPL 4457231 Contact Us For Availability
25
Bracket, Handle (L.Hand) WPL 4457232 Contact Us For Availability
26
Handle, Drawer (Black) WPL 9756952BL Contact Us For Availability
26
Handle, Drawer (S.Steel) WPL 9756952CM Contact Us For Availability
26
Handle, Drawer (White) WPL 9756952WH Contact Us For Availability
26
Back, Chassis WPL 9759761 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI86690A6 Contact Us For Availability
28
Side, Base (R.Side) WPL 9759953 Contact Us For Availability
28
Side, Base (L.Side) WPL 9759954 Contact Us For Availability
28
Clip, Side Panel WPL 9759890 Contact Us For Availability
30
Track, Drawer (L.Side) WPL 9756839 Contact Us For Availability
30
Track, Drawer (R.Side) WPL 9756837 Contact Us For Availability
30
Bracket, GOC WPL 9756454 Contact Us For Availability
32
Central, Appliance WPL 9761593 Contact Us For Availability
32
Guide, Roller WPL 9756673 Contact Us For Availability
33
Shield, Heat Top WPL 9757707 Contact Us For Availability
33
Cover, Rear Standoff WPL 9759945 Contact Us For Availability
43
Base, Chassis WPL 9759713 Contact Us For Availability
54
Vent, Bottom Upper (Black) WPL 9756481BL Contact Us For Availability
54
Vent, Bottom Upper (S. Steel) WPL 9756481SS Contact Us For Availability
54
Vent, Bottom Upper (White) WPL 9756481WH Contact Us For Availability
55
Insulation, Wrap WPL 9756817 Contact Us For Availability
55
Insulation, Back WPL 9756470 Contact Us For Availability
55
Vent, Bottom Lower (Black) WPL 9756485BL Contact Us For Availability
55
Trim, Btm Vent (S.Steel) WPL 9756485SS Contact Us For Availability
55
Trim, Btm Vent (White) WPL 9756485WH Contact Us For Availability
55
WPL ARI86691A3 WPL ARI86691A3 Contact Us For Availability
× ![]()
