Model Whirlpool KESH307HWH5 COOKTOP – Common Parts & Diagrams

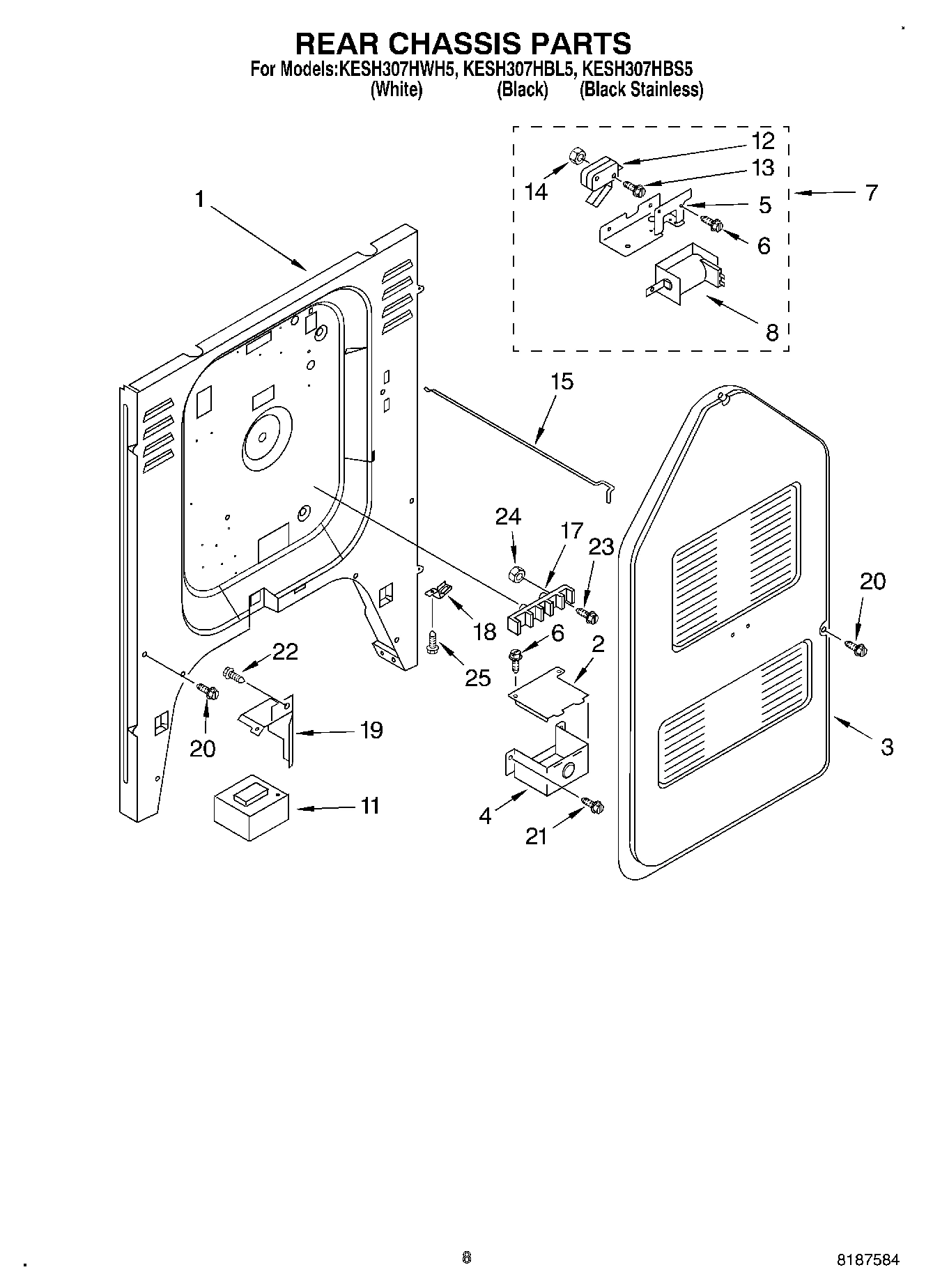

06 - REAR CHASSIS

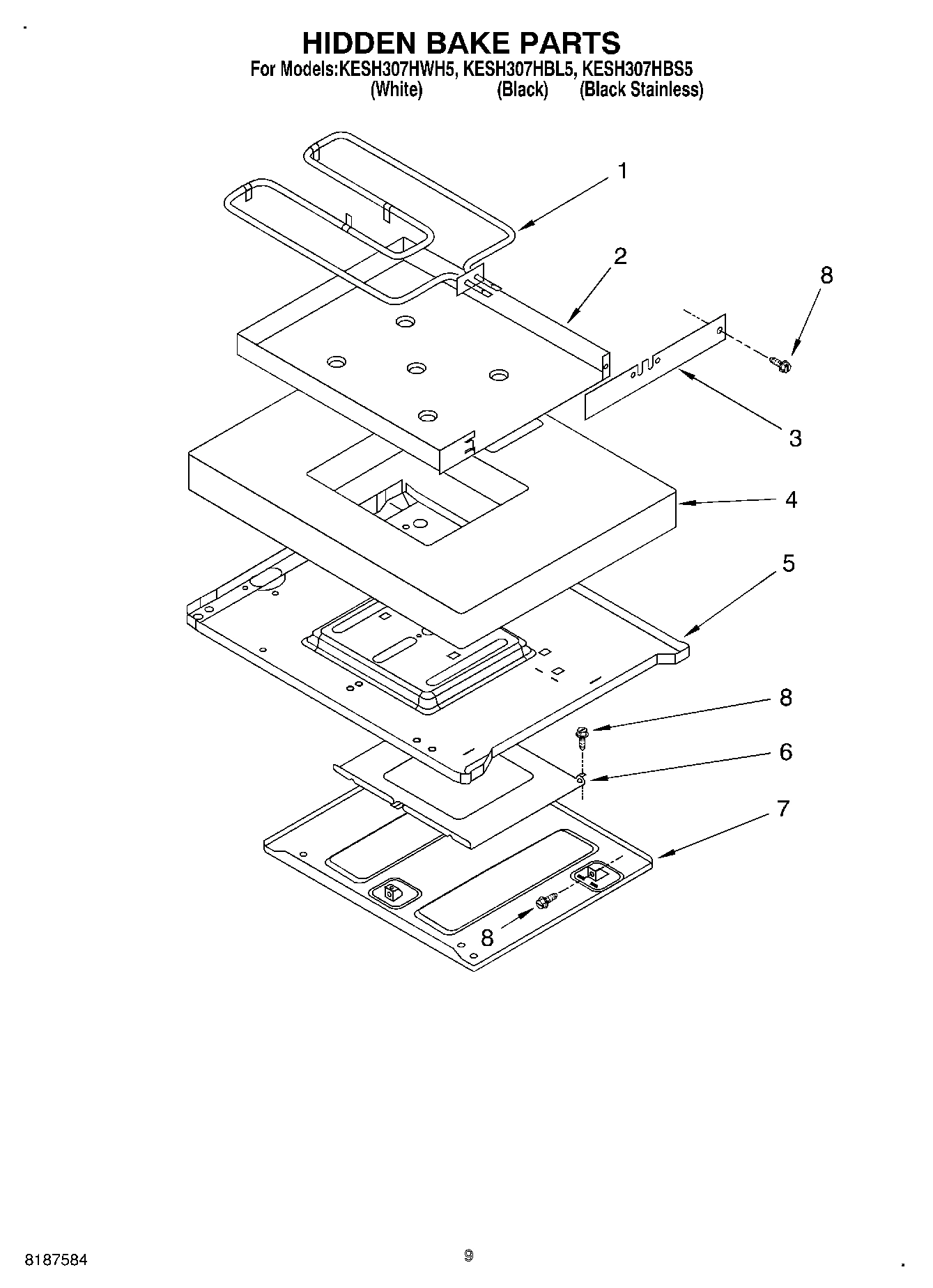

07 - HIDDEN BAKE, OPTIONAL

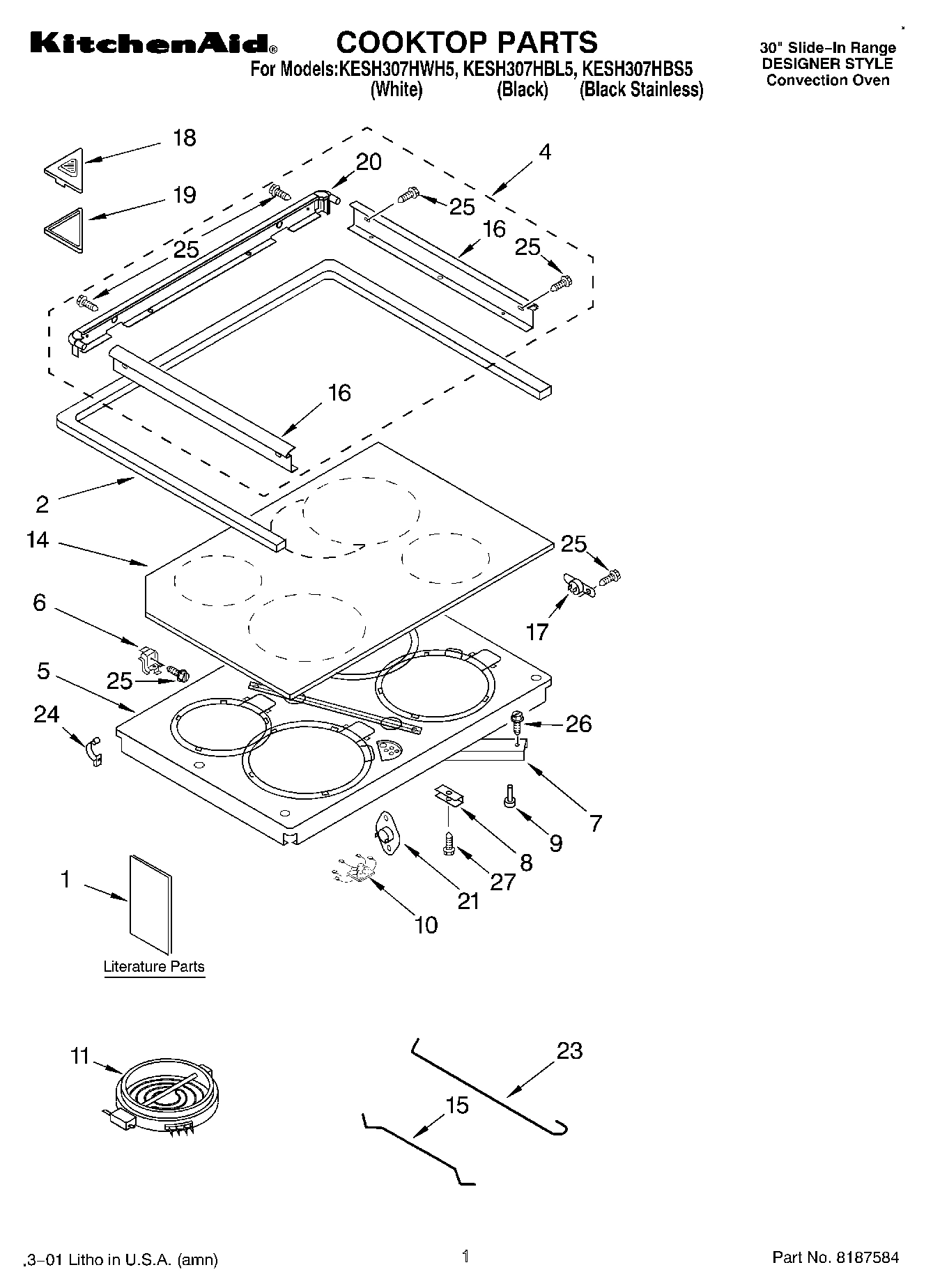

01 - COOKTOP, LITERATURE

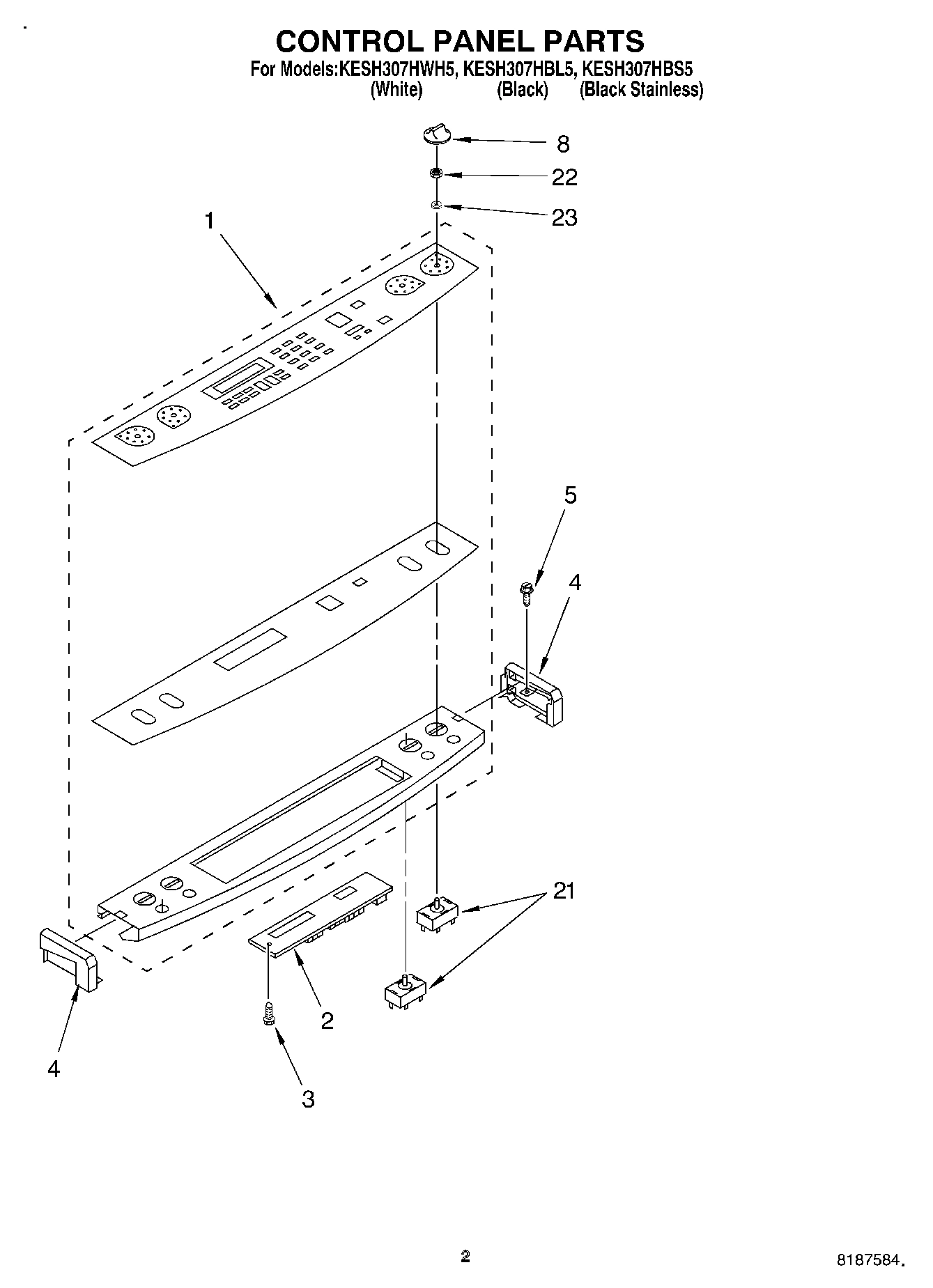

02 - CONTROL PANEL

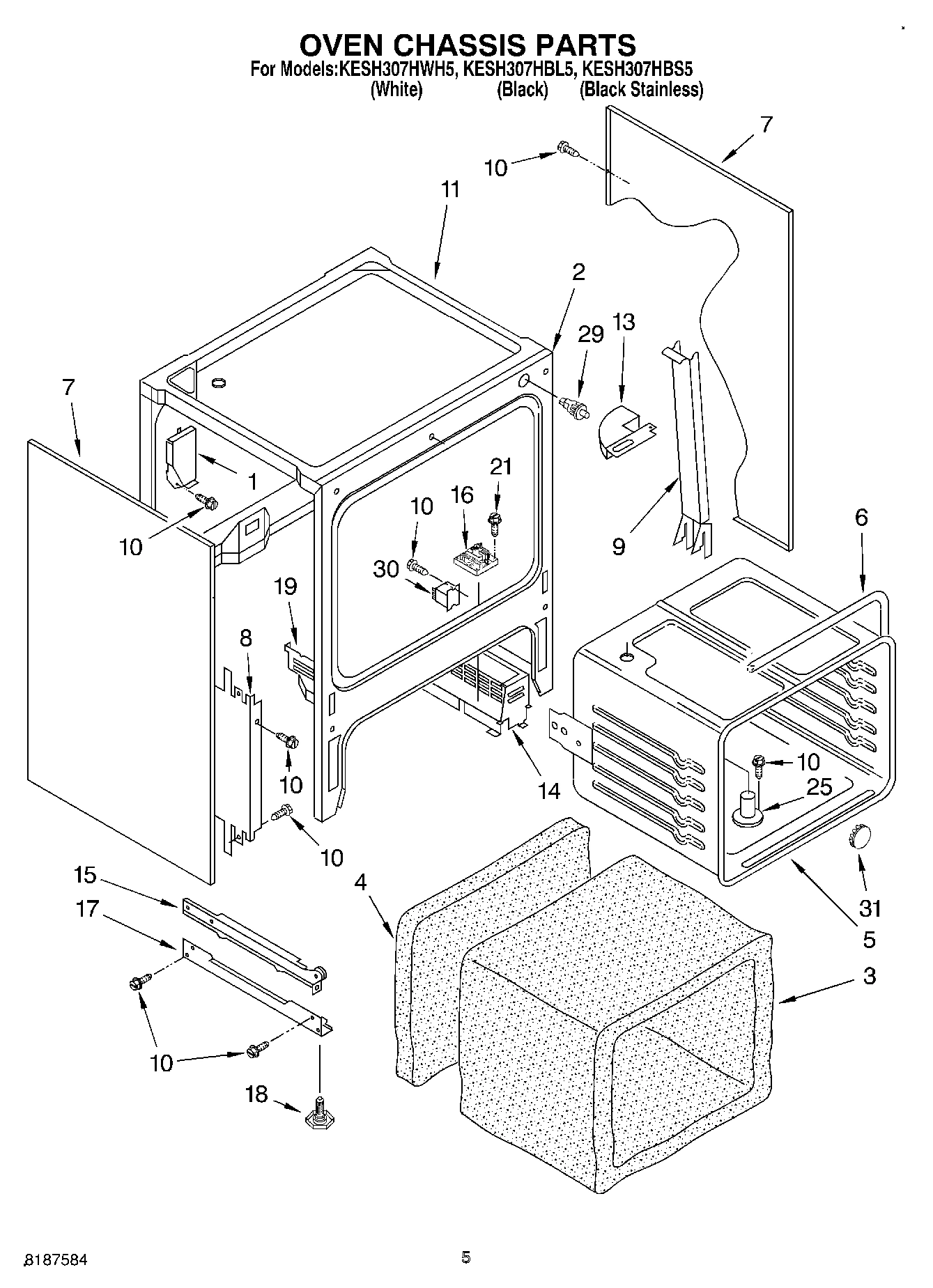

04 - OVEN CHASSIS

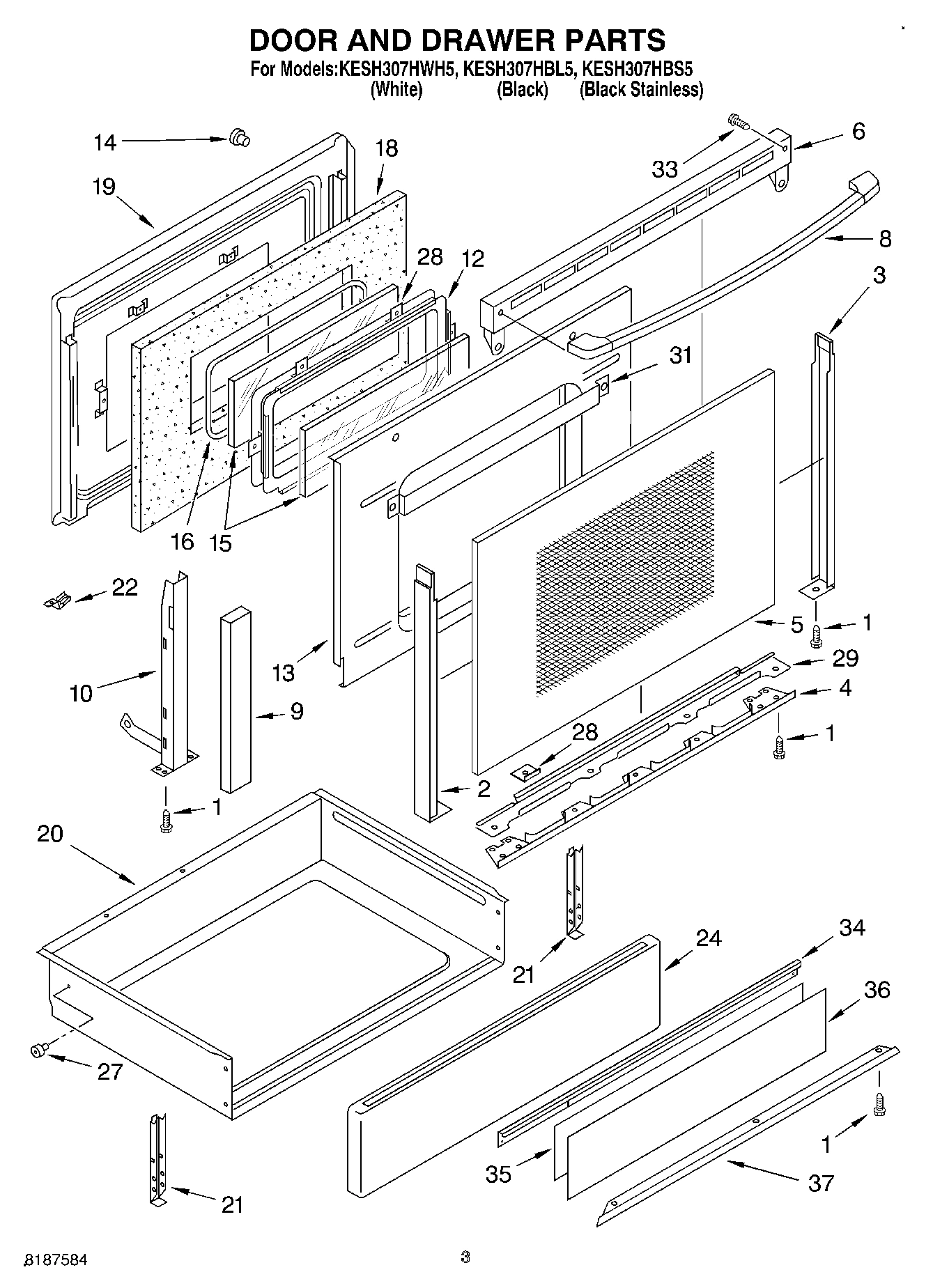

03 - DOOR AND DRAWER

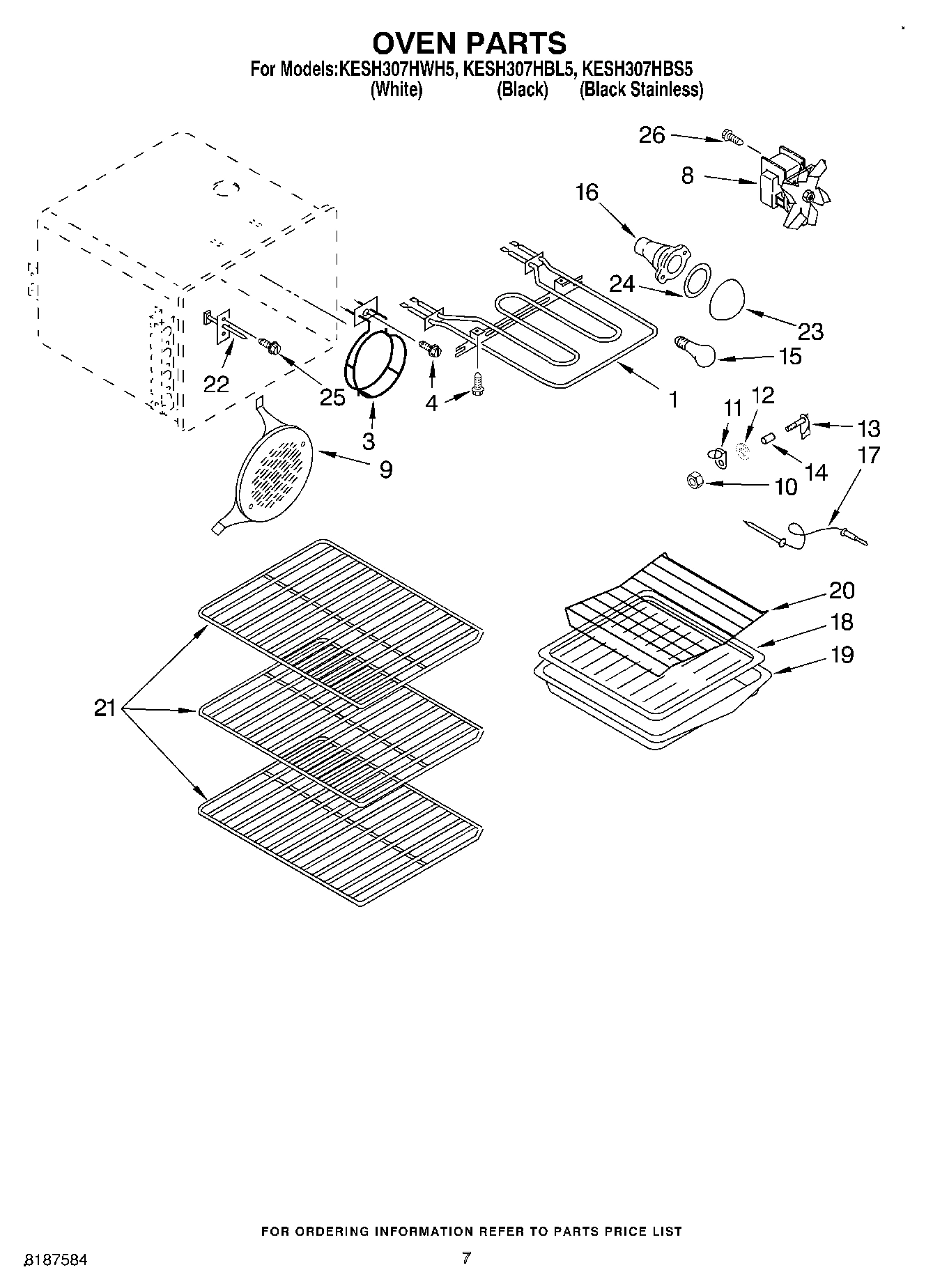

05 - OVEN
Common parts from model Whirlpool KESH307HWH5 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752043 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753846 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9782232 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9782245 Contact Us For Availability
1
Console, Glass (Black) WPL 9781969CB Contact Us For Availability
1
Console, Glass (White) WPL 9781969CW Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
2
Gasket, Cooktop WPL 9754103 Contact Us For Availability
2
Timer, Electronic WPL 9781980 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Screw, (2) WPL 9780271 Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Screw, Elements 8-32 x 3/8 WPL 9781509 Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Glass, Door (Black Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Harness, Wire (L2 Electric) WPL 9781656 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
Anti-Tip Kit WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Harness, Wire (Oven Door) WPL 9750376 Contact Us For Availability
8
Grommet, Harness WPL 9751868 Contact Us For Availability
8
Harness, Wire (Dual Oven Light) WPL 9753374 Contact Us For Availability
8
Harness, Wire (Hidden Bake) WPL 9753683 Contact Us For Availability
8
Harness, Wire (Control, WPL 9781767 Contact Us For Availability
8
WPL 9782080 WPL 9782080 Contact Us For Availability
8
WPL 9782127 WPL 9782127 Contact Us For Availability
8
WPL 9782183 WPL 9782183 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Element, Surface (1800W - RF) WPL 9753996 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753879CB Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753879CW Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Rail, Drawer (Left) WPL 9750223 Contact Us For Availability
16
Trim, Side Frame (Black) WPL 9781828PB Contact Us For Availability
16
Trim, Side Frame (White) WPL 9781828PW Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
20
Trim, Rear Frame (Incls. End Caps) (Black) WPL 9781831PB Contact Us For Availability
20
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
20
Drawer & Roller (White, Black Models) WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Retainer, Glass WPL 9750676 Contact Us For Availability
23
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Front, Drawer (Black Stainless) WPL 9782109PB Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Screw, 10 x 1/2`` WPL 9780272 Contact Us For Availability
27
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
Deflector, Steam WPL 9781771 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
31
Channel, Heat WPL 9750693 Contact Us For Availability
34
Trim, Upper WPL 9750614PB Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer WPL 9754062 Contact Us For Availability
37
Trim, Lower WPL 9750613PB Contact Us For Availability
× ![]()
