Model Whirlpool KESC307HWH6 COOKTOP – Common Parts & Diagrams

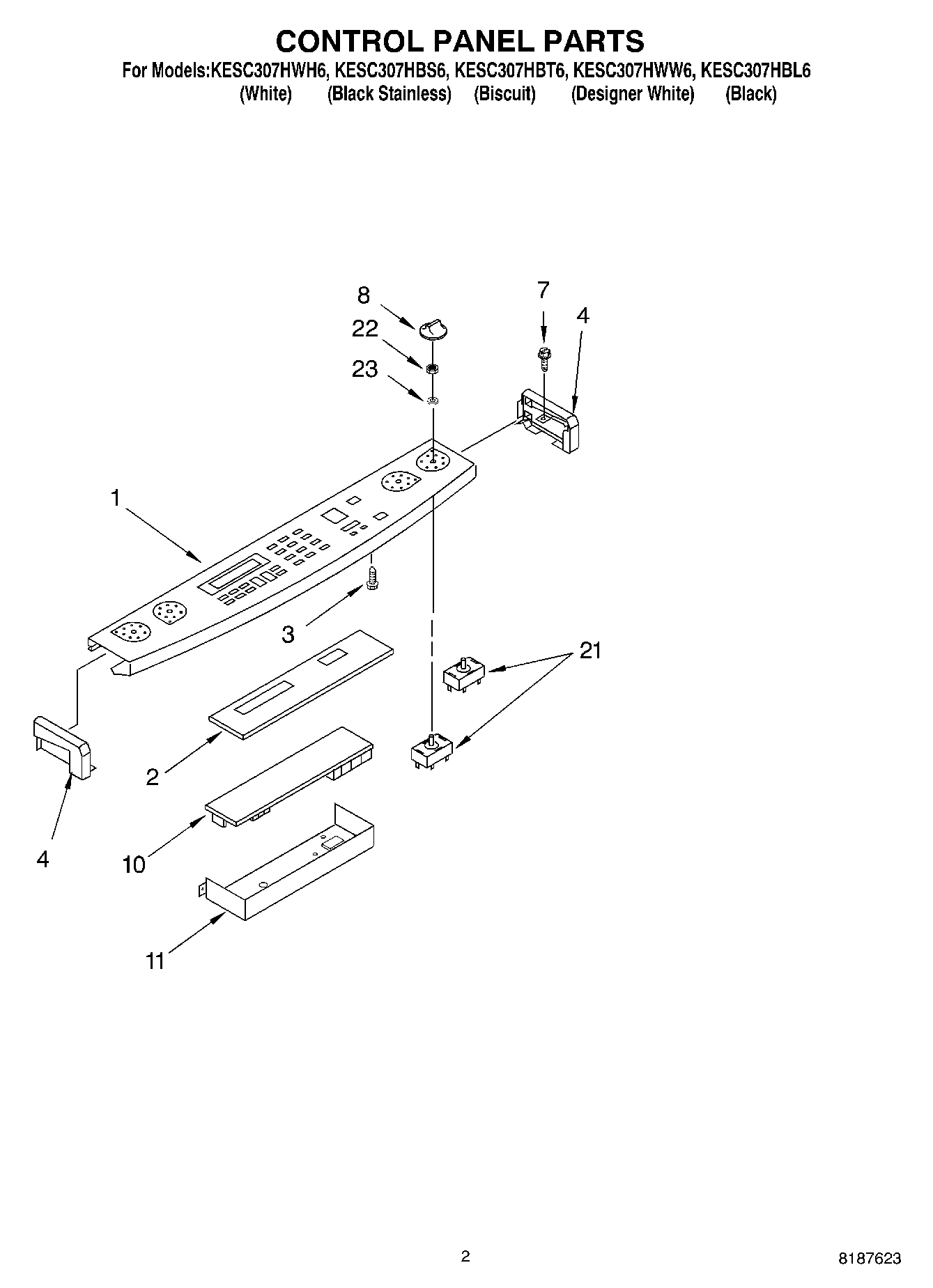

02 - CONTROL PANEL

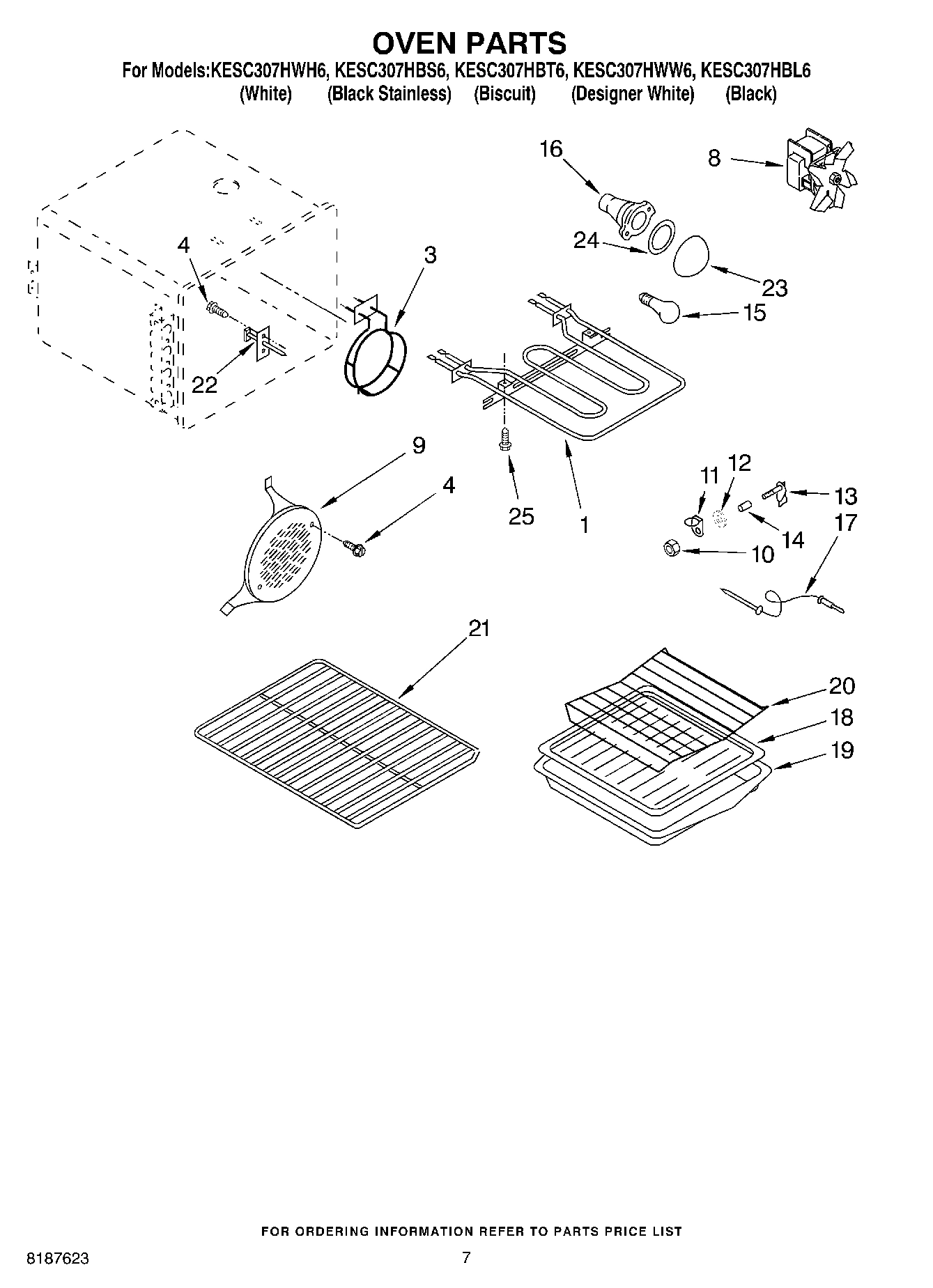

05 - OVEN

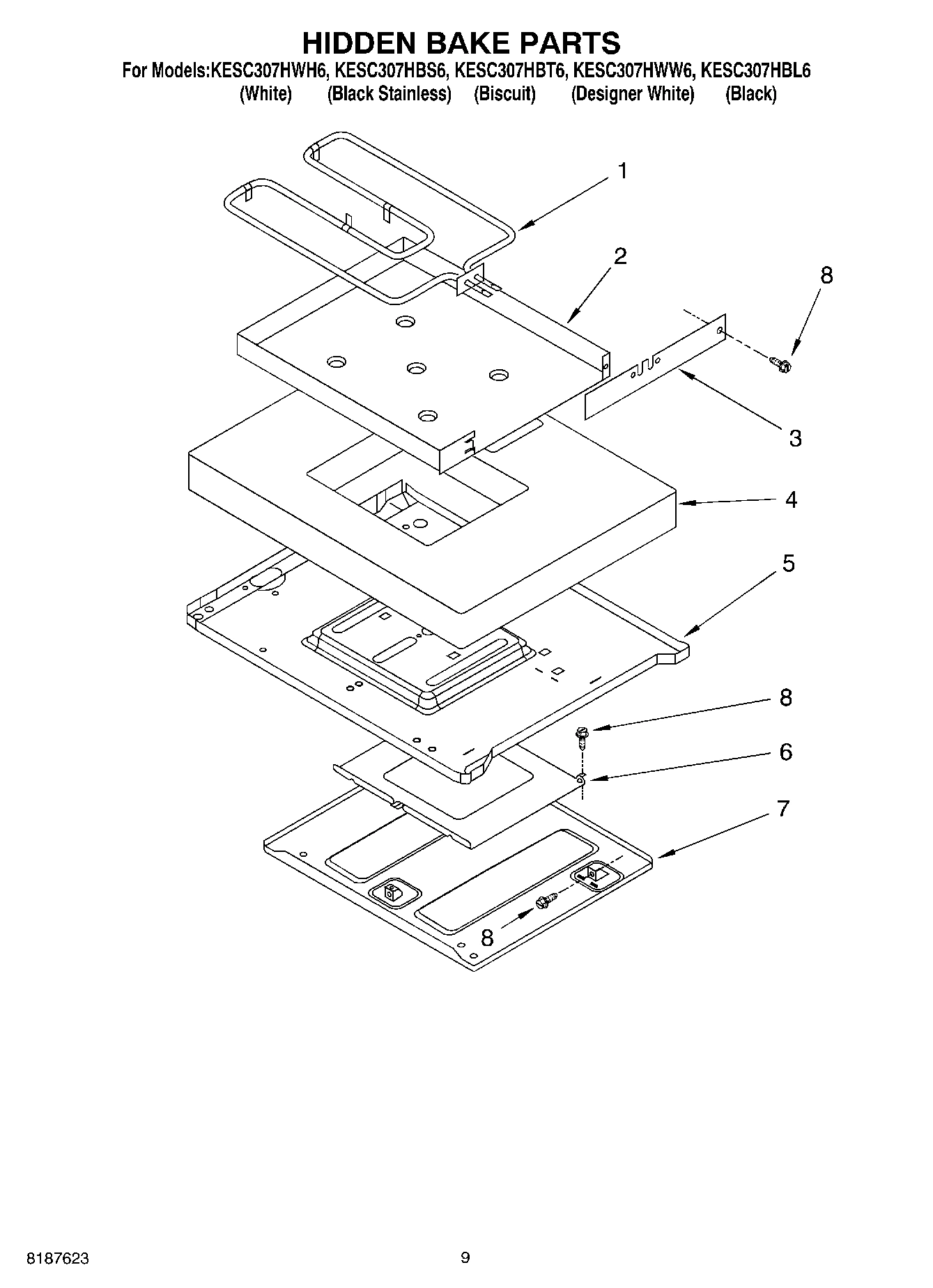

07 - HIDDEN BAKE

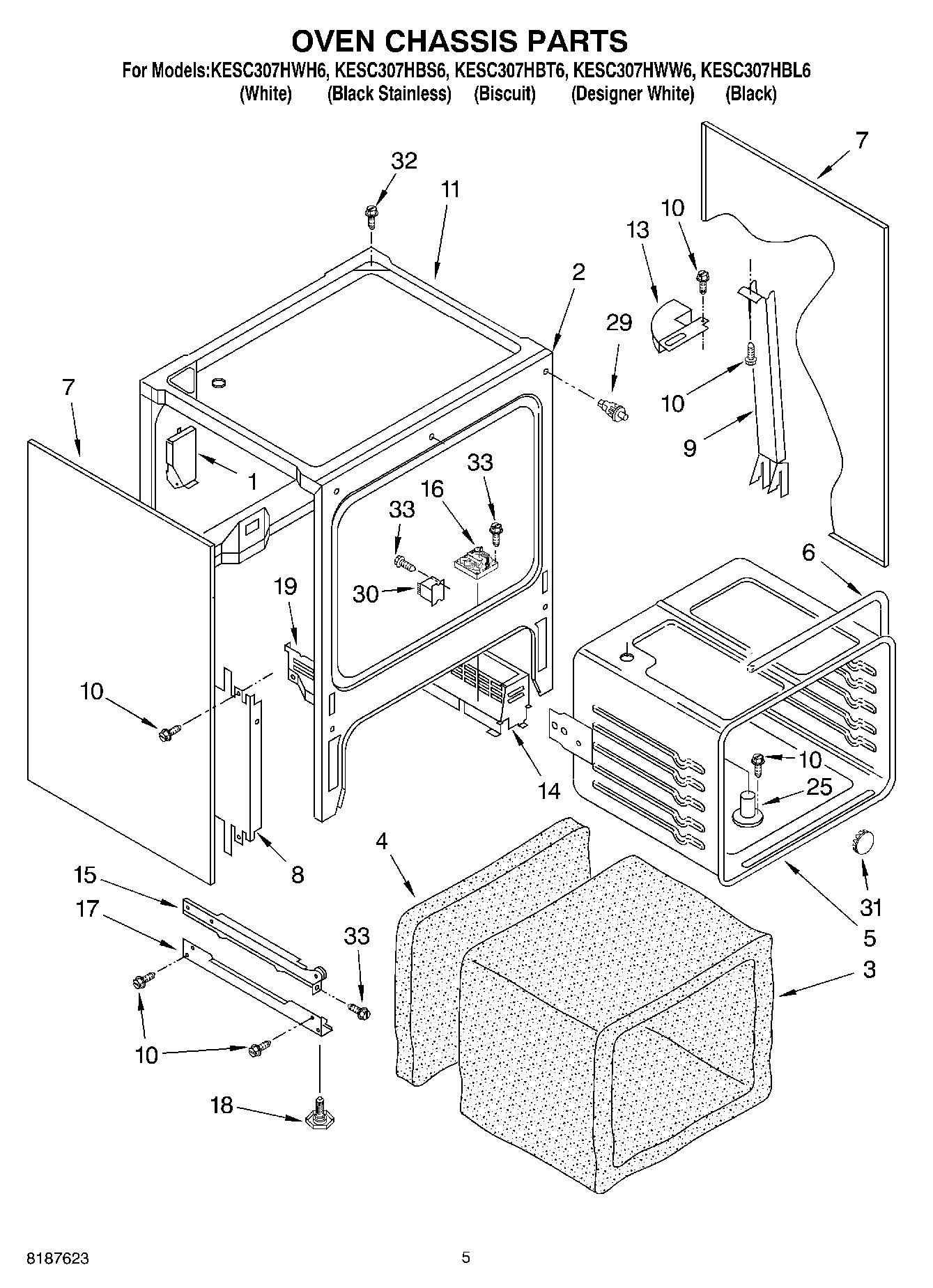

04 - OVEN CHASSIS

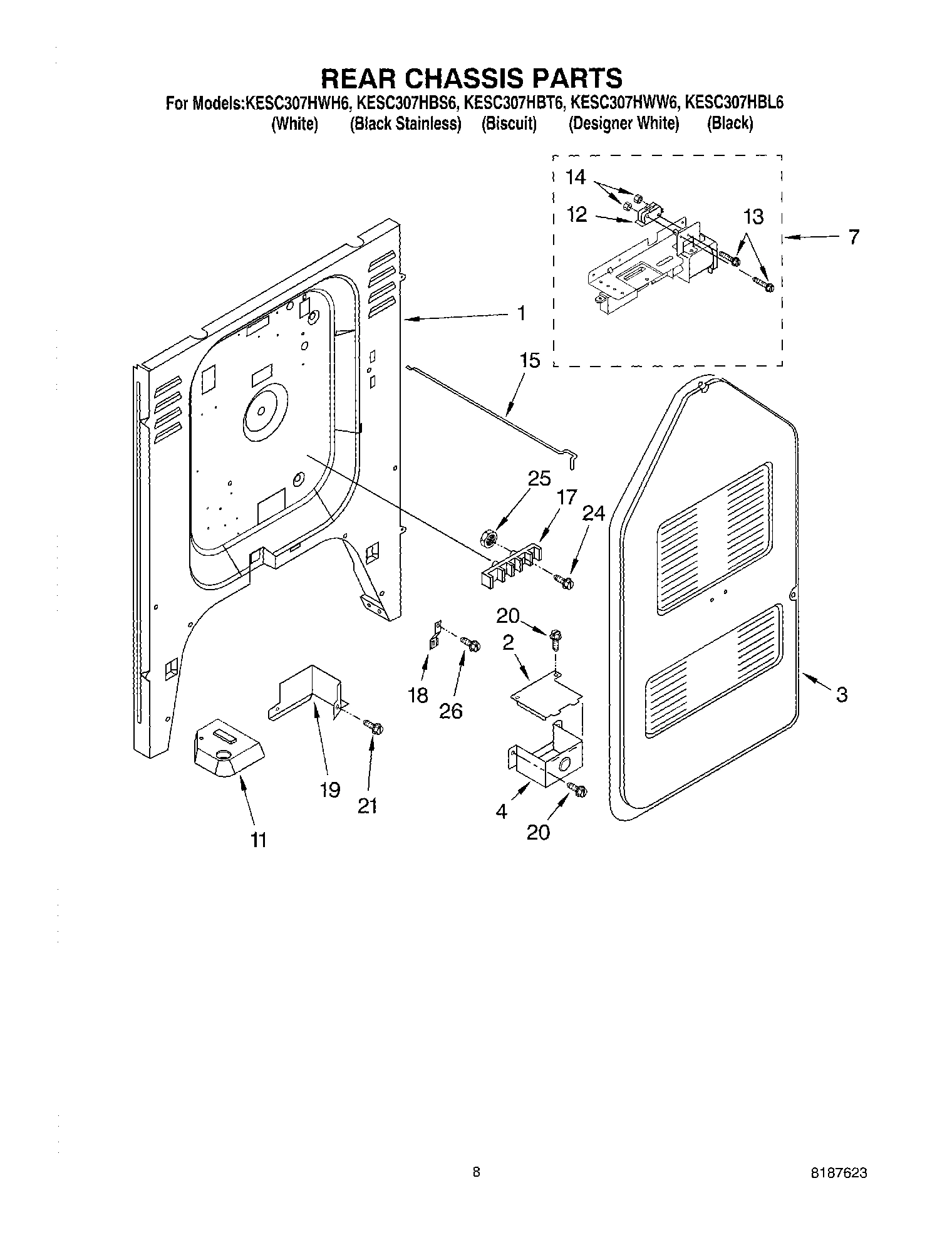

06 - REAR CHASSIS

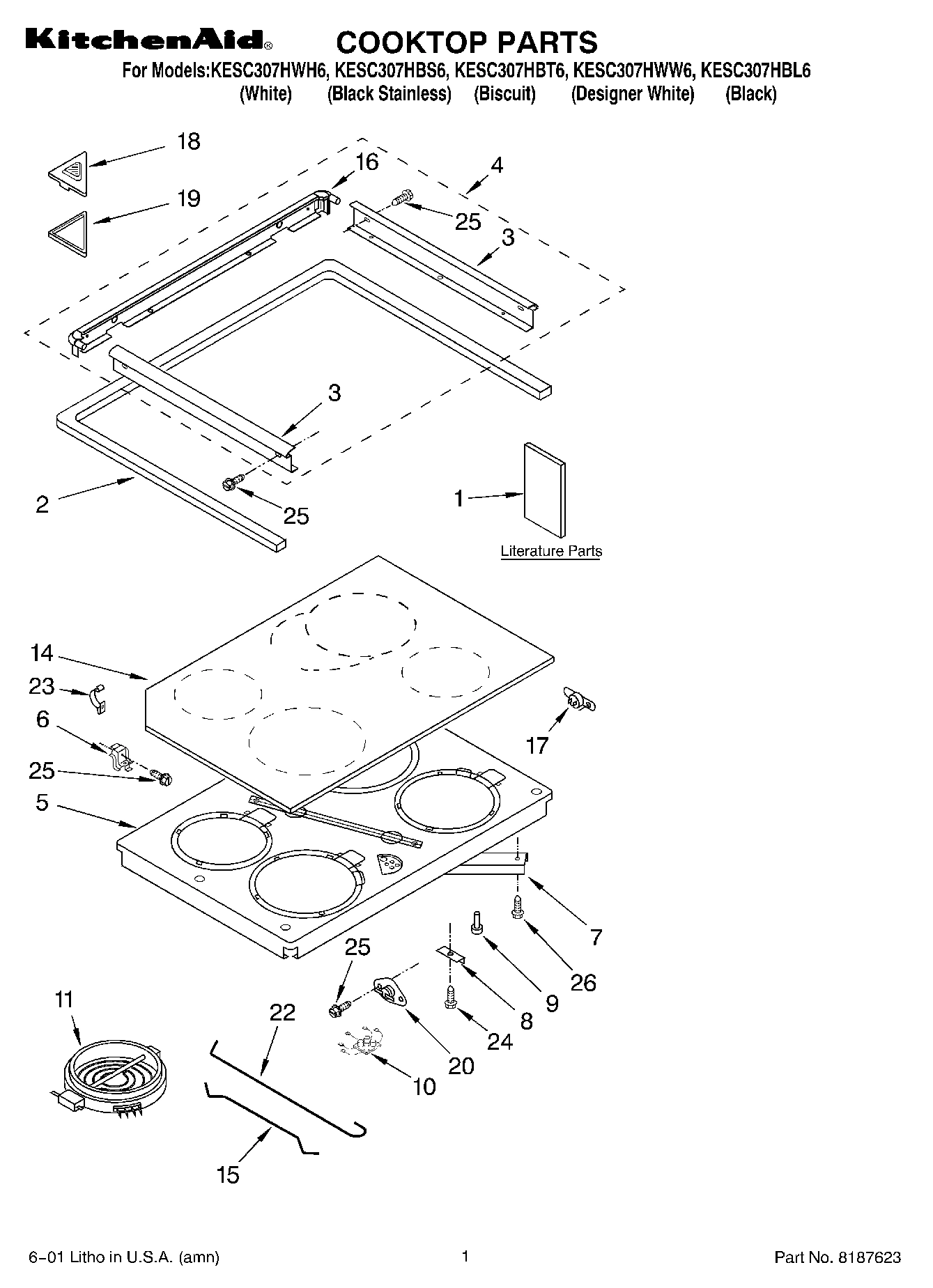

01 - COOKTOP, LITERATURE

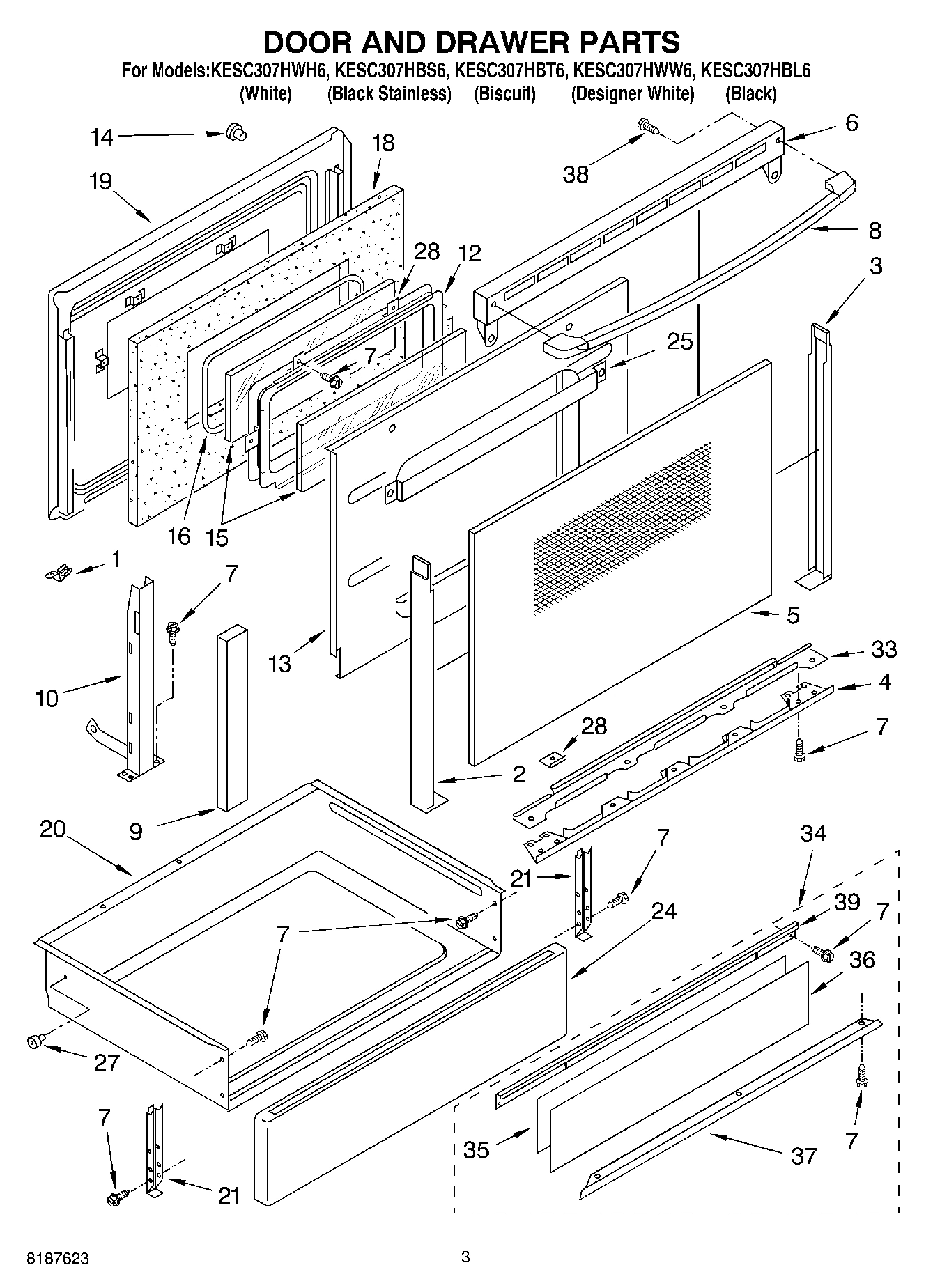

03 - DOOR & DRAWER
Common parts from model Whirlpool KESC307HWH6 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754287 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754365 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754373 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755234 Contact Us For Availability
1
Support, Door WPL 9750676 Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
3
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
3
Trim, Side (White) WPL 9781828PW Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly WPL 9755001 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Gasket, Door Vent WPL 9781659 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Anti-Tip Kit WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Grommet, Harness WPL 9751868 Contact Us For Availability
8
Harness, Wire (Dual Oven Light) WPL 9753374 Contact Us For Availability
8
Harness, Wire (Hidden Bake WPL 9754371 Contact Us For Availability
8
WPL 9755012 WPL 9755012 Contact Us For Availability
8
WPL 9755024 WPL 9755024 Contact Us For Availability
8
WPL 9755193 WPL 9755193 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9782111 WPL 9782111 Contact Us For Availability
8
WPL 9782183 WPL 9782183 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
10
Microcptr WPL 9754383 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Block, Balance WPL 9782330 Contact Us For Availability
12
Switch, Interlock WPL 9754291 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Cooktop, Ceran (Designer White) WPL 9755005CW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Black) WPL 9781831PB Contact Us For Availability
16
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
16
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver WPL 9782005 Contact Us For Availability
19
Back, Vent WPL 9751798 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting WPL 422617 Contact Us For Availability
22
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
24
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
24
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
WPL 9780272 WPL 9780272 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Relay WPL 9755194 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
33
Screw, 8-18 x 1/2 WPL 9751808 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (Stainless) WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Bot WPL 9750613PB Contact Us For Availability
39
