Model Whirlpool KESC307HBL8 COOKTOP – Common Parts & Diagrams
06 - REAR CHASSIS
04 - OVEN CHASSIS

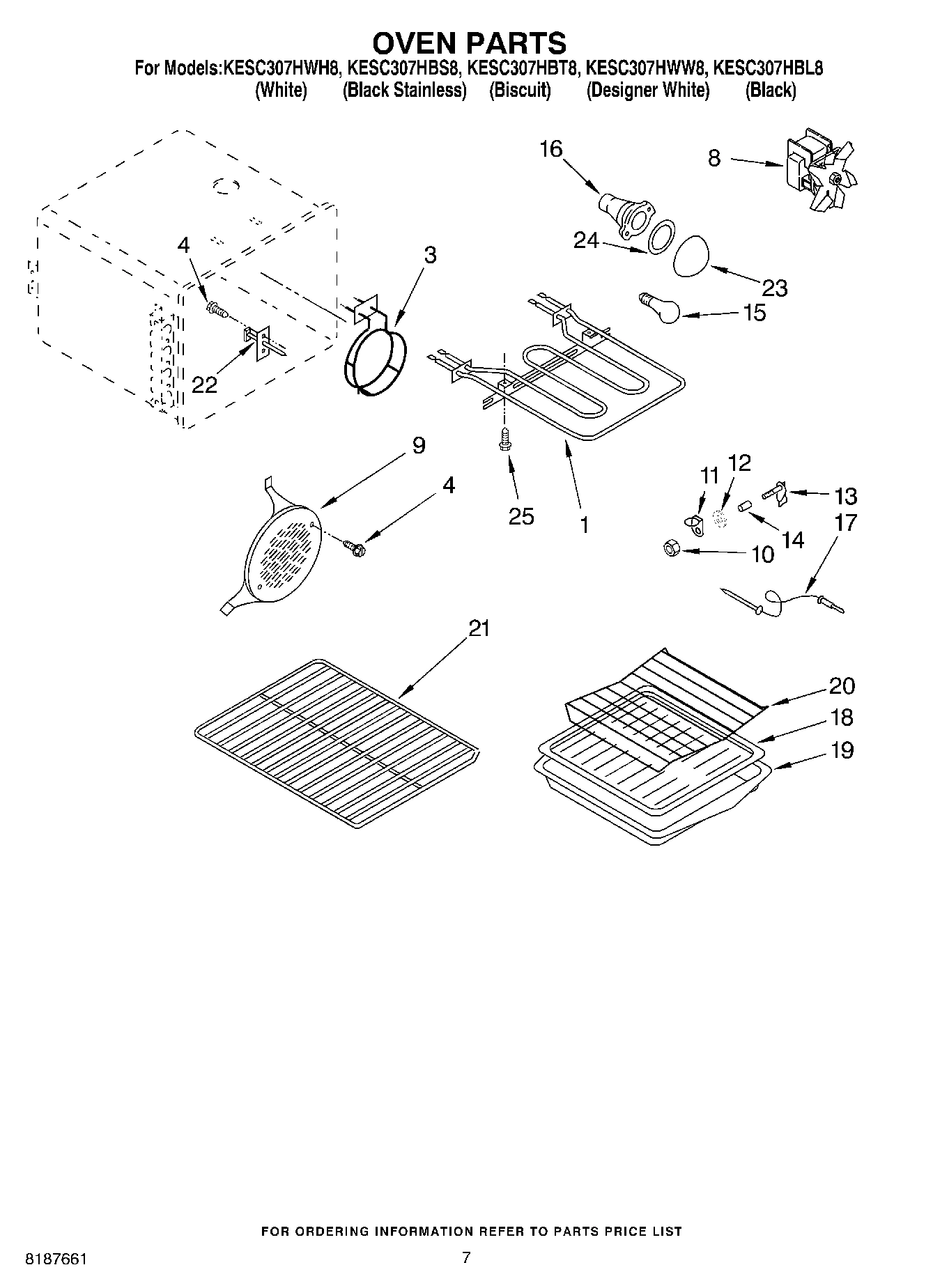

05 - OVEN

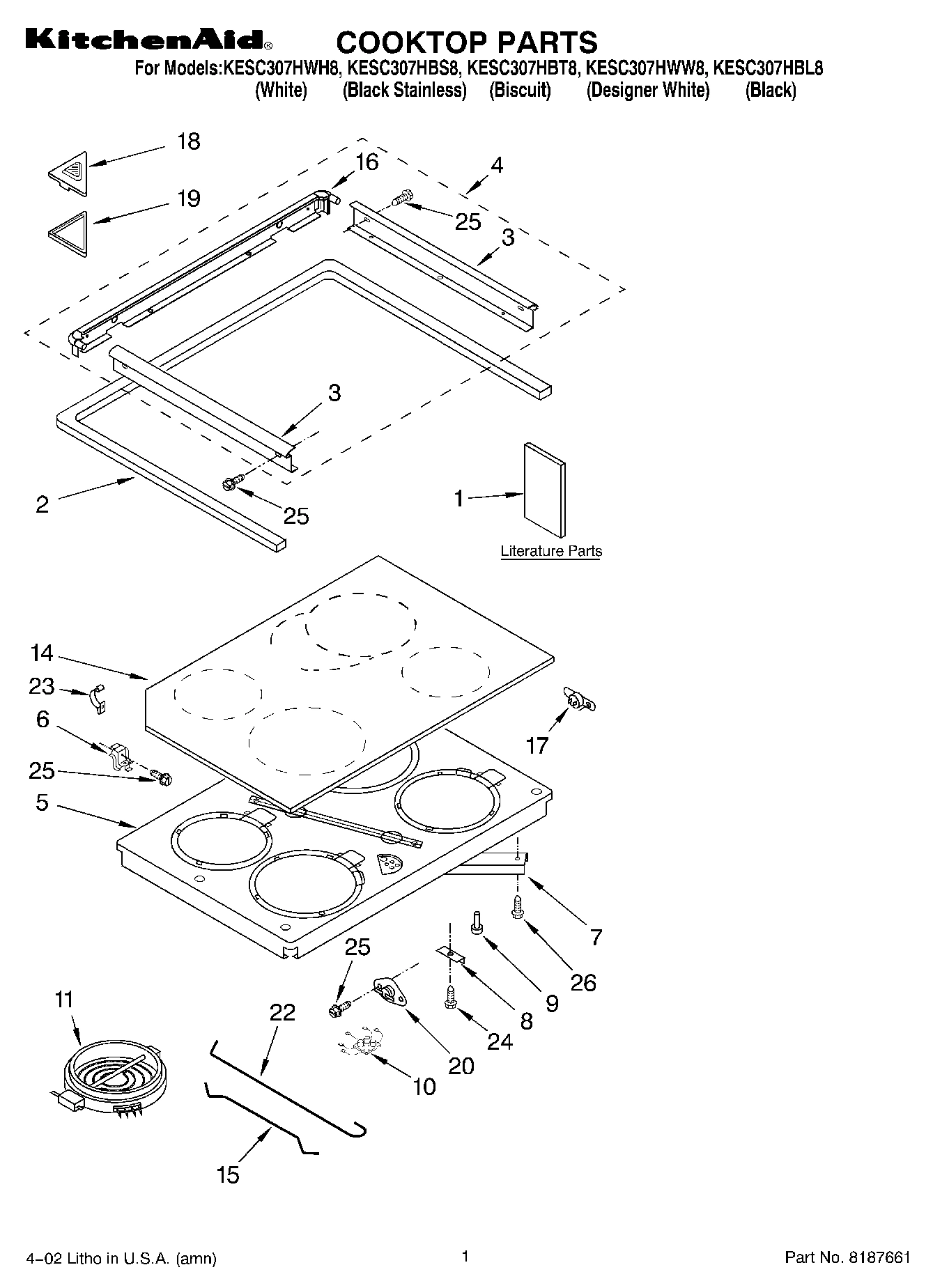

01 - COOKTOP, LITERATURE
02 - CONTROL PANEL

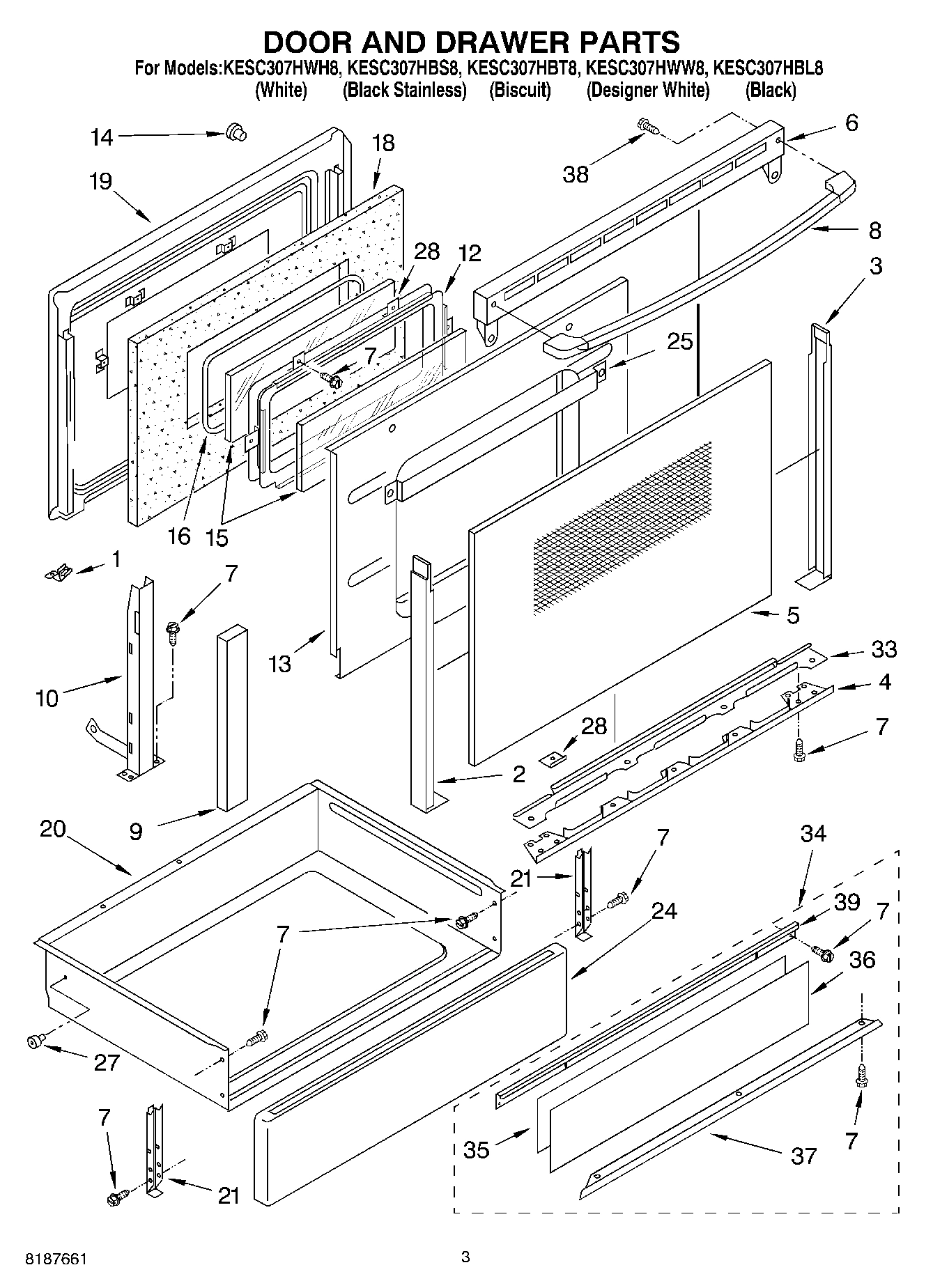

03 - DOOR AND DRAWER

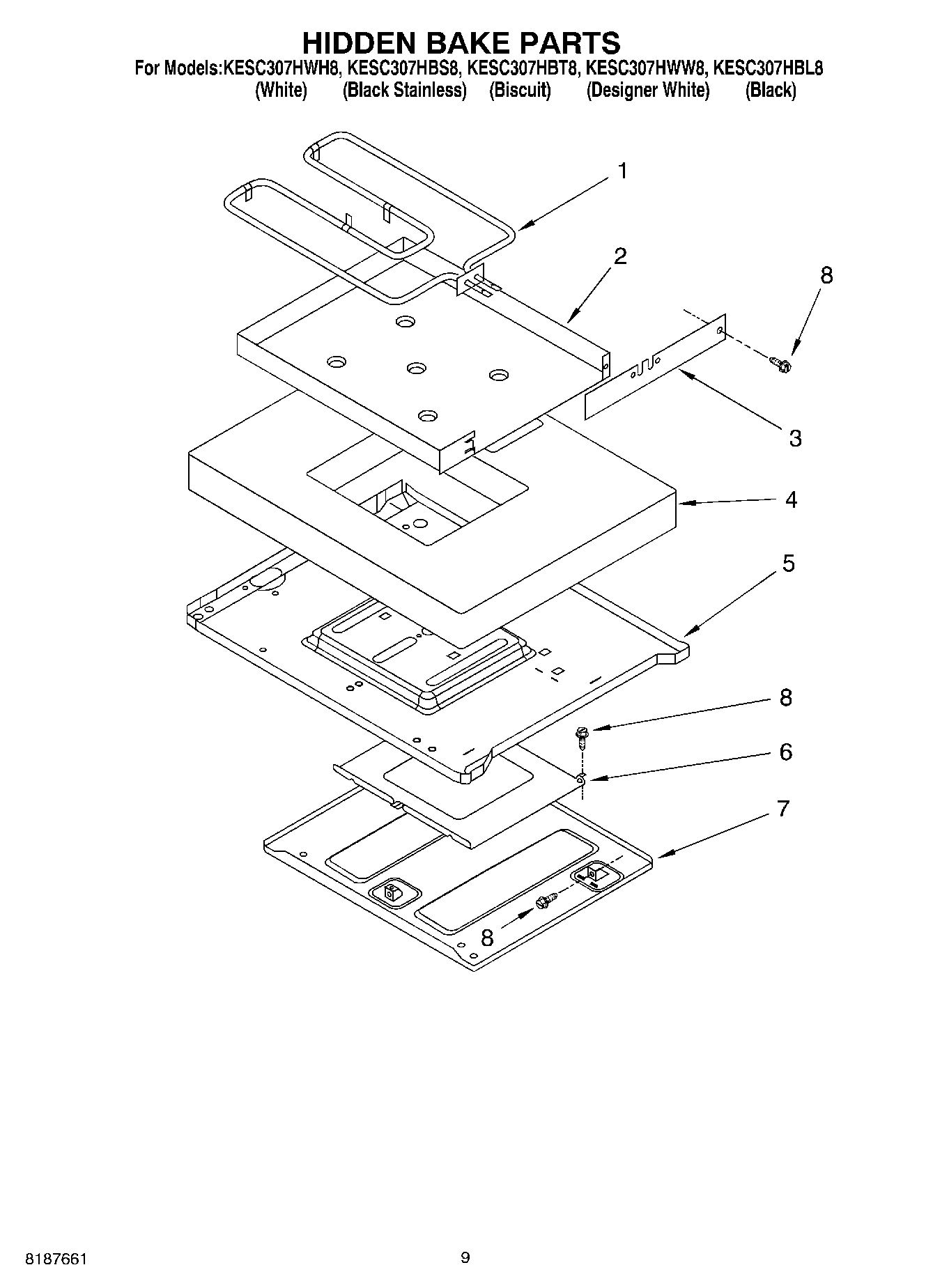

07 - HIDDEN BAKE
Common parts from model Whirlpool KESC307HBL8 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (Black) WPL 9782419CB Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754287 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754365 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754373 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755234 Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9782419CC Contact Us For Availability
1
Console, Glass (White) WPL 9782419CW Contact Us For Availability
1
Support, Door WPL 9750676 Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Board, Display WPL 9782430 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
3
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
3
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
3
Trim, Side (White) WPL 9781828PW Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Cover, Pan WPL 9782049 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751039FB Contact Us For Availability
4
End Cap Right Hand (Biscuit) WPL 9751039FC Contact Us For Availability
4
End Cap Right Hand (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (Biscuit (Left Hand)) WPL 9751040FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Gasket, Door Vent WPL 9781659 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
Anti-Tip Kit WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Grommet, Harness WPL 9751868 Contact Us For Availability
8
Harness, Wire (Dual Oven Light) WPL 9753374 Contact Us For Availability
8
Harness, Wire (Hidden Bake WPL 9754371 Contact Us For Availability
8
WPL 9755012 WPL 9755012 Contact Us For Availability
8
WPL 9755024 WPL 9755024 Contact Us For Availability
8
WPL 9755025 WPL 9755025 Contact Us For Availability
8
WPL 9755193 WPL 9755193 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9782111 WPL 9782111 Contact Us For Availability
8
WPL 9782183 WPL 9782183 Contact Us For Availability
8
WPL 9782443 WPL 9782443 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
10
Board, Power WPL 9782437 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Shield, Control Panel WPL 9755021 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Cooktop, Ceran (Designer White) WPL 9755005CW Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Black) WPL 9781831PB Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
16
Trim, Back (Incl. End Caps) (White) WPL 9781831PW Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
18
Vent, Cover WPL 9751800 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting WPL 422617 Contact Us For Availability
22
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
26
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Relay WPL 9755194 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (Stainless) WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Bot WPL 9750613PB Contact Us For Availability
39
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
× ![]()
