Model Whirlpool KESC307HBL0 COOKTOP – Common Parts & Diagrams

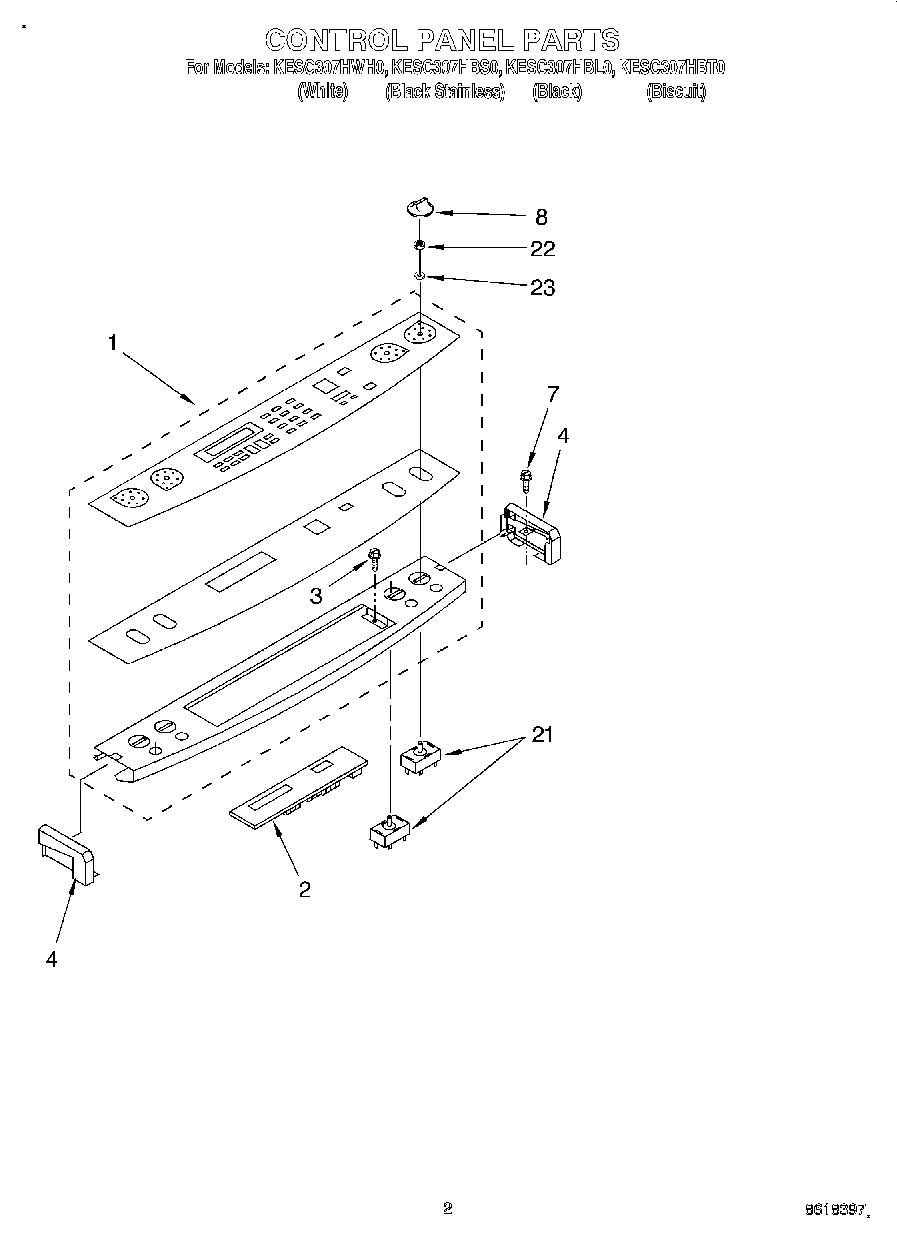

02 - CONTROL PANEL

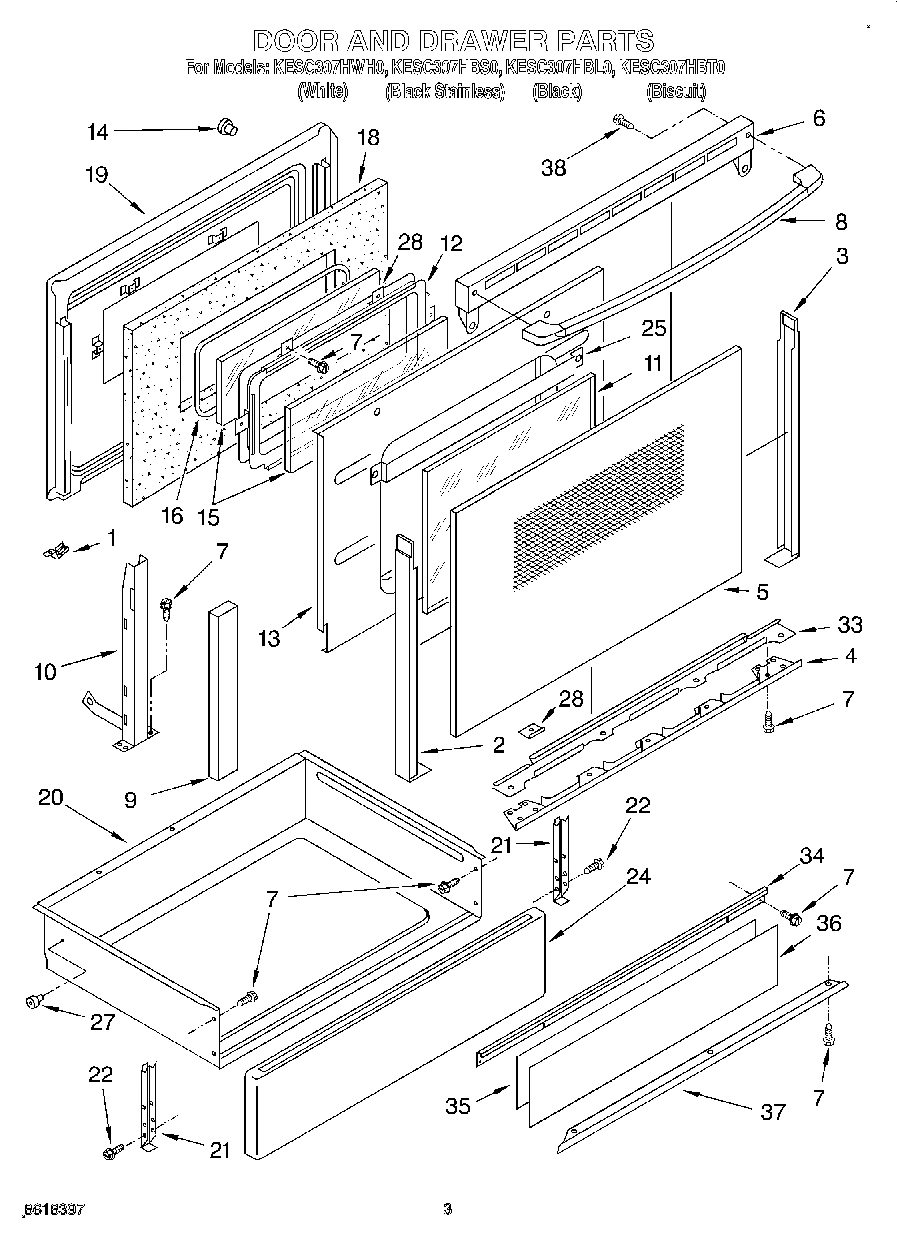

03 - DOOR AND DRAWER
04 - OVEN CHASSIS
07 - HIDDEN BAKE
05 - OVEN
06 - REAR CHASSIS
01 - COOKTOP, LITERATURE
Common parts from model Whirlpool KESC307HBL0 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Cookbook T/C Ovens WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752043 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753028 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753846 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Pan, Hidden Bake WPL 9752228 Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
3
Insulation, Wrap WPL 9753739 Contact Us For Availability
3
Cover, Pan WPL 9752250 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
3
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
3
Trim, Side (White) WPL 9781828PW Contact Us For Availability
4
Insulation WPL 9751323 Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Plate, Reflector WPL 9751641 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Shield WPL 9781025 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Glass Cleaner WPL W10355051 No Longer Available
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
PAINT, BULK WPL 799344 Contact Us For Availability
8
WPL 9751745 WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
WPL 9750221 WPL 9750221 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Coffee WPL 261886 Contact Us For Availability
8
New Avocado WPL 261888 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 9750222 WPL 9750222 Contact Us For Availability
8
WPL 9750376 WPL 9750376 Contact Us For Availability
8
WPL 9751139 WPL 9751139 Contact Us For Availability
8
WPL 9751868 WPL 9751868 Contact Us For Availability
8
WPL 9753683 WPL 9753683 Contact Us For Availability
8
WPL 9753943 WPL 9753943 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9781842 WPL 9781842 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Screw (2) WPL 9781509 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Block, Balance WPL 9753413 Contact Us For Availability
11
Element, Surface (2200W - RR) WPL 9753663 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Limiter, Temp. (LF) WPL 3191966 Contact Us For Availability
12
Limiter, Temp. (LR-RR-RF) WPL 8053620 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Trim, Back (Incl. End Caps) (Black) WPL 9781831PB Contact Us For Availability
16
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
16
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Back, Vent WPL 9751798 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9751904 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
21
Gasket, Console WPL 9751478 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
22
Rod, Large Ce WPL 9781459 Contact Us For Availability
23
Washer, No.10 Lock WPL 424238 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Front, Drawer (Stainless) WPL 9782109PB Contact Us For Availability
24
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
24
WPL 9751871 WPL 9751871 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
WPL 9780272 WPL 9780272 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
30
Relay WPL 9751948 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
33
Screw, 8-18 x 1/2 WPL 9751808 Contact Us For Availability
34
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (Stainless) WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Bot WPL 9750613PB Contact Us For Availability
× ![]()
