Model Whirlpool KESC307BWH4 COOKTOP – Common Parts & Diagrams

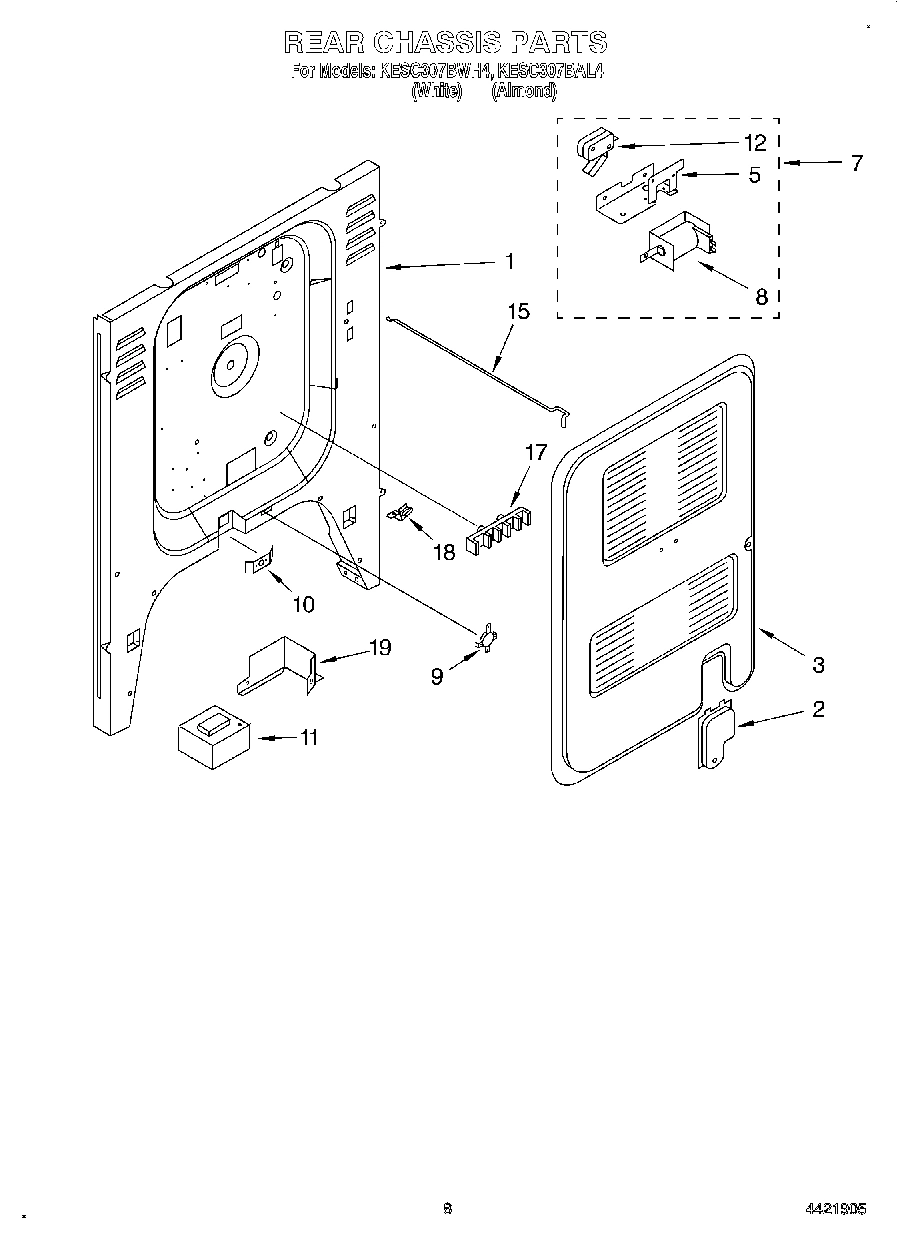

06 - REAR CHASSIS, LIT/OPTIONAL

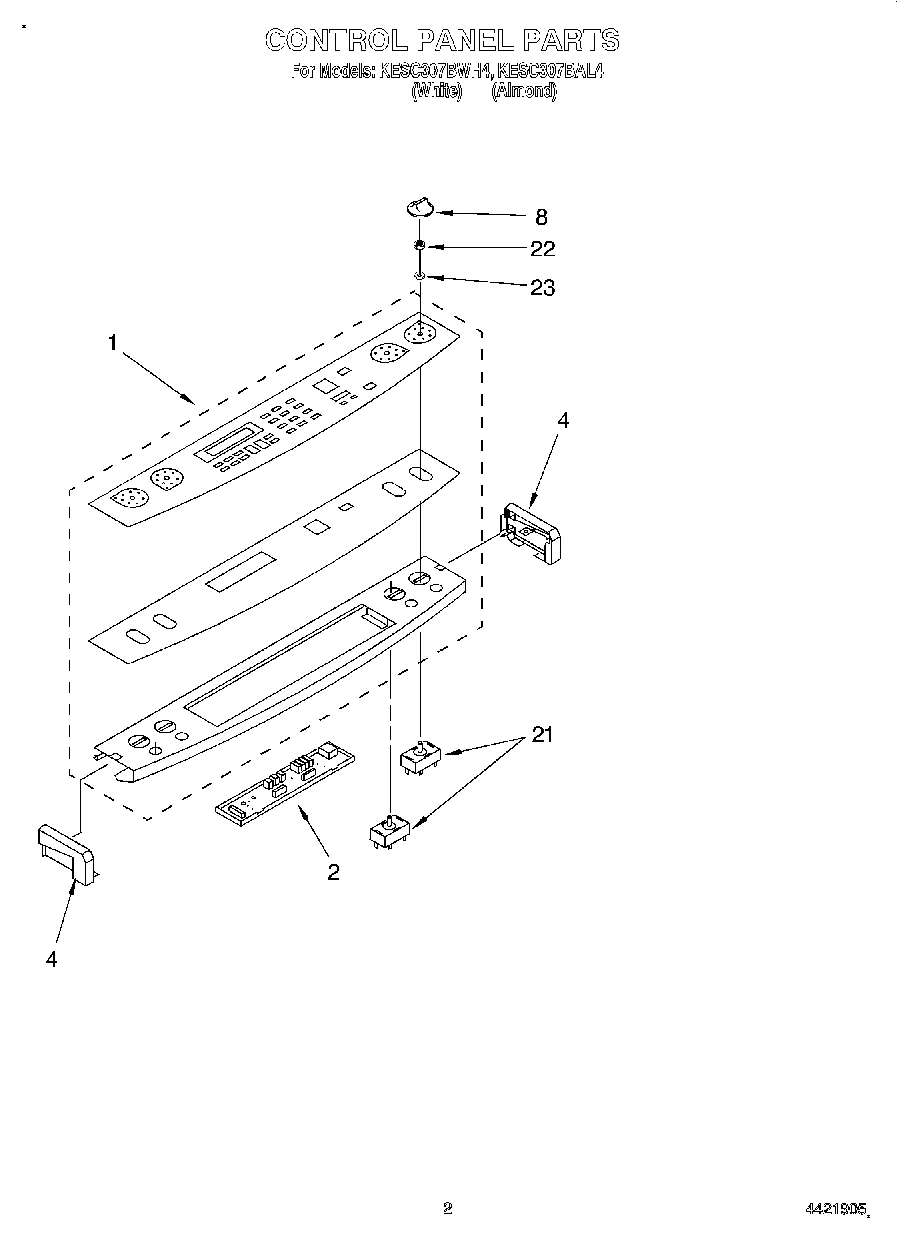

02 - CONTROL PANEL

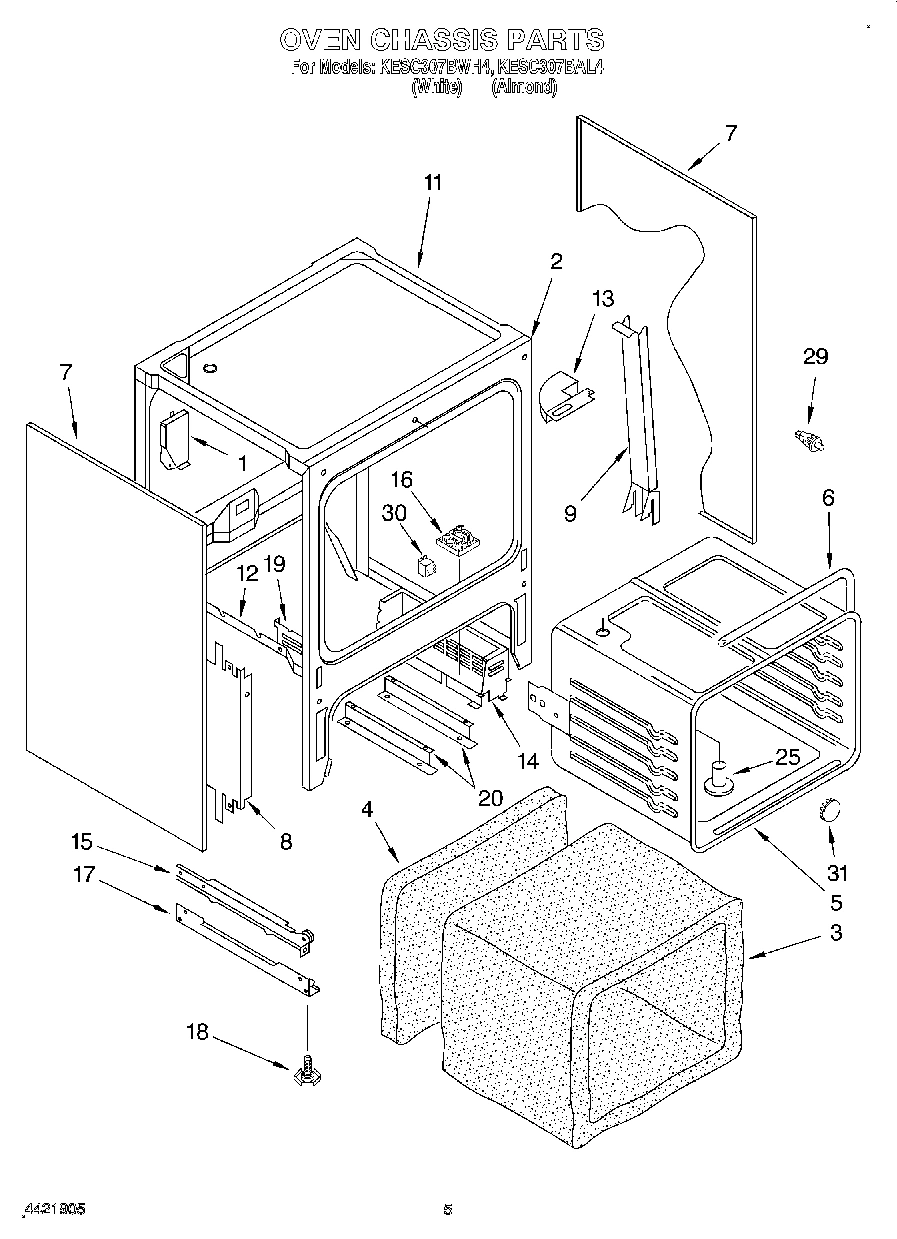

04 - OVEN CHASSIS

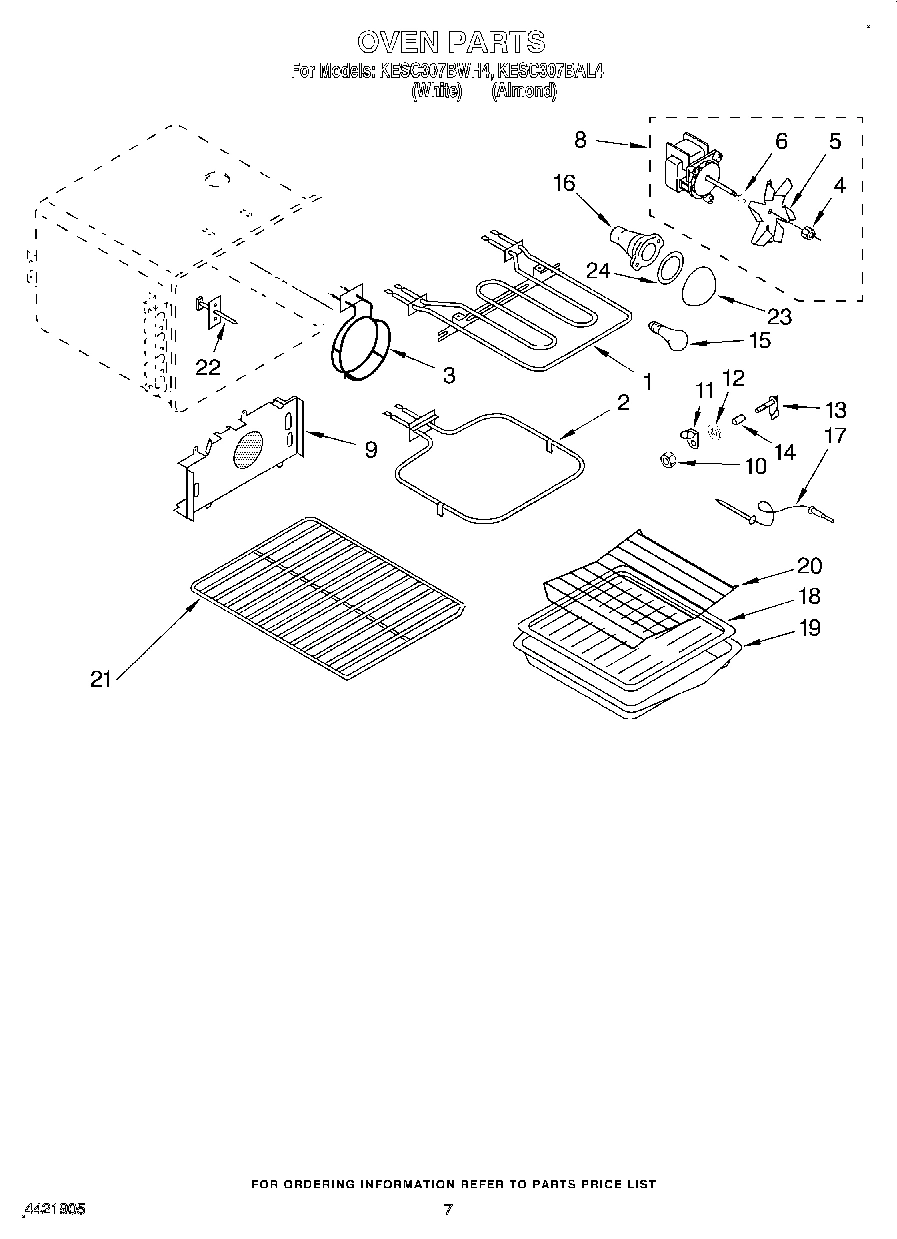

05 - OVEN

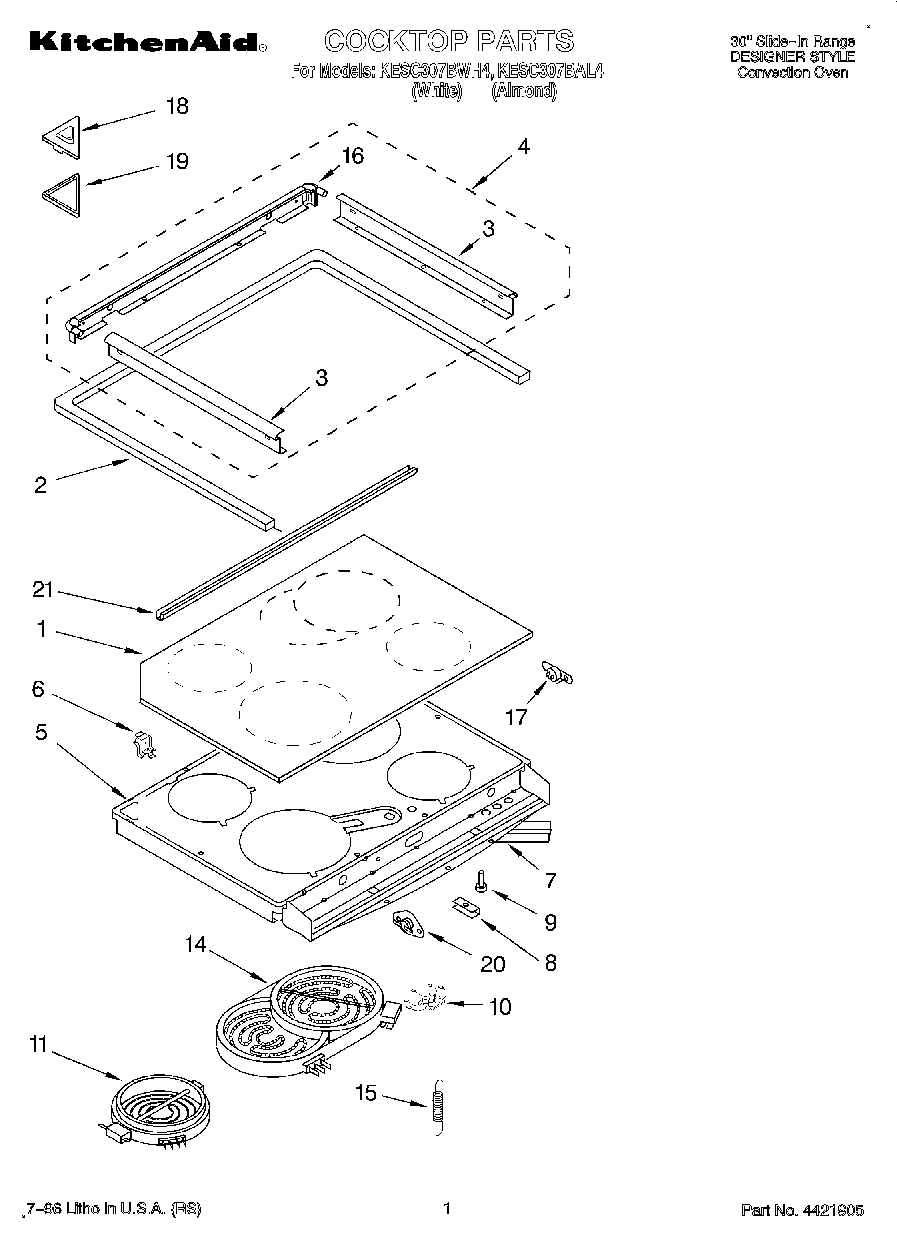

01 - COOKTOP

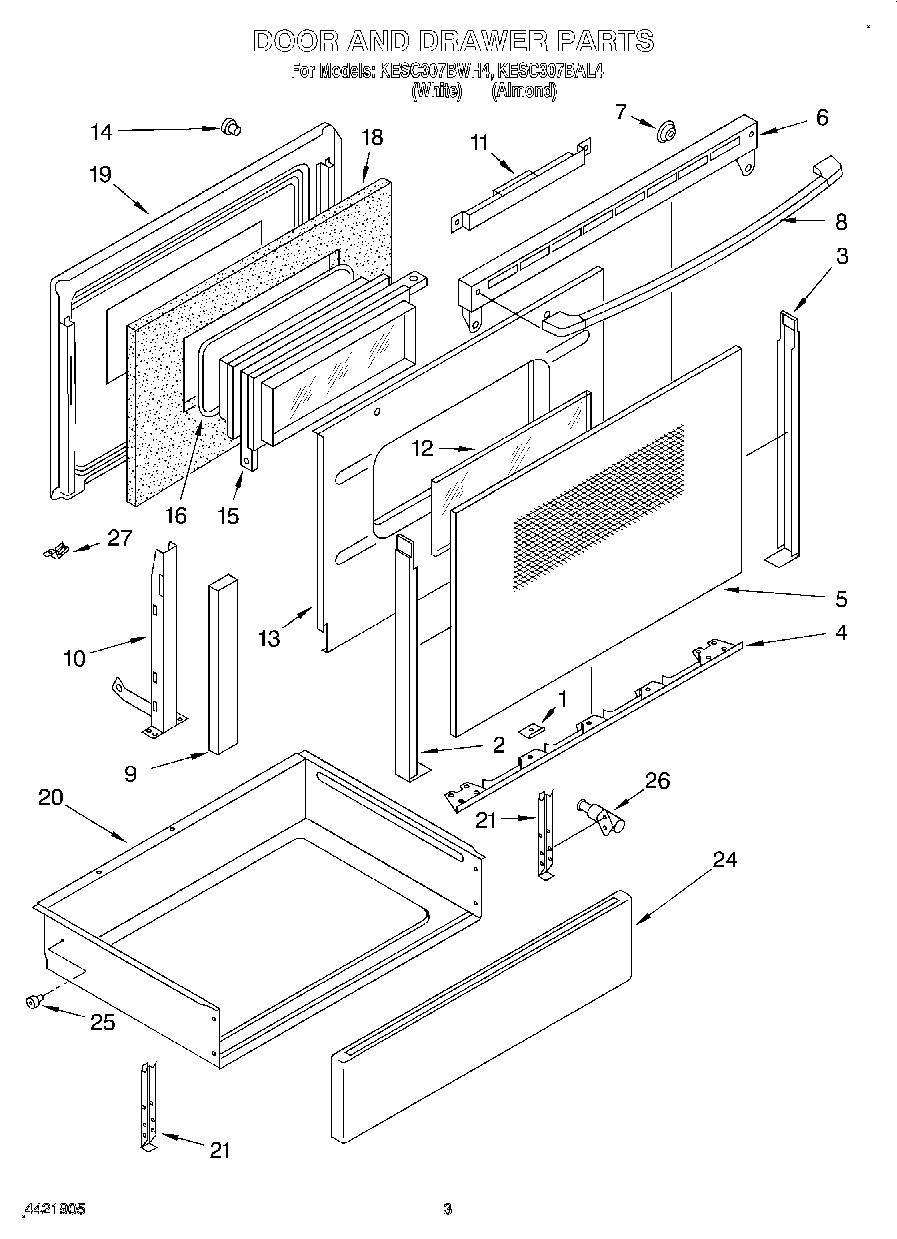

03 - DOOR AND DRAWER
Common parts from model Whirlpool KESC307BWH4 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (White) WPL 9751898 Contact Us For Availability
1
Console, Glass (Almond) WPL 9751903 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751752 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751753 Contact Us For Availability
1
Retainer, Glass WPL 9781206 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Timer, Electronic WPL 3190378 Contact Us For Availability
2
Chassis, Front WPL 4212002 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4212028 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Trim, Side (Almond) WPL 9751440PT Contact Us For Availability
3
Trim, Side (White) WPL 9751440PW Contact Us For Availability
3
Trim, Door-Right (White) WPL 4212029 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 4421436 Contact Us For Availability
4
(End Cap Left Hand) (Almond) WPL 4421437 Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 4421439 Contact Us For Availability
4
End Cap Right Hand (Almond) WPL 4421440 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4421430 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4421431 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781292GM Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
5
Support, Element WPL 9781465 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Vent, Door (Almond) WPL 9751242GT Contact Us For Availability
6
Vent, Door (White) WPL 9751242GW Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781450 Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
7
Spacer, Door Vent WPL 9781453 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Assembly, Fan WPL 9751259 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Screw, (4) 10 x 3/4 WPL 9751871 Contact Us For Availability
8
Handle, Door (White) WPL 4212069 Contact Us For Availability
8
Handle, Door (Almond Mdl.) WPL 4421442 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Baffle, Convection WPL 4211894 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Burner Box WPL 9751166 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Element, Surface (160 MM - LR) WPL 3189894 Contact Us For Availability
11
Element, Surface (180 MM - RF) WPL 3189895 Contact Us For Availability
11
Element, Surface (230 MM - LF) WPL 3189897 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Dual Element, RR WPL 9752233 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Spring WPL 9781211 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
16
Screw (2) 8 x 1/4 WPL 9780271 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Trim, Back (Includes End Caps) (Almond) WPL 9752045PT Contact Us For Availability
16
Trim, Back (Includes End Caps) (White) WPL 9752045PW Contact Us For Availability
16
Seal, Glass WPL 9751135 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Ground Strap WPL 308498 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
19
WPL W10355051 No Longer Available
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
WPL 9751745 WPL 9751745 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
Coffee WPL 261886 Contact Us For Availability
19
New Avocado WPL 261888 Contact Us For Availability
19
Harvest Gold WPL 261890 Contact Us For Availability
19
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
19
Toast WPL 285365 Contact Us For Availability
19
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
19
Enamal, To WPL 285367 Contact Us For Availability
19
WPL 285368 WPL 285368 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 72112 WPL 72112 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 9751798 WPL 9751798 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
21
Gasket, Console WPL 9751478 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 4211830 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9781509 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
27
Retainer, Glass WPL 9750676 Contact Us For Availability
29
Door Switch WPL 9750897 Contact Us For Availability
30
Relay WPL 9751948 Contact Us For Availability
30
Screw (3) WPL 9751808 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
× ![]()
