Model Whirlpool KESC307BAL1 COOKTOP – Common Parts & Diagrams

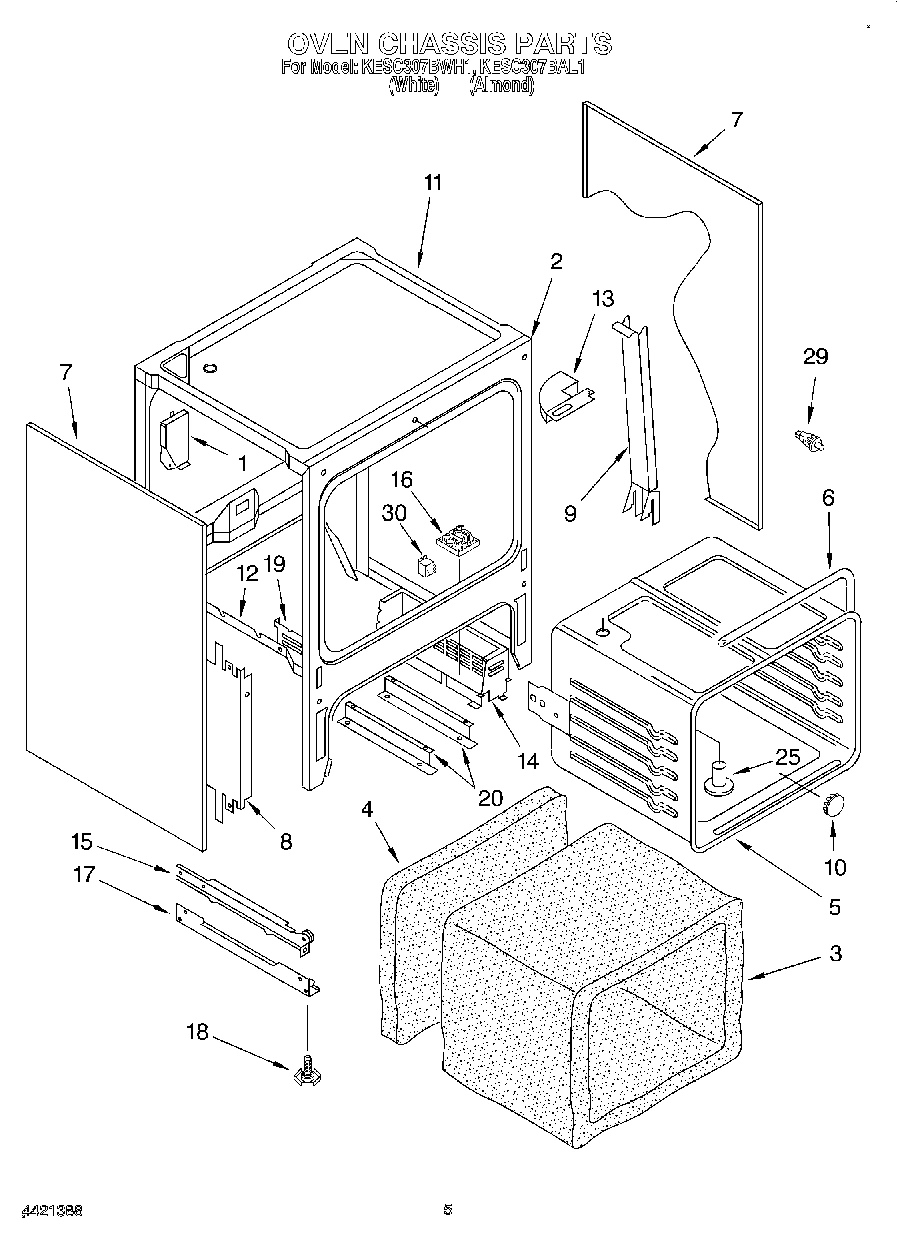

04 - OVEN CHASSIS

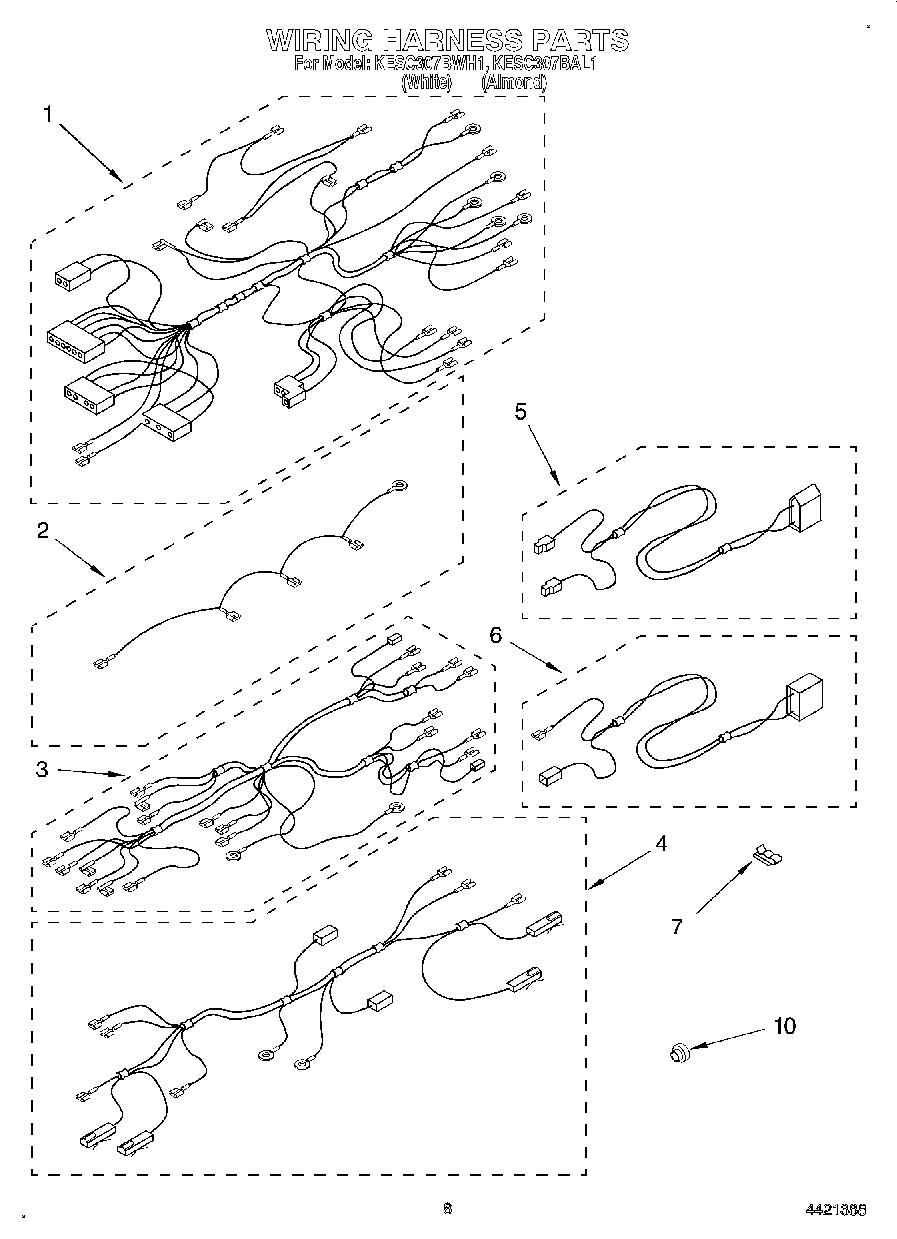

06 - WIRING HARNESS
01 - COOKTOP, LITERATURE
05 - OVEN
07 - REAR CHASSIS, OPTIONAL
03 - DOOR AND DRAWER
02 - CONTROL PANEL
Common parts from model Whirlpool KESC307BAL1 COOKTOP
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Tech Sheet-K/A WPL LIT9751598 Contact Us For Availability
Quick Set (Oven) WPL LIT9751599 Contact Us For Availability
Use And Care Guide WPL LIT9751685 Contact Us For Availability
Wiring Diagram WPL LIT9751760 Contact Us For Availability
Installation Instructions WPL LIT9752043 Contact Us For Availability
Cookbook, T/C Ovens WPL LIT9780959 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751752 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751753 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (White) WPL 9751898 Contact Us For Availability
1
Console, Glass (Almond) WPL 9751903 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4212028 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Screw, (2) WPL 9780271 Contact Us For Availability
2
Timer, Electronic WPL 3190378 Contact Us For Availability
3
Harness, Wire (Cooktop) WPL 9751519 Contact Us For Availability
3
Trim, Side (Almond) WPL 9751440PT Contact Us For Availability
3
Trim, Side (White) WPL 9751440PW Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Panel, Rear Cover WPL 9751354 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4212029 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
4
Harness, Wire (Ceran) WPL 9752036 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4421430 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4421431 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
4
Trim, Door Bottom (White) WPL 4212030 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9750236PT Contact Us For Availability
4
End Cap L.H. (White) WPL 4421436 Contact Us For Availability
4
End Cap R.H. (White) WPL 4421439 Contact Us For Availability
4
End Cap L.H. (Almond) WPL 9751039PT Contact Us For Availability
4
End Cap R.H. (Almond) WPL 9751040PT Contact Us For Availability
5
Harness, Wire (Door) WPL 9750376 Contact Us For Availability
5
Support, Element WPL 9751319 Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
6
Screw (4) 10 x 1/2 WPL 3149333 Contact Us For Availability
6
Harness, Wire (Probe) WPL 9751139 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
6
Vent, Door (White) WPL 4212224 Contact Us For Availability
6
Vent, Door (Almond) WPL 4421443 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Vent Back WPL 9750898 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Screw, (4) 10 x 1`` WPL 9751871 Contact Us For Availability
8
Assembly, Fan WPL 9751259 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Handle, Door (White) WPL 4212069 Contact Us For Availability
8
Handle, Door (Almond Mdl.) WPL 4421442 Contact Us For Availability
9
Baffle, Convection WPL 4211894 Contact Us For Availability
9
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
9
Fuse, Bi-Metal WPL 3149652 Contact Us For Availability
9
Gasket, Door Glass WPL 9750694 Contact Us For Availability
10
Grommet, Harness WPL 9751868 Contact Us For Availability
10
Hot Light WPL 9780931 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Bracket, Power Cord WPL 9750491 Contact Us For Availability
10
Indicator Lens (4) WPL 9780799 Contact Us For Availability
11
Element, Surface (230 MM - LF) WPL 9751527 Contact Us For Availability
11
Element, Surface (160 MM - LR) WPL 9751528 Contact Us For Availability
11
Element, Surface (180 MM - RF) WPL 9751529 Contact Us For Availability
11
Element, Surface (Dual Element, RR) WPL 9751530 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Block, Balance WPL 312804 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
11
Light, Indicator WPL 9751712 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Spring (14) WPL 9781211 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Window Pack (Assembly) WPL 9751245 Contact Us For Availability
16
Limiter, Temp. (160MM-LR) WPL 3169338 Contact Us For Availability
16
Limiter, Temp. (180MM-RF) WPL 3169339 Contact Us For Availability
16
Limiter, Temp. (230MM-LF) WPL 3169346 Contact Us For Availability
16
Limiter, Temp. (210MM-RR) WPL 3183975 Contact Us For Availability
16
Seal, Glass WPL 9751135 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
Coffee WPL 261886 Contact Us For Availability
19
New Avoca WPL 261888 Contact Us For Availability
19
WPL 261890 WPL 261890 Contact Us For Availability
19
WPL 261891 WPL 261891 Contact Us For Availability
19
WPL 285365 WPL 285365 Contact Us For Availability
19
WPL 285366 WPL 285366 Contact Us For Availability
19
WPL 285367 WPL 285367 Contact Us For Availability
19
WPL 285368 WPL 285368 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 72112 WPL 72112 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 9751798 WPL 9751798 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Trim, Back (Includes End Caps) (Almond) WPL 9752045PT Contact Us For Availability
20
Trim, Back (Includes End Caps) (White) WPL 9752045PW Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9781509 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
22
Nut, Mounting (LR-LF-RR) WPL 4211830 Contact Us For Availability
22
Nut, Mounting (RR) WPL 9751711 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw WPL 9780806 Contact Us For Availability
27
Retainer, Glass WPL 9781206 Contact Us For Availability
30
Anti-Tip Kit WPL 9751745 Contact Us For Availability
30
Relay, Doubler WPL 9751948 Contact Us For Availability
× ![]()
