Model Whirlpool KERS807SWW02 30`` FREE STANDING ELECTRIC OVEN SELF CLEAN – Common Parts & Diagrams

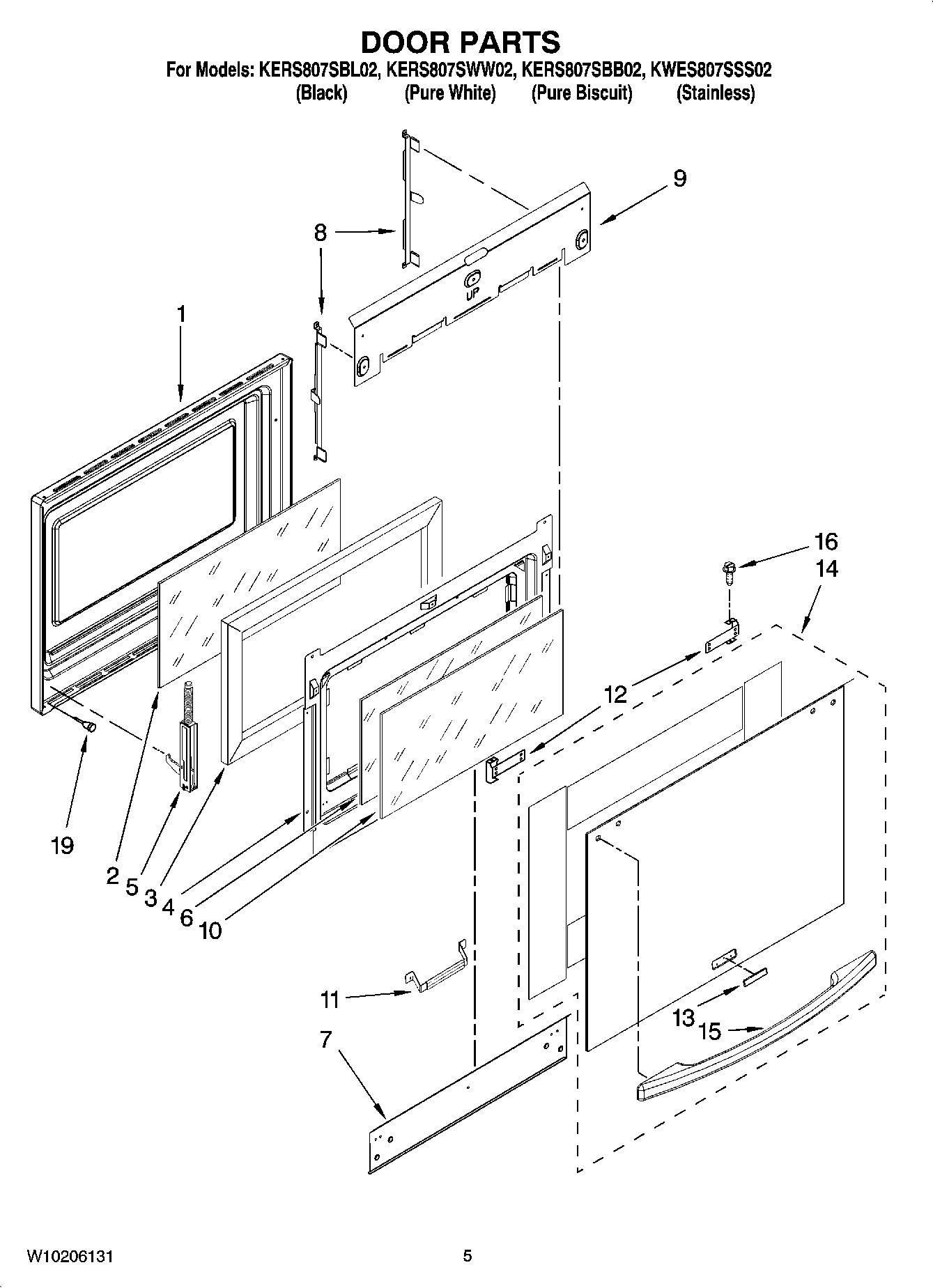

03 - DOOR PARTS

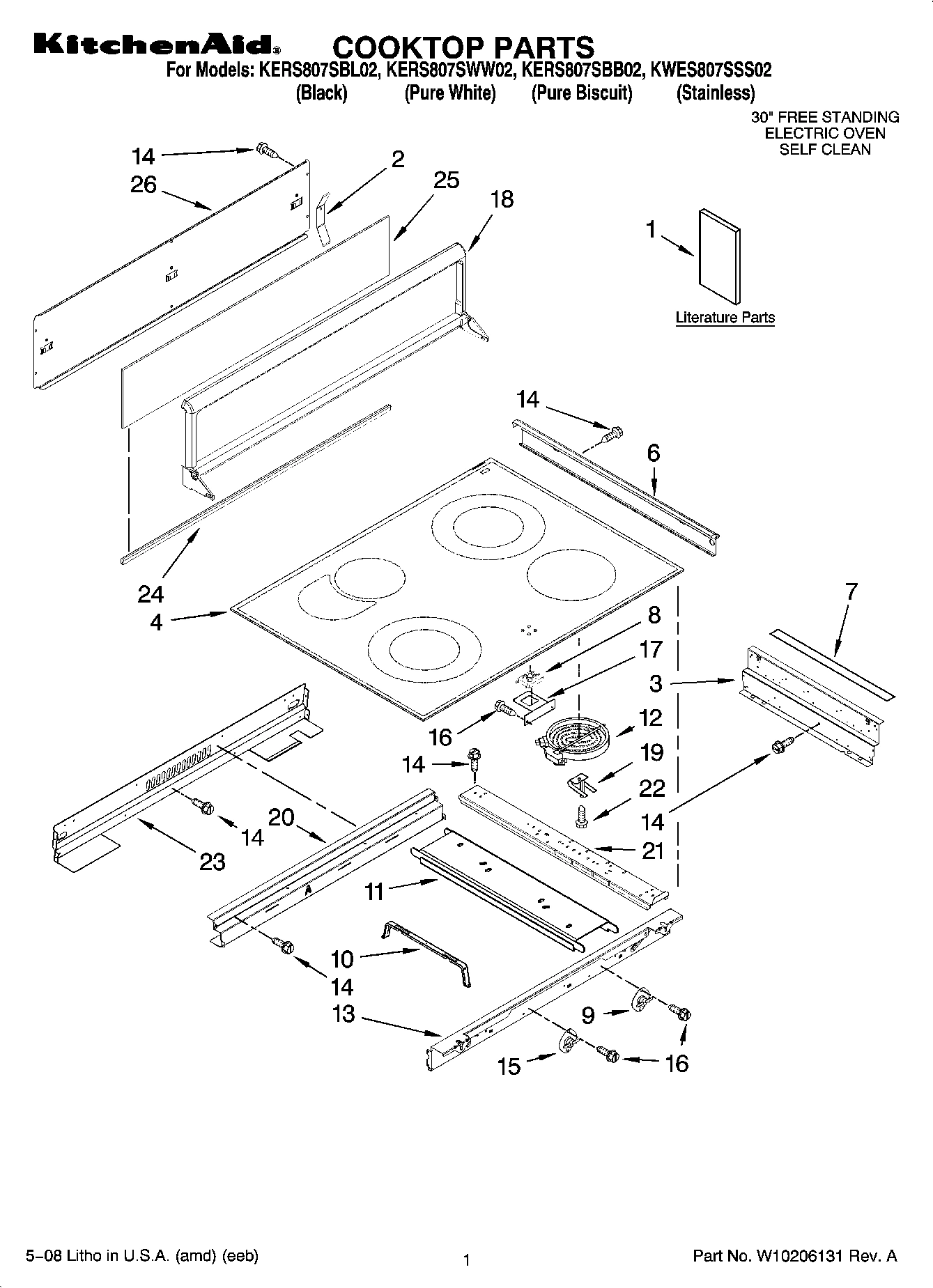

01 - COOKTOP PARTS
05 - CONTROL PANEL PARTS
07 - TOP VENTING PARTS, OPTIONAL PARTS
02 - OVEN PARTS
04 - DRAWER PARTS
06 - INTERNAL OVEN PARTS
Common parts from model Whirlpool KERS807SWW02 30`` FREE STANDING ELECTRIC OVEN SELF CLEAN
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability
Harness, Main WPL W10137680 Contact Us For Availability
Harness, Switch WPL W10157935 Contact Us For Availability
WPL 9756817 WPL 9756817 Contact Us For Availability
Harness, Ground Strap WPL 9763481 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
BUSHING SNAP SPLIT 1`` WPL 9757778 Contact Us For Availability
ADHESIVE WPL ARI86577A8 Contact Us For Availability
SPLICING WIRES--25FT. LENGTH WPL ARI86578A4 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI86579A1 Contact Us For Availability
Miscellaneous WPL ARI86580A8 Contact Us For Availability
19mm WPL W10123242 Contact Us For Availability
38mm WPL W10127413 Contact Us For Availability
Cooktop, Electric Switch WPL W10137677 Contact Us For Availability
GROMMET, FLEX, 60MM WPL W10177363 Contact Us For Availability
WPL 9756470 WPL 9756470 Contact Us For Availability
WPL ARI86575A5 WPL ARI86575A5 Contact Us For Availability
WPL ARI86576A1 WPL ARI86576A1 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel (White) WPL 9761551WH Contact Us For Availability
1
Control Panel (Black) WPL 9761551BL Contact Us For Availability
1
Control Panel (Biscuit) WPL 9761551BT Contact Us For Availability
1
Control Panel (Stainless) WPL W10156268 Contact Us For Availability
1
TRIM, SIDE (LEFT) (BLACK) WPL W10109490 Contact Us For Availability
1
TRIM, SIDE (LEFT) (BISCUIT) WPL W10109500 Contact Us For Availability
1
TRIM, SIDE (LEFT) (WHITE) WPL W10109520 Contact Us For Availability
1
Trim, Side Right (Black) WPL W10109540 Contact Us For Availability
1
Trim, Side Right (Biscuit) WPL W10109550 Contact Us For Availability
1
Trim, Side Right (White) WPL W10109570 Contact Us For Availability
1
TRIM, SIDE (LEFT STAINLESS) WPL W10140547 Contact Us For Availability
1
TRIM, SIDE (RIGHT STAINLESS) WPL W10140548 Contact Us For Availability
1
Support, Drawer Rail (Left) WPL 9757686 Contact Us For Availability
1
Support, Drawer Rail (Right) WPL 9757687 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Support, Front & Rear WPL 9763501BL Contact Us For Availability
3
Control, Electric WPL W10181439 Contact Us For Availability
3
Brace, Drawer (Right) WPL 4453720 Contact Us For Availability
3
Brace, Drawer (Left) WPL 4453721 Contact Us For Availability
4
Bumper, Door (2) WPL W10105790 Contact Us For Availability
4
Shield, Console Vent WPL W10105370 Contact Us For Availability
5
Side, Base (Right) WPL 9759953 Contact Us For Availability
5
Side, Base (Left) WPL 9759954 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Bracket, Terminal Box WPL W10143041 Contact Us For Availability
7
Gasket (2) WPL W10076030 Contact Us For Availability
7
Bracket, Thermostat (2) WPL 9761745 Contact Us For Availability
7
Top Chassis WPL 8303099 Contact Us For Availability
8
Light, Indicator WPL 8523739 Contact Us For Availability
8
Gasket, Vent Shield WPL W10116195 Contact Us For Availability
9
Knob RF (Black) WPL W10130387 Contact Us For Availability
9
Knob RF (Biscuit) WPL W10130389 Contact Us For Availability
9
Knob LR, LF, RR (Biscuit) WPL W10130393 Contact Us For Availability
10
Lens, Light (2) WPL W10067870 Contact Us For Availability
10
Screw WPL 4449040 Contact Us For Availability
10
Drawer WPL W10144430 Contact Us For Availability
11
Tray, Hidden Bake WPL 4455037 Contact Us For Availability
11
Screw WPL 9780271 Contact Us For Availability
12
Gasket, Console WPL W10109430 Contact Us For Availability
12
Panel, Drawer WPL W10144431 Contact Us For Availability
12
Cover, Bake Tray WPL 4450039 Contact Us For Availability
13
Badge (Stainless) WPL 8304603SS Contact Us For Availability
13
Front, Drawer (Stainless) WPL W10203763 Contact Us For Availability
13
Front, Drawer (Black) WPL 9761747BL Contact Us For Availability
13
Front, Drawer (Biscuit) WPL 9761747BT Contact Us For Availability
13
Front, Drawer (White) WPL 9761747WH Contact Us For Availability
14
Assembly, Door Kit (Stainless) WPL W10155557 Contact Us For Availability
14
Assembly, Door Kit (White) WPL W10131889 Contact Us For Availability
14
Assembly, Door Kit (Black) WPL W10131888 Contact Us For Availability
14
Handle, Drawer (Black) WPL 9761573BL Contact Us For Availability
14
Handle, Drawer (Biscuit) WPL 9761573BT Contact Us For Availability
14
Handle, Drawer (Stainless) WPL 9761573SS Contact Us For Availability
14
Handle, Drawer (White) WPL 9761573WH Contact Us For Availability
15
Thermostat WPL 341196 Contact Us For Availability
16
Cover, Terminal WPL W10153100 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
Support, Element WPL 9758676 Contact Us For Availability
18
Backsplash (Black) WPL W10109750 Contact Us For Availability
18
Element, Warming Drawer WPL 9760775 Contact Us For Availability
19
Bumper, Door WPL 4448520 Contact Us For Availability
19
SPRING LOCATOR WPL 9759094 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Enclosure, Warming Drawer WPL 9763518 Contact Us For Availability
20
Frame, Cooktop Rear WPL 9761783 Contact Us For Availability
20
Body, Side (Black/Stainless) WPL 9760723PB Contact Us For Availability
20
Body, Side (Biscuit) WPL 9760723PC Contact Us For Availability
20
Body, Side (White) WPL 9760723PW Contact Us For Availability
21
Rail, Element (3) WPL 9763517 Contact Us For Availability
21
BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability
23
Cover, Cooktop Rear WPL 9761724 Contact Us For Availability
24
Gasket, Backsplash (Black/Stainless) WPL 9763483BL Contact Us For Availability
24
Gasket, Backsplash (White/Biscuit) WPL 9763483GY Contact Us For Availability
24
Brace, Side Panel WPL 9757811 Contact Us For Availability
25
Glass, Backsplash (Black/Stainless) WPL 9761749BL Contact Us For Availability
25
Glass, Backsplash (Biscuit) WPL 9761749BT Contact Us For Availability
25
Glass, Backsplash (White) WPL 9761749WH Contact Us For Availability
26
Pane WPL W10153092 Contact Us For Availability
26
Back, Chassis WPL 9759761 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI86574A5 Contact Us For Availability
28
Clip, Side Panel WPL 9759890 Contact Us For Availability
33
Base, Chassis WPL 9759713 Contact Us For Availability
36
Vent, Bottom Upper Assembly (Stainless) WPL W10160347 Contact Us For Availability
36
Vent, Bottom Upper Assembly (Biscuit) WPL W10116898 Contact Us For Availability
36
Vent, Bottom Upper Assembly (White) WPL W10116899 Contact Us For Availability
37
Vent, Bottom Lower (Black) WPL W10153486 Contact Us For Availability
37
Vent, Bottom Lower (Biscuit) WPL W10153487 Contact Us For Availability
37
Vent, Bottom Lower (White) WPL W10153488 Contact Us For Availability
37
Vent, Bottom Lower (Stainl WPL W10154789 Contact Us For Availability
43
WPL 3400080 WPL 3400080 Contact Us For Availability
45
WPL 9757405 WPL 9757405 Contact Us For Availability
46
WPL 9759721 WPL 9759721 Contact Us For Availability
48
WPL W10181438 WPL W10181438 Contact Us For Availability
49
WPL W10083460 WPL W10083460 Contact Us For Availability
50
WPL 9756454 WPL 9756454 Contact Us For Availability
51
WPL 9759884 WPL 9759884 Contact Us For Availability
52
WPL 9759722 WPL 9759722 Contact Us For Availability
53
WPL 9760481 WPL 9760481 Contact Us For Availability
54
WPL 9758583 WPL 9758583 Contact Us For Availability
55
WPL 9759885 WPL 9759885 Contact Us For Availability
56
WPL 9759945 WPL 9759945 Contact Us For Availability
× ![]()
