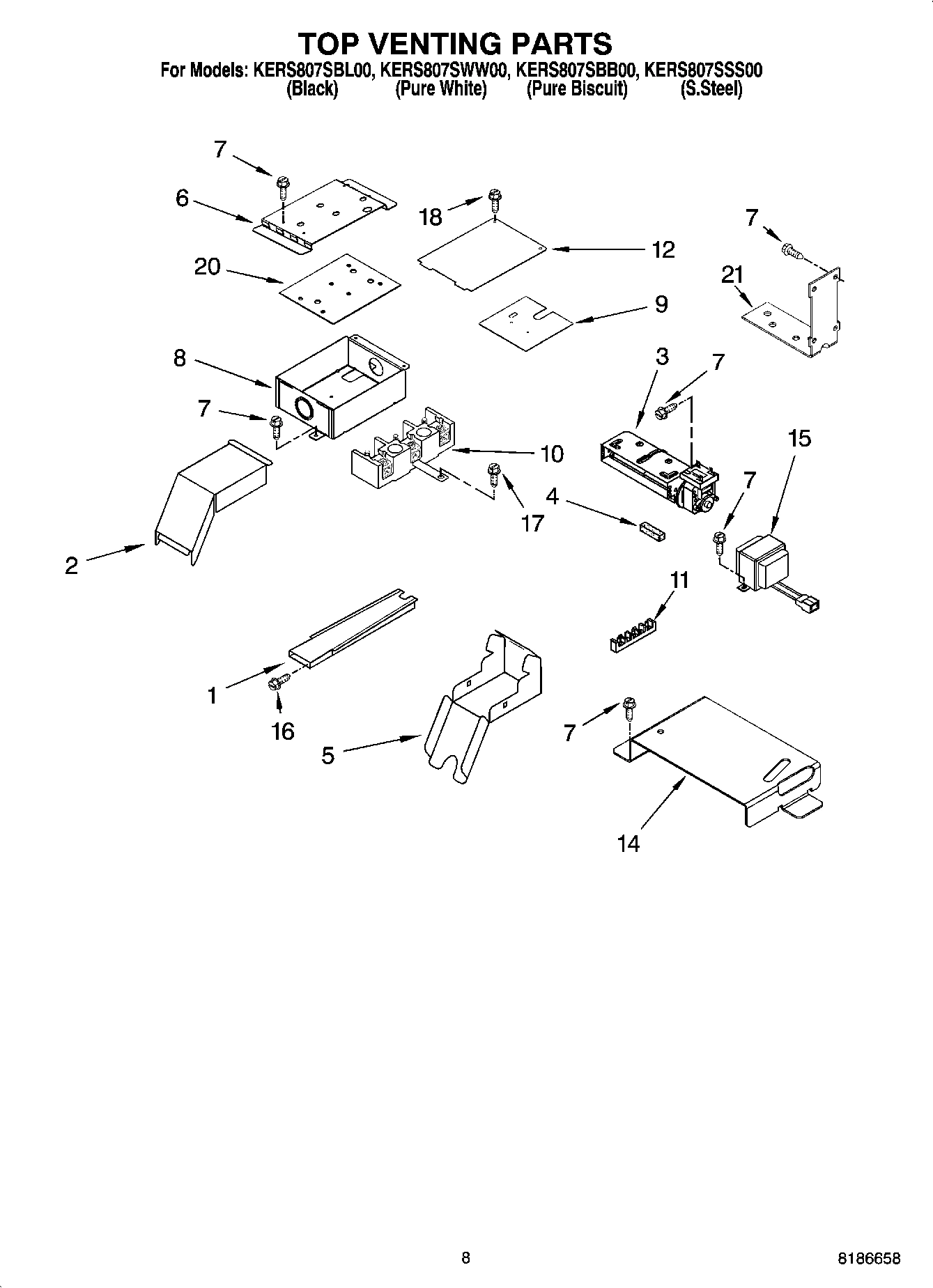

Model Whirlpool KERS807SBL00 30`` FREE STANDING ELECTRIC OVEN CONVECTION – Common Parts & Diagrams

WPL  9762921
WPL 9762921 WPL 9762921 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
Clip, Ground Wire
Clip, Ground Wire WPL 313660 Contact Us For Availability
View on Model
Spacer, Harness
Spacer, Harness WPL 4452222 Contact Us For Availability
View on Model
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
Conduit
Conduit WPL 9759715 Contact Us For Availability
View on Model
Harness,
Harness, WPL 9762909 Contact Us For Availability
View on Model
WPL  ARI86530A3
WPL ARI86530A3 WPL ARI86530A3 Contact Us For Availability
View on Model
WPL  ARI86531A9
WPL ARI86531A9 WPL ARI86531A9 Contact Us For Availability
View on Model
WPL  ARI86532A7
WPL ARI86532A7 WPL ARI86532A7 Contact Us For Availability
View on Model
WPL  ARI86533A6
WPL ARI86533A6 WPL ARI86533A6 Contact Us For Availability
View on Model
WPL  W10109280
WPL W10109280 WPL W10109280 Contact Us For Availability
View on Model

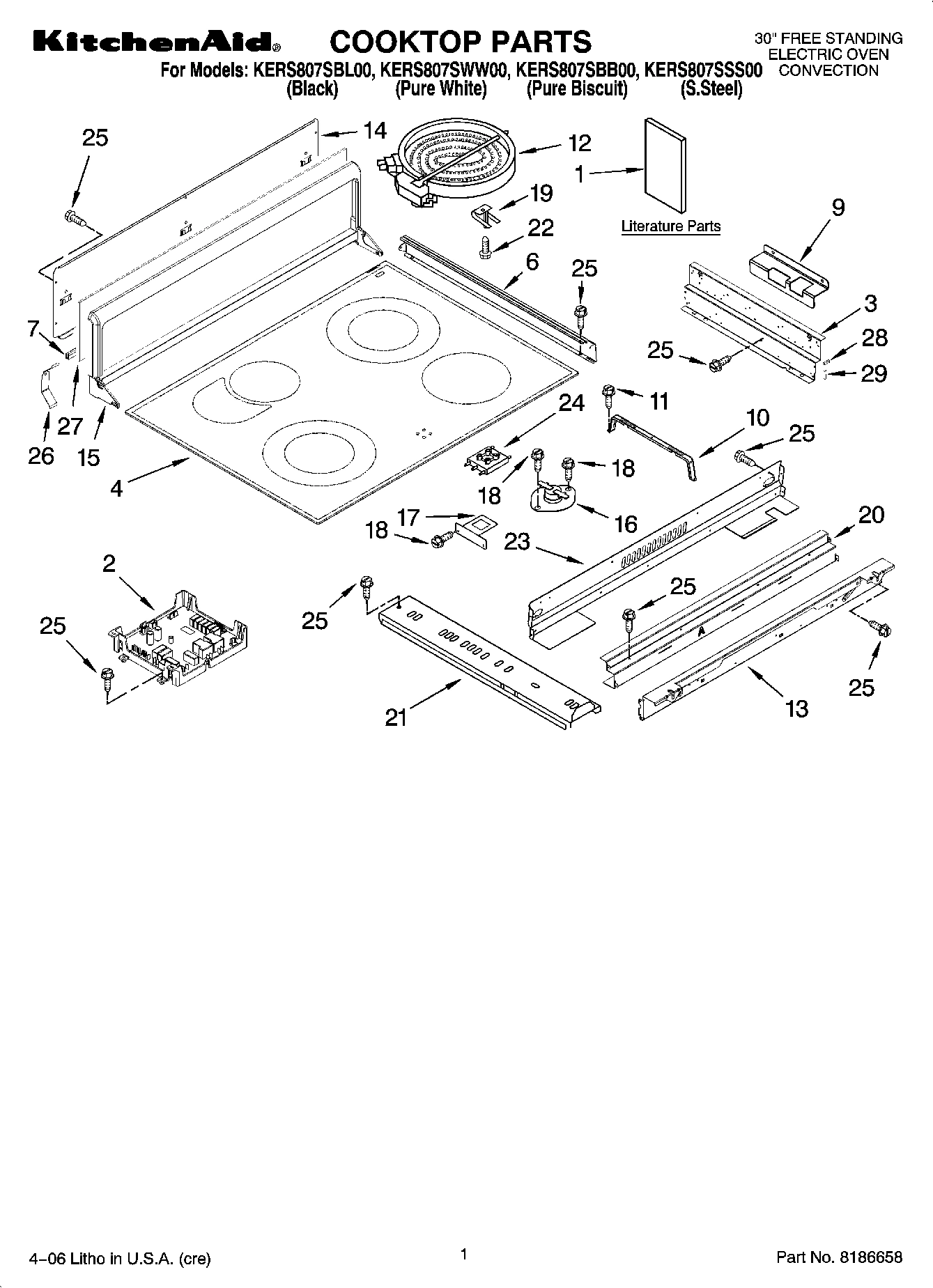

1
Control Panel (White)
Control Panel (White) WPL 9761551WH Contact Us For Availability
View on Model
1
Safe Cooking Tips
Safe Cooking Tips WPL 3191638 Contact Us For Availability
View on Model
1
Anti-Tip Instruct.
Anti-Tip Instruct. WPL 9757680 Contact Us For Availability
View on Model
1
Safe Cooking Tips (French)
Safe Cooking Tips (French) WPL 9759133 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 9762786 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 9763458 Contact Us For Availability
View on Model
1
Installation Instructions
Installation Instructions WPL 9763461 Contact Us For Availability
View on Model
1
Guide Easy Set
Guide Easy Set WPL 9763467 Contact Us For Availability
View on Model
2
Central, Appliance
Central, Appliance WPL 9761801 Contact Us For Availability
View on Model
3
Bracket, Mounting
Bracket, Mounting WPL 9761784 Contact Us For Availability
View on Model
4
Cooktop (Biscuit)
Cooktop (Biscuit) WPL 9762791BB Contact Us For Availability
View on Model
4
Cooktop (Black)
Cooktop (Black) WPL 9762791BL Contact Us For Availability
View on Model
4
Cooktop (White)
Cooktop (White) WPL 9762791WW Contact Us For Availability
View on Model

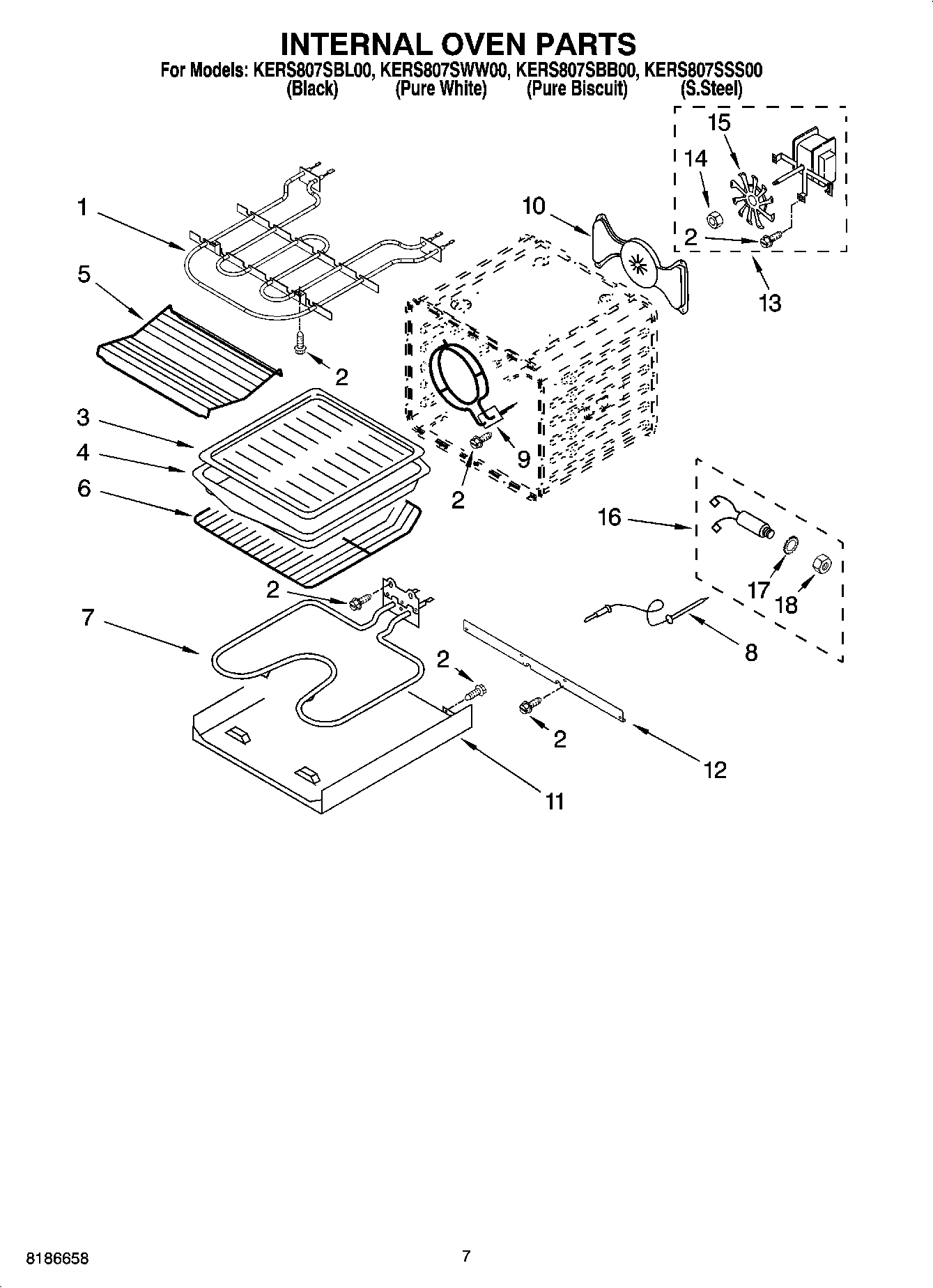

5
Rack, Roasting
Rack, Roasting WPL 3181534 Contact Us For Availability
View on Model
6
Bracket, Term.Box
Bracket, Term.Box WPL 9759938 Contact Us For Availability
View on Model
6
Trim-CkTop, SI (Black LH)
Trim-CkTop, SI (Black LH) WPL 9761738BL Contact Us For Availability
View on Model
6
Trim-CkTop, SI (Biscuit LH)
Trim-CkTop, SI (Biscuit LH) WPL 9761738BT Contact Us For Availability
View on Model
6
Trim-CkTop, SI (S.Steel LH)
Trim-CkTop, SI (S.Steel LH) WPL 9761738SS Contact Us For Availability
View on Model
6
Trim-CkTop, SI (White LH)
Trim-CkTop, SI (White LH) WPL 9761738WH Contact Us For Availability
View on Model
6
Trim-CkTop, SI (Black RH)
Trim-CkTop, SI (Black RH) WPL 9761739BL Contact Us For Availability
View on Model
6
Trim-CkTop, SI (Biscuit RH)
Trim-CkTop, SI (Biscuit RH) WPL 9761739BT Contact Us For Availability
View on Model
6
Trim-CkTop, SI (S.Steel RH)
Trim-CkTop, SI (S.Steel RH) WPL 9761739SS Contact Us For Availability
View on Model
6
Trim-CkTop, SI (White RH)
Trim-CkTop, SI (White RH) WPL 9761739WH Contact Us For Availability
View on Model
7
Gasket, Cooktop
Gasket, Cooktop WPL W10054430 Contact Us For Availability
View on Model
9
Support (L.Hand)
Support (L.Hand) WPL 9757686 Contact Us For Availability
View on Model
9
Support (R.Hand)
Support (R.Hand) WPL 9757687 Contact Us For Availability
View on Model
12
Cover, Term Box
Cover, Term Box WPL 9757405 Contact Us For Availability
View on Model
12
Element, Surface (1800/1000W)
Element, Surface (1800/1000W) WPL 8203525 Contact Us For Availability
View on Model
13
Motor Convection
Motor Convection WPL 4451583 Contact Us For Availability
View on Model
13
Bracket, Front Support
Bracket, Front Support WPL 9761423 Contact Us For Availability
View on Model
14
Cover, Backsplash Rear
Cover, Backsplash Rear WPL 9761577 Contact Us For Availability
View on Model
14
Nut
Nut WPL 4452227 Contact Us For Availability
View on Model
15
Backsplash (Black)
Backsplash (Black) WPL W10109750 Contact Us For Availability
View on Model
15
Gasket (Black)
Gasket (Black) WPL 9763483BL Contact Us For Availability
View on Model
15
Gasket (Gray)
Gasket (Gray) WPL 9763483GY Contact Us For Availability
View on Model
15
Backsplash (White)
Backsplash (White) WPL W10109740 Contact Us For Availability
View on Model
15
Backsplash (Biscuit)
Backsplash (Biscuit) WPL W10109760 Contact Us For Availability
View on Model
15
Backsplash (Nickel Plated)
Backsplash (Nickel Plated) WPL W10109770 Contact Us For Availability
View on Model
17
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
17
Bracket, Ind. Lamp
Bracket, Ind. Lamp WPL 9758799 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4451478 Contact Us For Availability
View on Model
20
BODY, SIDE BLACK
BODY, SIDE BLACK WPL 9760723PB Contact Us For Availability
View on Model
20
Body, Side (Biscuit)
Body, Side (Biscuit) WPL 9760723PC Contact Us For Availability
View on Model
20
Body, Side (White)
Body, Side (White) WPL 9760723PW Contact Us For Availability
View on Model
20
Insulation
Insulation WPL 9759884 Contact Us For Availability
View on Model
20
Bracket, Rear Sprt
Bracket, Rear Sprt WPL 9761783 Contact Us For Availability
View on Model
21
Rail, Element (2) (Center (1))
Rail, Element (2) (Center (1)) WPL 9757825 Contact Us For Availability
View on Model
21
Rail, Element (2) (Side (3))
Rail, Element (2) (Side (3)) WPL 9763517 Contact Us For Availability
View on Model
23
Thermostat SPST (205)
Thermostat SPST (205) WPL 341196 Contact Us For Availability
View on Model
23
Cover, Cktp Rear
Cover, Cktp Rear WPL 9761724 Contact Us For Availability
View on Model
24
INDICATOR, LAMP HOT SURFACE
INDICATOR, LAMP HOT SURFACE WPL 8523739 Contact Us For Availability
View on Model
24
Clip, Side Panel
Clip, Side Panel WPL 9759890 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 9759761 Contact Us For Availability
View on Model
26
Clip, Retainer
Clip, Retainer WPL 9762768 Contact Us For Availability
View on Model
27
Liner, Oven (Not serviceable)
Liner, Oven (Not serviceable) WPL ARI86528A2 Contact Us For Availability
View on Model
27
Glass, Backsplash (Black)
Glass, Backsplash (Black) WPL 9761749BL Contact Us For Availability
View on Model
27
Glass, Backsplash
Glass, Backsplash WPL 9761749BT Contact Us For Availability
View on Model
27
WPL  9761749WH
WPL 9761749WH WPL 9761749WH Contact Us For Availability
View on Model
28
Cover, Rear Standoff
Cover, Rear Standoff WPL 9759945 Contact Us For Availability
View on Model
28
WPL  W10050270
WPL W10050270 WPL W10050270 Contact Us For Availability
View on Model
29
Side, Base (R.Side)
Side, Base (R.Side) WPL 9759953 Contact Us For Availability
View on Model
29
Side, Base (L.Side)
Side, Base (L.Side) WPL 9759954 Contact Us For Availability
View on Model
29
WPL  W10050280
WPL W10050280 WPL W10050280 Contact Us For Availability
View on Model
30
Bracket, GOC
Bracket, GOC WPL 9756454 Contact Us For Availability
View on Model
33
Insulation, Bottom Vent
Insulation, Bottom Vent WPL 9757717 Contact Us For Availability
View on Model
36
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 9759713 Contact Us For Availability
View on Model
50
Cover, Back
Cover, Back WPL 9758583 Contact Us For Availability
View on Model

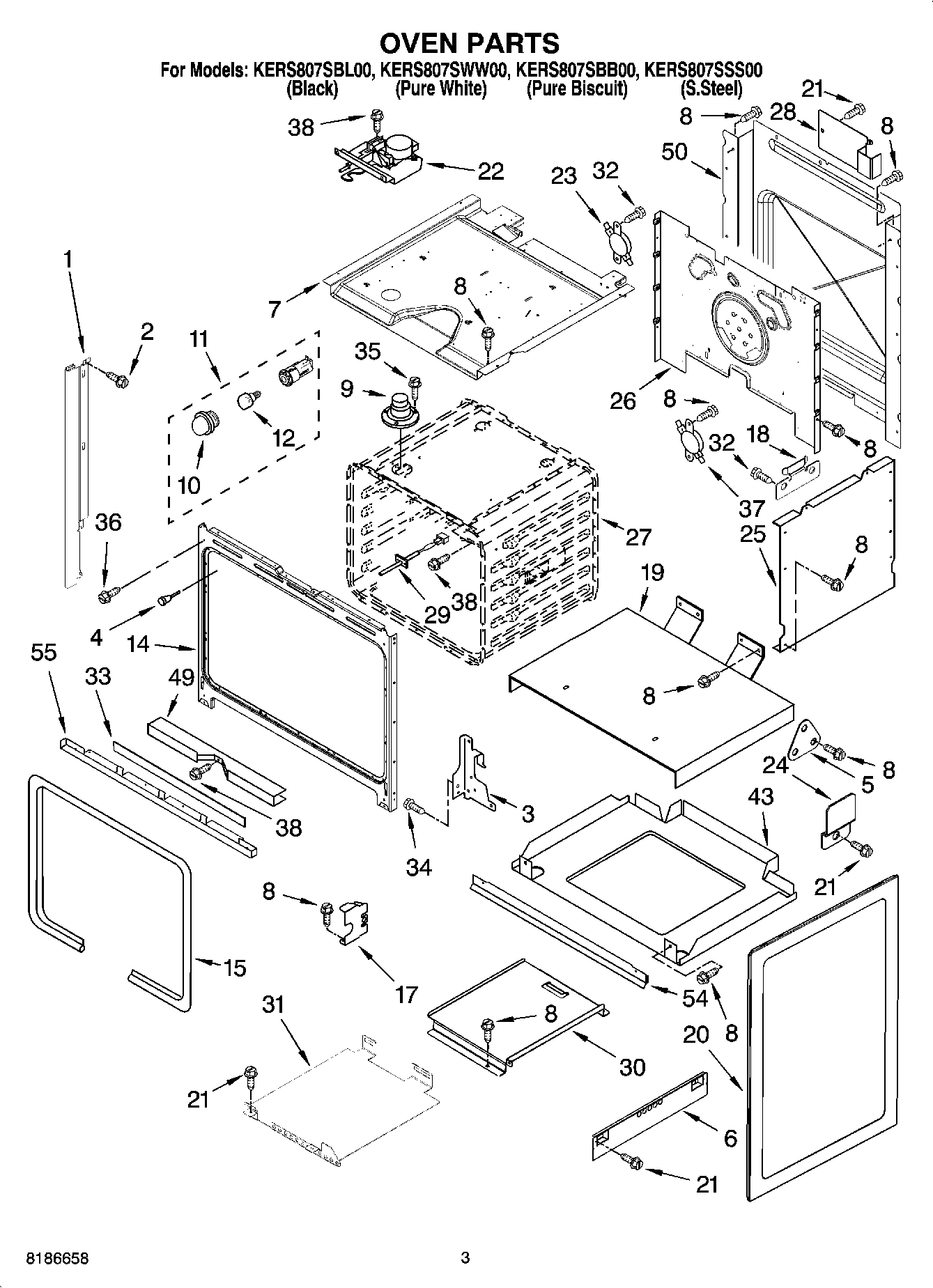

54
Vent, Bottom Upper (Black)
Vent, Bottom Upper (Black) WPL 9756481BL Contact Us For Availability
View on Model
54
Vent, Bottom Upper (Biscuit)
Vent, Bottom Upper (Biscuit) WPL 9756481BT Contact Us For Availability
View on Model
54
Vent, Bottom Upper (S. Steel)
Vent, Bottom Upper (S. Steel) WPL 9756481SS Contact Us For Availability
View on Model
54
Vent, Bottom Upper (White)
Vent, Bottom Upper (White) WPL 9756481WH Contact Us For Availability
View on Model
55
WPL  9756817
WPL 9756817 WPL 9756817 Contact Us For Availability
View on Model
55
Insulation,
Insulation, WPL 9756470 Contact Us For Availability
View on Model
55
WPL  9756485BL
WPL 9756485BL WPL 9756485BL Contact Us For Availability
View on Model
55
WPL  9756485BT
WPL 9756485BT WPL 9756485BT Contact Us For Availability
View on Model
55
WPL  9756485SS
WPL 9756485SS WPL 9756485SS Contact Us For Availability
View on Model
55
WPL  9756485WH
WPL 9756485WH WPL 9756485WH Contact Us For Availability
View on Model
55
WPL  ARI86529A2
WPL ARI86529A2 WPL ARI86529A2 Contact Us For Availability
View on Model
