Model Whirlpool KERS205TWH0 30`` FREE STANDING ELECTRIC RANGE – Common Parts & Diagrams

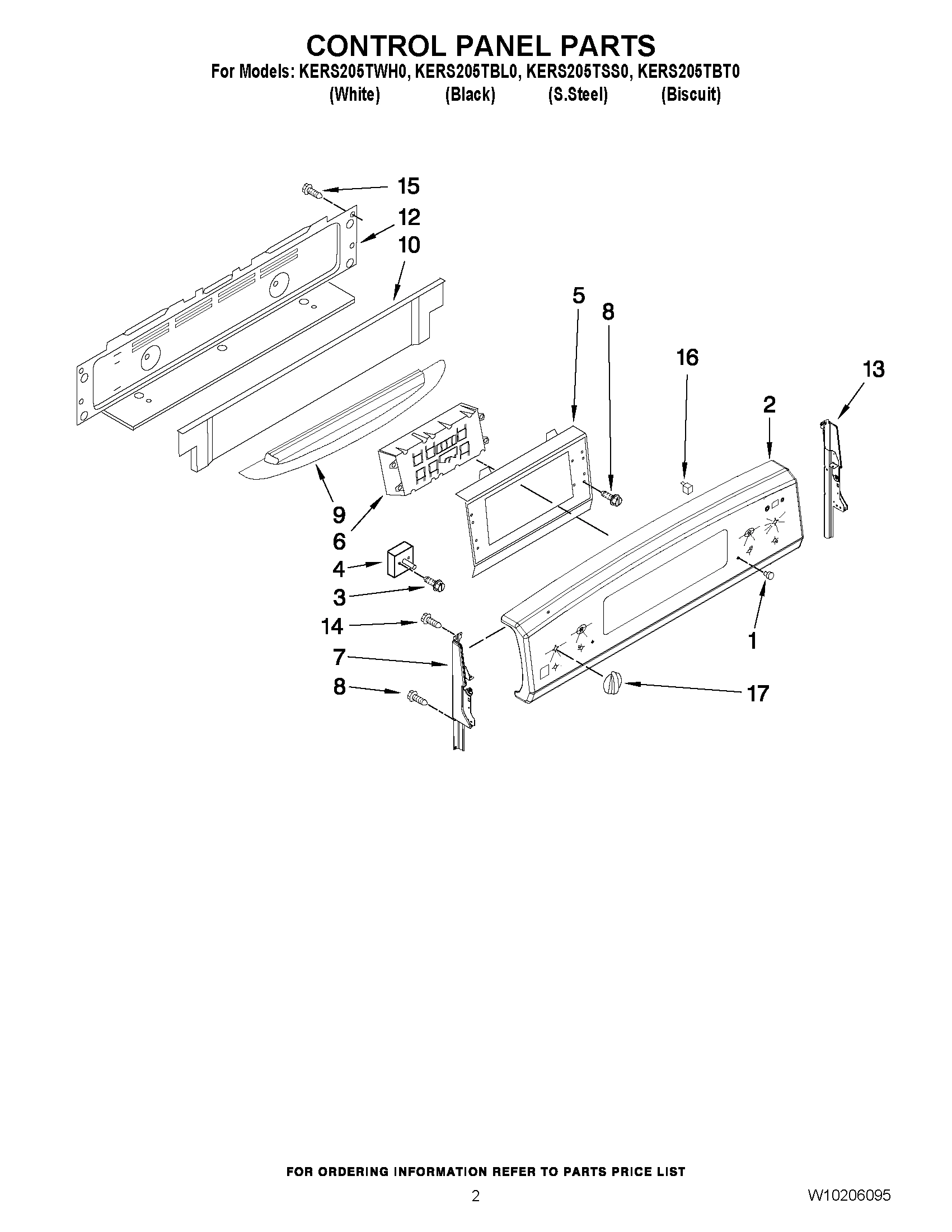

02 - CONTROL PANEL PARTS

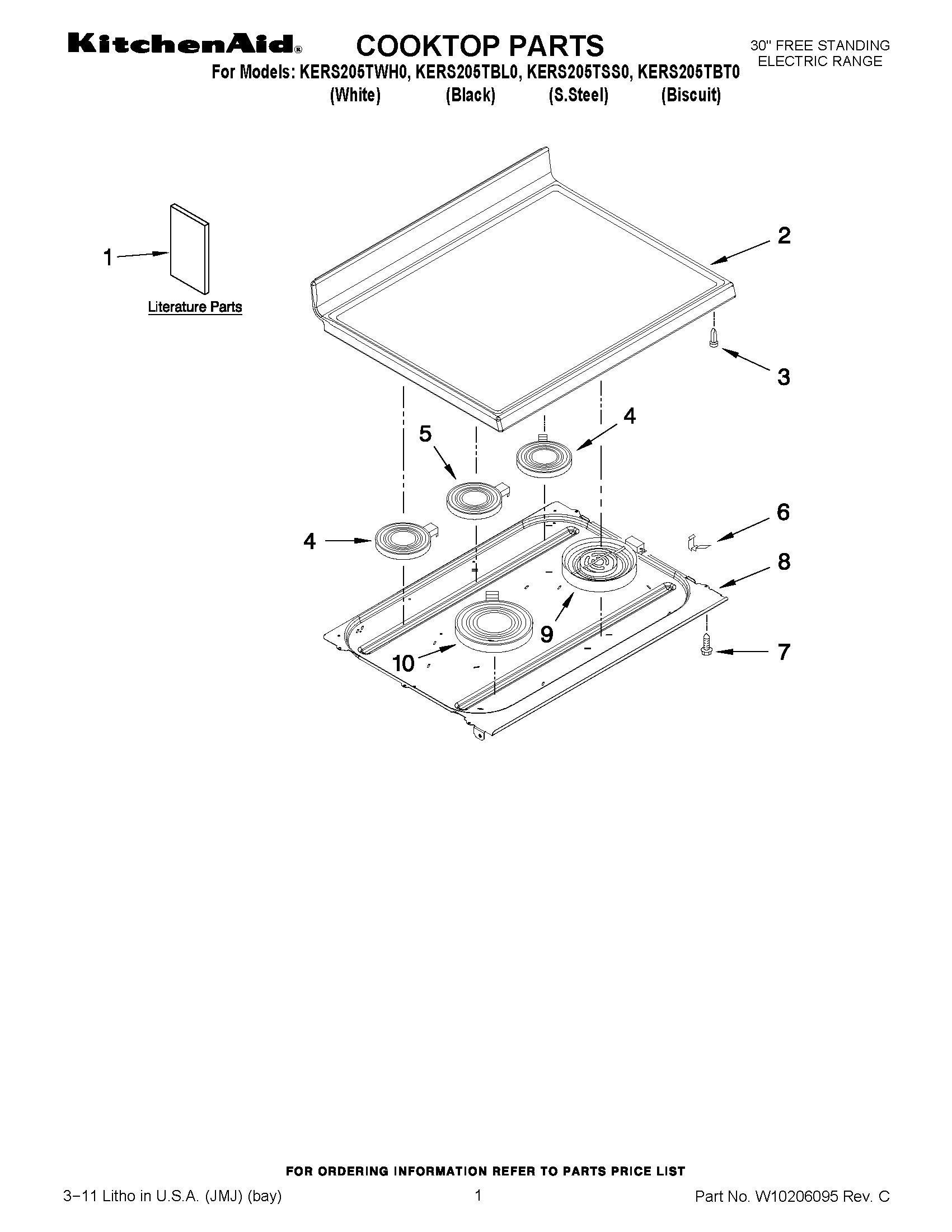

01 - COOKTOP PARTS
03 - CHASSIS PARTS
05 - DRAWER AND RACK PARTS
04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KERS205TWH0 30`` FREE STANDING ELECTRIC RANGE
1
Wiring Diagram WPL W10167997 Contact Us For Availability
1
Use & Care Guide WPL W10168033 Contact Us For Availability
1
Installation Instructions WPL W10185365 Contact Us For Availability
1
Panel, Side (Biscuit) WPL 74008708 Contact Us For Availability
1
Panel, Side (White) WPL 74008709 Contact Us For Availability
1
Panel, Side (Black) WPL 74008710 Contact Us For Availability
1
Tape, Double Sided WPL 8270P09860 Contact Us For Availability
1
Trim, Door Top (Black) WPL 3608F13970 Contact Us For Availability
1
Trim, Door Top (White) WPL 3608F13971 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL 3608F13978 Contact Us For Availability
2
Panel, Backguard & Switch Assy (White) WPL W10182780 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10275755 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10217633 Contact Us For Availability
2
COOKTOP (BISCUIT) WPL W10217638 Contact Us For Availability
2
Spacer, Handle (Black) WPL W10169552 Contact Us For Availability
2
Spacer, Handle (White) WPL W10169553 Contact Us For Availability
2
Spacer, Handle (Biscuit) WPL W10169554 Contact Us For Availability
3
Retainer, Side WPL 74008701 Contact Us For Availability
4
Latch Assembly WPL 8002P10460 Contact Us For Availability
4
Nut, Lock WPL 7103P13960 Contact Us For Availability
4
Baffel, Retainer WPL 3601F38051 Contact Us For Availability
5
Element, Warm WPL 74011676 Contact Us For Availability
5
Main Back WPL 4002P34751 Contact Us For Availability
6
Cover, Main Wire WPL 74009651 Contact Us For Availability
7
Screw WPL 74009538 Contact Us For Availability
7
Bottom Wire Cover WPL 74008762 Contact Us For Availability
7
Frame, Glass Inner WPL 74003644 Contact Us For Availability
8
Bottom, Burner Box WPL 4011F49751 Contact Us For Availability
8
Screw WPL 7101P33860 Contact Us For Availability
8
Nut WPL 7103P08260 Contact Us For Availability
8
Tape, Foil WPL 8270P09060 Contact Us For Availability
9
Panel, Drawer (White) WPL W10163040 Contact Us For Availability
9
ELEMENT, RF TRIPLE WPL 7406P44160 Contact Us For Availability
9
Insulator, Cord WPL 74008759 Contact Us For Availability
9
Panel, Drawer (Black) WPL W10163038 Contact Us For Availability
9
Panel, Drawer (Biscuit) WPL W10163041 Contact Us For Availability
10
Cover, Wire (LWR) WPL 4005P70351 Contact Us For Availability
10
Runner, Drawer WPL 3406P03451 Contact Us For Availability
10
Lining, Door WPL 74008926 Contact Us For Availability
11
Panel, Access WPL 4005P70451 Contact Us For Availability
12
Nut, Term. Block WPL 7103P02760 Contact Us For Availability
12
Insulation, Door WPL 74003647 Contact Us For Availability
13
Block, Terminal WPL 7401P03960 Contact Us For Availability
13
Shaft, Roller WPL 74005231 Contact Us For Availability
14
Plate, Conduit WPL 3605F14651 Contact Us For Availability
14
Stop, Drawer WPL 74008688 Contact Us For Availability
14
Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability
14
Bracket, Handle (Right) WPL 3808P85745 Contact Us For Availability
15
Tape, White WPL 74004224 Contact Us For Availability
16
Rod, Door Switch WPL 74008706 Contact Us For Availability
16
PLATE, INNER WPL 3605P33751 Contact Us For Availability
16
Trim, Door Side (Black) WPL 74010560 Contact Us For Availability
16
Trim, Door Side (White) WPL 74010561 Contact Us For Availability
16
Trim, Door Side (Biscuit) WPL 74010562 Contact Us For Availability
17
Insulator, Shield WPL 74008704 Contact Us For Availability
17
HANDLE, SS ONLY WPL 7701P54760 Contact Us For Availability
17
Tape, Double Sided (White) WPL 74009014 Contact Us For Availability
18
PANLE, SS ONLY WPL W10165339 Contact Us For Availability
18
Trim, Door Bottom (Black) WPL 74008745 Contact Us For Availability
18
Trim, Door Bottom (Biscuit) WPL 74008758 Contact Us For Availability
19
Screw 10-24x5/16 WPL 7101P28260 Contact Us For Availability
20
GLASS, DOOR (S. STEEL (ORDER ITEM No.15 WHEN WPL W10160909 Contact Us For Availability
20
GLASS, DOOR (BLACK) WPL W10182773 Contact Us For Availability
20
GLASS, DOOR (WHITE) WPL W10182776 Contact Us For Availability
20
GLASS, DOOR (BISCUIT) WPL W10183574 Contact Us For Availability
21
Handle, Door (White) WPL W10153013 Contact Us For Availability
21
Handle, Door (Biscuit) WPL W10153014 Contact Us For Availability
21
Handle, Door (Black) WPL W10153015 Contact Us For Availability
21
Handle, Door (S.Steel) WPL W10153016 Contact Us For Availability
22
SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability
22
PANEL, SS OUTER WPL 7760P21860 Contact Us For Availability
23
Shield, Heat WPL 74008689 Contact Us For Availability
25
Element, Broil WPL 7406P49360 Contact Us For Availability
27
Vent, Oven WPL 74008691 Contact Us For Availability
28
Lens, Bulb WPL 74011299 Contact Us For Availability
35
Bracket, Oven WPL 74011187 Contact Us For Availability
37
Rod, Door Sleeve WPL 74008705 Contact Us For Availability
38
BULB-OVEN WPL 7407P10360 Contact Us For Availability
40
Support, Ov BTM WPL 3801P82245 Contact Us For Availability
42
Support, Oven WPL 3807P68045 Contact Us For Availability
44
Pan, Bake Brnr WPL 3401F08445 Contact Us For Availability
46
Screw (2) WPL 7101P33660 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
Insulation, Back WPL 7002P49260 Contact Us For Availability
NI
Insulation, Wrap WPL 74008700 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
Harness, Wire (Cooktop Left) WPL 5171P79160 Contact Us For Availability
NI
Harness, Wire (Cooktop Right) WPL 5171P79260 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
NI
Harness, Wire (Main) WPL W10160683 Contact Us For Availability
NI
Harness, Wire (Burner Box) WPL W10167991 Contact Us For Availability
× ![]()
