Model Whirlpool KERS205TSS3 30`` FREE STANDING ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Trim, Door Top (Black) WPL 3608F13970 Contact Us For Availability

1

Trim, Door Top (White) WPL 3608F13971 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 3608F13978 Contact Us For Availability

2

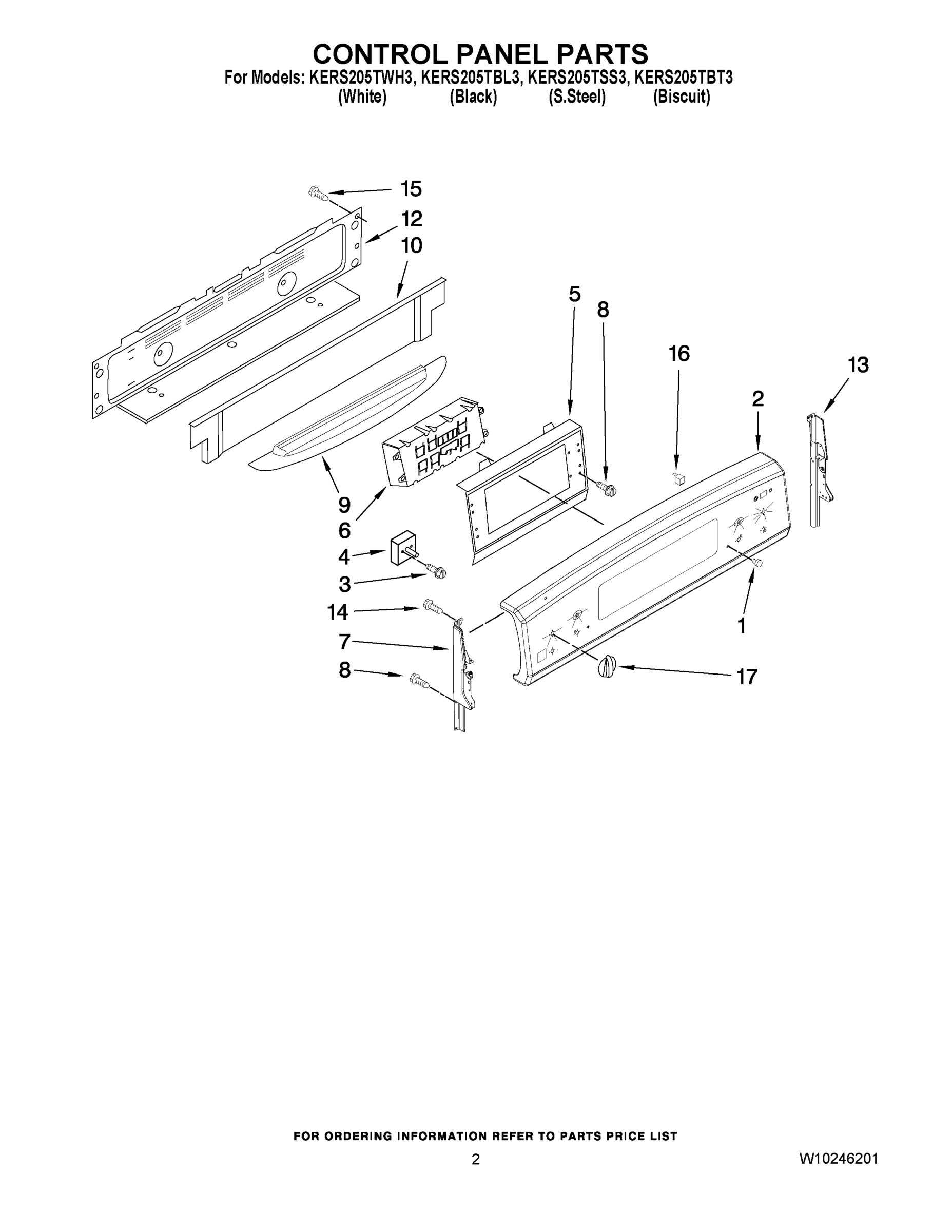

Panel, Backguard & Switch Assy (White) WPL W10167671 Contact Us For Availability

2

PANEL, BACKGUARD & SWITCH ASSY (BLACK) WPL W10167672 Contact Us For Availability

2

PANEL, BACKGUARD & SWITCH ASSY (BISCUIT) WPL W10167685 Contact Us For Availability

2

Spacer, Handle (Black) WPL W10169552 Contact Us For Availability

2

Spacer, Handle (White) WPL W10169553 Contact Us For Availability

2

Spacer, Handle (Biscuit) WPL W10169554 Contact Us For Availability

3

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

3

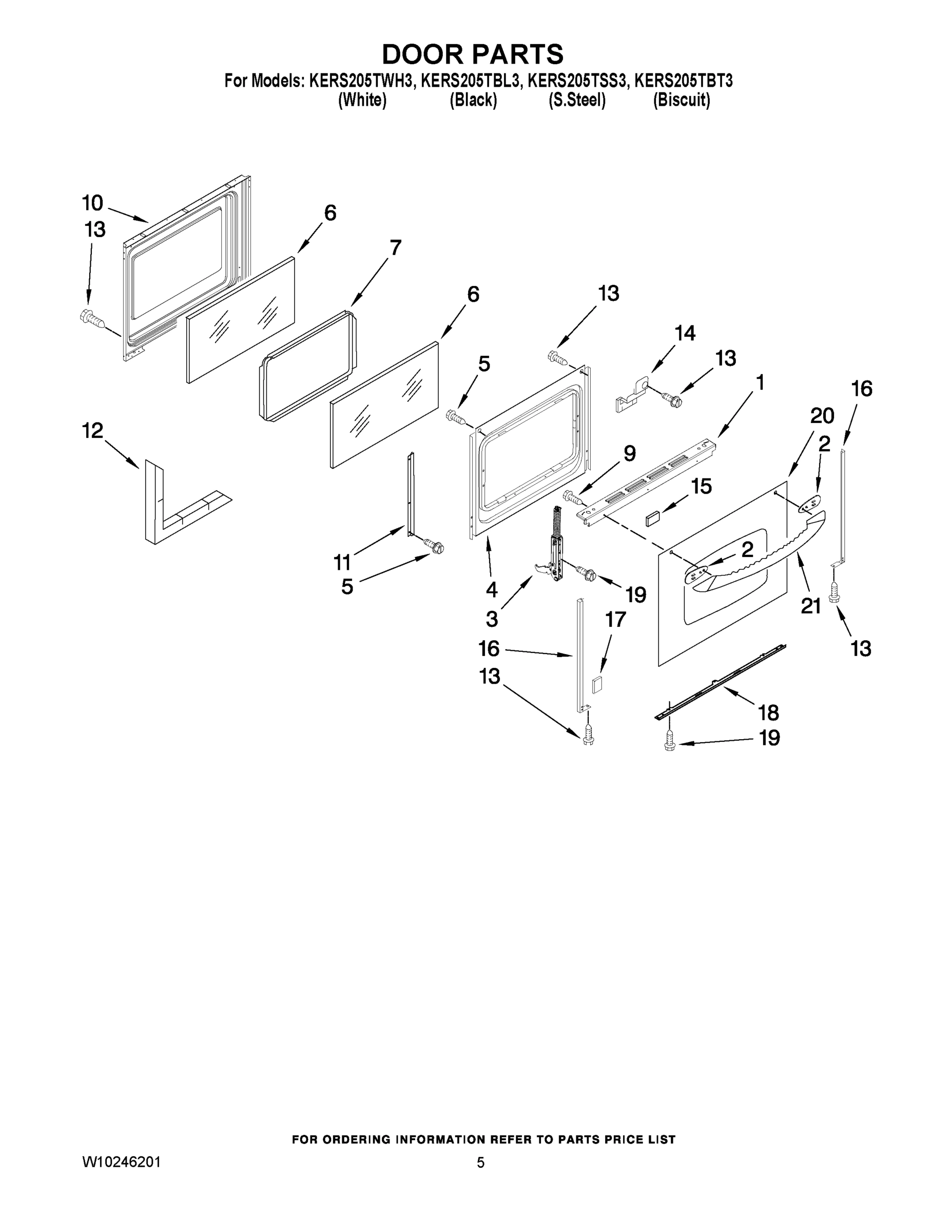

Hinge, Door (2) WPL 7106P12460 Contact Us For Availability

3

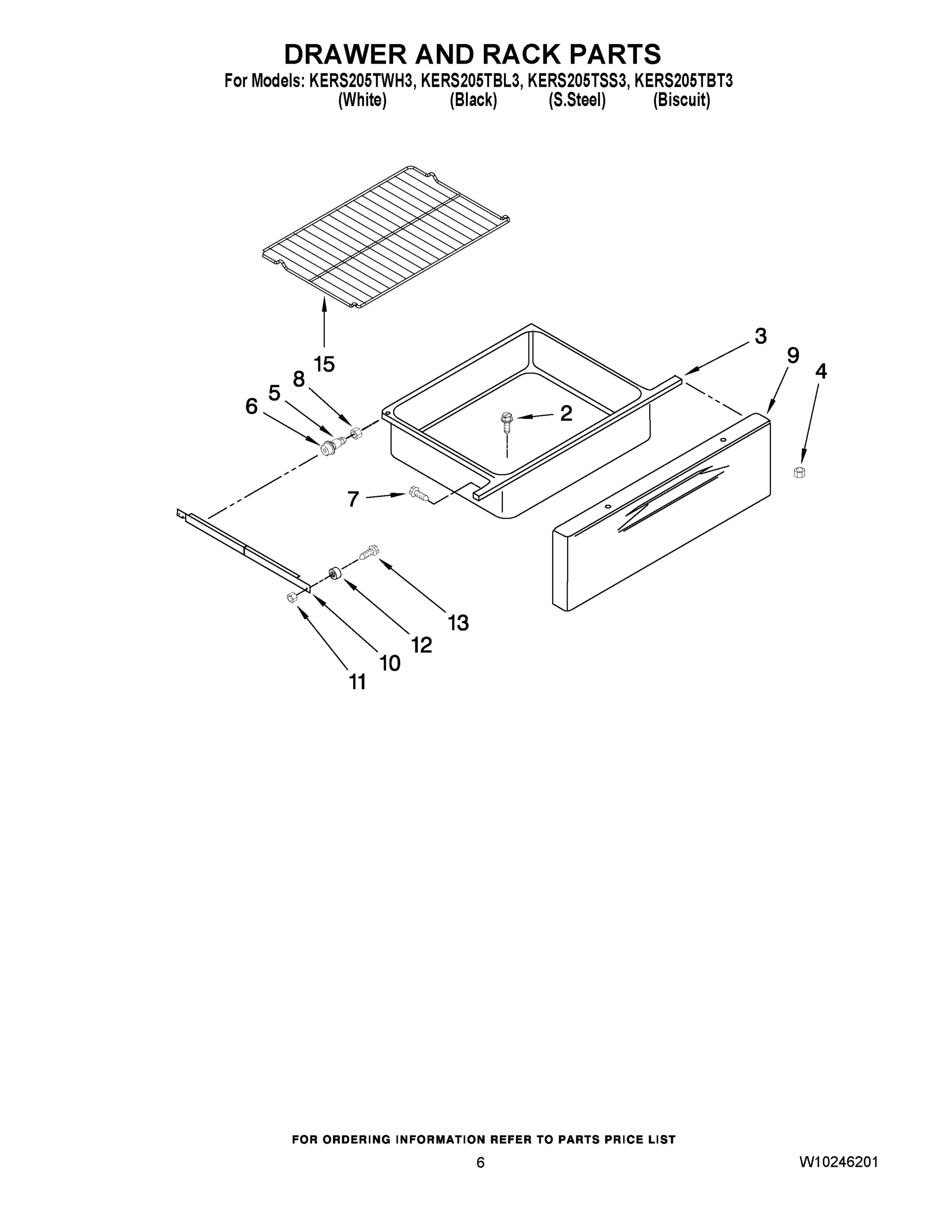

Drawer, Storage WPL 3405W03519 Contact Us For Availability

4

Switch, Infinte (LF/RR (2)) WPL 7403P37360 Contact Us For Availability

4

Switch, Infinte (Dual RF/LR (2)) WPL 7450P01160 Contact Us For Availability

4

Baffel, Retainer WPL 3601F38051 Contact Us For Availability

4

Nut, Lock WPL 7103P13960 Contact Us For Availability

5

WP9762851 Whirlpool Surface Element Backorder WPL WP9762851 $119.49

5

Screw (6) WPL 7101P37660 Contact Us For Availability

5

Bracket, Control WPL 3801F94551 Contact Us For Availability

5

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

6

Control WPL 8507P33160 Contact Us For Availability

6

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

7

End Cap, Left (White) WPL 3807F70361 Contact Us For Availability

7

End Cap, Left (Black) WPL 3807F70370 Contact Us For Availability

7

End Cap, Left (Biscuit) WPL 3807F70378 Contact Us For Availability

8

Nut WPL 7103P08260 Contact Us For Availability

9

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $117.46

9

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.91

9

Panel, Drawer (White) WPL W10163040 Contact Us For Availability

9

Shield, Heat Visor (Black) WPL 3604F38209 Contact Us For Availability

9

Shield, Heat Visor (White) WPL 3604F38281 Contact Us For Availability

9

Shield, Heat Visor (Biscuit) WPL 3604F38288 Contact Us For Availability

9

Panel, Drawer (Black) WPL W10163038 Contact Us For Availability

9

Panel, Drawer (Biscuit) WPL W10163041 Contact Us For Availability

10

Shield, Vent WPL 3604F38119 Contact Us For Availability

10

Lining, Door WPL 2402W29719 Contact Us For Availability

10

Runner, Drawer WPL 8016P02460 Contact Us For Availability

11

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

11

Nut, Lock WPL 7103P19060 Contact Us For Availability

12

Cover, Rear Wire WPL 4005F80451 Contact Us For Availability

12

Insulation, Door WPL 7002P24660 Contact Us For Availability

12

Roller, Drawer WPL 8014P02260 Contact Us For Availability

Block, Terminal WPL 7401P03960 Contact Us For Availability

End Cap, Right (White) WPL 3807F70261 Contact Us For Availability

End Cap, Right (Black) WPL 3807F70270 Contact Us For Availability

End Cap, Right (Biscuit) WPL 3807F70278 Contact Us For Availability

Screw (8) WPL 7101P42760 Contact Us For Availability

Shaft, Roller WPL 7118P03260 Contact Us For Availability

14

Plate, Conduit WPL 3605P14651 Contact Us For Availability

14

Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability

14

Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability

15

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

15

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

15

Tape, White WPL W10208309 Contact Us For Availability

Light, Indicator WPL 7407P13660 Contact Us For Availability

Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability

Trim, Door Side (White) WPL 3608F12671 Contact Us For Availability

Trim, Door Side (Biscuit) WPL 3608F12678 Contact Us For Availability

W10160369 Whirlpool Knob Assembly Backorder WPL W10160369 $28.80

WPW10160368 Whirlpool Knob In Stock WPL WPW10160368 $14.24

WPW10160370 Whirlpool Knob Backorder WPL WPW10160370 $16.07

WPW10160371 Whirlpool Cooktop Stainless Steel In Stock WPL WPW10160371 $25.64

Tape, Double Sided (Black) WPL W10208307 Contact Us For Availability

Tape, Double Sided (White) WPL W10208308 Contact Us For Availability

18

Trim, Door Bottom (White) WPL 3608F09271 Contact Us For Availability

18

Trim, Door Bottom (Biscuit) WPL 3608F09278 Contact Us For Availability

18

Trim, Door Bottom (Black) WPL 3804F23651 Contact Us For Availability

19

Screw 10-24x5/16 WPL 7101P28260 Contact Us For Availability

GLASS, DOOR (BLACK) WPL W10160908 Contact Us For Availability

Leg, Leveling WPL 7101P50760 Contact Us For Availability

GLASS, DOOR (WHITE) WPL W10160906 Contact Us For Availability

GLASS, DOOR (BISCUIT (ORDER ITEM No.15 WHEN R WPL W10160907 Contact Us For Availability

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

Handle, Door (White) WPL W10153013 Contact Us For Availability

Handle, Door (Biscuit) WPL W10153014 Contact Us For Availability

Handle, Door (Black) WPL W10153015 Contact Us For Availability

Handle, Door (S.Steel) WPL W10153016 Contact Us For Availability

22

SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability

23

Shield, Heat WPL 3604F37151 Contact Us For Availability

25

Element, Broil WPL 7406P49360 Contact Us For Availability

26

Sensor, Oven WPL 7430P04260 Contact Us For Availability

27

Vent, Oven WPL 8026P08160 Contact Us For Availability

28

Lens, Bulb WPL 898020001 Contact Us For Availability

30

Screw, Shoulder(6) WPL 7101P61860 Contact Us For Availability

31

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $35.63

32

Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability

33

Receiver, Hinge WPL 7106P12560 Contact Us For Availability

34

Light Assembly WPL 7407P18160 Contact Us For Availability

36

Screw (Black) (2) WPL 7101P37560 Contact Us For Availability

38

BULB-OVEN WPL 7407P10360 Contact Us For Availability

39

Screw, Shoulder WPL 7101P50060 Contact Us For Availability

40

Support, Ov BTM WPL 3801P82245 Contact Us For Availability

41

Element, Bake WPL 7406P45160 Contact Us For Availability

42

Support, Oven WPL 3807P68045 Contact Us For Availability

43

Bottom, Oven WPL 2205F05319 Contact Us For Availability

44

Pan, Bake Brnr WPL 3401F08445 Contact Us For Availability

45

Switch, Terminal WPL 7403P85760 Contact Us For Availability

46

Screw (2) WPL 7101P33660 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Retainer, Insulation WPL 3804F31651 Contact Us For Availability

Insulation, Wrap WPL 7002P36260 Contact Us For Availability

Insulation, Back WPL 7002P49260 Contact Us For Availability

Insulation, Side WPL 7002P49460 Contact Us For Availability

REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Harness, Wire (Cooktop Left) WPL 5171P79160 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

Harness, Wire (Main) WPL W10160684 Contact Us For Availability

Harness, Wire (Burner Box) WPL W10167991 Contact Us For Availability

Harness, Wire (Cooktop Right) WPL W10169936 Contact Us For Availability
