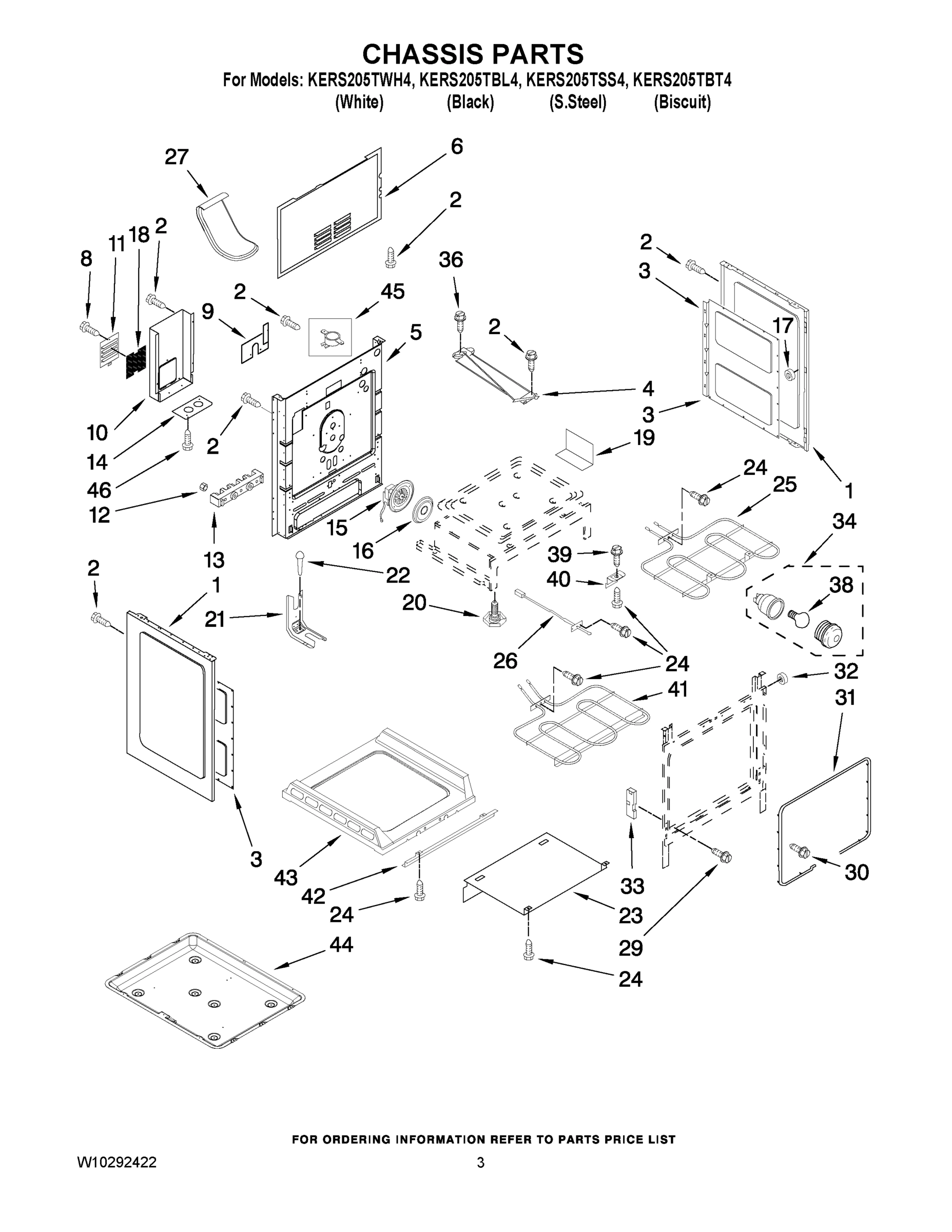

Model Whirlpool KERS205TBT4 30`` FREE STANDING ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Trim, Door Top (Black) WPL 3608F13970 Contact Us For Availability

1

Trim, Door Top (White) WPL 3608F13971 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 3608F13978 Contact Us For Availability

1

Panel, Side (Biscuit) WPL 2618F17257 Contact Us For Availability

1

Panel, Side (White) WPL 2618F17258 Contact Us For Availability

1

Panel, Side (Black) WPL 2618F17269 Contact Us For Availability

1

PANEL, INNER WPL 3605P33751 Contact Us For Availability

2

PANEL, BACKGUARD & SWITCH ASSY (BLACK) WPL W10218255 Contact Us For Availability

2

PANEL, BACKGUARD & SWITCH ASSY (WHITE) WPL W10218258 Contact Us For Availability

2

Spacer, Handle (Black) WPL W10169552 Contact Us For Availability

2

Spacer, Handle (White) WPL W10169553 Contact Us For Availability

2

Spacer, Handle (Biscuit) WPL W10169554 Contact Us For Availability

3

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $3.46

3

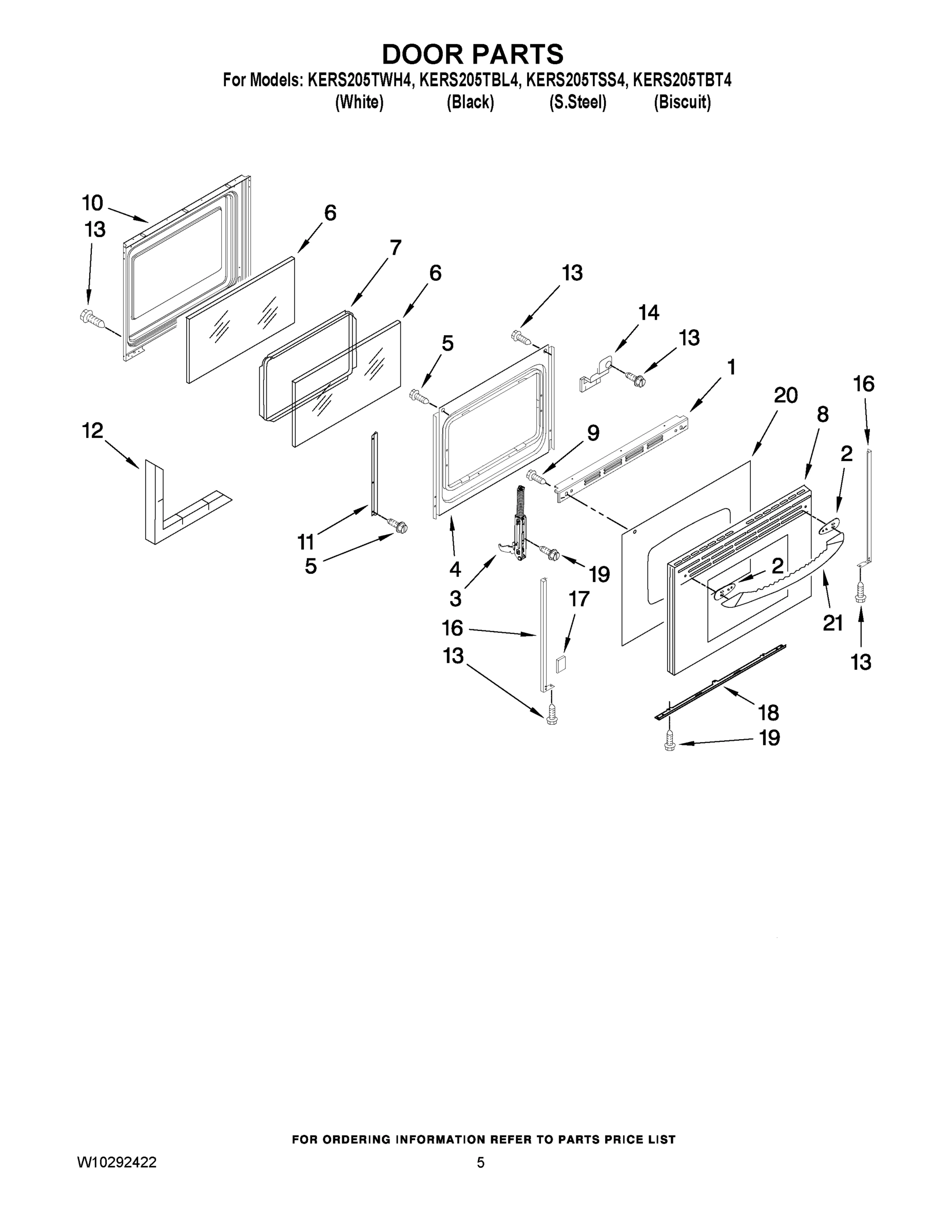

Hinge, Door (2) WPL 7106P12460 Contact Us For Availability

3

RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability

3

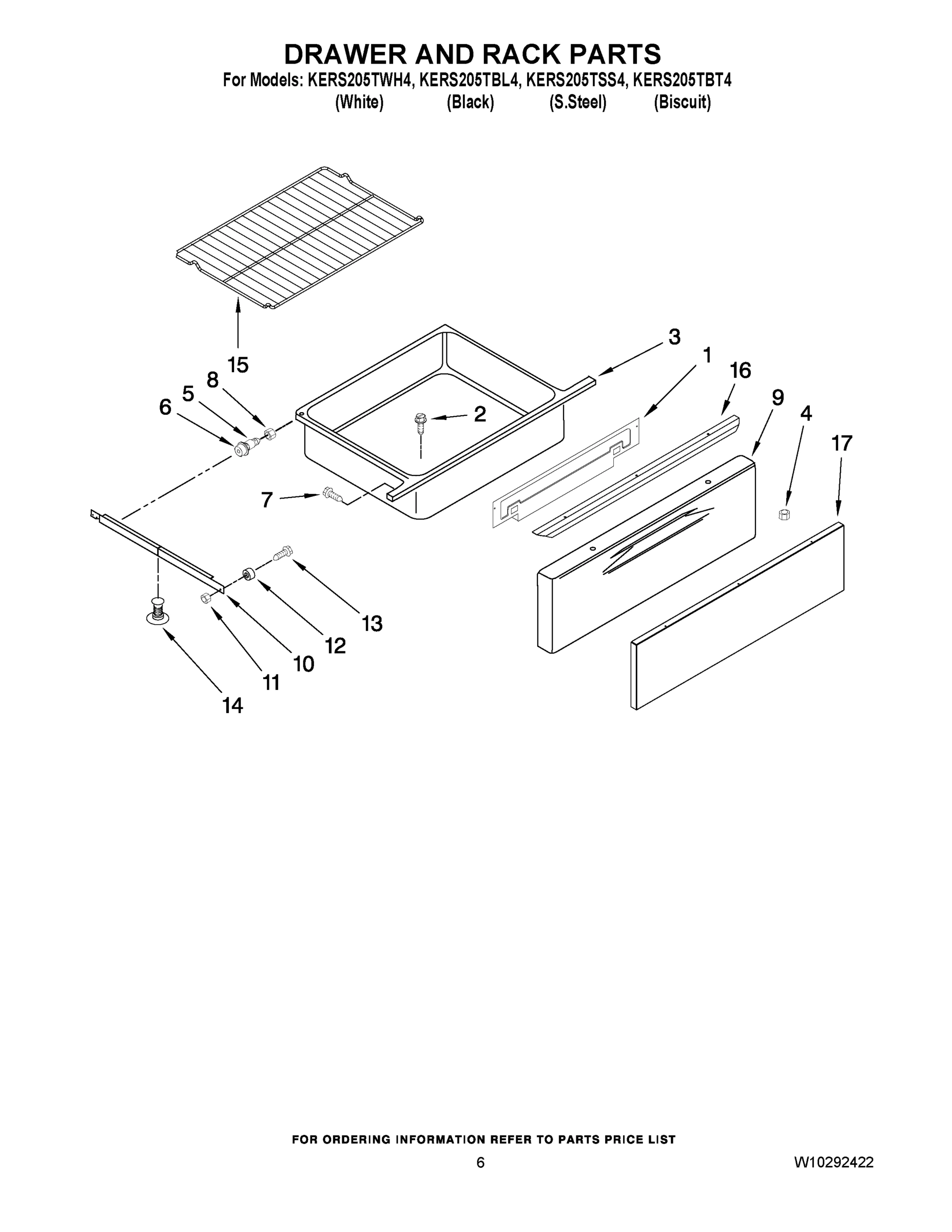

Drawer, Storage WPL 3405F03780 Contact Us For Availability

4

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $89.69

4

Baffel, Retainer WPL 3601F38051 Contact Us For Availability

4

Latch Assembly WPL 8002P10460 Contact Us For Availability

5

WP9762851 Whirlpool Surface Element Backorder WPL WP9762851 $125.47

5

MAIN BACK WPL W10205618 Contact Us For Availability

5

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

6

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

6

COVER, MAIN WIRE WPL W10243046 Contact Us For Availability

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.33

8

W10491985 Whirlpool Screw Backorder WPL W10491985 $3.33

8

PANEL, OUTER STAINLESS ONLY WPL 7760P21860 Contact Us For Availability

8

Nut WPL 7103P08260 Contact Us For Availability

9

W11164114 Whirlpool Screw In Stock WPL W11164114 $2.91

9

Panel, Drawer (White) WPL W10163040 Contact Us For Availability

9

Insulator, Cord WPL 7003P14560 Contact Us For Availability

9

Panel, Drawer (Black) WPL W10163038 Contact Us For Availability

9

Panel, Drawer (Biscuit) WPL W10163041 Contact Us For Availability

10

Lining, Door WPL 2402W29719 Contact Us For Availability

10

COVER, WIRE (LWR) WPL W10243045 Contact Us For Availability

10

Runner, Drawer WPL 3406P03451 Contact Us For Availability

11

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

11

Panel, Access WPL 4005P70451 Contact Us For Availability

11

Nut, Lock WPL 7103P19060 Contact Us For Availability

12

ROLLER, DRAWER WPL W10272883 Contact Us For Availability

12

Insulation, Door WPL 7002P24660 Contact Us For Availability

12

Nut, Term. Block WPL 7103P02760 Contact Us For Availability

End Cap, Right (White) WPL 3807F70271 Contact Us For Availability

End Cap, Right (Biscuit) WPL 3807F70278 Contact Us For Availability

Screw (8) WPL 7101P42760 Contact Us For Availability

Block, Terminal WPL 7401P03960 Contact Us For Availability

Shaft, Roller WPL 7118P03260 Contact Us For Availability

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability

Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability

Plate, Conduit WPL 3605P14651 Contact Us For Availability

Stop, Drawer WPL 8038P03760 Contact Us For Availability

15

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

15

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $64.35

15

PLATE, CONVECTION WPL 3605F30519 Contact Us For Availability

Switch, Rocker (Black) WPL 7403P79860 Contact Us For Availability

Switch, Rocker (White) WPL 7403P79960 Contact Us For Availability

SWITCH, ROCKER (BISCUIT) WPL 7403P80060 Contact Us For Availability

Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability

Trim, Door Side (White) WPL 3608F12671 Contact Us For Availability

Trim, Door Side (Biscuit) WPL 3608F12678 Contact Us For Availability

FAN, CONVECTION WPL 7427P10960 Contact Us For Availability

HANDLE, DRAWER STAINLESS ONLY WPL 7701P54760 Contact Us For Availability

W10160369 Whirlpool Knob Assembly Backorder WPL W10160369 $30.25

W10182346 Whirlpool Insulation Assembly Backorder WPL W10182346 $65.03

WPW10160368 Whirlpool Knob In Stock WPL WPW10160368 $15.06

WPW10160370 Whirlpool Knob Backorder WPL WPW10160370 $16.87

WPW10160371 Whirlpool Cooktop Stainless Steel In Stock WPL WPW10160371 $27.74

Tape, Double Sided (Black) WPL W10208307 Contact Us For Availability

Tape, Double Sided (White) WPL W10208308 Contact Us For Availability

PANEL, DRAWER STAINLESS ONLY WPL W10165339 Contact Us For Availability

TRIM, DOOR BOTTOM (BLACK) WPL 3608F09270 Contact Us For Availability

Trim, Door Bottom (White) WPL 3608F09271 Contact Us For Availability

Trim, Door Bottom (Biscuit) WPL 3608F09278 Contact Us For Availability

SCREEN, ACCESS WPL W10260573 Contact Us For Availability

19

BRACKET, OVEN WPL 3801P79851 Contact Us For Availability

GLASS, DOOR (BLACK) WPL W10160908 Contact Us For Availability

GLASS, DOOR (WHITE) WPL W10160906 Contact Us For Availability

GLASS, DOOR (BISCUIT) WPL W10160907 Contact Us For Availability

GLASS, DOOR (STAINLESS) WPL W10160909 Contact Us For Availability

Leg, Leveling WPL 7101P50760 Contact Us For Availability

Handle, Door (White) WPL W10153013 Contact Us For Availability

Handle, Door (Biscuit) WPL W10153014 Contact Us For Availability

Handle, Door (Black) WPL W10153015 Contact Us For Availability

HANDLE, DOOR (STAINLESS) WPL W10153016 Contact Us For Availability

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

22

SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability

23

Shield, Heat WPL 3604F37151 Contact Us For Availability

24

Screw, 8AB 1/2 (4) WPL 7101P37660 Contact Us For Availability

25

Element, Broil WPL 7406P49360 Contact Us For Availability

26

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $66.20

27

Vent, Oven WPL 8026P08160 Contact Us For Availability

29

Screw (4) WPL 7101P28260 Contact Us For Availability

30

Screw, Shoulder(6) WPL 7101P61860 Contact Us For Availability

31

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $30.52

32

Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability

33

Receiver, Hinge WPL 7106P12560 Contact Us For Availability

36

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

38

BULB-OVEN WPL 7407P10360 Contact Us For Availability

39

Screw, Shoulder WPL 7101P50060 Contact Us For Availability

40

Support, Ov BTM WPL 3801P82245 Contact Us For Availability

41

Element, Bake WPL 7406P45160 Contact Us For Availability

42

Support, Oven WPL 3807P68045 Contact Us For Availability

43

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $187.82

44

Pan, Bake Brnr WPL 3401F08445 Contact Us For Availability

45

Switch, Terminal WPL 7403P85760 Contact Us For Availability

46

Screw (2) WPL 7101P33660 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

W10278576 Whirlpool Wire Harness Backorder WPL W10278576 $120.65

Cleaner, Glass WPL W10355051 No Longer Available

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

HARNESS, WIRE (COOKTOP RIGHT) WPL W10278577 Contact Us For Availability

HARNESS, WIRE (COOKTOP LEFT) WPL W10278578 Contact Us For Availability

HARNESS, WIRE (BURNER BOX) WPL W10278579 Contact Us For Availability

STRAP, INSULATION WPL 4820F01459 Contact Us For Availability

INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability

Insulation, Wrap WPL 7002P36260 Contact Us For Availability

INSULATION, BACK WPL W10243056 Contact Us For Availability
