Model Whirlpool KERK807PSS02 30`` FREE STANDING ELECTRIC OVEN CONVECTION – Common Parts &amp; Diagrams

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP3400015 Whirlpool Screw Backorder WPL WP3400015 $2.51

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Clip, Ground Wire WPL 313660 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Harness, Wire WPL 9756554 Contact Us For Availability

Conduit WPL 9759715 Contact Us For Availability

BAKEWARE WPL 9759899 Contact Us For Availability

Harness, Wir WPL 9760693 Contact Us For Availability

WPL 9762523 WPL 9762523 Contact Us For Availability

WPL ARI86486A5 WPL ARI86486A5 Contact Us For Availability

WPL ARI86487A6 WPL ARI86487A6 Contact Us For Availability

WPL ARI86488A9 WPL ARI86488A9 Contact Us For Availability

WPL ARI86489A4 WPL ARI86489A4 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $108.35

1

Trim, Side (Right Hand) (Black) WPL 9756619BL Contact Us For Availability

1

Trim, Side (Right Hand) (Biscuit) WPL 9756619BT Contact Us For Availability

1

Trim, Side (Right Hand) (S.Steel) WPL 9756619SS Contact Us For Availability

1

Trim, Side (Right Hand) (White) WPL 9756619WH Contact Us For Availability

1

Trim, Side (Left Hand) (Black) WPL 9756620BL Contact Us For Availability

1

Trim, Side (Left Hand) (Biscuit) WPL 9756620BT Contact Us For Availability

1

Trim, Side (Left Hand) (S.Steel) WPL 9756620SS Contact Us For Availability

1

Trim, Side (Left Hand) (White) WPL 9756620WH Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

2

WP9756595ES Whirlpool Membrane Switch Backorder WPL WP9756595ES $223.52

2

Membrane Switch (White) WPL 9756595WH Contact Us For Availability

2

Membrane Switch (Black) WPL 9756595BL Contact Us For Availability

2

Central, Appliance WPL 9761593 Contact Us For Availability

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $144.86

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Control, Interface WPL 9762812 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

4

W10737569 Whirlpool Broil Pan Backorder WPL W10737569 $60.42

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

4

Cooktop (Biscuit) WPL 9759748BB Contact Us For Availability

4

Cooktop (Black) WPL 9759748BL Contact Us For Availability

4

Cooktop (S.Steel) WPL 9759748SS Contact Us For Availability

4

Cooktop (White) WPL 9759748WW Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

5

Glass, Door Front (S.Steel) WPL 9757102SS Contact Us For Availability

5

Clip, Ceran (2) WPL 4453764 Contact Us For Availability

5

BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Trim-CkTop, SI (Black LH) WPL 9756700BL Contact Us For Availability

6

Trim-CkTop, SI (Biscuit LH) WPL 9756700BT Contact Us For Availability

6

Trim-CkTop, SI (S.Steel LH) WPL 9756700SS Contact Us For Availability

6

Trim-CkTop, SI (White LH) WPL 9756700WH Contact Us For Availability

6

Trim-CkTop, SI (Black RH) WPL 9756701BL Contact Us For Availability

6

Trim-CkTop, SI (Biscuit RH) WPL 9756701BT Contact Us For Availability

6

Trim-CkTop, SI (S.Steel RH) WPL 9756701SS Contact Us For Availability

6

Trim-CkTop, SI (White RH) WPL 9756701WH Contact Us For Availability

6

Brace, Side Panel WPL 9757811 Contact Us For Availability

6

Bracket, Term.Box WPL 9759938 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

Gasket WPL 9756450 Contact Us For Availability

7

Top Chassis WPL 8303099 Contact Us For Availability

8

W10115858 Whirlpool Box Terminal Backorder WPL W10115858 $40.99

8

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

9

9759721 Whirlpool Oven Insulator Backorder WPL 9759721 $39.35

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

9

Knob (White) WPL 9756941 Contact Us For Availability

9

Knob (Black) WPL 9756943 Contact Us For Availability

9

Support (L.Hand) WPL 9757686 Contact Us For Availability

9

Support (R.Hand) WPL 9757687 Contact Us For Availability

W10860133 Whirlpool Convection Baffle Backorder WPL W10860133 $104.20

WP9756821 Whirlpool Support Backorder WPL WP9756821 $28.05

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $39.62

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

Lens, Light WPL 4452165 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $117.46

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $117.46

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

Cover, Term Box WPL 9757405 Contact Us For Availability

Element, Surface (1800/1000W) WPL 8203525 Contact Us For Availability

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $108.51

Motor Convection WPL 4451583 Contact Us For Availability

Bracket, Front Support WPL 9757800 Contact Us For Availability

Shield, Heat WPL 9757732 Contact Us For Availability

Vent, (Control Panel) WPL 9757118BL Contact Us For Availability

WP9757829 Whirlpool Mounting Bracket Backorder WPL WP9757829 $30.03

Cover, Backsplash Rear WPL 4454019 Contact Us For Availability

Frame, Front WPL 9759060 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $73.34

Backsplash (Black) WPL 9757767BL Contact Us For Availability

Backsplash (Gray) WPL 9757767GY Contact Us For Availability

Backsplash (Black) WPL 9759454BL Contact Us For Availability

Backsplash (Biscuit) WPL 9759454BT Contact Us For Availability

Backsplash (White) WPL 9759454WH Contact Us For Availability

Backsplash (S.Steel Gasket) WPL 9759886SS Contact Us For Availability

Transformer WPL 9756551 Contact Us For Availability

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

Deflector, Vent Bottom WPL 4453951 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

Bracket, Ind. Lamp WPL 9758799 Contact Us For Availability

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

WP9757685 Whirlpool Guide Panel Backorder WPL WP9757685 $32.61

9759094 Whirlpool Spring Backorder WPL 9759094 $4.85

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

Support, Insulation WPL 4451478 Contact Us For Availability

Rack, Half WPL 9759681 Contact Us For Availability

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

WP8274022 Whirlpool Oven Rack Backorder WPL WP8274022 $62.32

Bracket, Rear Sprt WPL 9759963 Contact Us For Availability

BODY, SIDE BLACK WPL 9760723PB Contact Us For Availability

Body, Side (Biscuit) WPL 9760723PC Contact Us For Availability

Body, Side (White) WPL 9760723PW Contact Us For Availability

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

Rail, Element (2) (Side (3)) WPL 8285962 Contact Us For Availability

Rail, Element (2) (Center (1)) WPL 9757825 Contact Us For Availability

Insulation WPL 9759884 Contact Us For Availability

22

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

23

Thermostat SPST (205) WPL 341196 Contact Us For Availability

23

Cover, Cktp Rear WPL 9761724 Contact Us For Availability

24

INDICATOR, LAMP HOT SURFACE WPL 8523739 Contact Us For Availability

24

Clip, Side Panel WPL 9759890 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 9759761 Contact Us For Availability

27

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $2.51

27

Liner, Oven (Not serviceable) WPL ARI86484A9 Contact Us For Availability

28

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

28

Cover, Rear Standoff WPL 9759945 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

29

Side, Base (R.Side) WPL 9759953 Contact Us For Availability

29

Side, Base (L.Side) WPL 9759954 Contact Us For Availability

30

Bracket, GOC WPL 9756454 Contact Us For Availability

31

W10083460 Whirlpool Slide Assembly Backorder WPL W10083460 $56.45

33

Insulation, Bottom Vent WPL 9757717 Contact Us For Availability

34

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

35

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

36

Screw WPL 4449040 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

38

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

43

Base, Chassis WPL 9759713 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

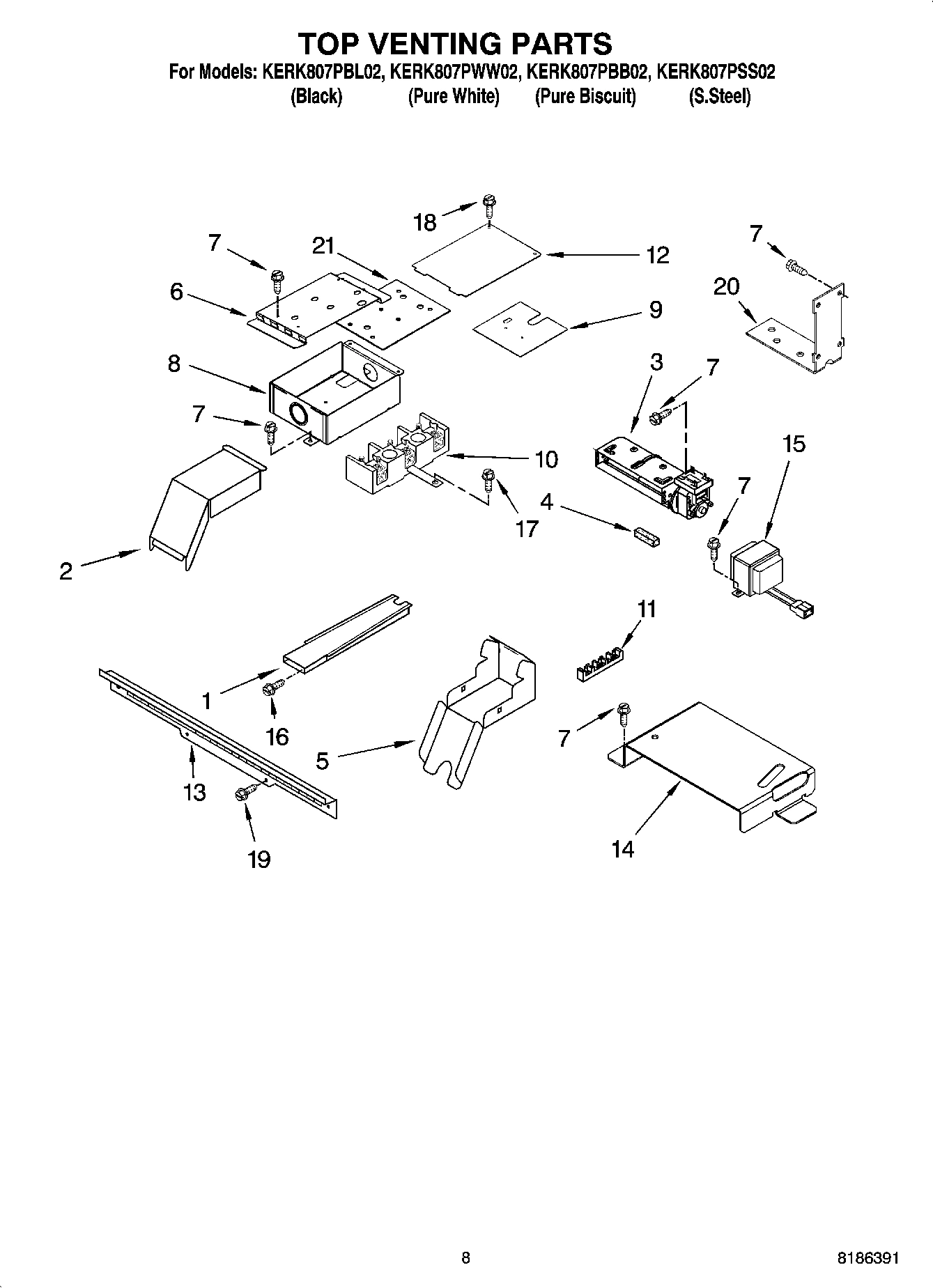

Vent, Bottom Upper (Black) WPL 9756481BL Contact Us For Availability

Vent, Bottom Upper (Biscuit) WPL 9756481BT Contact Us For Availability

Vent, Bottom Upper (S. Steel) WPL 9756481SS Contact Us For Availability

Ve WPL 9756481WH Contact Us For Availability

WPL 9756817 WPL 9756817 Contact Us For Availability

WPL 9756470 WPL 9756470 Contact Us For Availability

WPL 9756485BL WPL 9756485BL Contact Us For Availability

WPL 9756485BT WPL 9756485BT Contact Us For Availability

WPL 9756485SS WPL 9756485SS Contact Us For Availability

WPL 9756485WH WPL 9756485WH Contact Us For Availability

WPL ARI86485A4 WPL ARI86485A4 Contact Us For Availability
