Model Whirlpool KERI203PWH2 30`` ELECTRIC CERAN FREE STANDING RANGE CONVECTION – Common Parts & Diagrams

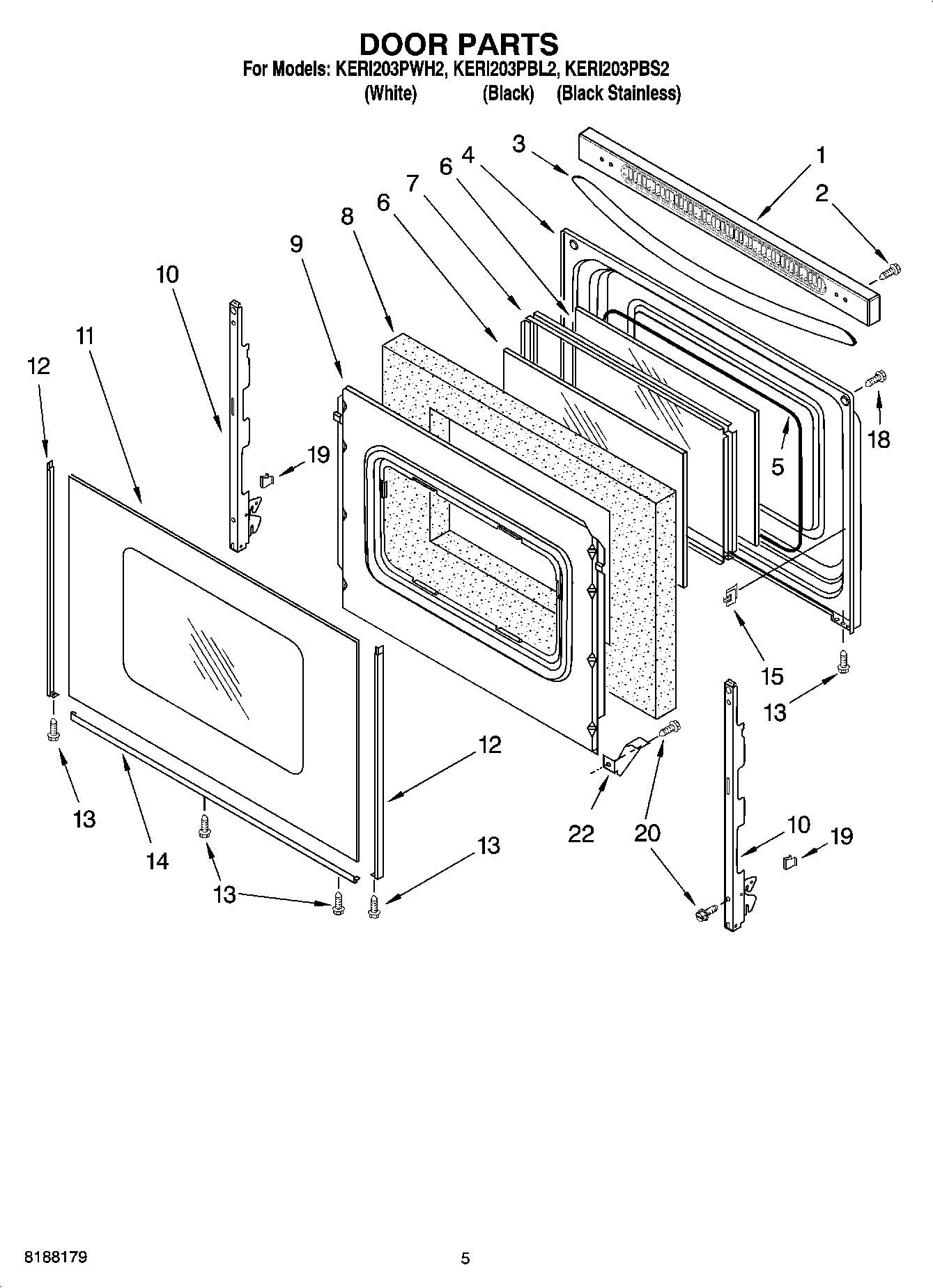

04 - DOOR PARTS

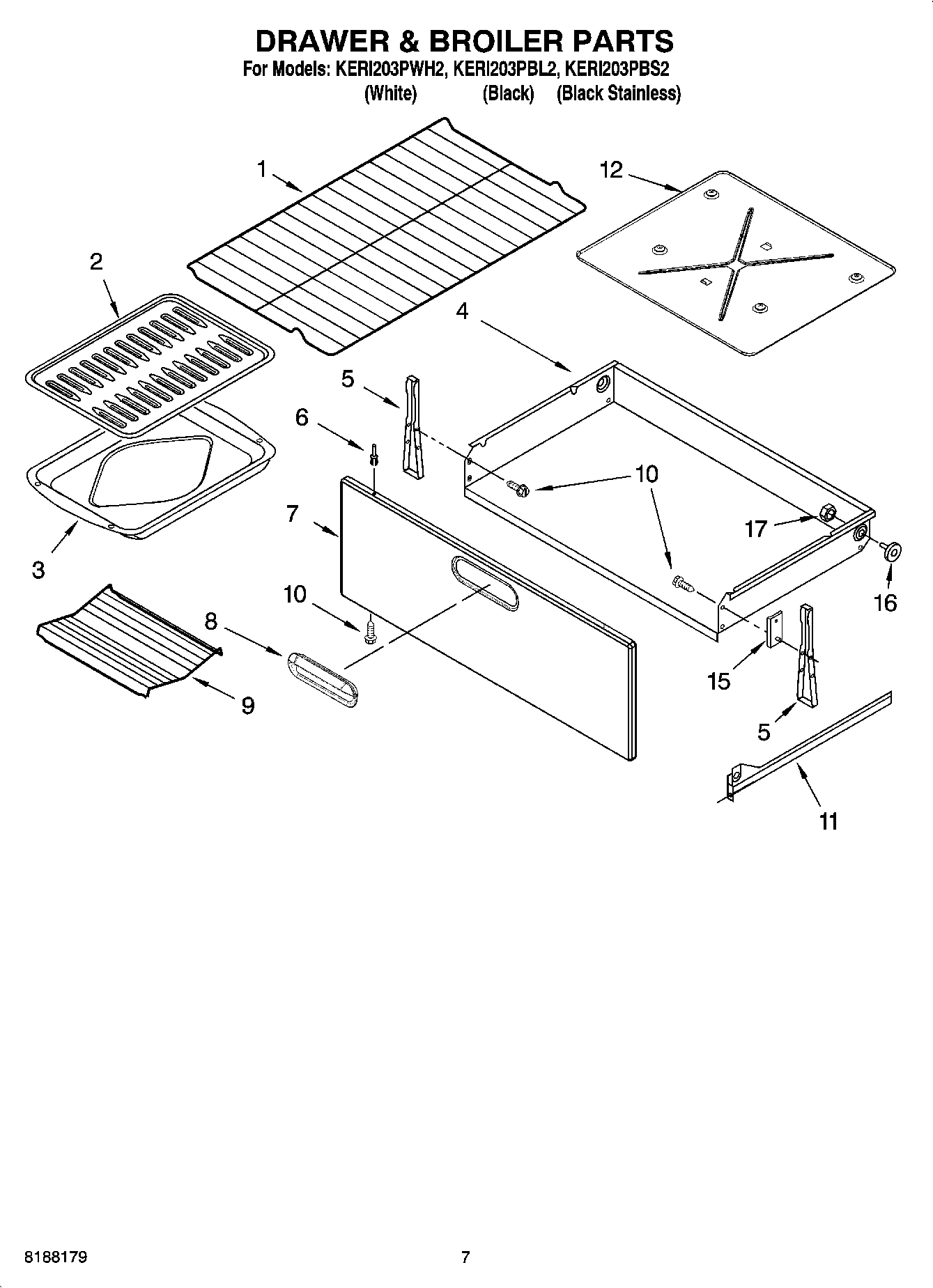

05 - DRAWER & BROILER PARTS, OPTIONAL PARTS
02 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
Common parts from model Whirlpool KERI203PWH2 30`` ELECTRIC CERAN FREE STANDING RANGE CONVECTION
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PA WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
WPL 9758174 WPL 9758174 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 8524132 WPL 8524132 Contact Us For Availability
WPL 9756745 WPL 9756745 Contact Us For Availability
WPL 9757044 WPL 9757044 Contact Us For Availability
WPL 9757332 WPL 9757332 Contact Us For Availability
WPL 9757338 WPL 9757338 Contact Us For Availability
WPL ARI154537A WPL ARI154537A Contact Us For Availability
WPL ARI154538A WPL ARI154538A Contact Us For Availability
WPL ARI154539A WPL ARI154539A Contact Us For Availability
WPL ARI154540A WPL ARI154540A Contact Us For Availability
WPL ARI154541A WPL ARI154541A Contact Us For Availability
WPL ARI154542A WPL ARI154542A Contact Us For Availability
WPL ARI154543A WPL ARI154543A Contact Us For Availability
WPL ARI154544A WPL ARI154544A Contact Us For Availability
1
Endcap (White Right Hand) WPL 9756958 Contact Us For Availability
1
Endcap (White Left Hand) WPL 9756959 Contact Us For Availability
1
Endcap (Black Right Hand) WPL 9756960 Contact Us For Availability
1
Endcap (Black Left Hand) WPL 9756961 Contact Us For Availability
1
Safer Cooking Tips WPL 3191638 Contact Us For Availability
1
Tech Sheet WPL 9756997 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) WPL 9757143 Contact Us For Availability
1
Use & Care Guide WPL 9758363 Contact Us For Availability
1
Installation Instructions WPL 9758377 Contact Us For Availability
2
Membrane Switch (Black) WPL 9762100 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Membrane Switch (White) WPL 9762098 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
3
Panel, Backguard (White) WPL 9756724 Contact Us For Availability
3
Panel, Backguard (Black Stainless) WPL 9756725 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9756732 Contact Us For Availability
4
Drawer, Storage WPL 8272605 Contact Us For Availability
4
Cooktop (Black) WPL 9762037 Contact Us For Availability
4
Cooktop (Black Stainless) WPL 9762042 Contact Us For Availability
4
Cooktop (White) WPL 9762045 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
5
Rod, Latch WPL 3196961 Contact Us For Availability
6
Bracket, Ind Light WPL 8523741 Contact Us For Availability
7
Knob (4) (White) WPL 9756941 Contact Us For Availability
7
Knob (4) (Black) WPL 9756943 Contact Us For Availability
7
Panel, Drawer Front (White) WPL 9756325 Contact Us For Availability
7
Panel, Drawer Front (Black) WPL 9756327 Contact Us For Availability
7
Panel, Drawer Front (Stainless) WPL 9756328 Contact Us For Availability
7
Element, Surface (100 W - CR) WPL 9757028 Contact Us For Availability
7
Element, Surface (1800/800 W - RR) WPL 9757031 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
8
Handle, Drawer (Black) WPL 9756952BL Contact Us For Availability
8
Handle, Drawer (White) WPL 9756952WH Contact Us For Availability
8
Shield, Heat WPL 9756934 Contact Us For Availability
9
Rack, Roasting WPL 3181534 Contact Us For Availability
9
Bracket, Element ((2)) WPL 8272791 Contact Us For Availability
9
Bracket, Element ((1)) WPL 8273720 Contact Us For Availability
10
Cover, Rear WPL 9756999 Contact Us For Availability
11
Rail Assy, Drawer (Left) WPL 8274190 Contact Us For Availability
11
Rail Assy, Drawer (Right) WPL 8274191 Contact Us For Availability
11
Switch, Simmer (White) WPL 9758366WH Contact Us For Availability
12
Control, Range WPL 9756548 Contact Us For Availability
12
Heat Shield, Drawer WPL 9756711 Contact Us For Availability
15
Spacer, Glide WPL 8522669 Contact Us For Availability
15
Switch, Warming (White) WPL 9757406WH Contact Us For Availability
15
Frame, Front WPL 9758224 Contact Us For Availability
17
Cover, Rear (Console) WPL 9758319 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
18
Cover, Vent (White) WPL 9758352 Contact Us For Availability
18
Cover, Vent (Black) WPL 9758354 Contact Us For Availability
18
Cover, Vent (Cashmere Metalic) WPL 9758355 Contact Us For Availability
19
Membrane, Insert WPL 9761077 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 8523803 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
31
Back, Main WPL 9757029 Contact Us For Availability
32
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
36
Cover, Tray WPL 9755771 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
45
Screw WPL 3196172 Contact Us For Availability
52
Nut WPL 4452227 Contact Us For Availability
53
Cover, Convection Fan WPL 9755776 Contact Us For Availability
55
Baffle, Convection WPL 9757088 Contact Us For Availability
56
ROD - DOOR SWITCH, REAR MOUNT WPL 9757239 Contact Us For Availability
57
Screen, Vent WPL 9758213 Contact Us For Availability
58
Insulation, Back WPL 9755772 Contact Us For Availability
58
Insulation WPL ARI154536A Contact Us For Availability
× ![]()
