Model Whirlpool KERH507YAL3 – Common Parts & Diagrams
04 - OVEN CHASSIS
02 - CONTROL PANEL

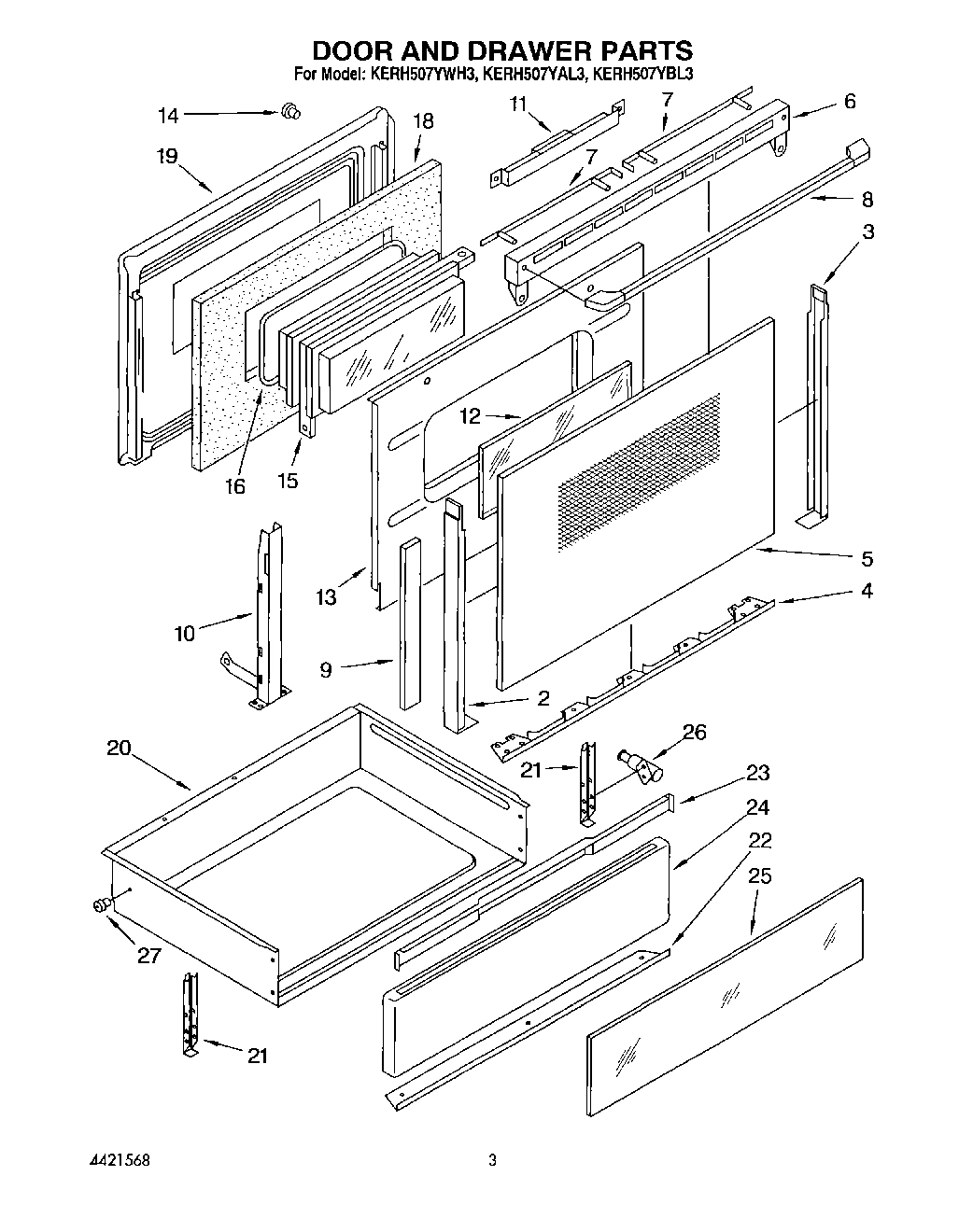

03 - DOOR AND DRAWER

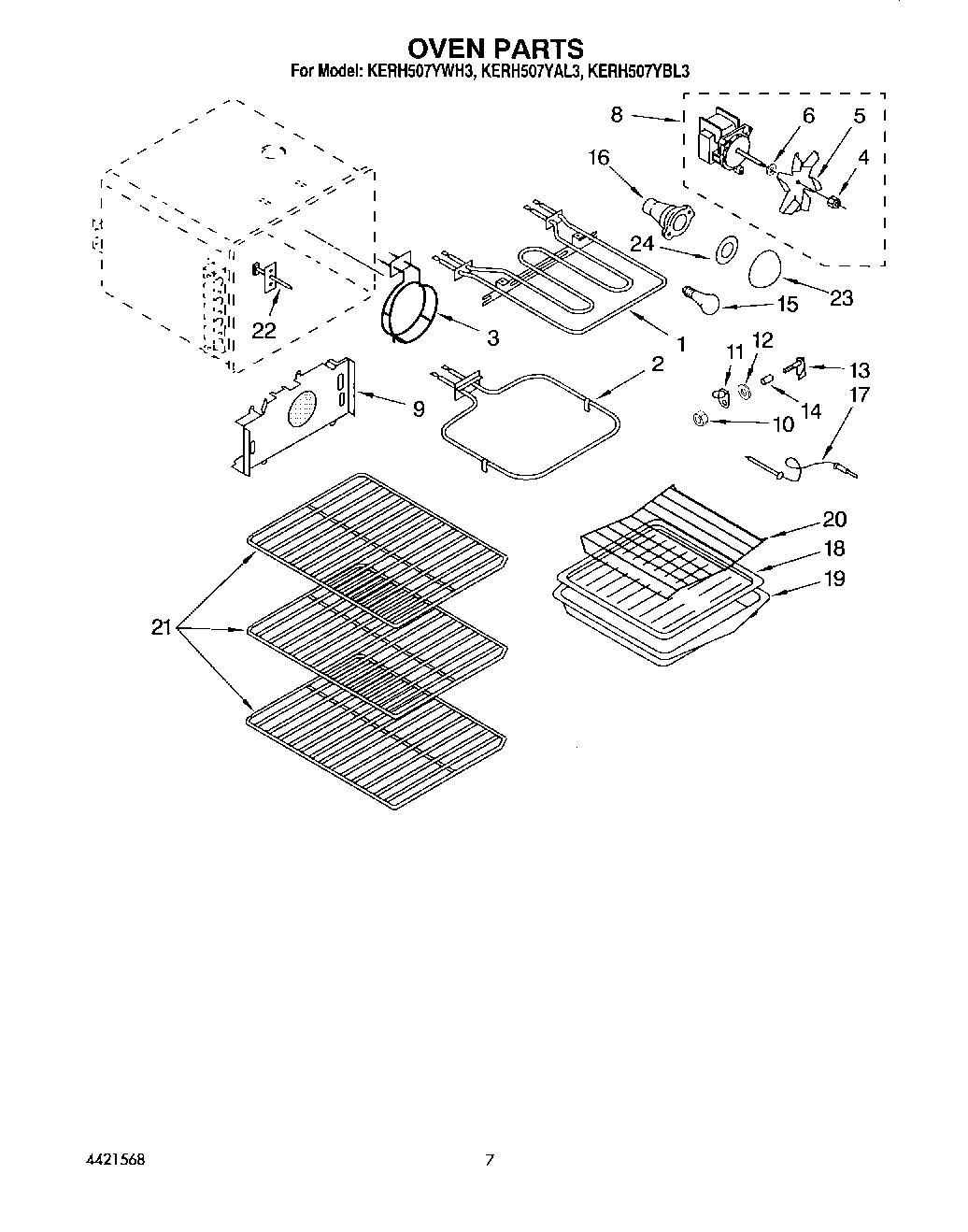

05 - OVEN

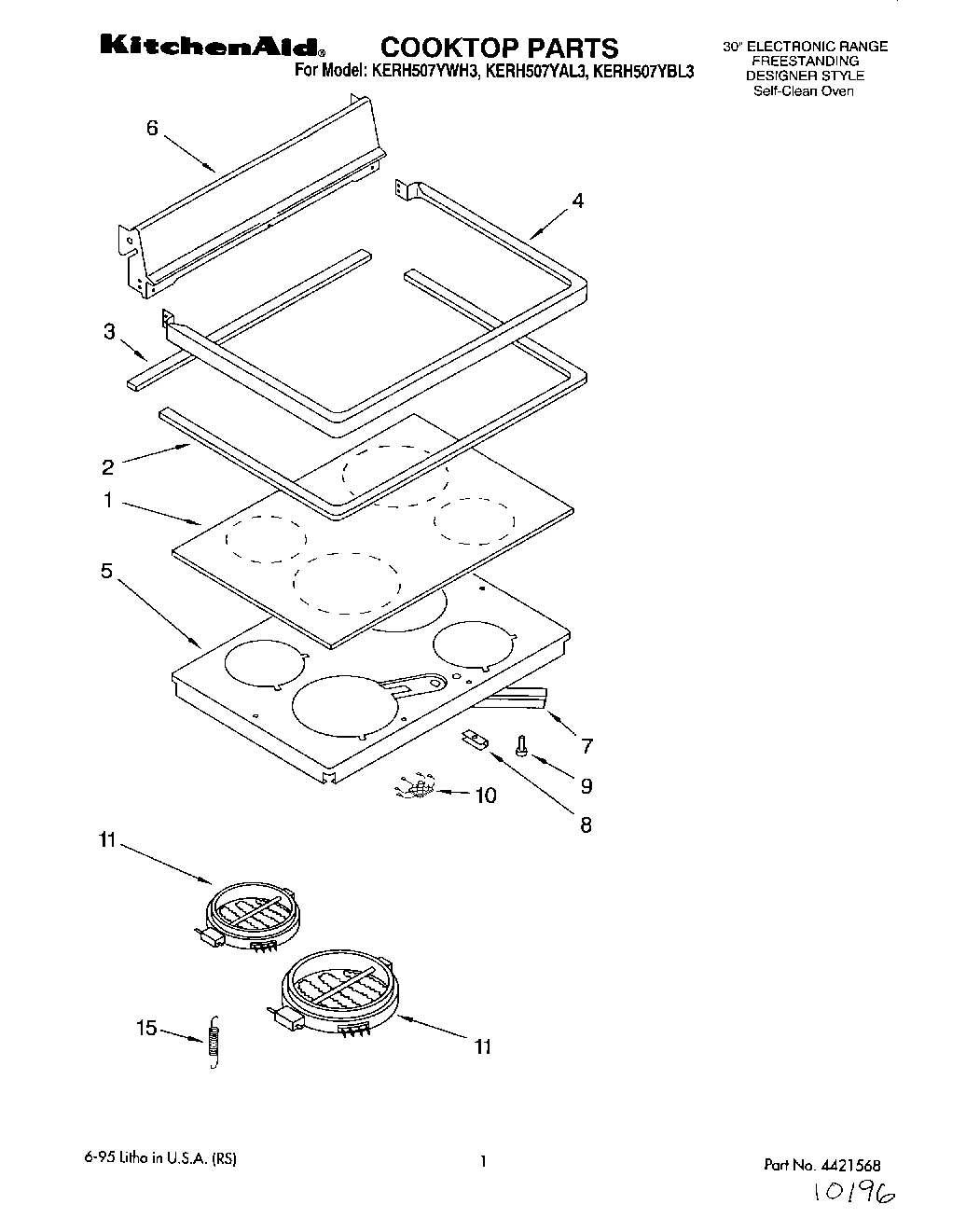

01 - COOKTOP, LITERATURE

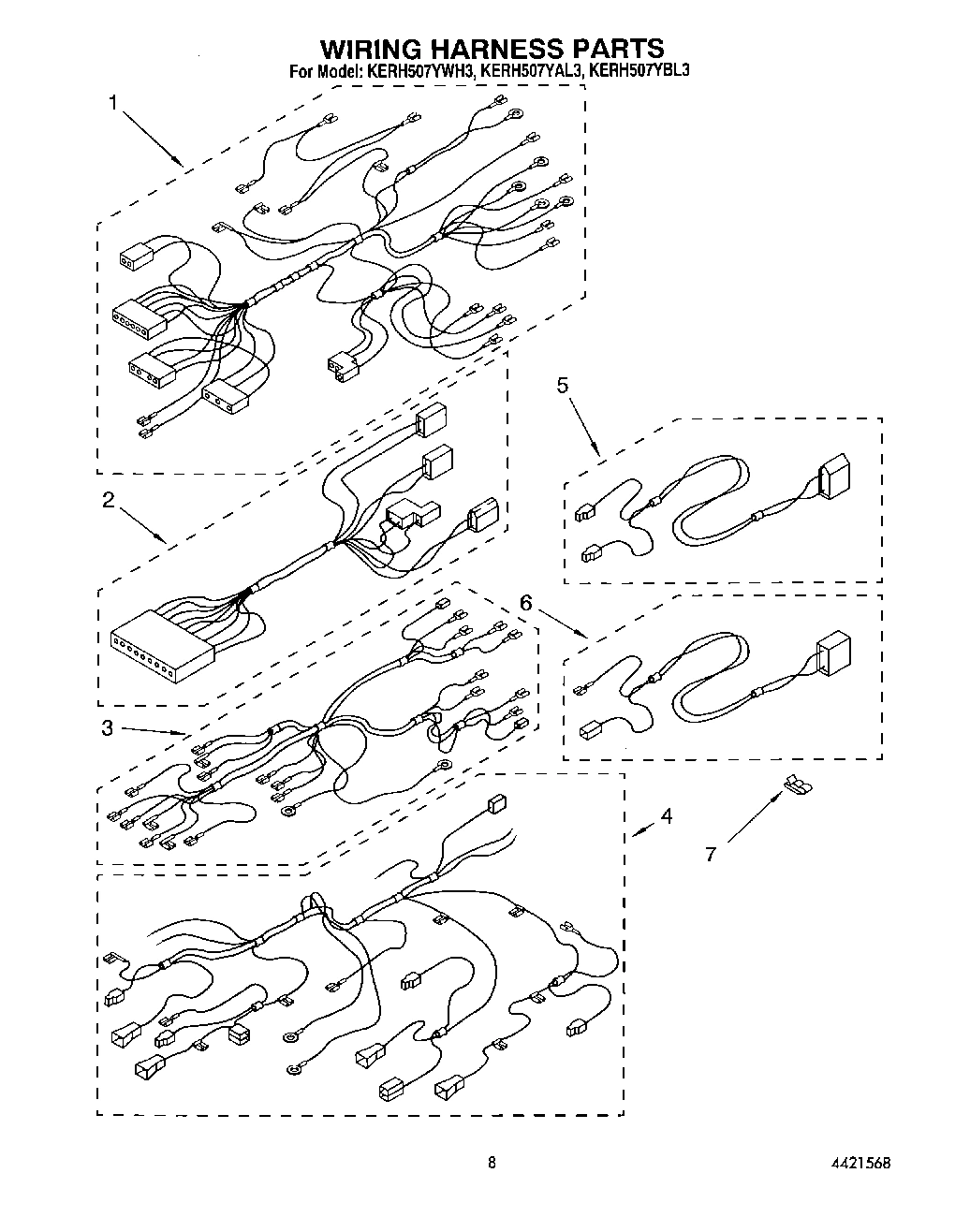

06 - WIRING HARNESS

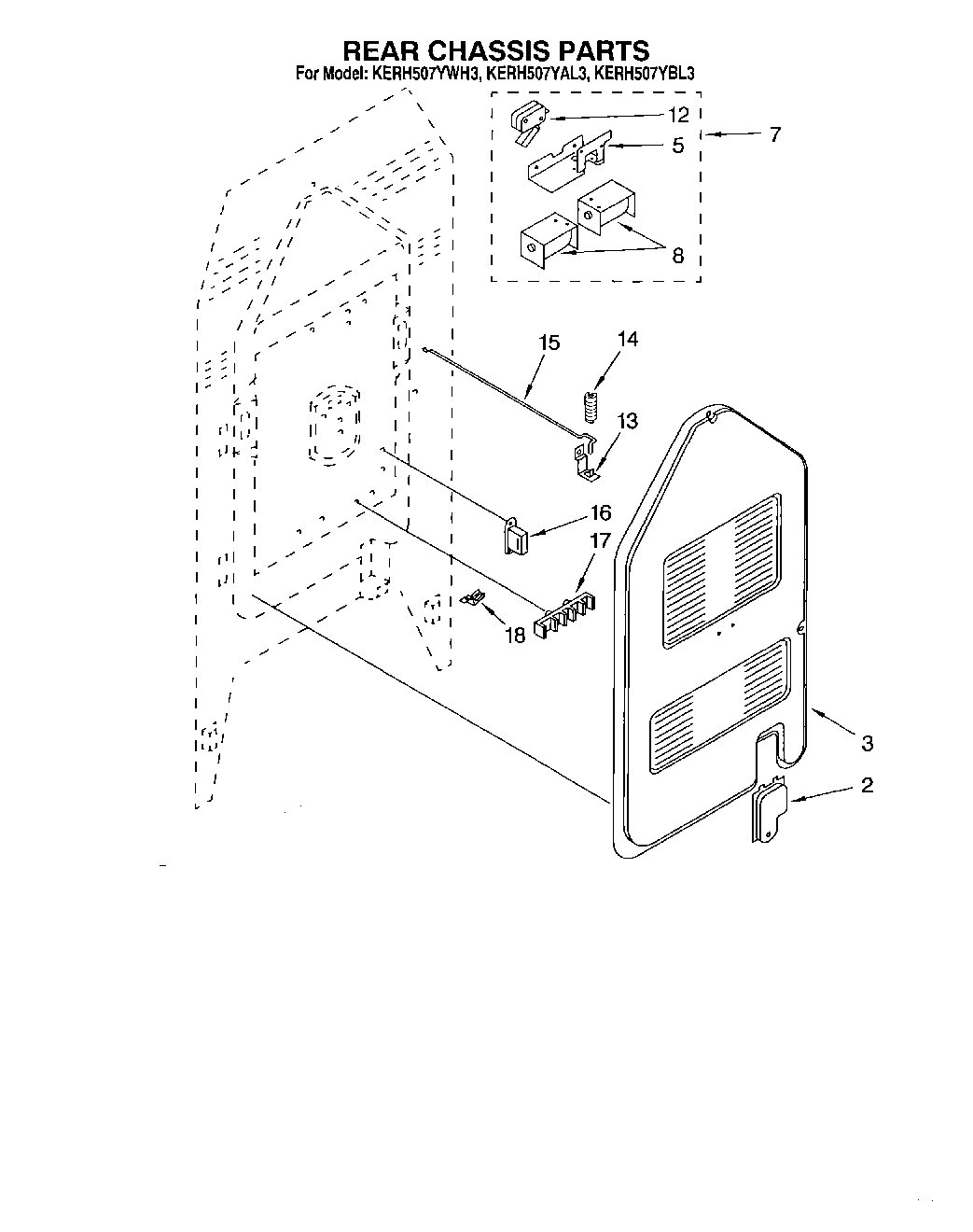

07 - REAR CHASSIS, OPTIONAL
Common parts from model Whirlpool KERH507YAL3
Cookbook, T/C Ovens WPL LIT3150693 Contact Us For Availability
Video, K/A T/C Ovens WPL LIT3183790 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Instructions, Installation WPL LIT9750520 Contact Us For Availability
Wiring Diagram WPL LIT9750876 Contact Us For Availability
Tech Sheet-K/A WPL LIT9750877 Contact Us For Availability
Quick Set (oven) WPL LIT9780689 Contact Us For Availability
Use And Care Guide WPL LIT9780936 Contact Us For Availability
Label, Instruction (Lamp Cover) WPL LIT9780945 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (White) WPL 9780580 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9780581 Contact Us For Availability
1
Lamp Cover (Black) WPL 9780734 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9780854 Contact Us For Availability
1
Cooktop, Ceran (Almond/Black Mdl.) WPL 9780855 Contact Us For Availability
1
Harness, Wire (Oven) WPL 9781212 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 4211899 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4211912 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 4211914 Contact Us For Availability
2
Harness, Wire (Lock Switch) WPL 9781214 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 4211900 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4211910 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 4211911 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
3
Harness, Wire (Cooktop) WPL 9751111 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 4211933 Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 4211934 Contact Us For Availability
4
End Cap (Right Hand) (Black (Left Hand)) WPL 4211935 Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 4211936 Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 4211937 Contact Us For Availability
4
End Cap (Right Hand) (Black) WPL 4211938 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 4211924 Contact Us For Availability
4
Trim, Door Bottom (White) WPL 4211925 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 4211926 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4211918 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4211919 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 4211920 Contact Us For Availability
4
Harness, Wire (Control) WPL 9751148 Contact Us For Availability
5
Glass, Door (Black) WPL 9750850 Contact Us For Availability
5
Glass, Door (White) WPL 9780314 Contact Us For Availability
5
Glass, Door (Almond) WPL 9780328 Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
5
Support, Element WPL 9750455 Contact Us For Availability
5
Harness, Wire (Door) WPL 9750376 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Back Splash (Screw (4) 10 x 1/2) WPL 3149333 Contact Us For Availability
6
Panel, Control (White) WPL 9780293 Contact Us For Availability
6
Panel, Control (Almond) WPL 9780329 Contact Us For Availability
6
Panel, Control (Black) WPL 9780726 Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Vent, Door (Black) WPL 4211898 Contact Us For Availability
6
Vent, Door (White) WPL 4211907 Contact Us For Availability
6
Vent, Door (Almond) WPL 4211908 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
6
Back Splash (White) WPL 4211921 Contact Us For Availability
6
Back Splash (Almond) WPL 4211922 Contact Us For Availability
6
Back Splash (Black) WPL 4211923 Contact Us For Availability
6
Harness, Wire (Probe) WPL 9752088 Contact Us For Availability
7
Vent Back WPL 9750898 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
7
Oven Lock Assembly WPL 9750522 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Knobs, Control (Black) WPL 4211901 Contact Us For Availability
8
Handle, Door (White) WPL 4212234 Contact Us For Availability
8
Handle, Door (Almond) WPL 4212235 Contact Us For Availability
8
Handle, Door (Black) WPL 4212236 Contact Us For Availability
8
Assembly, Fan WPL 9751118 Contact Us For Availability
8
Screw, 10 x 1/2 WPL 9781073 Contact Us For Availability
8
Screw, (4) 10 x 3/4 WPL 4211831 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
9
Gasket, Door Glass WPL 9750694 Contact Us For Availability
9
Baffle, Convection WPL 4211894 Contact Us For Availability
9
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Hot Light WPL 9780931 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Element, Surface (7`` R.F.) WPL 3182862 Contact Us For Availability
11
Element, Surface (8`` R.R.) WPL 9750663 Contact Us For Availability
11
Element, Surface (6`` L.R.) WPL 9750752 Contact Us For Availability
11
Element, Surface (9`` L.F.) WPL 9750755 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Starter, Holder WPL 9750866 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Receptacle, Lamp WPL 9750273 Contact Us For Availability
13
Shield Door WPL 4211941 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9750699 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750700 Contact Us For Availability
15
Oven Control Assembly (Black) WPL 9750917 Contact Us For Availability
15
Window Pack Assy. WPL 9751245 Contact Us For Availability
15
Spring (8) WPL 9780679 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
16
Washer WPL 4211875 Contact Us For Availability
16
Ballast, Lamp WPL 9780881 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Button, Light (Black) WPL 4212111 Contact Us For Availability
17
Button, Light (White) WPL 4212112 Contact Us For Availability
17
Button, Light (Almond) WPL 4212113 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Switch, Light WPL 9751110 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Plat WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 308498 WPL 308498 Contact Us For Availability
18
WPL 313660 WPL 313660 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
21
Bracket, Switch WPL 9750721 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Starter, Light WPL 9781118 Contact Us For Availability
22
Trim, Drawer Bottm. (Black) WPL 4211902 Contact Us For Availability
22
Trim, Drawer Bottm. (White) WPL 4211905 Contact Us For Availability
22
Trim, Drawer Bottm. (Almond) WPL 4211906 Contact Us For Availability
22
Screw, 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Infinite Switch (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability
23
Trim, Drawer Top (Black) WPL 4211930 Contact Us For Availability
23
Trim, Drawer Top (White) WPL 4211931 Contact Us For Availability
23
Trim, Drawer Top (Almond) WPL 4211932 Contact Us For Availability
24
Front, Drawer (Black) WPL 4211915 Contact Us For Availability
24
WPL 4211916 WPL 4211916 Contact Us For Availability
24
WPL 4211917 WPL 4211917 Contact Us For Availability
25
WPL 9750611 WPL 9750611 Contact Us For Availability
25
WPL 9750612 WPL 9750612 Contact Us For Availability
25
WPL 9780326 WPL 9780326 Contact Us For Availability
26
WPL 9751248 WPL 9751248 Contact Us For Availability
26
WPL 9780806 WPL 9780806 Contact Us For Availability
29
Door Switch WPL 9750897 Contact Us For Availability
× ![]()
