Model Whirlpool KERC700LWH0 COOKTOP – Common Parts & Diagrams

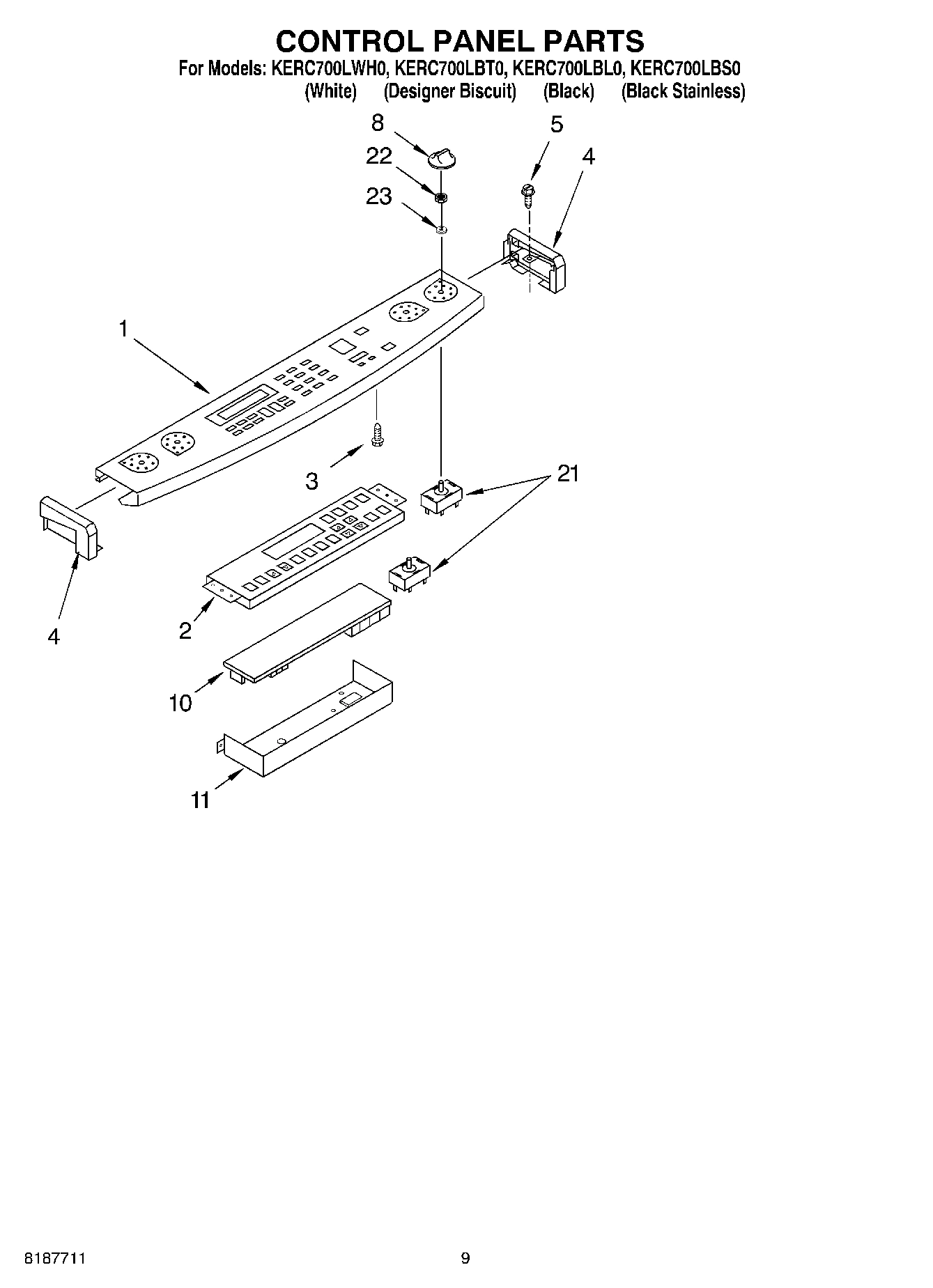

06 - CONTROL PANEL, OPTIONAL

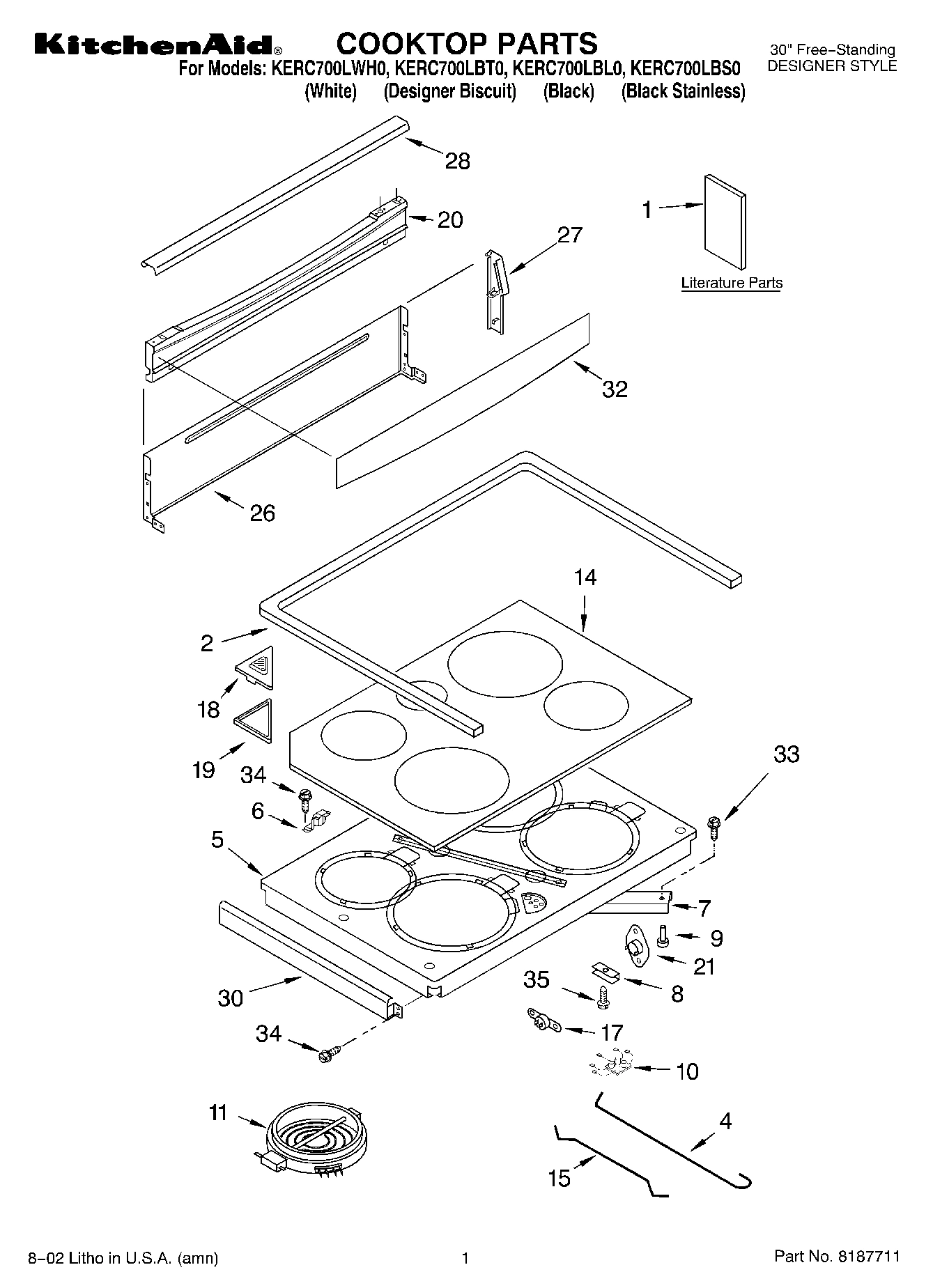

01 - COOKTOP, LITERATURE
04 - OVEN
05 - REAR CHASSIS
02 - DOOR AND DRAWER
03 - OVEN CHASSIS
Common parts from model Whirlpool KERC700LWH0 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754287 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754365 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754373 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755234 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Board, Display WPL 9782456 Contact Us For Availability
2
Gasket, Silicone WPL 9781614 Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Rack, Partial WPL 8523815 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Insulation, Wrap WPL 9754011 Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Rack, Insert WPL 9755548 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation, Rear WPL 9754000 Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Oven Lock Assembly WPL 9782611 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
10
Board, Power WPL 9782438 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
12
Switch, Interlock WPL 9754291 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Ground Strap WPL 3169573 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
20
Backsplash (Black) WPL 9781896GB Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
20
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Fan Duct, Cover WPL 9782329 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
22
Heat Shield WPL 9782326 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 9781769 WPL 9781769 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 9781655 WPL 9781655 Contact Us For Availability
23
WPL 9782111 WPL 9782111 Contact Us For Availability
23
WPL 9782183 WPL 9782183 Contact Us For Availability
23
WPL 9782443 WPL 9782443 Contact Us For Availability
23
WPL 9782462 WPL 9782462 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
Support, Rails WPL 9781904 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Front, Drawer (Stainless) WPL 9782109PB Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash Right (Black) WPL 9781884FB Contact Us For Availability
27
Endcap, Backsplash Right (Biscuit) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash Right (White) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash Right (Black Left) WPL 9781885FB Contact Us For Availability
27
Endcap, Backsplash Right (Biscuit) WPL 9781885FC Contact Us For Availability
27
Endcap, Backsplash Right (White) WPL 9781885FW Contact Us For Availability
28
Cover, Light (White) WPL 9751327 Contact Us For Availability
28
Cover, Light (Black) WPL 9751632 Contact Us For Availability
28
Cover, Light (Biscuit) WPL 9753320 Contact Us For Availability
28
Retainer, Glass (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
29
Channel, Heat WPL 9750693 Contact Us For Availability
30
Relay, Dlb. WPL 9755194 Contact Us For Availability
30
Trim, Cooktop Right (Black Left) WPL 9751275PB Contact Us For Availability
30
Trim, Cooktop Right (Biscuit) WPL 9751275PC Contact Us For Availability
30
Tri WPL 9751275PW Contact Us For Availability
30
WPL 9751276PB WPL 9751276PB Contact Us For Availability
30
WPL 9751276PC WPL 9751276PC Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
30
Stainless Model Only WPL ARI86414A4 Contact Us For Availability
32
WPL 9753910CW WPL 9753910CW Contact Us For Availability
32
WPL 9753910CB WPL 9753910CB Contact Us For Availability
32
WPL 9753910CC WPL 9753910CC Contact Us For Availability
32
WPL 9781987 WPL 9781987 Contact Us For Availability
32
Button, Plug WPL 9780578 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
34
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
35
WPL 9751871 WPL 9751871 Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer WPL 9754062 Contact Us For Availability
37
Trim, Drawer-Btm WPL 9750613PB Contact Us For Availability
× ![]()
