Model Whirlpool KERC607HBS4 COOKTOP – Common Parts & Diagrams

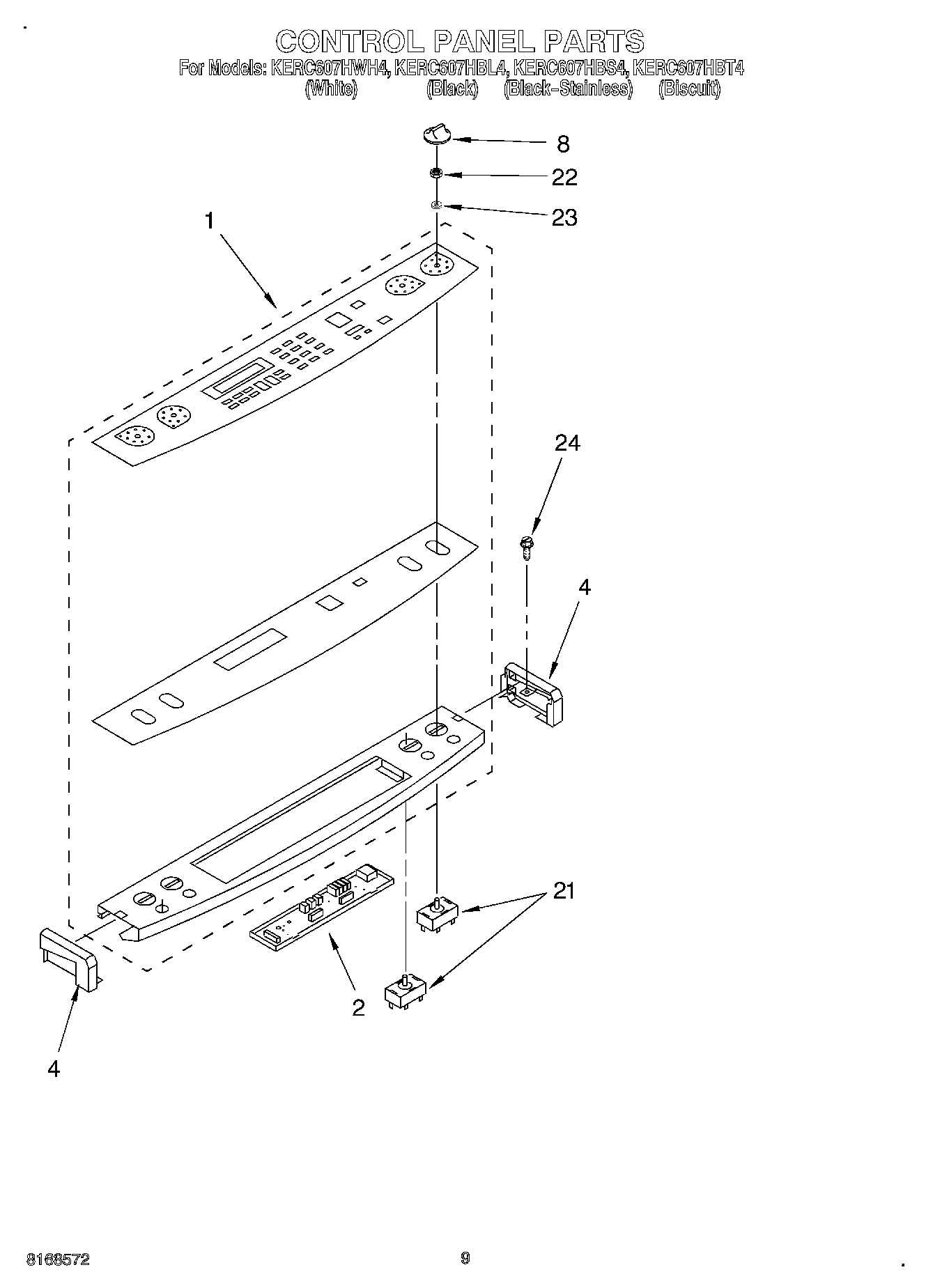

06 - CONTROL PANEL

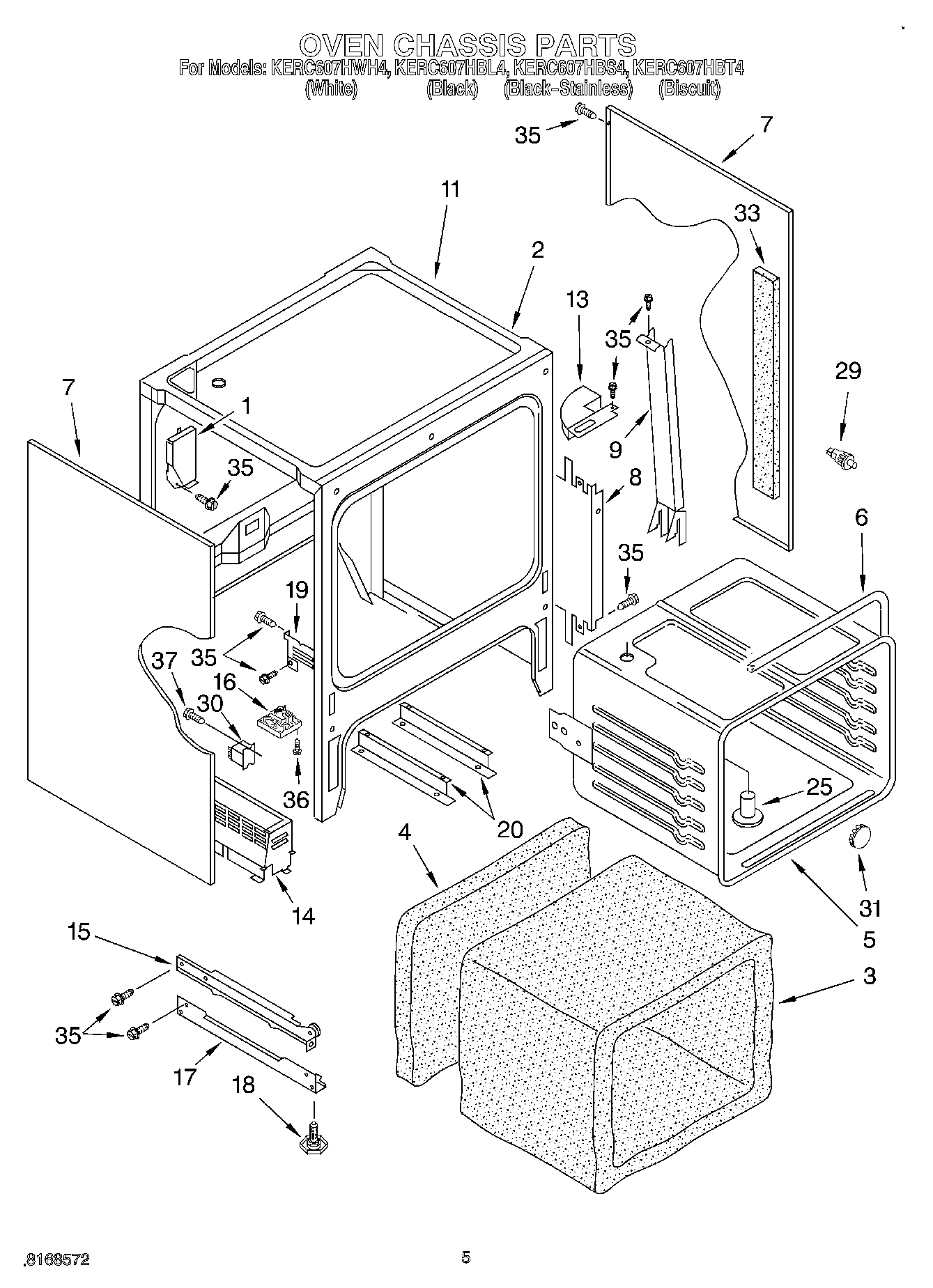

03 - OVEN CHASSIS

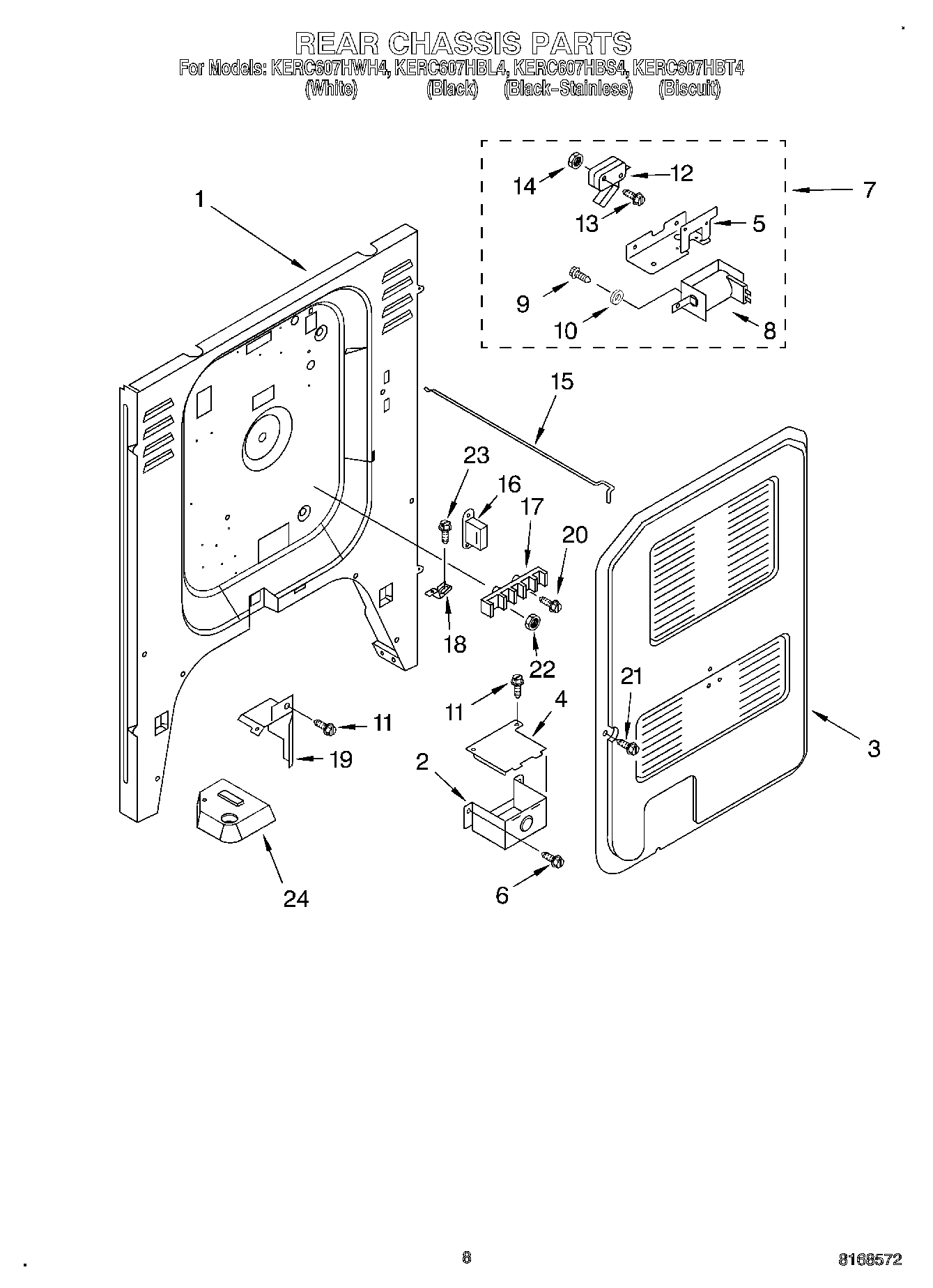

05 - REAR CHASSIS

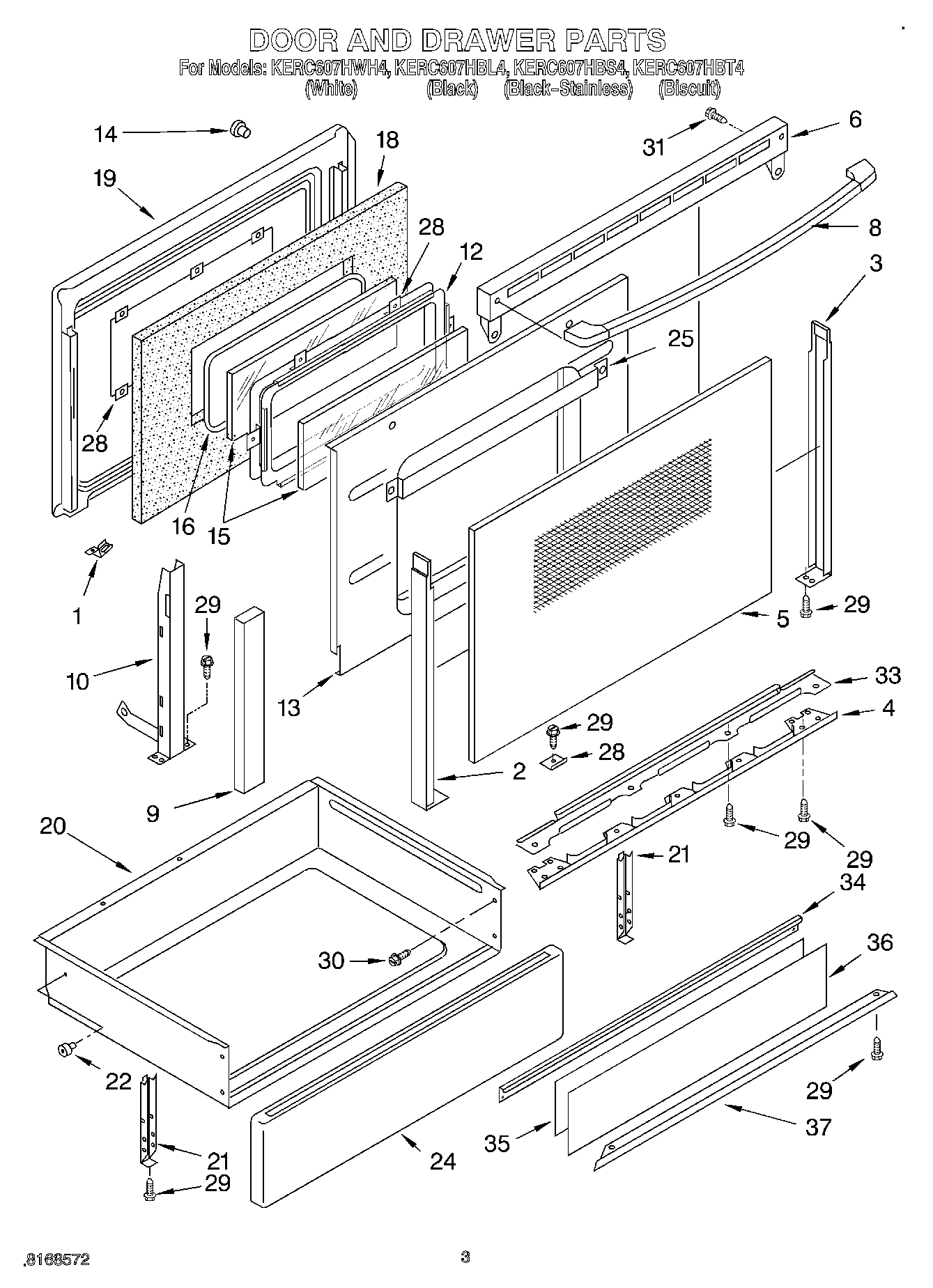

02 - DOOR AND DRAWER

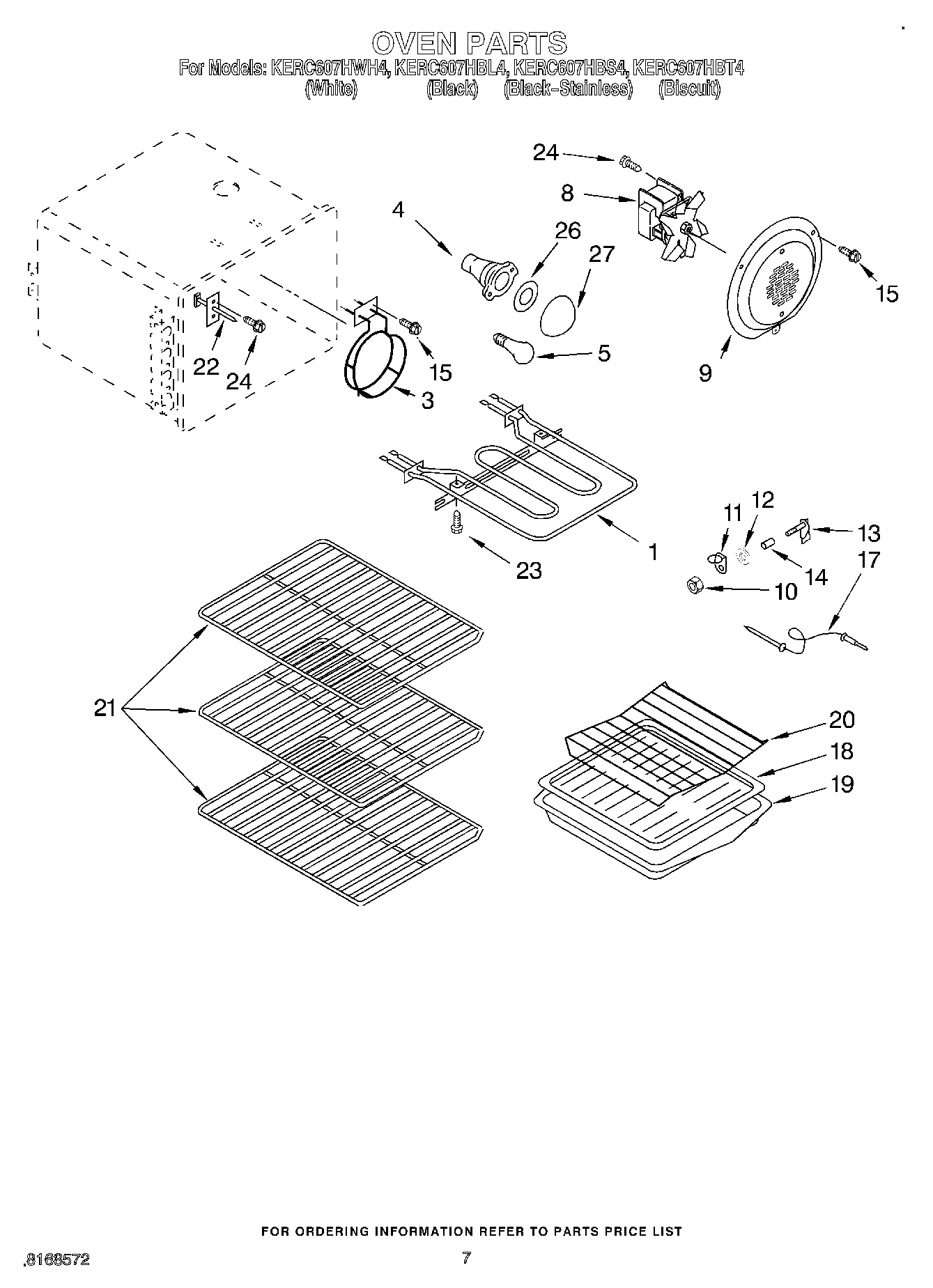

04 - OVEN

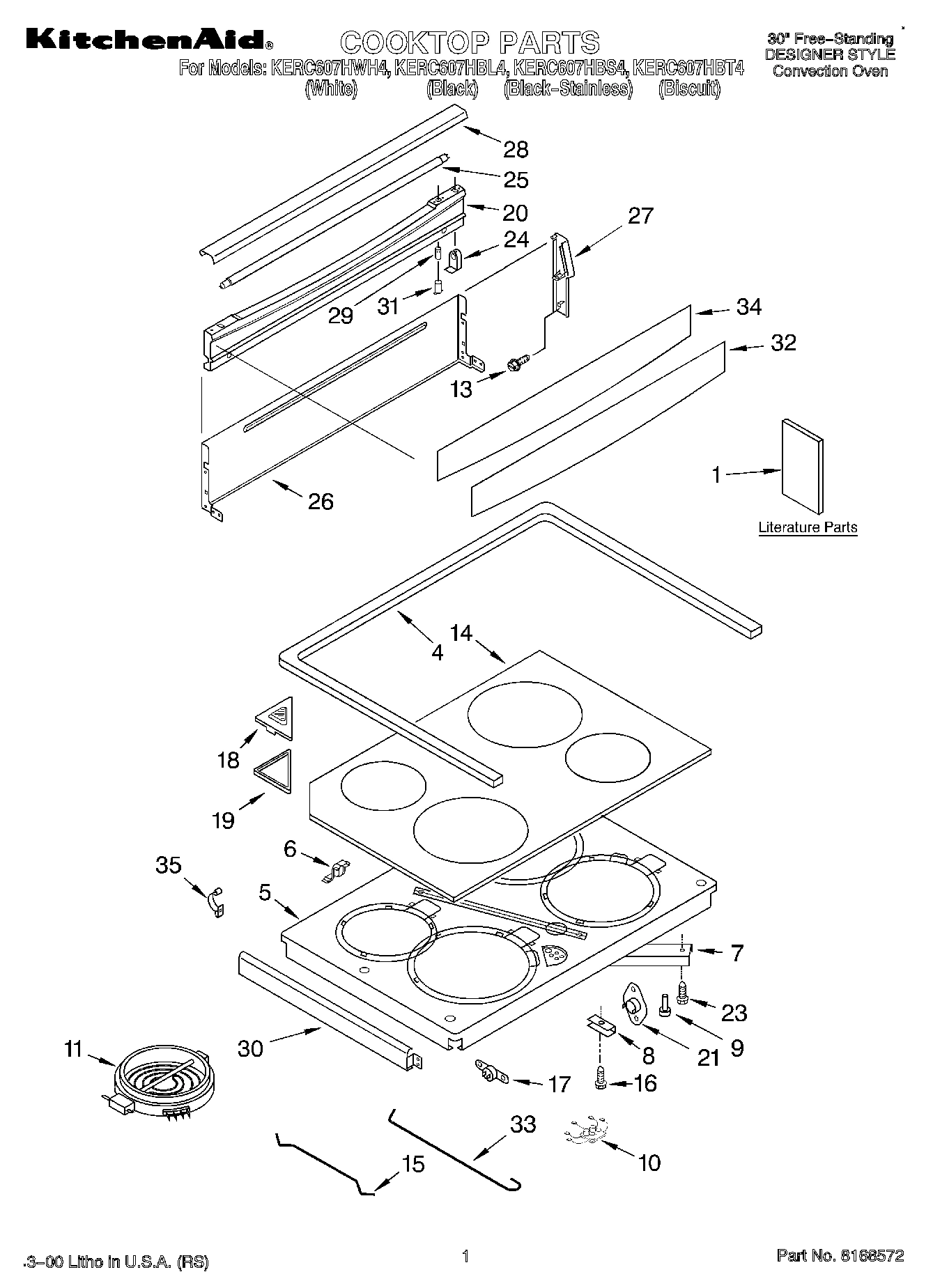

01 - COOKTOP, LITERATURE

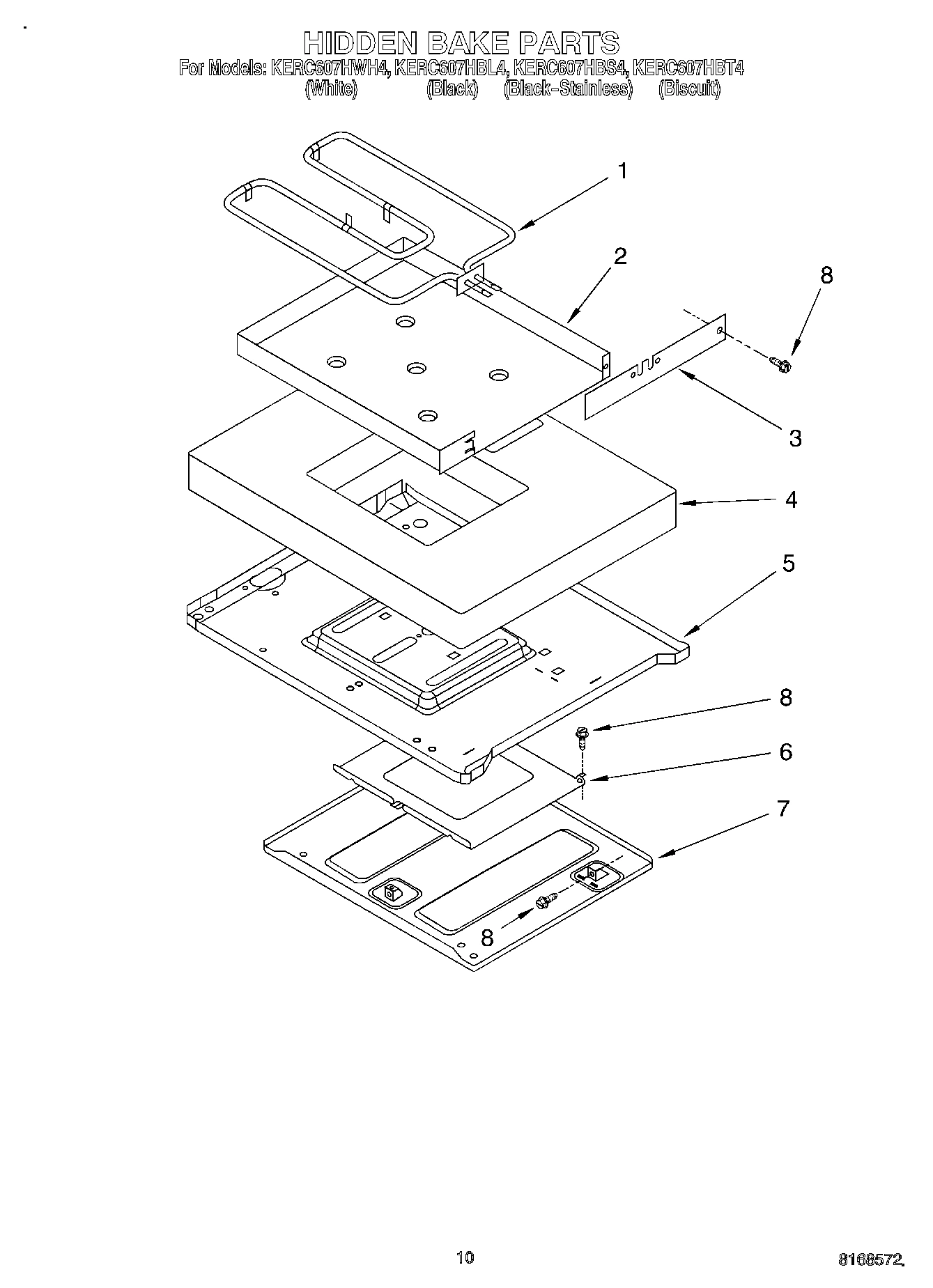

07 - HIDDEN BAKE, OPTIONAL
Common parts from model Whirlpool KERC607HBS4 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Cookbook T/C Ovens WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752043 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753028 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753846 Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9782003PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Pan, Hidden Bake WPL 9752228 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9782004PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Cover, Hidden Bake WPL 9752250 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Gasket, Cooktop WPL 9781614 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Plate, Reflector WPL 9751641 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Shield WPL 9781025 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
WPL 9751745 WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Coffee WPL 261886 Contact Us For Availability
8
New Avocado WPL 261888 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
8
KIT, PO WPL 799832 Contact Us For Availability
8
WPL 9750376 WPL 9750376 Contact Us For Availability
8
WPL 9751139 WPL 9751139 Contact Us For Availability
8
WPL 9751750 WPL 9751750 Contact Us For Availability
8
WPL 9751868 WPL 9751868 Contact Us For Availability
8
WPL 9753374 WPL 9753374 Contact Us For Availability
8
WPL 9753683 WPL 9753683 Contact Us For Availability
8
WPL 9753943 WPL 9753943 Contact Us For Availability
8
WPL 9753944 WPL 9753944 Contact Us For Availability
8
WPL 9754003 WPL 9754003 Contact Us For Availability
8
WPL 9754011 WPL 9754011 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9781932 WPL 9781932 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
13
Screw WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (Designer White) WPL 9755005CW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Screw WPL 9781509 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
16
Ballast, Light WPL 3191044 Contact Us For Availability
16
Screw WPL 9751871 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
20
For BS Model WPL 9750257 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
20
Backsplash (Black) WPL 9781896GB Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Screw WPL 423247 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
23
Screw WPL 9780272 Contact Us For Availability
24
Block, Balance WPL 9753413 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Front, Drawer (BS Model) WPL 9750569PB Contact Us For Availability
24
Receptacle, Light WPL 9752760 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Black, Left) WPL 9781884FB Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Left) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash (White, Left) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (Black) WPL 9781885FB Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Right) WPL 9781885FC Contact Us For Availability
27
Endcap, Backsplash (White, R WPL 9781885FW Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
28
WPL 9751327 WPL 9751327 Contact Us For Availability
28
WPL 9751632 WPL 9751632 Contact Us For Availability
28
WPL 9753320 WPL 9753320 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
WPL 9781118 WPL 9781118 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
WPL 9751275PB WPL 9751275PB Contact Us For Availability
30
WPL 9751275PC WPL 9751275PC Contact Us For Availability
30
WPL 9751275PW WPL 9751275PW Contact Us For Availability
30
WPL 9751276PB WPL 9751276PB Contact Us For Availability
30
WPL 9751276PC WPL 9751276PC Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
31
WPL 9750866 WPL 9750866 Contact Us For Availability
32
WPL 9781154 WPL 9781154 Contact Us For Availability
33
WPL 9781771 WPL 9781771 Contact Us For Availability
33
WPL 9781460 WPL 9781460 Contact Us For Availability
34
WPL 9750614PB WPL 9750614PB Contact Us For Availability
34
WPL 9753291 WPL 9753291 Contact Us For Availability
35
WPL 9753329 WPL 9753329 Contact Us For Availability
36
Screw WPL 9751808 Contact Us For Availability
36
WPL 9753293 WPL 9753293 Contact Us For Availability
37
WPL 9750613PB WPL 9750613PB Contact Us For Availability
× ![]()
