Model Whirlpool KERC607HBL8 COOKTOP – Common Parts & Diagrams

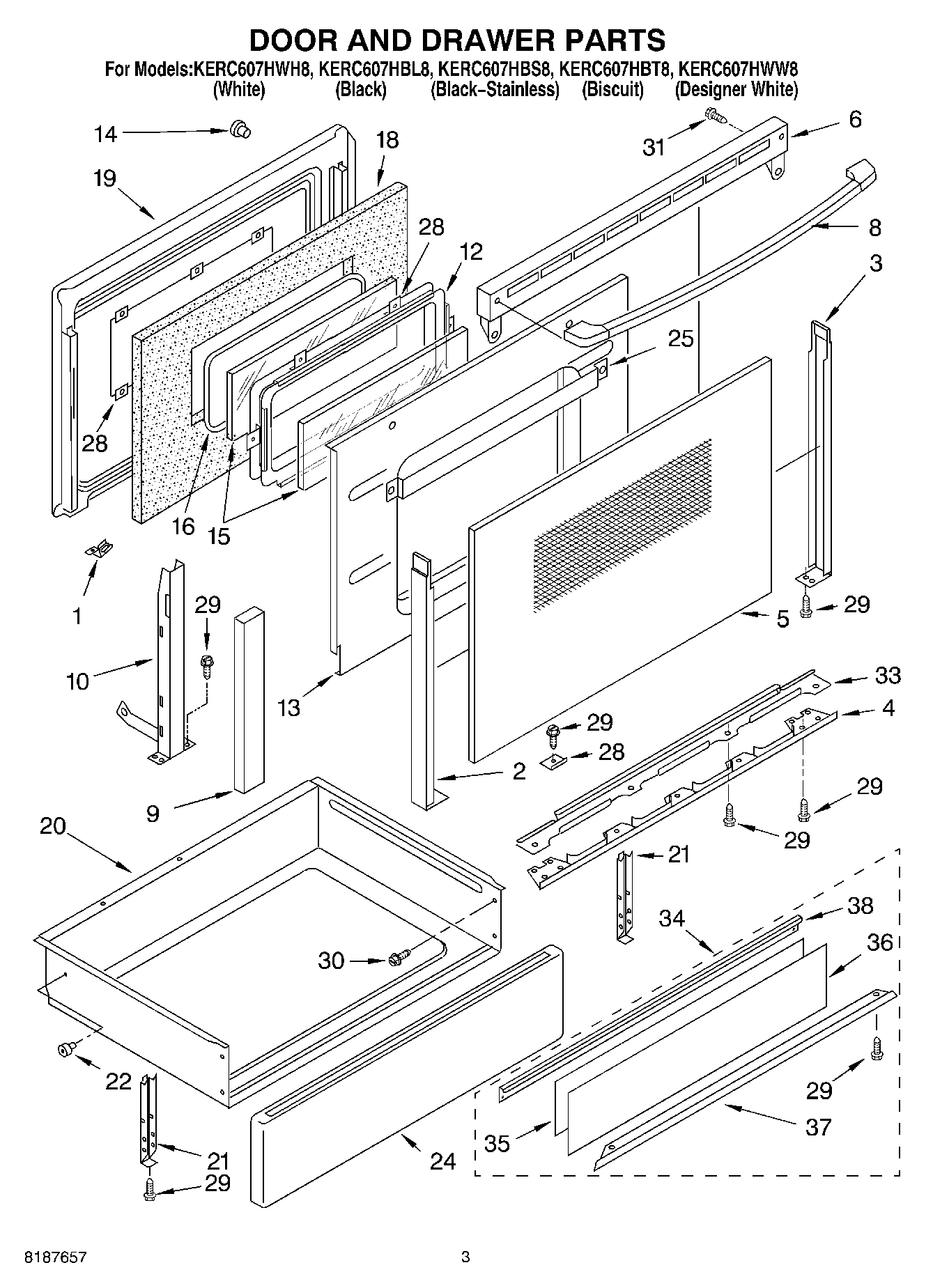

02 - DOOR AND DRAWER

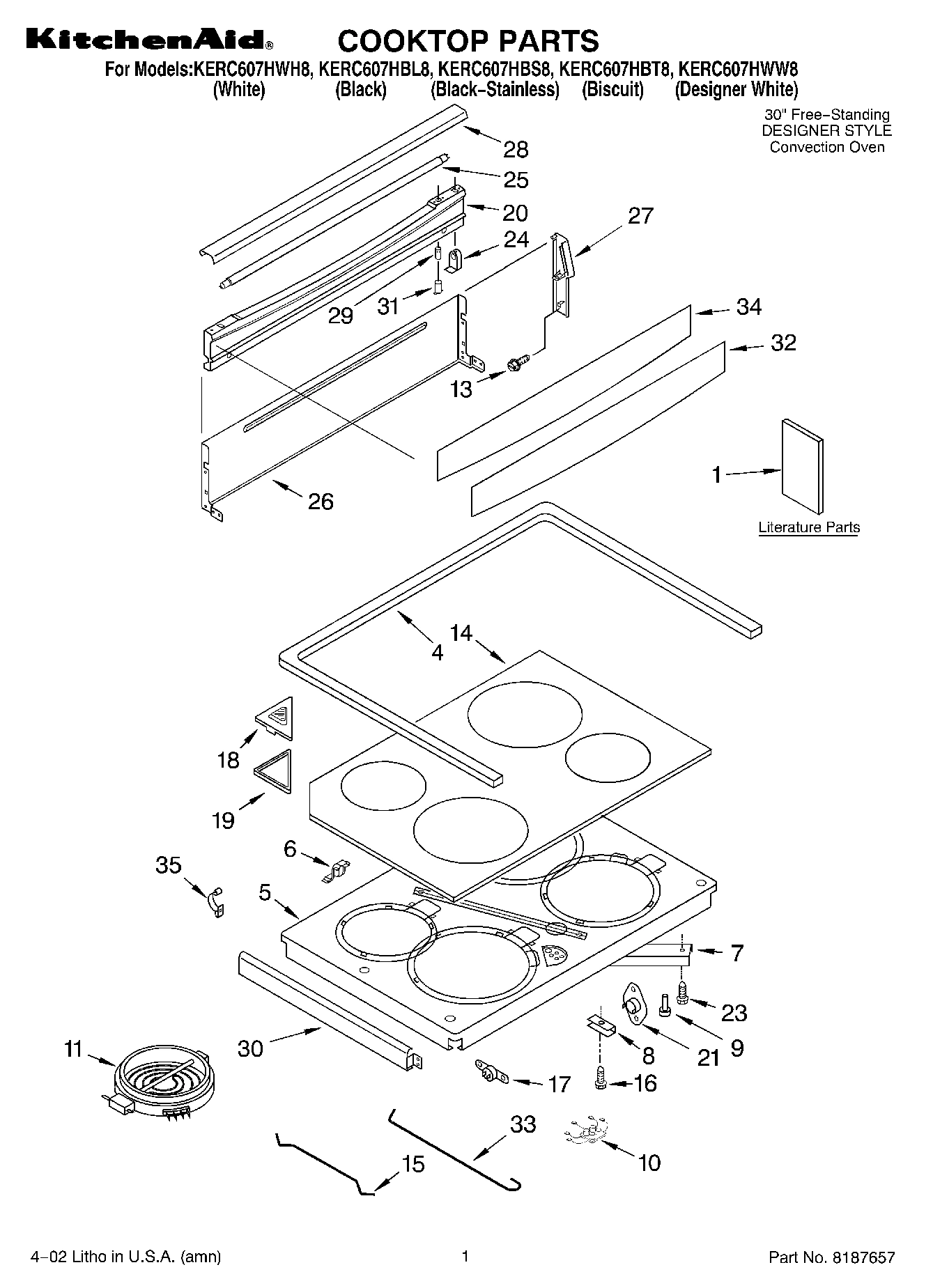

01 - COOKTOP, LITERATURE
04 - OVEN
06 - CONTROL PANEL
03 - OVEN CHASSIS
05 - REAR CHASSIS
07 - HIDDEN BAKE
Common parts from model Whirlpool KERC607HBL8 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (Black Stainless) WPL 9782419CB Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754287 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754365 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754373 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755234 Contact Us For Availability
1
Console, Glass (Black) WPL 9782421CB Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9782421CC Contact Us For Availability
1
Console, Glass (White) WPL 9782421CW Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
Screw, (2) WPL 9780271 Contact Us For Availability
2
Board, Display WPL 9782430 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Cover, Hidden Bake WPL 9782049 Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751279FB Contact Us For Availability
4
End Cap Right Hand (Biscuit) WPL 9751279FC Contact Us For Availability
4
End Cap Right Hand (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Right Hand) (Black) WPL 9751280FB Contact Us For Availability
4
End Cap Right Hand (Biscuit Left Hand) WPL 9751280FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751280FW Contact Us For Availability
4
End Cap (Right Hand) (Spacer (2)) WPL 9781488 Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Screw WPL 9780272 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Side, Oven L or R (Black) WPL 9781907PB Contact Us For Availability
7
Side, Oven L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Side, Oven L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly WPL 9755001 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
8
WPL W10355051 No Longer Available
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Anti-Tip Kit WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Harness, Wire (Top Light) WPL 9751750 Contact Us For Availability
8
Harness, Wire (Dual Oven Light) WPL 9753374 Contact Us For Availability
8
Harness, Wire (Main Harness) (For BS Model) WPL 9755012 Contact Us For Availability
8
Harness, Wire (Main Harness) WPL 9755016 Contact Us For Availability
8
Ha WPL 9755024 Contact Us For Availability
8
WPL 9755025 WPL 9755025 Contact Us For Availability
8
WPL 9755193 WPL 9755193 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9782111 WPL 9782111 Contact Us For Availability
8
WPL 9782183 WPL 9782183 Contact Us For Availability
8
WPL 9782443 WPL 9782443 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
10
Board, Power WPL 9782437 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Shield, Control Panel WPL 9755021 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
Switch, Interloc WPL 9754291 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw WPL 9750887 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Cooktop, Ceran (Designer White) WPL 9755005CW Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Screw WPL 9751871 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Ballast, Light WPL 3191044 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Ground Strap WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
20
Backsplash (Black) WPL 9781896GB Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
21
Screw WPL 423247 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Receptacle, Light WPL 9752760 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (Black) WPL 9781884FB Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (Biscuit) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (White) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (Black) WPL 9781885FB Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (Biscuit (Lef WPL 9781885FC Contact Us For Availability
27
Endcap, Backsplash (Right Hand) (W WPL 9781885FW Contact Us For Availability
28
WPL 9751327 WPL 9751327 Contact Us For Availability
28
WPL 9751632 WPL 9751632 Contact Us For Availability
28
WPL 9753320 WPL 9753320 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
29
WPL 9781118 WPL 9781118 Contact Us For Availability
30
Relay, Dlb. WPL 9755194 Contact Us For Availability
30
WPL 9751275PB WPL 9751275PB Contact Us For Availability
30
WPL 9751275PC WPL 9751275PC Contact Us For Availability
30
WPL 9751275PW WPL 9751275PW Contact Us For Availability
30
WPL 9751276PB WPL 9751276PB Contact Us For Availability
30
WPL 9751276PC WPL 9751276PC Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
31
WPL 9750866 WPL 9750866 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
WPL 9781154 WPL 9781154 Contact Us For Availability
32
WPL 9782021 WPL 9782021 Contact Us For Availability
33
WPL 9781460 WPL 9781460 Contact Us For Availability
33
Sheild, Heat WPL 9782326 Contact Us For Availability
34
WPL ARI86372A8 WPL ARI86372A8 Contact Us For Availability
34
WPL 9753291 WPL 9753291 Contact Us For Availability
34
Fan Duct, Cover WPL 9782329 Contact Us For Availability
35
WPL 9753329 WPL 9753329 Contact Us For Availability
36
WPL 9753293 WPL 9753293 Contact Us For Availability
36
Screw WPL 9751808 Contact Us For Availability
37
WPL 9750613PB WPL 9750613PB Contact Us For Availability
37
Screw WPL 9781509 Contact Us For Availability
38
WPL 9750614PB WPL 9750614PB Contact Us For Availability
× ![]()
