Model Whirlpool KERC601HWH1 COOKTOP – Common Parts & Diagrams

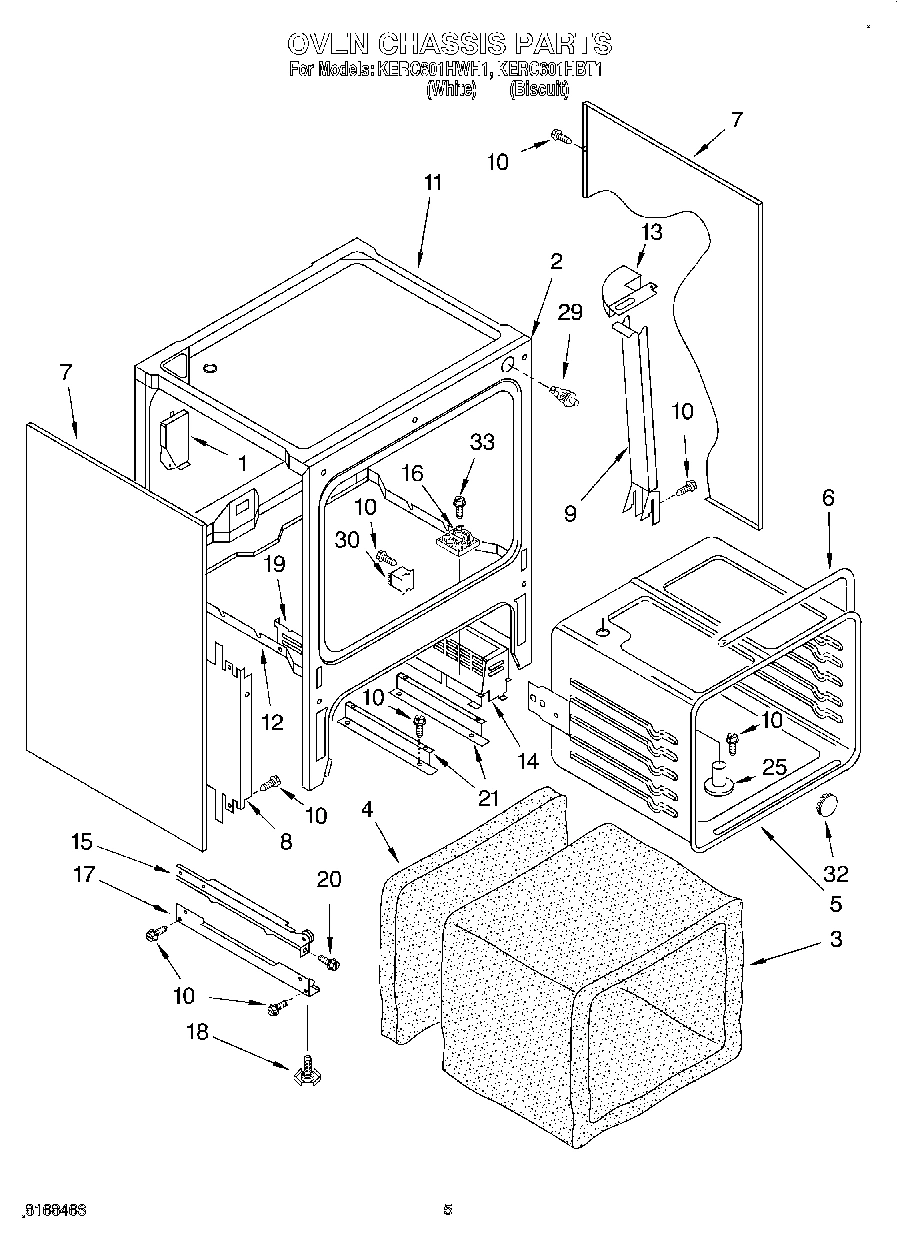

03 - OVEN CHASSIS

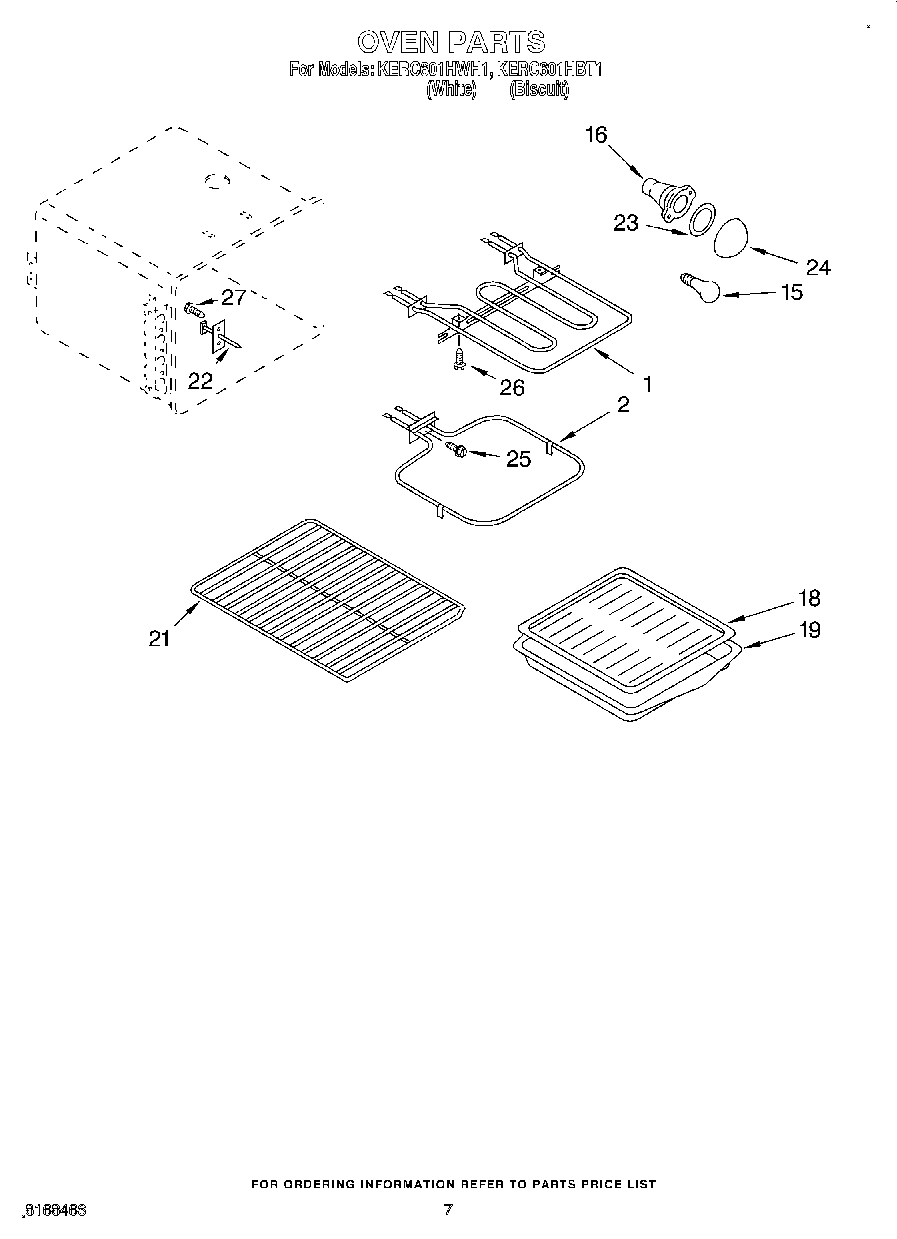

04 - OVEN
06 - CONTROL PANEL, OPTIONAL
01 - COOKTOP, LITERATURE
02 - DOOR AND DRAWER
05 - REAR CHASSIS
Common parts from model Whirlpool KERC601HWH1 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752043 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753028 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753845 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Gasket, Silicone WPL 9781614 Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9750631PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
3
Screw, 8-18 x 1/2 WPL 9780271 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9750632PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
End Cap (Biscuit, Left) WPL 9751279FC Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Biscuit, Right) WPL 9751280FC Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
10
Washer, No.10 Lock WPL 424238 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Block, Balance WPL 9753413 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
WPL 9781769 WPL 9781769 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Harvest Gold WPL 261890 Contact Us For Availability
23
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
23
Clip, Ground Wire WPL 313660 Contact Us For Availability
23
WPL 72108 WPL 72108 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750376 WPL 9750376 Contact Us For Availability
23
WPL 9751868 WPL 9751868 Contact Us For Availability
23
WPL 9752954 WPL 9752954 Contact Us For Availability
23
WPL 9754000 WPL 9754000 Contact Us For Availability
23
WPL 9754011 WPL 9754011 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 9781655 WPL 9781655 Contact Us For Availability
23
WPL 9781767 WPL 9781767 Contact Us For Availability
23
WPL 9781932 WPL 9781932 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Left) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash (White, Left) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Right) WPL 9781885FC Contact Us For Availability
27
Endcap, Backsplash (White, Right) WPL 9781885FW Contact Us For Availability
28
Cover, Light (White) WPL 9751327 Contact Us For Availability
28
Cover, Light (Biscuit) WPL 9753320 Contact Us For Availability
28
Retainer, Glass (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
Channel, Heat WPL 9750693 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Trim, Cooktop (Biscuit, Right) WPL 9751275PC Contact Us For Availability
30
Trim, Cooktop (White (Right)) WPL 9751275PW Contact Us For Availability
30
Trim, Cooktop (Biscuit, Left) WPL 9751276PC Contact Us For Availability
30
(Trim, Cooktop Left) (White) WPL 9751276PW Contact Us For Availability
30
Baffle, Glass WPL 9781592 Contact Us For Availability
32
WPL 9753910CW WPL 9753910CW Contact Us For Availability
32
Glass, Backsplash (Bisc WPL 9753910CC Contact Us For Availability
35
WPL 9751871 WPL 9751871 Contact Us For Availability
36
WPL 3149333 WPL 3149333 Contact Us For Availability
× ![]()
