Model Whirlpool KERC601HWH0 COOKTOP – Common Parts & Diagrams
02 - DOOR AND DRAWER
01 - COOKTOP, LITERATURE

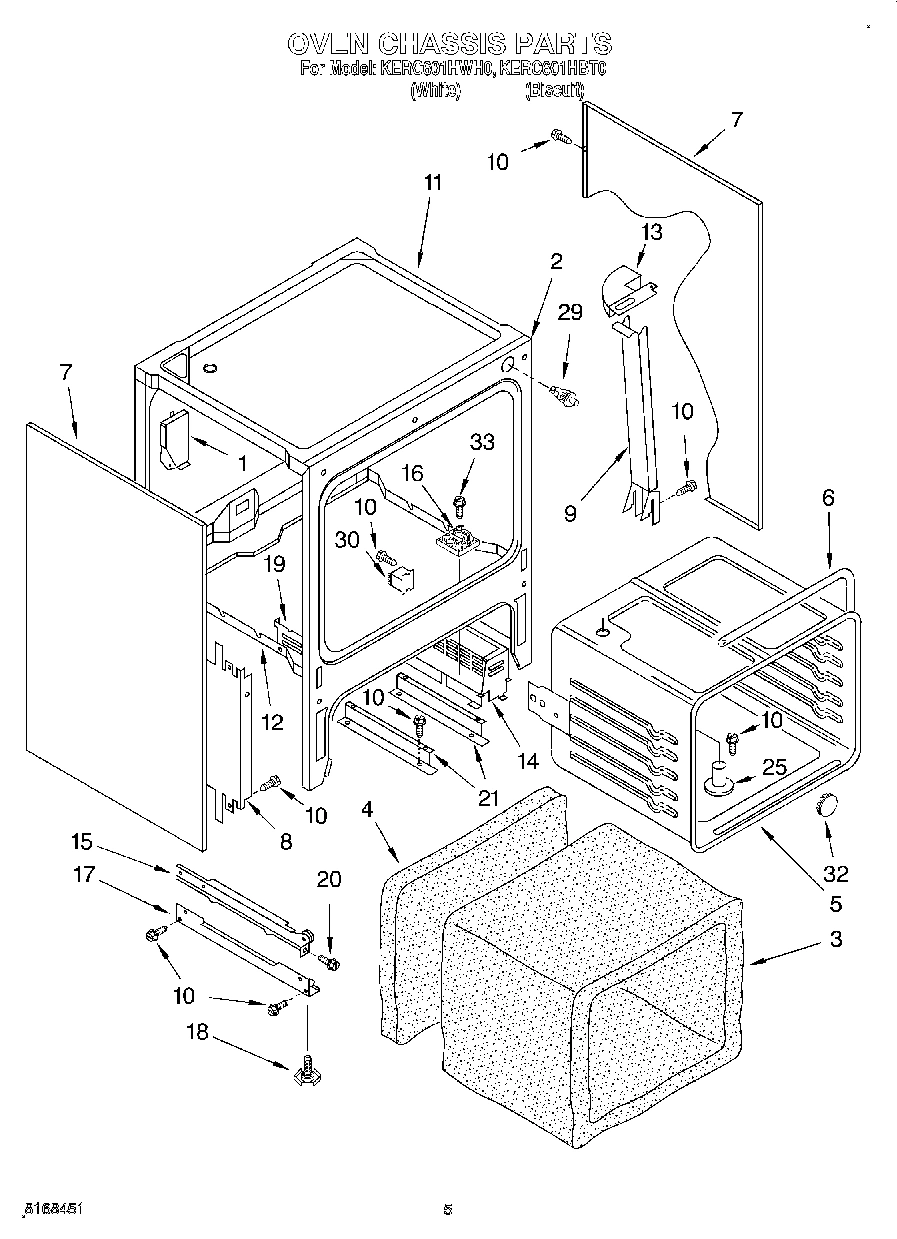

03 - OVEN CHASSIS

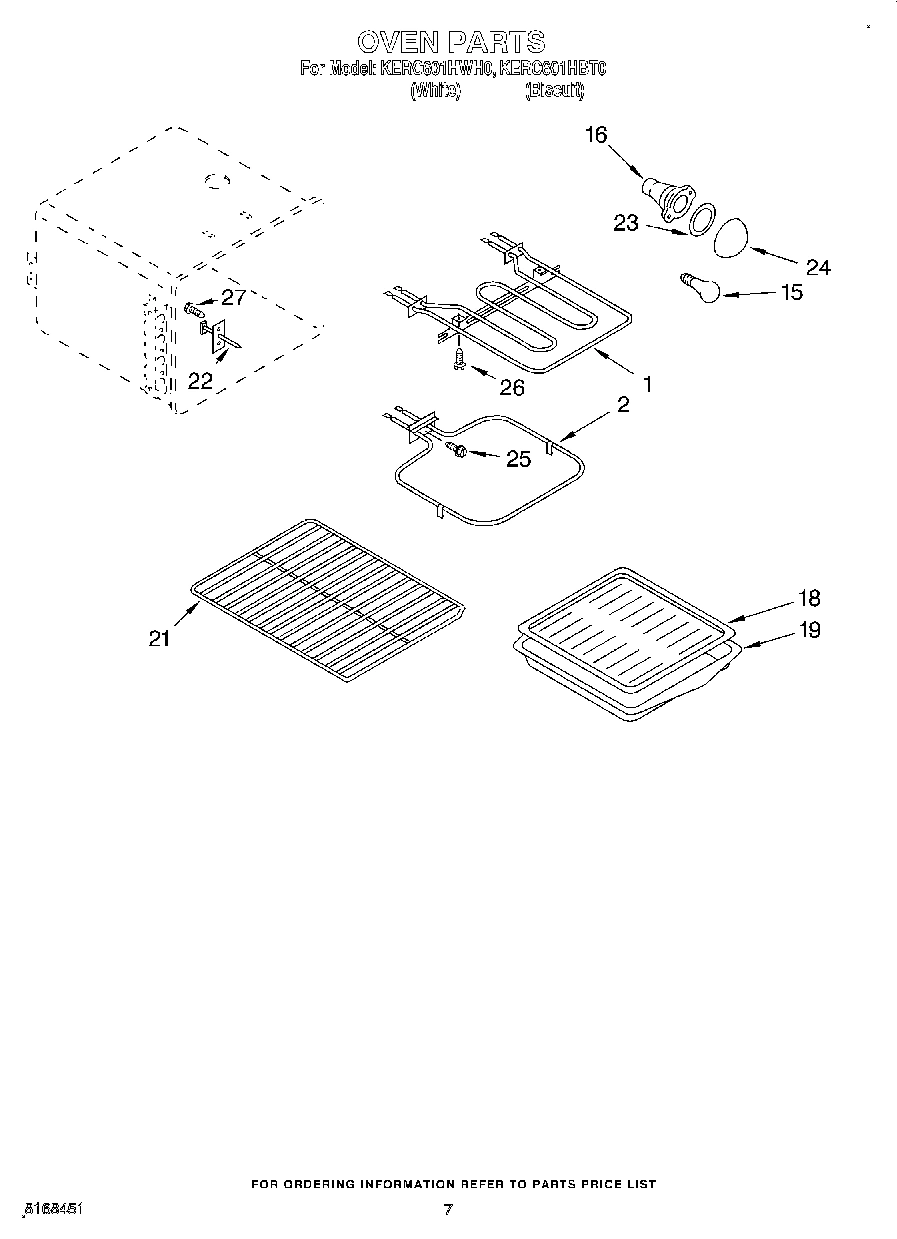

04 - OVEN

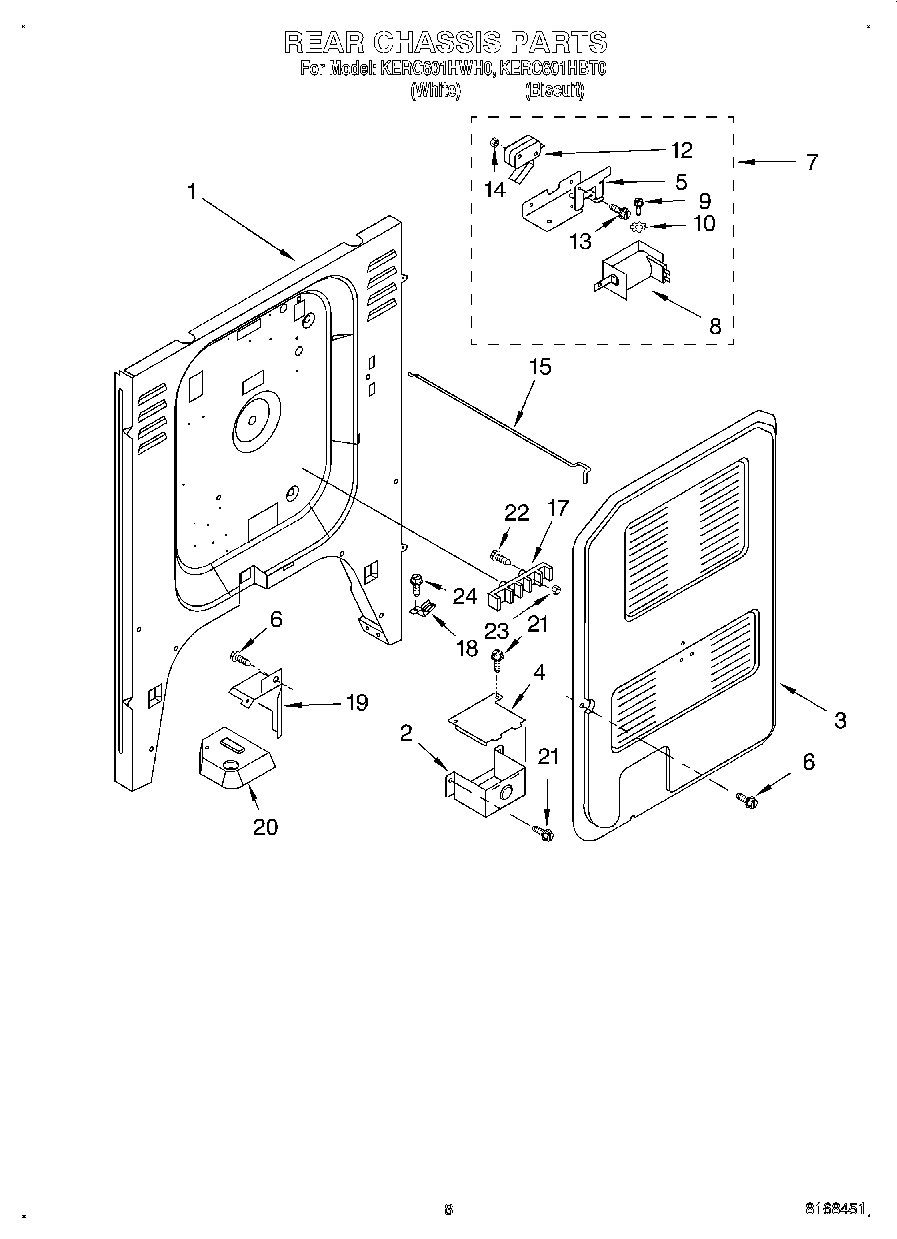

05 - REAR CHASSIS

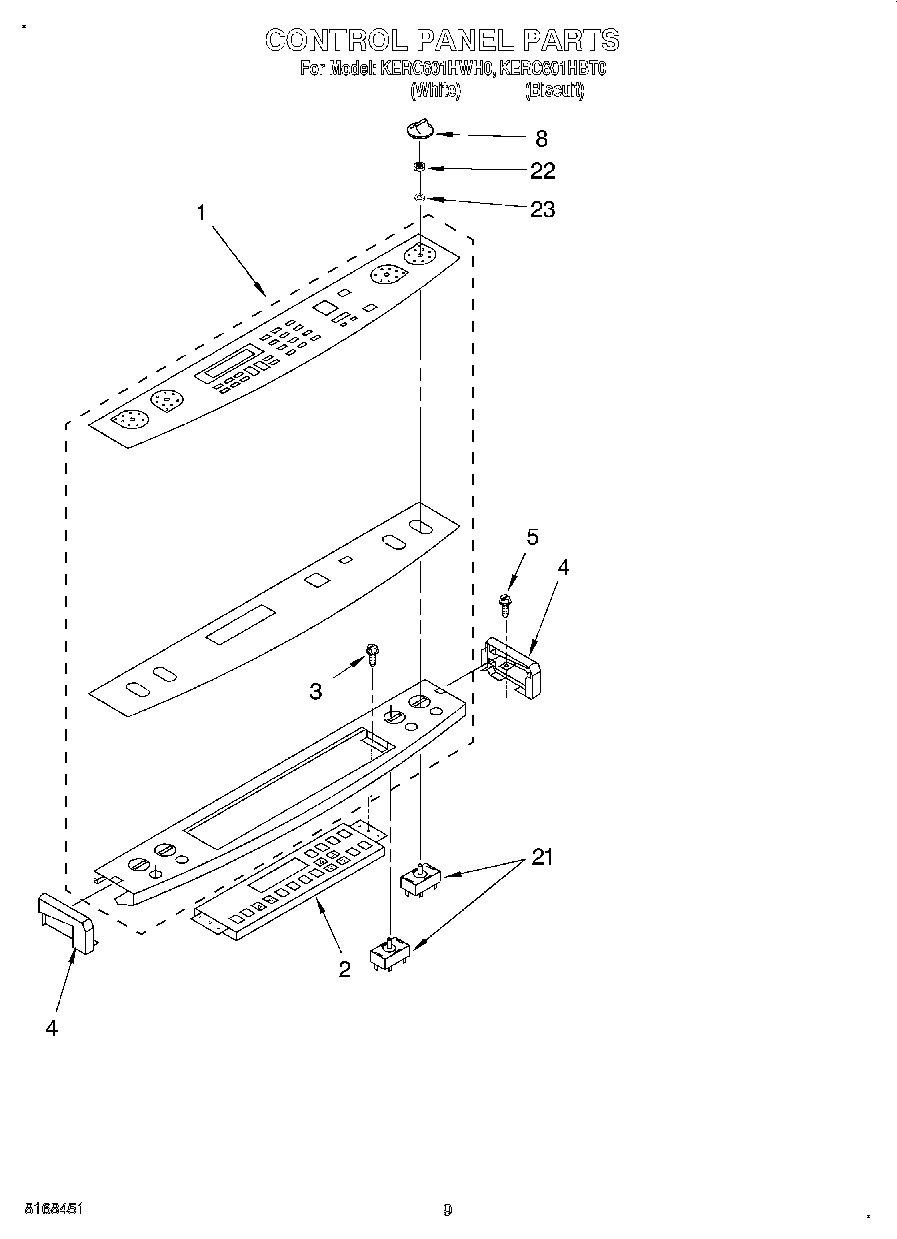

06 - CONTROL PANEL, OPTIONAL
Common parts from model Whirlpool KERC601HWH0 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753028 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753845 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9753895CC Contact Us For Availability
1
Console, Glass (White) WPL 9753895CW Contact Us For Availability
1
Console, Glass (Spacer) WPL 9781488 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Gasket, Silicone WPL 9781614 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Timer, Electronic WPL 3191107 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Screw, 8-18 x 1/2 WPL 9780271 Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
End Cap (Biscuit, Left) WPL 9751279FC Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Biscuit, Right) WPL 9751280FC Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Insulation, Side WPL 9752654 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
10
Washer, No.10 Lock WPL 424238 Contact Us For Availability
11
Element, Surface (2200W - RR) WPL 9753663 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
20
Block, Balance WPL 9753413 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
21
Rail, Support WPL 9781904 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Limiter, Temp. (LF) WPL 3191966 Contact Us For Availability
22
Limiter, Temp. (LR-RF-RR) WPL 8053620 Contact Us For Availability
22
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
23
WPL W10355051 No Longer Available
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 799344 WPL 799344 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
WPL 9750222 WPL 9750222 Contact Us For Availability
23
WPL 9750221 WPL 9750221 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Harvest Gold WPL 261890 Contact Us For Availability
23
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
23
WPL 72108 WPL 72108 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750376 WPL 9750376 Contact Us For Availability
23
WPL 9751750 WPL 9751750 Contact Us For Availability
23
WPL 9751868 WPL 9751868 Contact Us For Availability
23
WPL 9753382 WPL 9753382 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 9781655 WPL 9781655 Contact Us For Availability
23
WPL 9781767 WPL 9781767 Contact Us For Availability
23
WPL 9781842 WPL 9781842 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Left) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash (White, Left) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Right) WPL 9781885FC Contact Us For Availability
27
Endcap, Backsplash (White, Right) WPL 9781885FW Contact Us For Availability
28
Cover, Light (White) WPL 9751327 Contact Us For Availability
28
Cover, Light (Biscuit) WPL 9753320 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Trim, Cooktop (Biscuit, Right) WPL 9751275PC Contact Us For Availability
30
Trim, Cooktop (White (Right)) WPL 9751275PW Contact Us For Availability
30
Trim, Cooktop (Biscui WPL 9751276PC Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
32
WPL 9753910C WPL 9753910C Contact Us For Availability
32
WPL 9753910CC WPL 9753910CC Contact Us For Availability
32
Button, Plug WPL 9780578 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
35
WPL 9751871 WPL 9751871 Contact Us For Availability
36
WPL 3149333 WPL 3149333 Contact Us For Availability
× ![]()
